Description

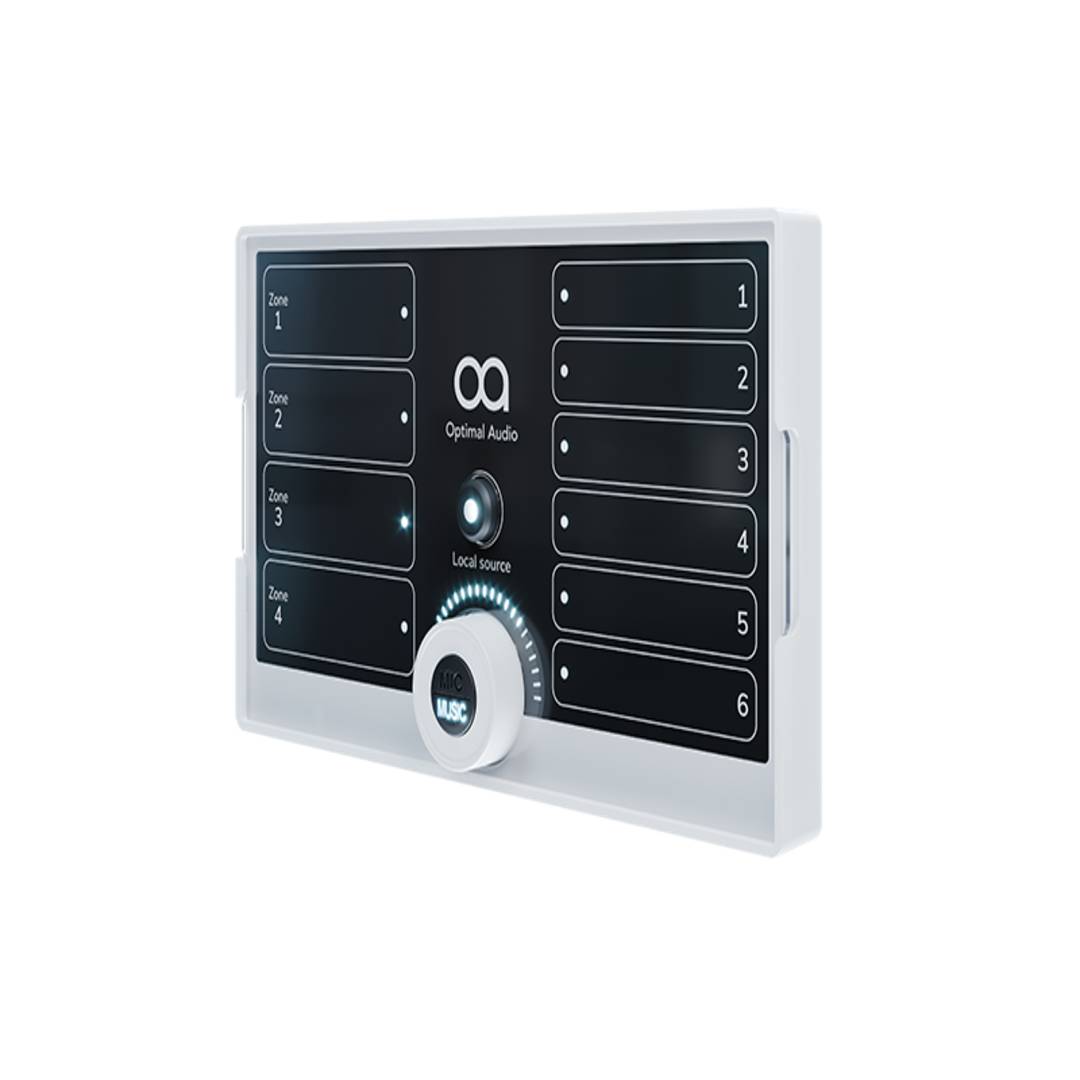

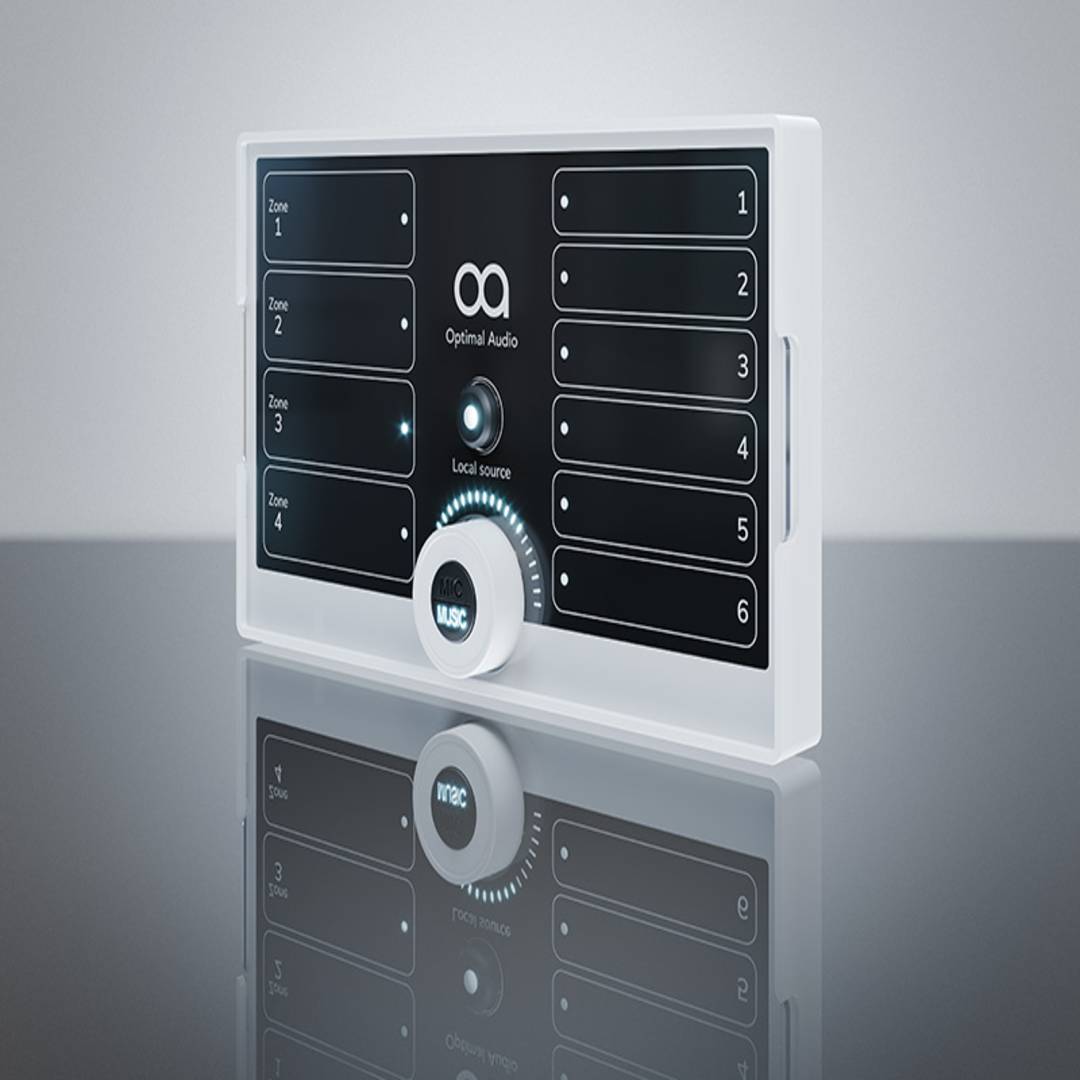

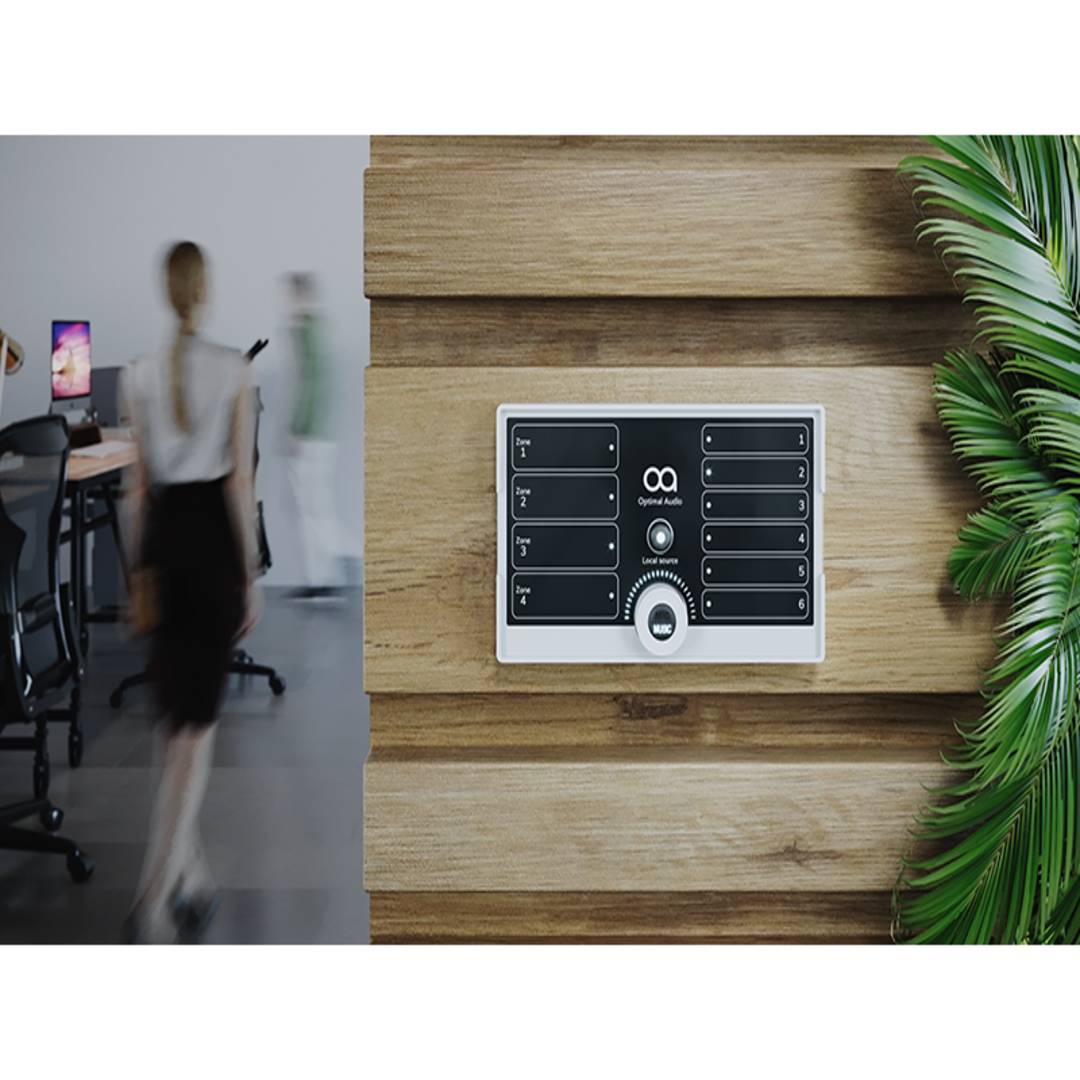

The ZonePad 4 is a versatile wall-mounted controller designed to provide convenient remote control of up to four audio zones from a single location. Featuring a contemporary design, touch-sensitive controls, and an intuitive user interface, it allows users to easily manage zone functions and daily audio operations. The controller can be configured to suit specific venue requirements, with programmable zone buttons that can also be assigned to custom routines such as instant message replay. Ideal for hospitality, retail, education, and commercial environments, the ZonePad 4 delivers flexible and user-friendly multi-zone control.
More Information
Key Features
- 4-zone wall controller
- Remote control of up to four audio zones
- Contemporary design suitable for any décor
- Intuitive touch-sensitive control interface
- Easy configuration to match venue requirements
- Quick access to everyday audio functions
- Programmable zone control buttons
- Zone buttons can be assigned to custom routines
- Supports instant message replay activation
- Long-distance CAT5 connectivity
- Seamless integration with Optimal Audio systems
- Simple installation and operation
- Cost-effective multi-zone control solution
Technical Specifications
- Type: 4 Zone Wall Controller
- Maximum CAT5 Cable Distance: 500m
- Connection: RJ45
- Data Protocol: Optimal Audio Proprietary Protocol over CAT5
- Case Material: Zinc-Plated Steel and ABS
- Lens Material: Clear Acrylic
- Back Box Compatibility: 2-Gang UK/EURO 20mm Deep Back Box or 3-Gang US Back Box (using US ZonePad Adapter Plate)
- Dimensions: 146mm (W) × 86.2mm (H) × 39.3mm (D)
- Dimensions (Imperial): 5.75″ (W) × 3.39″ (H) × 1.55″ (D)
- Weight: 0.35kg (0.8 lbs)
