Description

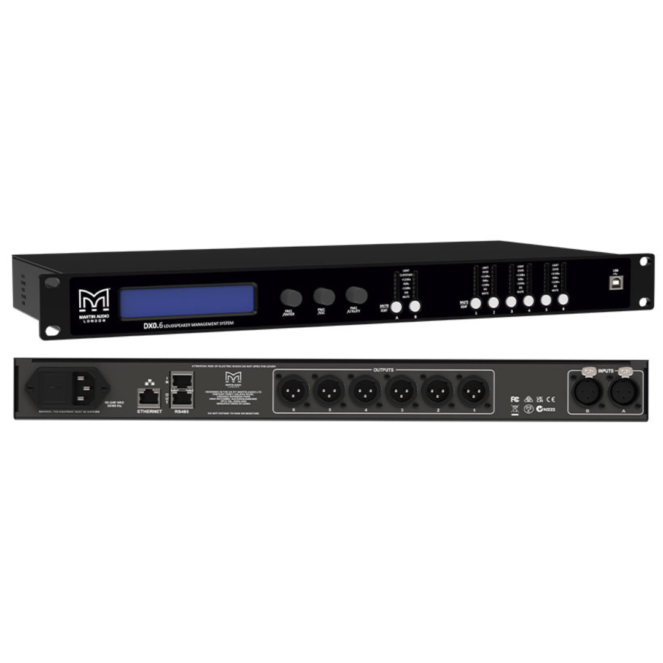

The Martin Audio DX0.6 is a powerful and cost-effective loudspeaker management processor designed to partner seamlessly with the ADORN, CDD, and BlacklineX series loudspeakers. Offering comprehensive system control, signal routing, protection, and optimization features, the DX0.6 provides advanced DSP processing in a compact 1U rack-mount format. With flexible 2-input, 6-output architecture, extensive EQ options, FIR filter support, and sophisticated limiting functions, it is an ideal solution for professional audio systems requiring precise control and reliable loudspeaker protection.
More Information
Key Features
- Professional loudspeaker management processor
- 2-input, 6-output DSP architecture
- 96kHz high-resolution processing
- Comprehensive system control and loudspeaker protection
- 10-band input parametric EQ
- 8-band output parametric EQ
- FIR filter import capability
- Flexible signal routing matrix
- Advanced delay management
- Program and peak limiters
- Signal generator with white and pink noise
- Ethernet, USB and RS485 control connectivity
- Suitable for ADORN, CDD and BlacklineX systems
- Compact 1U rack-mount design
Technical Specifications
- Input Impedance: 20kΩ Balanced
- Output Impedance: 100Ω
- Maximum Input Level: +20dBu
- Maximum Output Level: +18dBu
- Crosstalk: < -95dB
- Sample Rate: 96kHz
- Signal-to-Noise Ratio: >113dB (A-Weighted)
- Noise Floor: < -94dB (A-Weighted)
- Common Mode Rejection Ratio: 60dB
- Frequency Response: 20Hz – 40kHz (+0.3dB)
- Input A/D Dynamic Range: 118dB
- Output D/A Dynamic Range: 118dB
- THD (+4dBu, 1kHz): <0.003%
- Mains Voltage Range: 85 – 230VAC, 50/60Hz
- Nominal Power Consumption: 30W
Connectivity
- Audio Inputs:
- 2 × Female 3-Pin XLR
- Audio Outputs:
- 6 × Male 3-Pin XLR
- Ethernet:
- Shielded RJ45
- Dynamic or Static IP
- RS485:
- 2 × RJ45
- USB:
- 1 × USB Type-B (Front Panel)
- Mains Input:
- 3-Pin IEC
DSP Processing
- Signal Generator:
- White Noise
- Pink Noise
- Output Level: -30dBu to +10dBu
- Gain Control:
- -18dB to +12dB
- 0.1dB Step Accuracy
- Input Equalisation:
- 10-Band Parametric EQ
- Gain Range: ±15dB
- 14 Filter Types
- Input Gate:
- Threshold: -40dBu to -80dBu
- Attack: 1ms to 1000ms
- Release: 1ms to 1000ms
- Routing:
- Freely Assignable 2-In / 6-Out Matrix
- Up to 30dB Attenuation per Node
- Delay:
- Input Delay: Up to 600ms
- Output Delay: Up to 200ms
- Resolution: 20µs
- Units: Milliseconds, Metres, Feet
- Output Filters:
- High-Pass and Low-Pass Filters
- Slopes from -6dB/Oct to -48dB/Oct
- Filter Types:
- Butterworth
- Bessel
- Linkwitz-Riley
- Output Equalisation:
- 8-Band Parametric EQ
- Gain Range: ±15dB
- 14 Filter Types
- FIR Filter Import: Supported
Limiting Functions
- Program Limiter:
- Threshold: -10dBu to +20dBu
- Attack: 1ms to 1000ms
- Release: 10ms to 3000ms
- Peak Limiter:
- Threshold: 0 to 12dB Above Program Limiter Threshold
- Release Modes:
- Fast (91ms)
- Medium (350ms)
- Slow (800ms)
Physical Specifications
- Height: 1U Rack Space (44mm / 1.75″)
- Width: 482mm (19″)
- Depth: 230mm (9.1″)
- Weight: 3.0kg (6.6lbs)
