Description

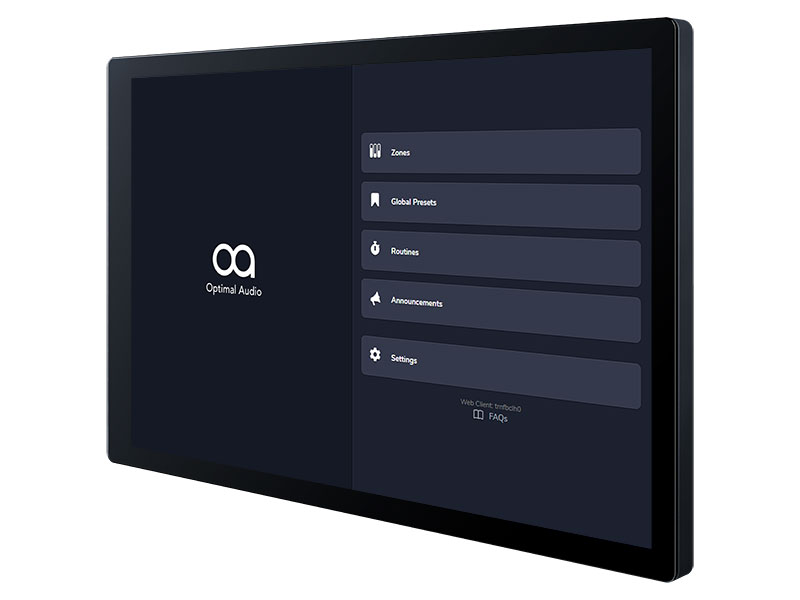

The ZonePad 8 is a modern touchscreen wall controller designed to provide intuitive and centralized control of multi-zone audio systems. Featuring an 8-inch capacitive touchscreen with tempered glass protection, the controller offers a responsive and user-friendly interface for managing audio zones and system functions. With automatic detection of compatible Zone controllers, flexible mounting options, and support for both wired and wireless network connectivity, the ZonePad 8 delivers a powerful and elegant control solution for hospitality, retail, corporate, education, and public venue applications.
More Information
Key Features
- 8-zone touchscreen wall controller
- Large 8-inch capacitive touchscreen display
- Tempered glass front panel
- Durable and impact-resistant construction
- Supports up to 10 simultaneous touch points
- Auto-detection of compatible Zone controllers
- Simple and straightforward installation

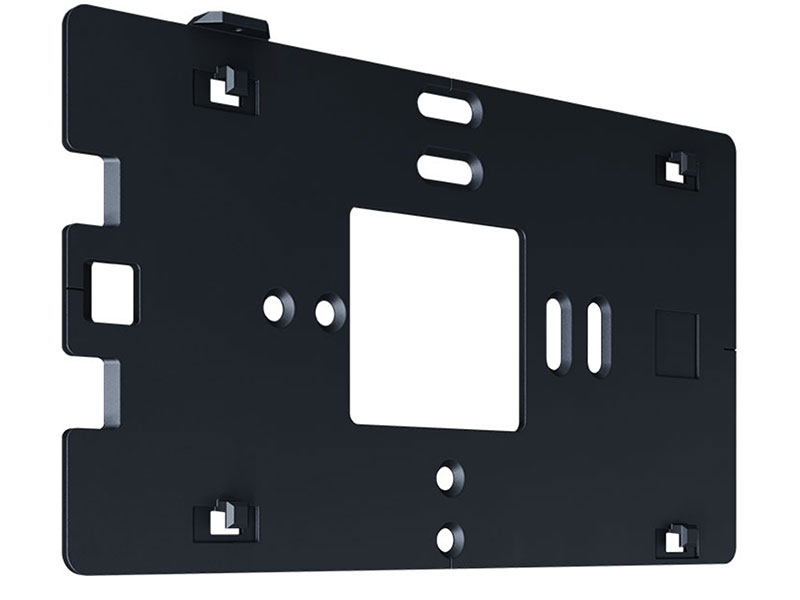

- Flexible mounting options
- Wired and wireless network connectivity
- Power over Ethernet (PoE) support
- Optional 12V power adapter support
- Android 14 operating system
- High-performance quad-core processor
- Modern and intuitive user interface
- Suitable for commercial multi-zone audio installations
Technical Specifications
- Type: 8 Zone Touchscreen Wall Controller
- Display: 8-inch IPS Capacitive Touchscreen
- Touch Points: 10 Multi-Touch Points
- Screen Protection: Tempered Glass
- Impact Resistance: IK2 Standard
- Resolution: 1280 × 800
- Pixel Density: 189 DPI
- Data Protocol: Optimal Audio Proprietary Protocol over CAT5
- WebApp System Connection: Ethernet via RJ45 Adapter or Wireless
- Power Options: PoE or Optional 12V Adapter
