Description

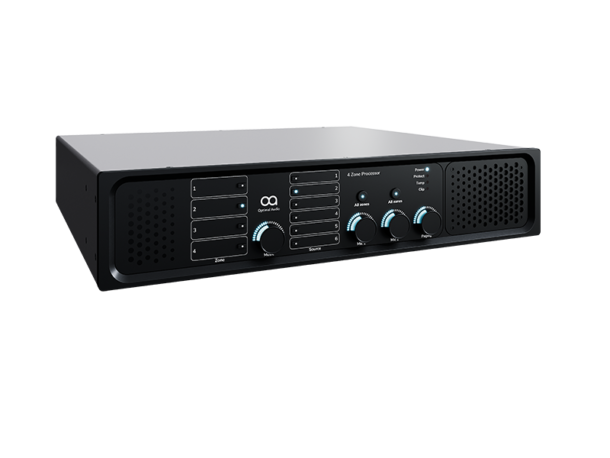

The Zone 4P is an all-in-one 4-zone audio controller that combines advanced DSP processing, integrated amplification, and intuitive WebApp control in a single platform. Designed for commercial audio installations, it offers flexible signal routing, multiple input options, loudspeaker presets, and powerful zone management capabilities. With four channels of built-in 100W amplification, bridgeable outputs for higher power applications, programmable presets, and scheduled events, the Zone 4P provides a versatile and cost-effective solution for retail, hospitality, corporate, education, and public venue environments.
More Information
Key Features
- 4-zone audio controller with integrated DSP
- Built-in amplification and loudspeaker presets
- Full suite of audio controls for up to 4 zones
- Fully flexible signal routing
- Four channels of integrated amplification
- 100W per channel at 4Ω or 8Ω
- Bridgeable amplifier channels
- 200W output at 8Ω in bridged mode
- Suitable for 70V audio applications when bridged
- WebApp interface for system configuration and daily control
- 2 microphone inputs
- 4 stereo line inputs
- 2 HDMI inputs
- Fully programmable presets
- Timed event scheduling
- Paging integration via CAT5 connections
- LAN Ethernet connectivity
- Alarm override capability
- Rack-mount commercial design
- Cost-effective all-in-one audio solution
Technical Specifications
- Type: 4 Zone Audio Processor with DSP, Amplification and Loudspeaker Presets
- Microphone Inputs: 2
- Phantom Power: 48V
- Mic Gain Range: +12dB to +55dB
- Mic Processing: Fixed high-pass filter @ 160Hz
- Mid-Band EQ: Sweepable 200Hz – 5kHz, ±12dB
- High Frequency EQ: HF Shelf @ 12kHz
- Line Inputs: 4 Stereo
- Line Input Gain Trim: Up to +26dB
- Digital Input: SPDIF option on Input 1
- HDMI Inputs: 2
- Line Outputs: 4
- ZonePad Sockets: 4
- Amplifier Channels: 4
- Amplifier Power: 100W per channel at 4Ω or 8Ω
- Amplifier Power (Bridged): 200W @ 8Ω
- Paging Inputs: 2 × CAT5
- LAN Ethernet: 100Mbps
- Alarm Override: Yes
- Width: 480mm (18.90″)
- Height: 88mm (3.46″)
- Depth: 400mm (15.75″)
- Weight: 9.75kg (21.5 lbs)
