Description

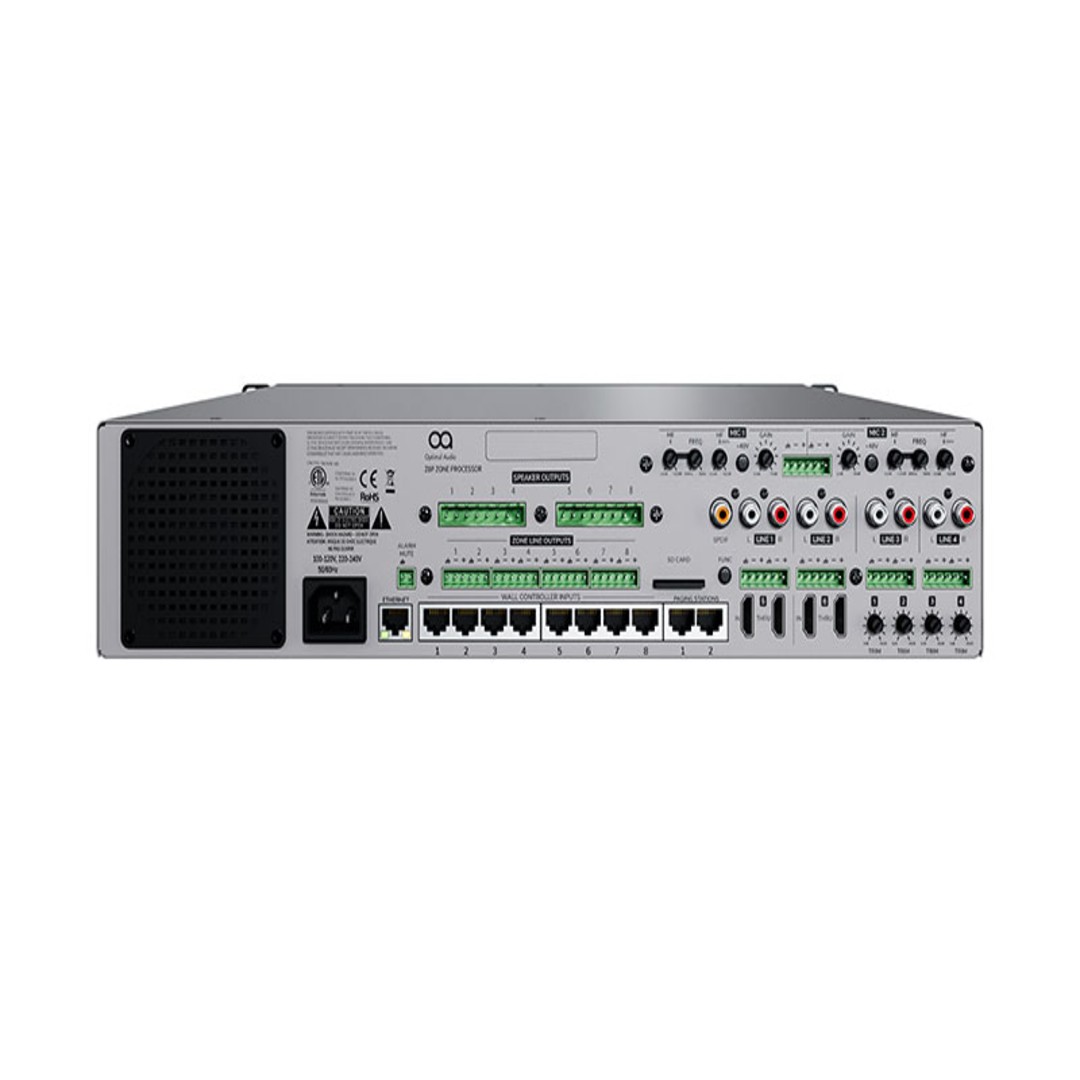

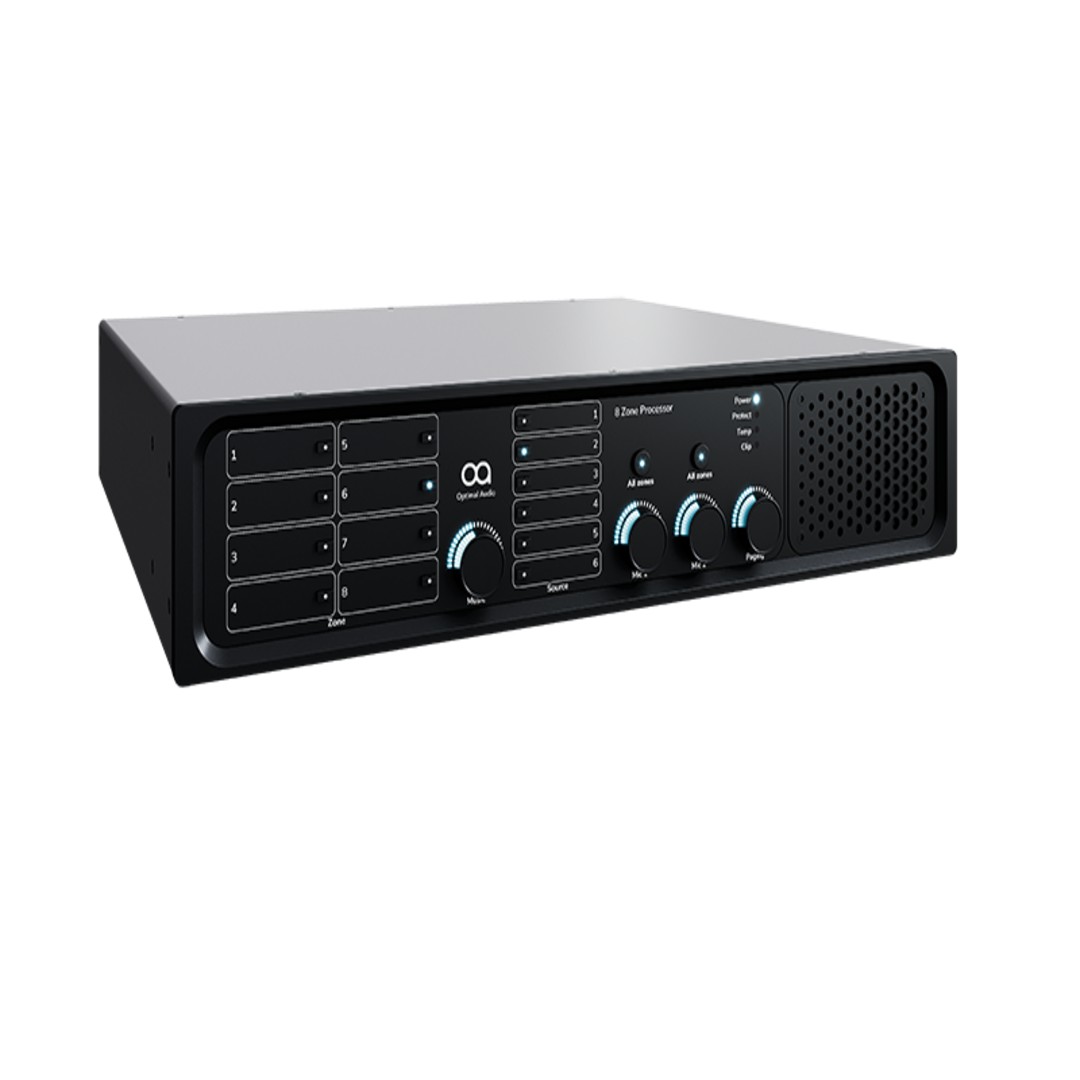

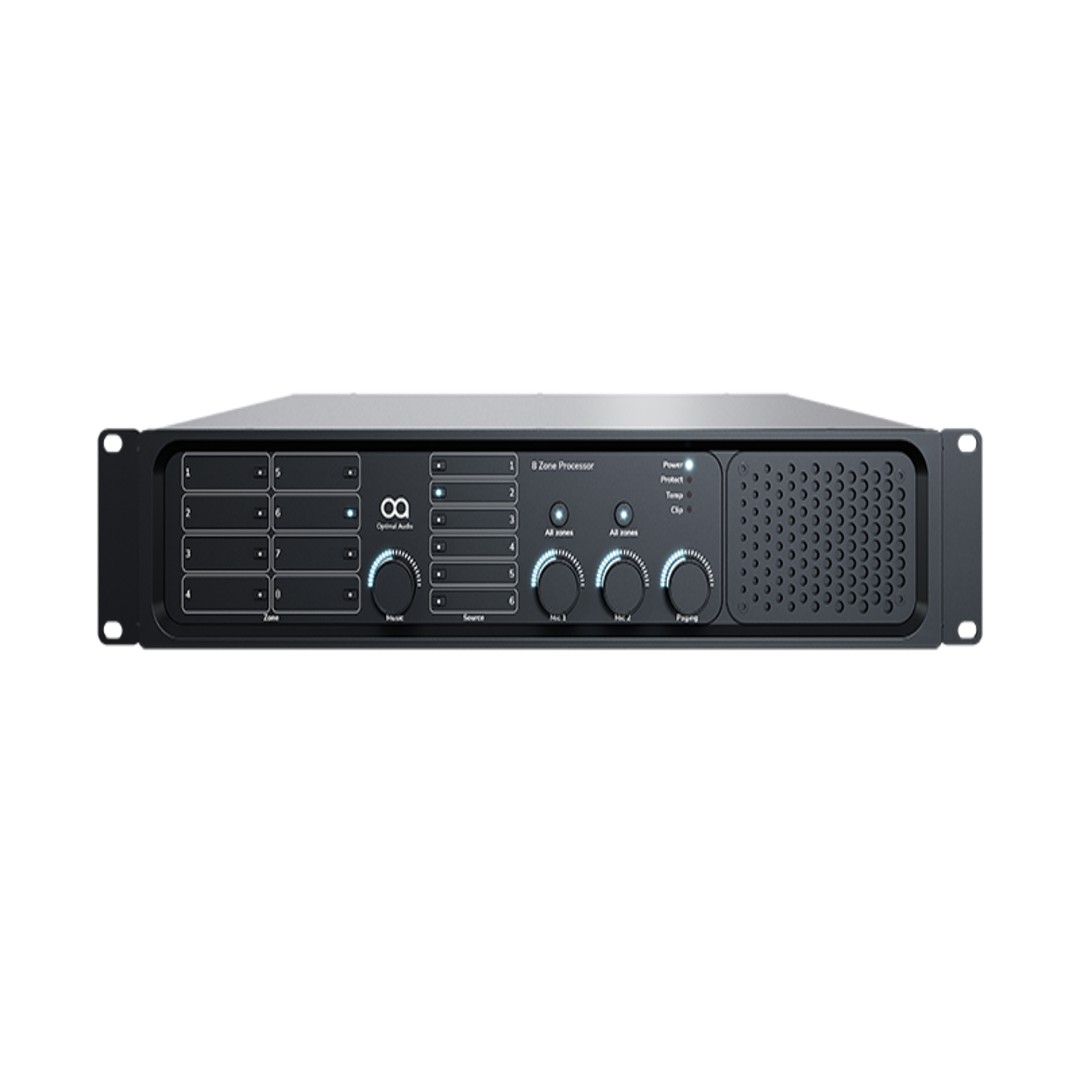

The Zone 8P is a powerful all-in-one 8-zone audio controller that combines advanced DSP processing, integrated amplification, and intuitive WebApp control in a single platform. Designed for medium to large commercial audio installations, it provides flexible signal routing, extensive input options, loudspeaker presets, and comprehensive zone management. Featuring eight channels of built-in 100W amplification, bridgeable outputs for higher-power applications, programmable presets, and scheduled events, the Zone 8P delivers a scalable and cost-effective solution for retail, hospitality, education, corporate, and public venue sound systems.
More Information
Key Features
- 8-zone audio controller with integrated DSP
- Built-in amplification and loudspeaker presets
- Full suite of audio controls for up to 8 zones
- Fully flexible signal routing
- Eight channels of integrated amplification
- 100W per channel at 4Ω or 8Ω
- Bridgeable amplifier channels
- 200W output at 8Ω in bridged mode
- Suitable for 70V audio applications when bridged
- WebApp interface for system configuration and daily control
- 2 microphone inputs
- 4 stereo line inputs
- 2 HDMI inputs
- Fully programmable system presets
- Timed event scheduling
- Paging integration via CAT5 connections
- LAN Ethernet connectivity
- Alarm override functionality
- Commercial-grade rack-mount design
- Scalable solution for large multi-zone audio installations
- Cost-effective all-in-one audio management platform
Technical Specifications
- Type: 8 Zone Audio Processor with DSP, Amplification and Loudspeaker Presets
- Microphone Inputs: 2
- Phantom Power: 48V
- Mic Gain Range: +12dB to +55dB
- Mic Processing: Fixed high-pass filter @ 160Hz
- Mid-Band EQ: Sweepable 200Hz – 5kHz, ±12dB
- High Frequency EQ: HF Shelf @ 12kHz
- Line Inputs: 4 Stereo
- Line Input Gain Trim: Up to +26dB
- Digital Input: SPDIF option on Input 1
- HDMI Inputs: 2
- Line Outputs: 8
- ZonePad Sockets: 8
- Amplifier Channels: 8
- Amplifier Power: 100W per channel at 4Ω or 8Ω
- Amplifier Power (Bridged): 200W @ 8Ω
- Paging Inputs: 2 × CAT5
- LAN Ethernet: 100Mbps
- Alarm Override: Yes
- Width: 480mm (18.90″)
- Height: 88mm (3.46″)
- Depth: 400mm (15.75″)
- Weight: 10.3kg (22.7 lbs)
