Description

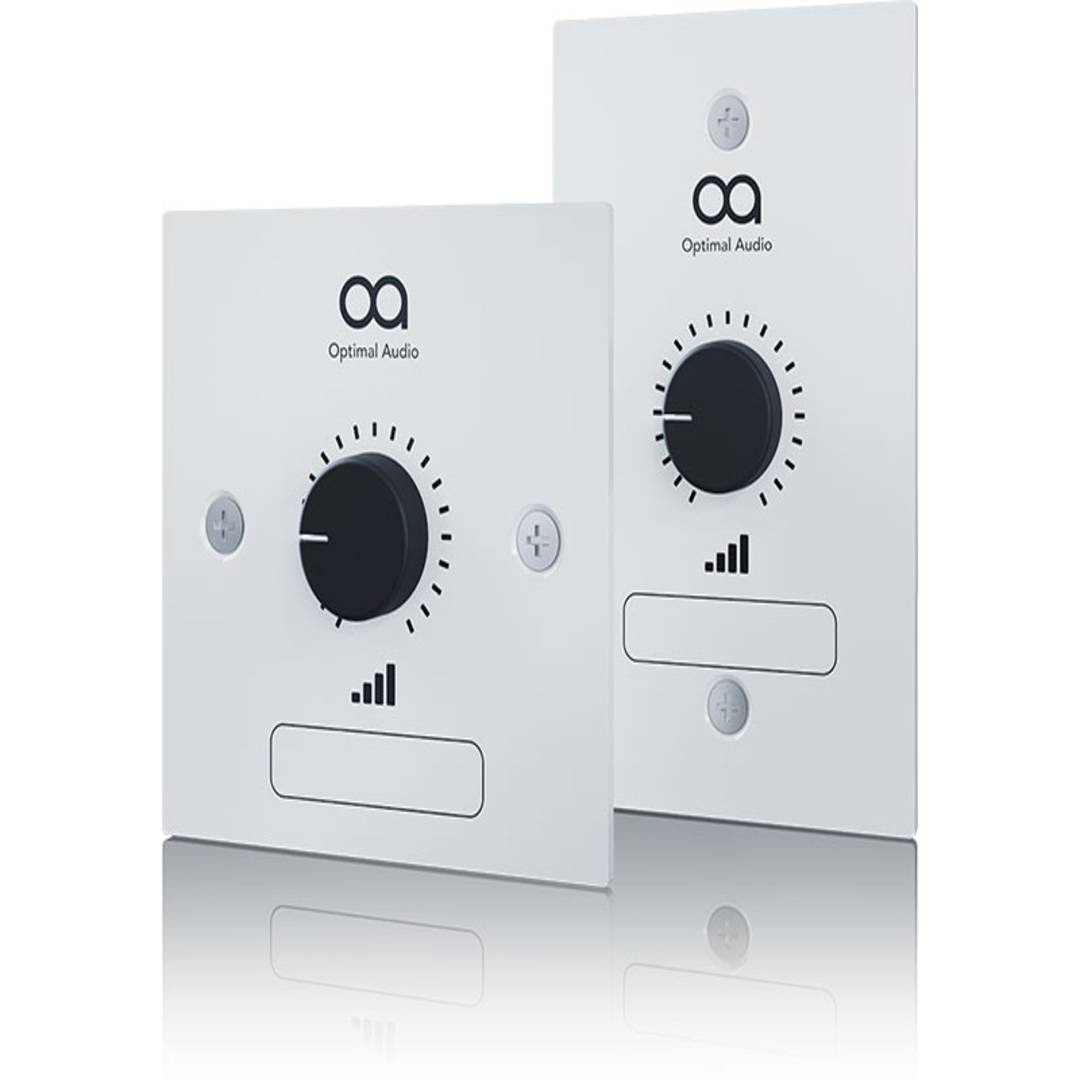

The ZonePad VL1 is a passive analogue volume and level wall controller designed for convenient local audio level adjustment in commercial audio installations. Connecting directly to compatible SmartAmp amplifiers, it provides simple and intuitive control through a single rotary dial without requiring an external power supply. Built with a durable steel construction and clear zone labeling, the ZonePad VL1 offers reliable operation, easy installation, and seamless integration into a wide range of commercial environments. Available in both UK/EU and US formats, it is designed to suit regional installation standards.
More Information
Key Features
- Passive analogue volume and level wall controller
- Direct connection to SmartAmp amplifiers
- Single rotary dial for simple level adjustment
- No external power supply required
- Durable steel construction
- Clear and easy-to-read zone labeling
- Simple installation process
- Compatible with SmartAmp 10, SmartAmp 20, and SmartAmp 30
- Shielded cable support for EMC compliance
- Available in UK/EU single-gang version
- Available in US 1-gang Decora version
- White finish for discreet installation
- Designed for commercial audio applications
Technical Specifications
- Type: Passive Analogue Volume/Level Wall Controller
- Control: Single Rotary Dial
- Connection: 3-Pin Terminal Block
- Power Requirement: Not required (Powered by 3.3V SmartAmp GPIO VCC)
- Cable Requirement: Shielded Cable (Required for EMC Compliance)
- Compatibility: SmartAmp 10, SmartAmp 20, SmartAmp 30
- Case Material: Painted Steel with Silk-Screened Graphics
- Finish: White

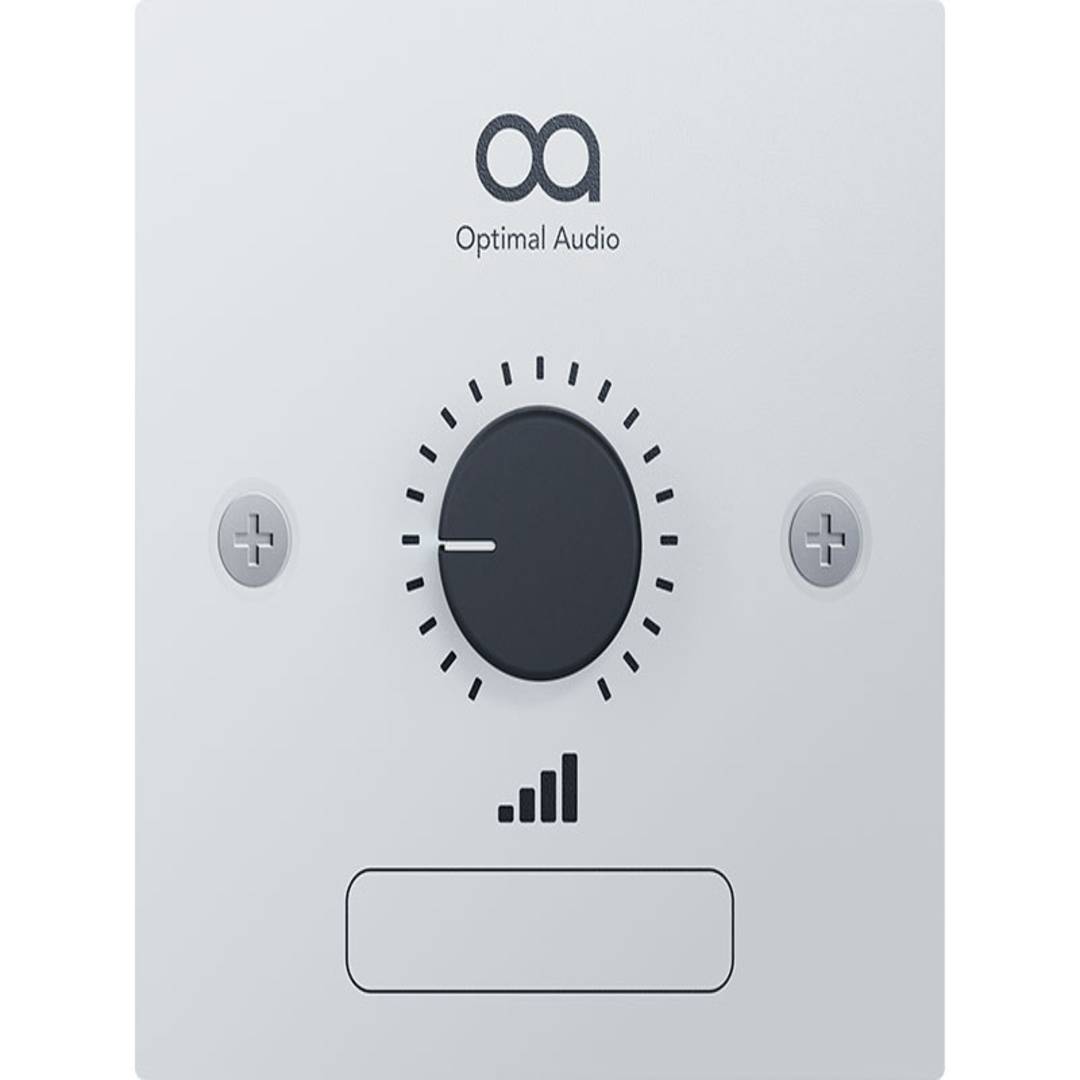

UK Version
- Back Box: UK/EU Single-Gang
- Dimensions: 85.8 mm (W) × 85.8 mm (H) × 21.6 mm (D)
- Fixing Centres: 60.6 mm
- SKU: ZonePad VL1-UK-W

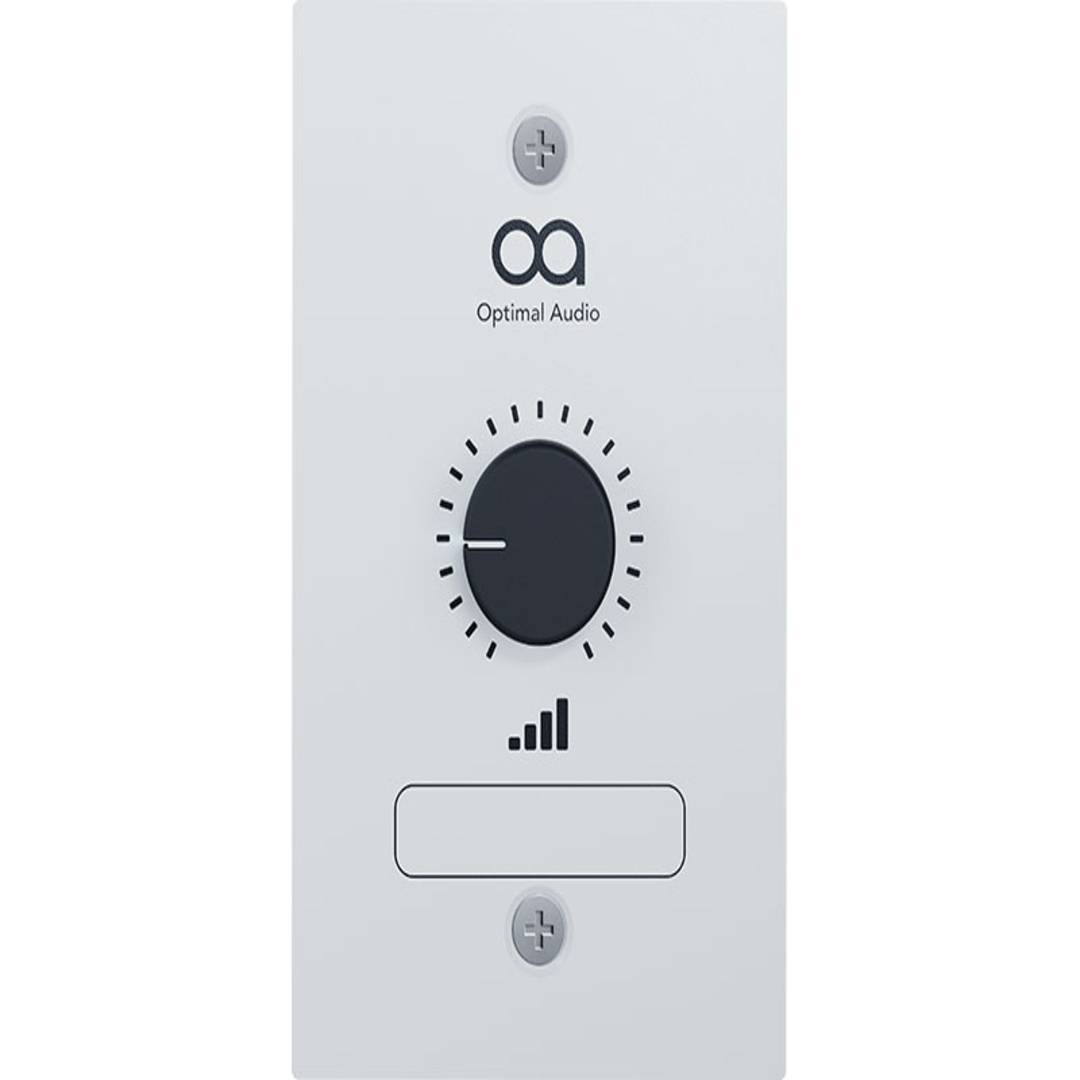

US Version
- Back Box: US 1-Gang Decora
- Dimensions: 70 mm (W) × 114 mm (H) × 21.6 mm (D) (Approx.)
- Fixing Centres: 83 mm
- SKU: ZonePad VL1-US-W
Weight
- Gross Weight: 0.2 kg (0.44 lb)
- Net Weight: 0.14 kg (0.31 lb)
