Description

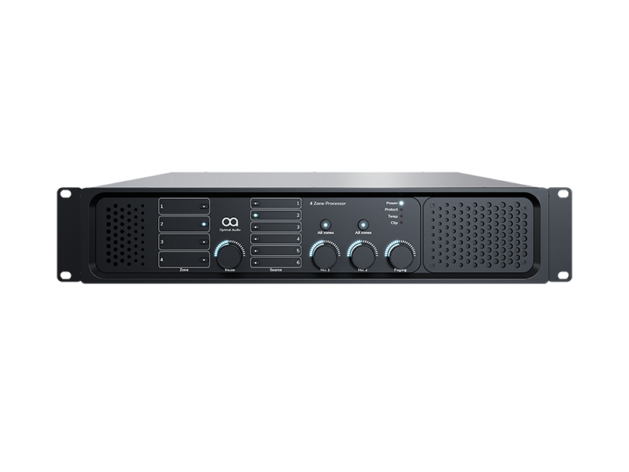

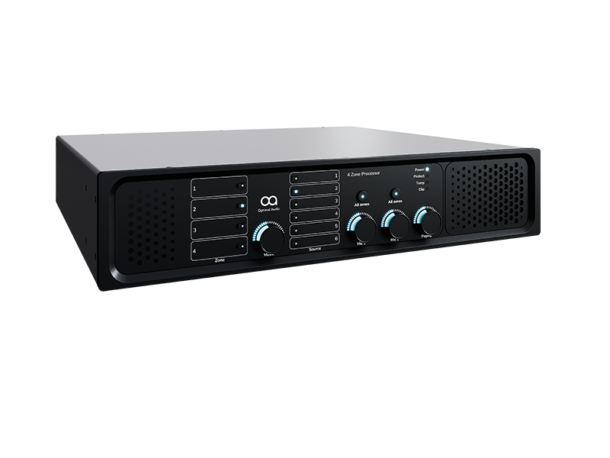

The Zone 4 is a powerful 4-zone audio controller designed to provide complete audio management for commercial sound systems. Featuring advanced DSP processing, flexible signal routing, and an intuitive WebApp interface, it allows easy system configuration and day-to-day operation from any connected device. With multiple microphone, line-level, and HDMI inputs, programmable presets, timed events, and integrated loudspeaker presets, the Zone 4 delivers a versatile and cost-effective solution for retail, hospitality, corporate, education, and public venue installations.
More Information
Key Features
- 4-zone audio controller with integrated DSP
- Full suite of audio controls for up to 4 zones
- Fully flexible signal routing
- WebApp interface for system setup and daily control
- Supports up to 4 independent audio zones
- 2 microphone inputs
- 4 stereo line inputs
- 2 HDMI inputs
- Integrated loudspeaker presets
- Fully programmable system presets
- Timed event scheduling
- Paging integration via CAT5 connections
- LAN Ethernet connectivity
- Alarm override functionality
- Commercial-grade rack-mount design
- Cost-effective solution for multi-zone audio installations

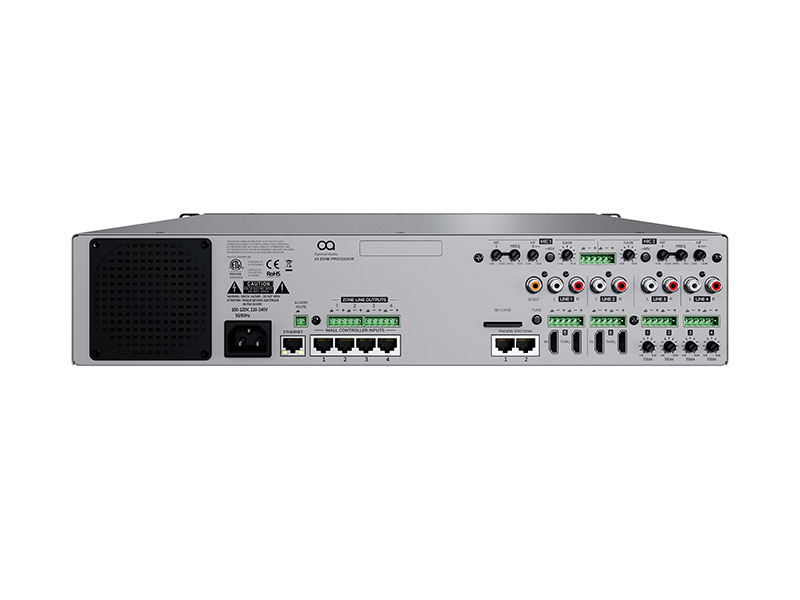

Technical Specifications
- Type: 4 Zone Audio Processor with DSP and Loudspeaker Presets
- Microphone Inputs: 2
- Phantom Power: 48V
- Mic Gain Range: +12dB to +55dB
- Mic Processing: Fixed high-pass filter @ 160Hz
- Mid-Band EQ: Sweepable 200Hz – 5kHz, ±12dB
- High Frequency EQ: HF Shelf @ 12kHz
- Line Inputs: 4 Stereo
- Line Input Gain Trim: Up to +26dB
- Digital Input: SPDIF option on Input 1
- HDMI Inputs: 2
- Line Outputs: 4
- ZonePad Sockets: 4
- Paging Inputs: 2 × CAT5
- LAN Ethernet: 100Mbps
- Alarm Override: Yes
- Width: 480mm (18.90″)
- Height: 88mm (3.46″)
- Depth: 400mm (15.75″)
- Weight: 9.2kg (20.2 lbs)
