Description

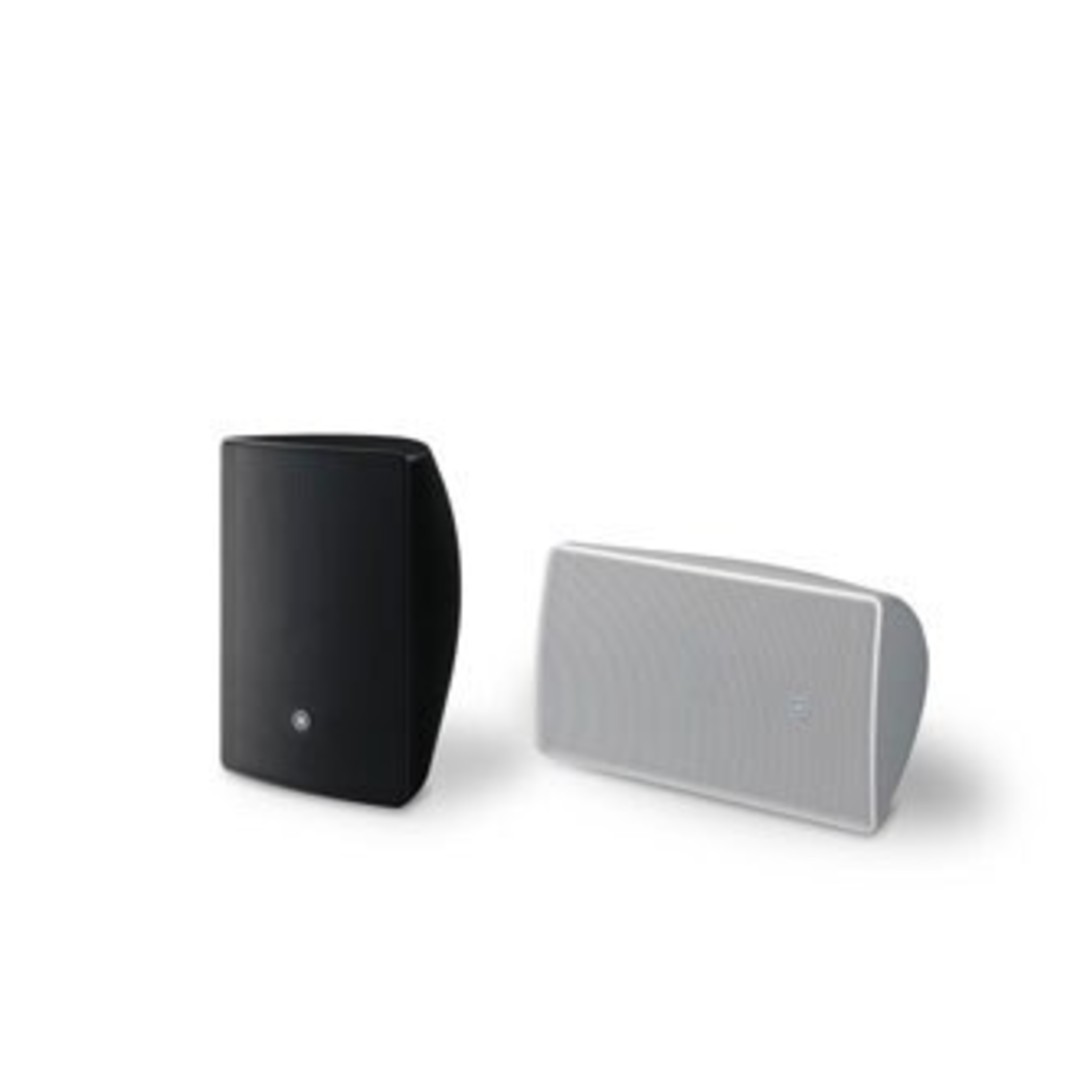

The VXS5-VA and VXS5-VAW are EN54-24 certified compact surface-mount speakers designed for voice alarm, emergency evacuation, and commercial audio applications. Featuring wide sound dispersion, weather-resistant construction, and transformer support, these speakers provide reliable performance for safety and public address systems.
More Information
Key Features
- EN54-24 certified voice alarm speaker
- Compact 2-way bass-reflex design
- 5.25-inch woofer with 0.75-inch soft dome tweeter
- Wide 120° × 120° coverage
- Built-in 70V / 100V transformer
- Ceramic terminal block connection
- IP35 weather resistance
- Wall and ceiling mounting support
- Available in black and white finishes
Technical Specifications
- Speaker Type: 2-way bass-reflex
- Frequency Range: 62 Hz – 20 kHz
- Coverage Angle: 120° Horizontal × 120° Vertical
- Crossover Frequency: 3 kHz
Components
- LF Driver: 5.25-inch cone
- HF Driver: 0.75-inch soft dome tweeter
Power Ratings
- Noise Power: 75W
- Program Power: 150W
Electrical Specifications
- Nominal Impedance: 8Ω
- Transformer Taps (100V): 30W / 15W / 7.5W
- Transformer Taps (70V): 30W / 15W / 7.5W / 3.8W
SPL Performance
- Sensitivity: 88 dB SPL
- Peak SPL: 113 dB SPL

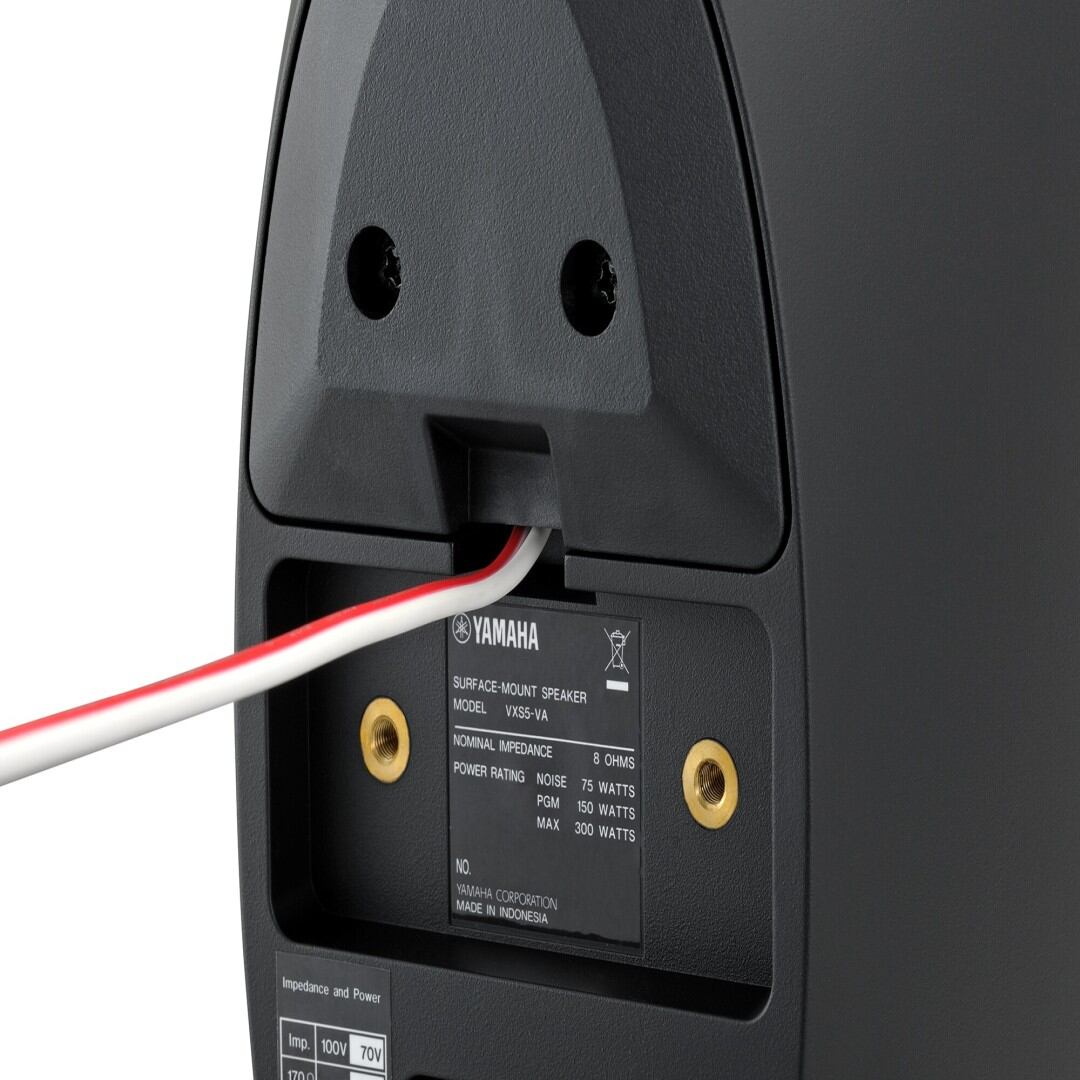

Connectivity
- Ceramic terminal block (3-pin)
- Input terminals: + / – / Earth
Construction & Finish
- Cabinet Material: ABS
- Waterproof Rating: IP35
- Finish:

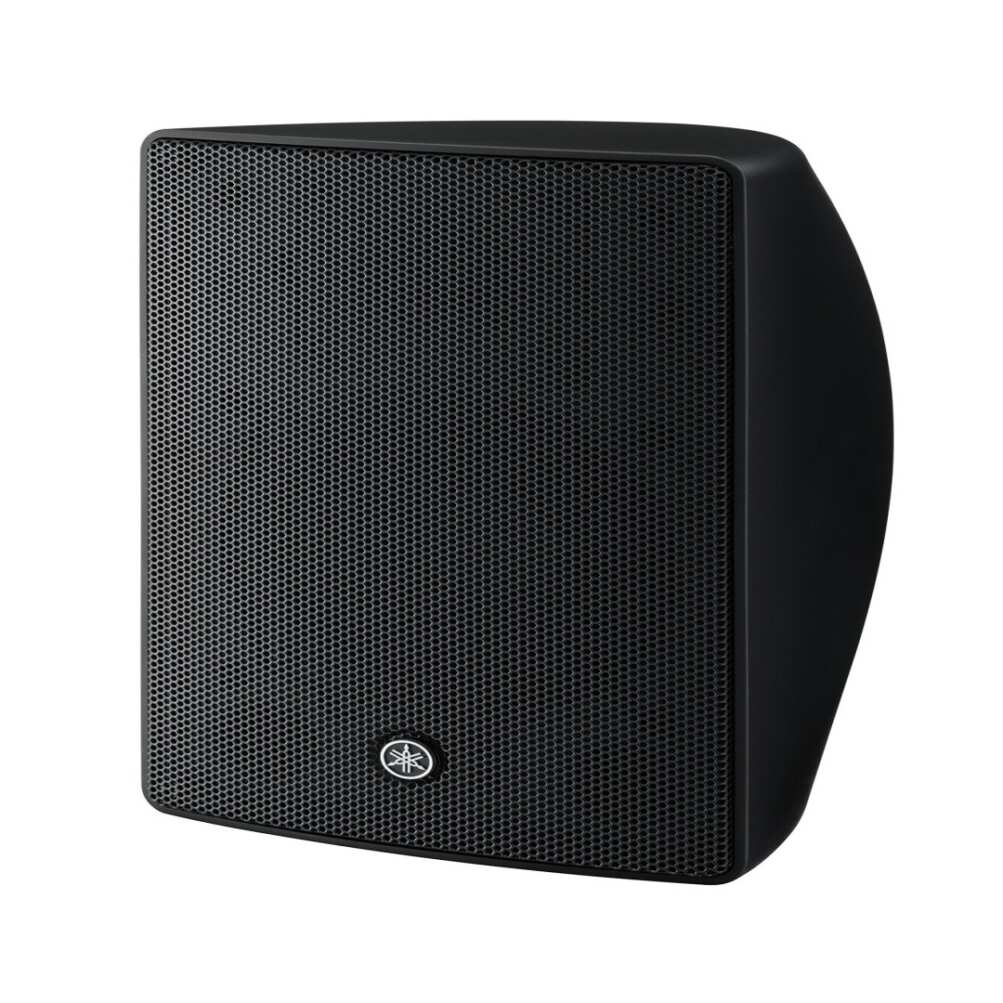

- VXS5-VA: Black

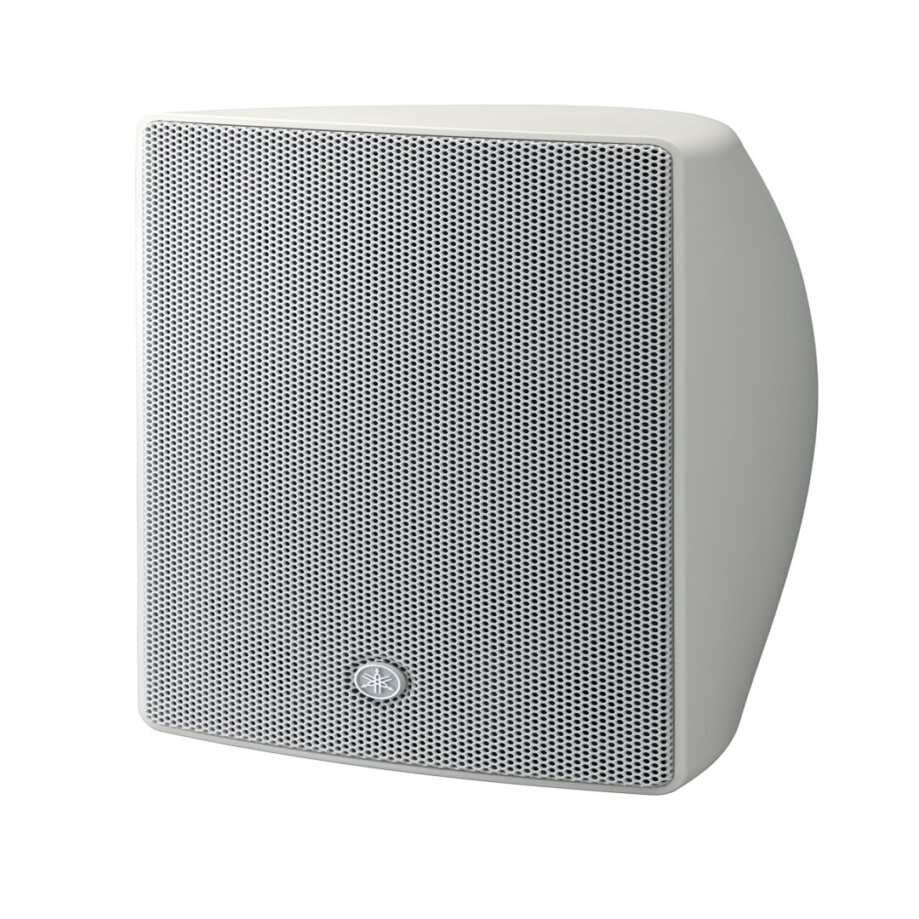

- VXS5-VAW: White
Dimensions & Weight
- Width: 176 mm
- Height: 280 mm
- Depth: 163 mm
- Weight: 3.6 kg
