Description
The VXS3SB and VXS3SW are ultra-compact SR-Bass™ subwoofers designed to enhance low-frequency performance in commercial audio installations. Featuring a slim rectangular enclosure and integrated satellite outputs, these subwoofers are ideal for retail stores, cafés, restaurants, and hospitality environments where discreet installation and high-quality bass reinforcement are required.
More Information
Key Features
- Compact SR-Bass™ subwoofer system
- Slim rectangular cabinet design
- 3.5-inch cone low-frequency driver
- Integrated satellite speaker outputs
- 70V / 100V transformer support
- Full-range protection circuitry
- ABS cabinet construction
- Suitable for commercial background music systems
- Available in black and white finishes
- Wall-mount installation support
Technical Specifications
- Speaker Type: SR-Bass™ type subwoofer
- Frequency Range: 65 Hz – 180 Hz
Components
- LF Driver: 3.5-inch cone
Power Ratings
- Noise Power: 20W
- Program Power: 40W
- Peak Power: 80W
Electrical Specifications
- Nominal Impedance: 8Ω
- Recommended Satellite Load: 8Ω per satellite output
- Transformer Taps (100V): 15W / 7.5W / 3.8W
- Transformer Taps (70V): 15W / 7.5W / 3.8W / 1.9W
SPL Performance
- Sensitivity: 79 dB SPL
- Peak SPL: 98 dB SPL

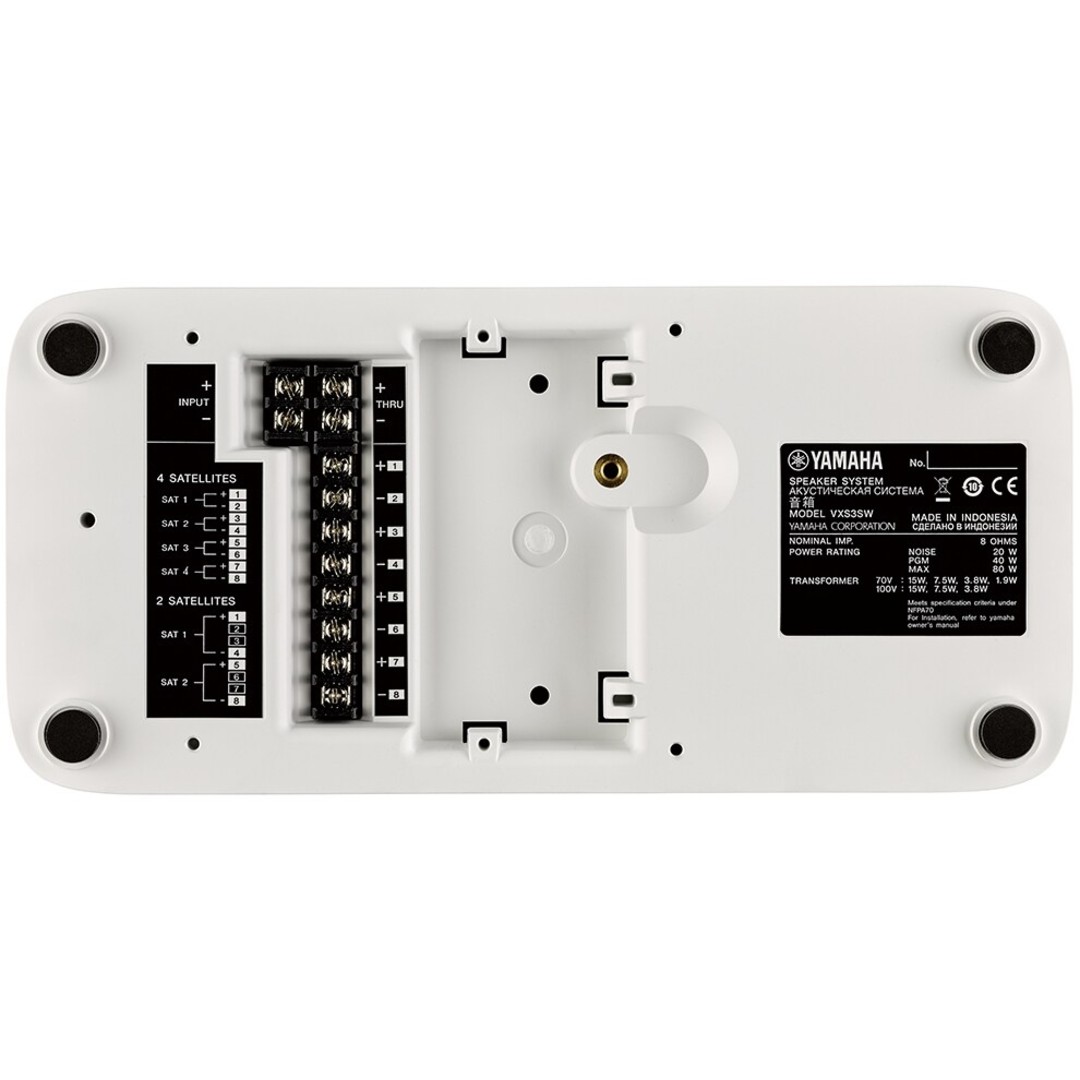

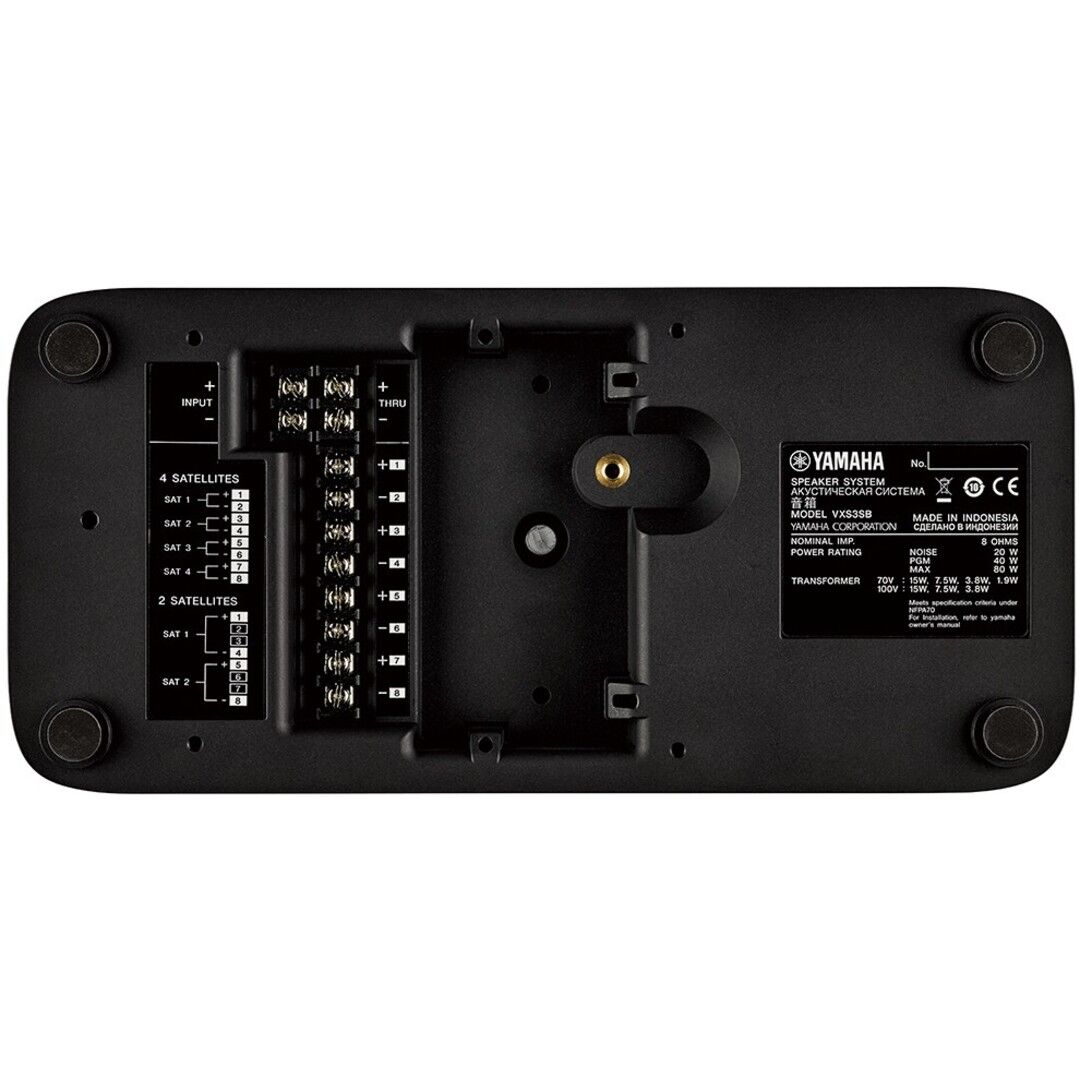

Connectivity
- 4-pin terminal block input
- 8-pin terminal block satellite output
- Loop-through connection support
Protection
- Full-range power limiting protection circuit
Cabinet & Construction
- Cabinet Shape: Rectangular
- Cabinet Material: ABS

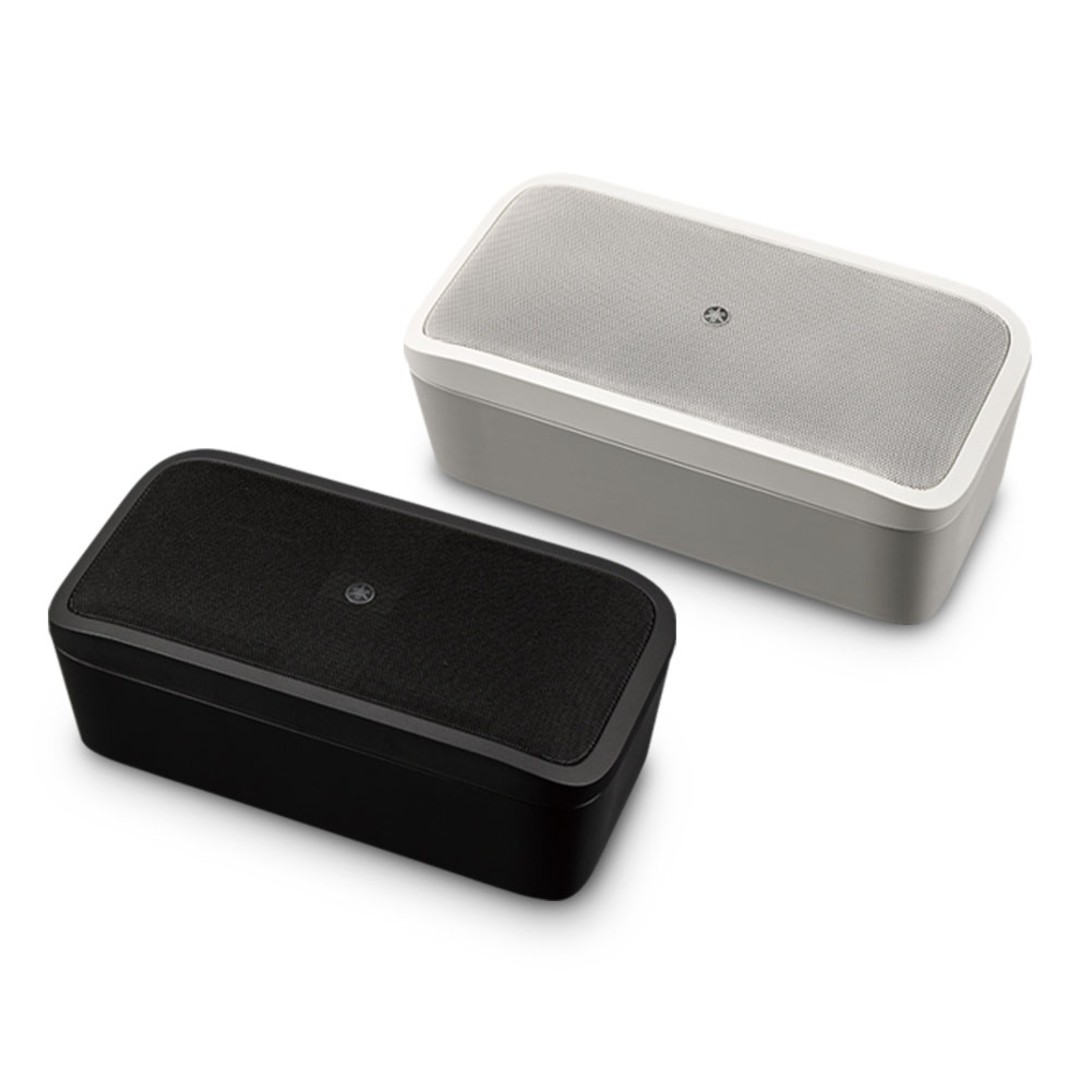

- Finish:
- VXS3SB: Black
- VXS3SW: White
Dimensions & Weight
- Width: 322 mm
- Height: 162 mm
- Depth: 118 mm
- Weight: 2.7 kg
