Description

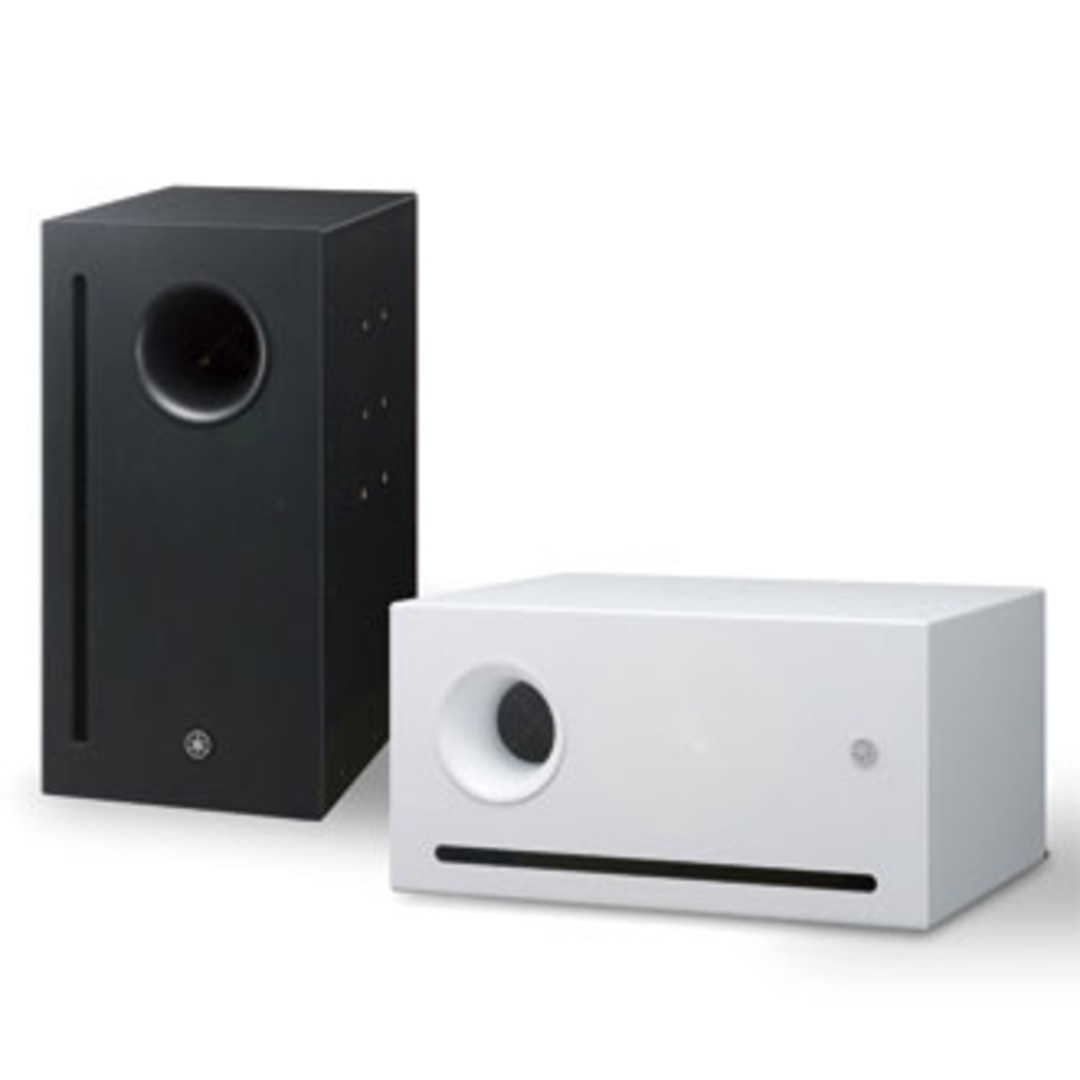

The VXS10S and VXS10SW are powerful bass-reflex subwoofers designed for commercial sound systems requiring deep and impactful low-frequency reinforcement. Featuring a 10-inch dual voice coil woofer and durable MDF cabinet construction, these subwoofers deliver strong bass performance for retail, hospitality, restaurants, and entertainment venues.
More Information
Key Features
- Bass-reflex commercial subwoofer
- 10-inch dual voice coil woofer
- High-output low-frequency performance
- Integrated satellite speaker outputs
- Durable MDF cabinet construction
- Wall-mount installation support
- Full-range protection circuitry
- Available in black and white finishes
- Suitable for foreground and background music systems
Technical Specifications
- Speaker Type: Bass-reflex type subwoofer
- Frequency Range: 45 Hz – 250 Hz
Components
- LF Driver: 10-inch dual voice coil
Power Ratings
- Noise Power: 100W + 100W
- Program Power: 200W + 200W
Electrical Specifications
- Nominal Impedance: 8Ω + 8Ω
- Recommended Satellite Load: 8Ω per satellite output
SPL Performance
- Sensitivity: 96 dB SPL
- Peak SPL: 125 dB SPL
Connectivity
- Euroblock 4-pin input connector
- Euroblock 4-pin satellite output connector
Protection
- Full-range power limiting protection circuit
Cabinet & Construction
- Cabinet Shape: Rectangular
- Cabinet Material: MDF
- Finish:

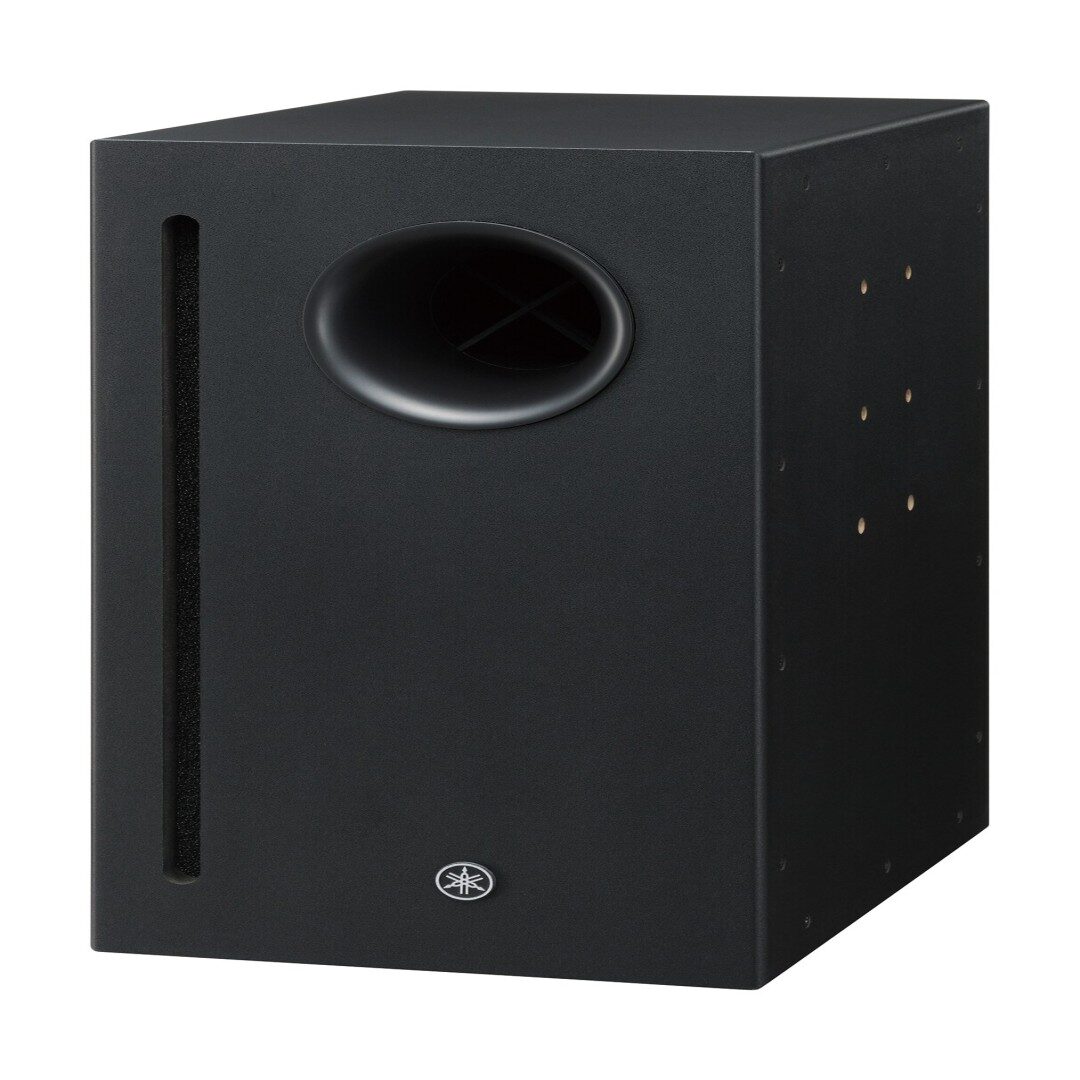

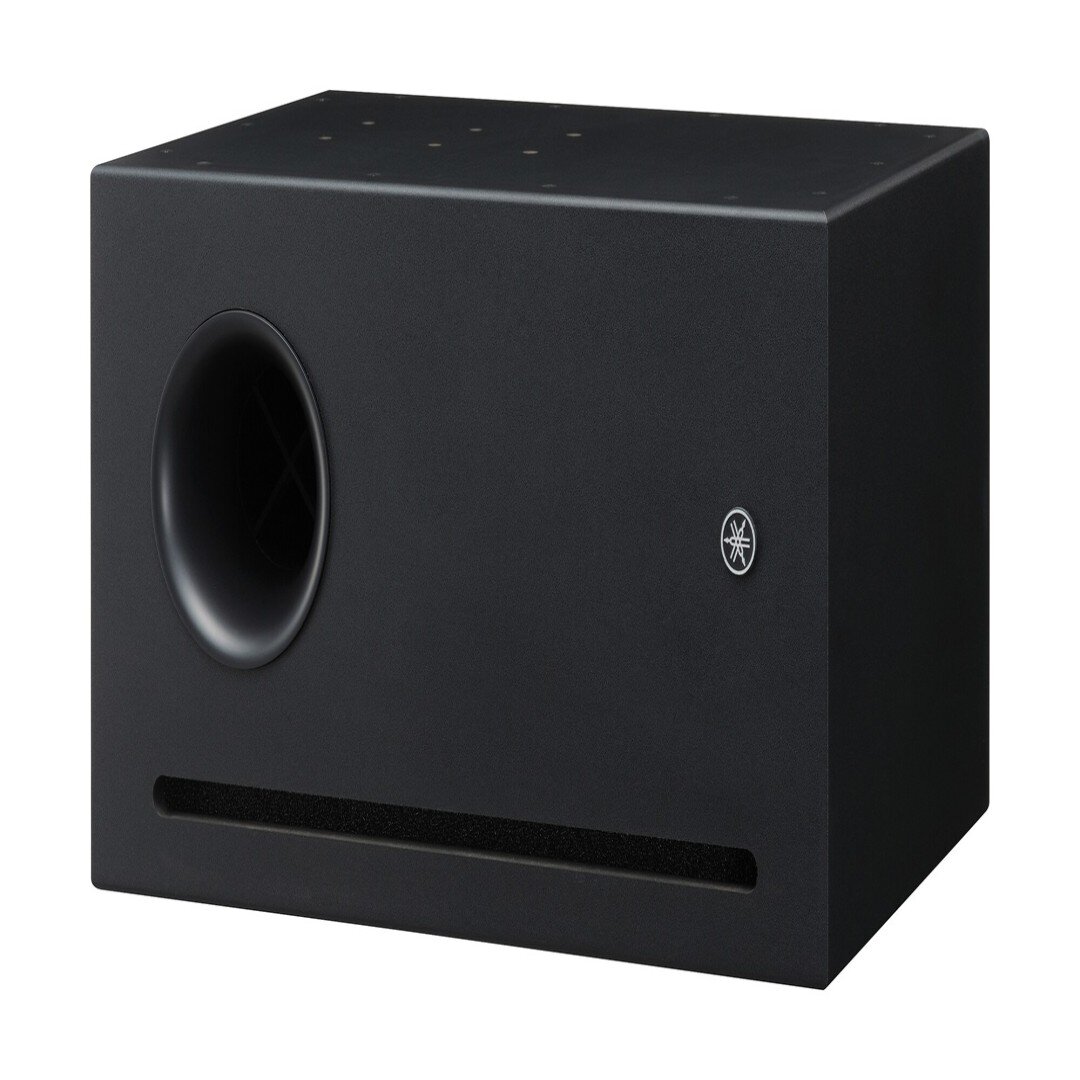

- VXS10S: Black

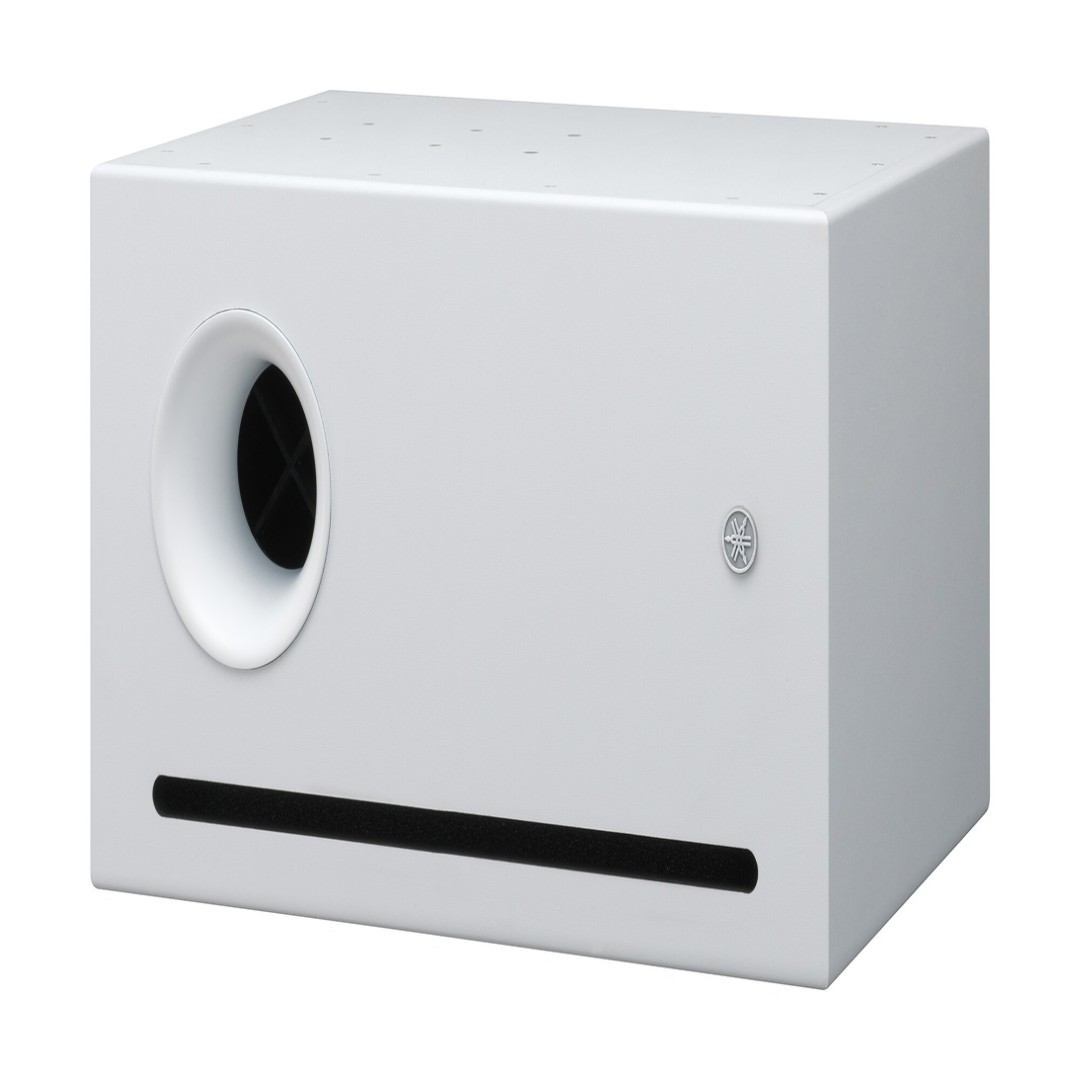

- VXS10SW: White
Dimensions & Weight
- Width: 260 mm
- Height: 500 mm
- Depth: 389 mm
- Weight: 16.5 kg
