Description
The VXS3F and VXS3FW are compact full-range surface-mount speakers designed for high-quality background music and speech applications in commercial environments. Featuring a 3.5-inch full-range driver with wide horizontal and vertical coverage, these speakers provide clear and balanced audio performance while maintaining a sleek and unobtrusive appearance. Their flexible mounting system makes them ideal for retail stores, cafés, restaurants, and hospitality installations.
More Information
Key Features
- Compact full-range surface-mount speaker
- Acoustic suspension enclosure design
- 3.5-inch full-range cone driver
- Wide 150° × 160° coverage
- Clear sound reproduction for music and speech
- Euroblock loop-through connection support
- Built-in protection circuitry
- Compact and lightweight cabinet

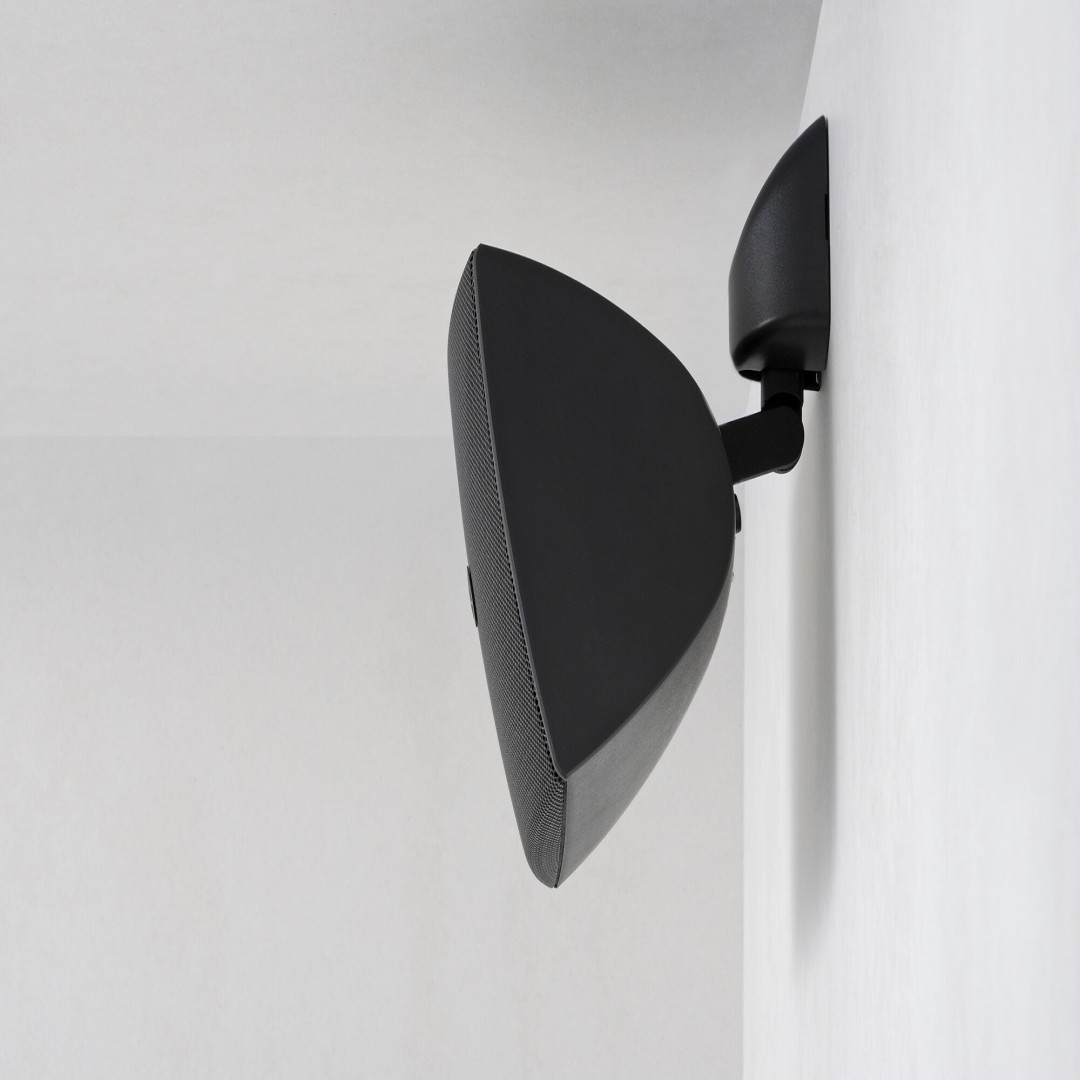

- Flexible wall-mount installation system

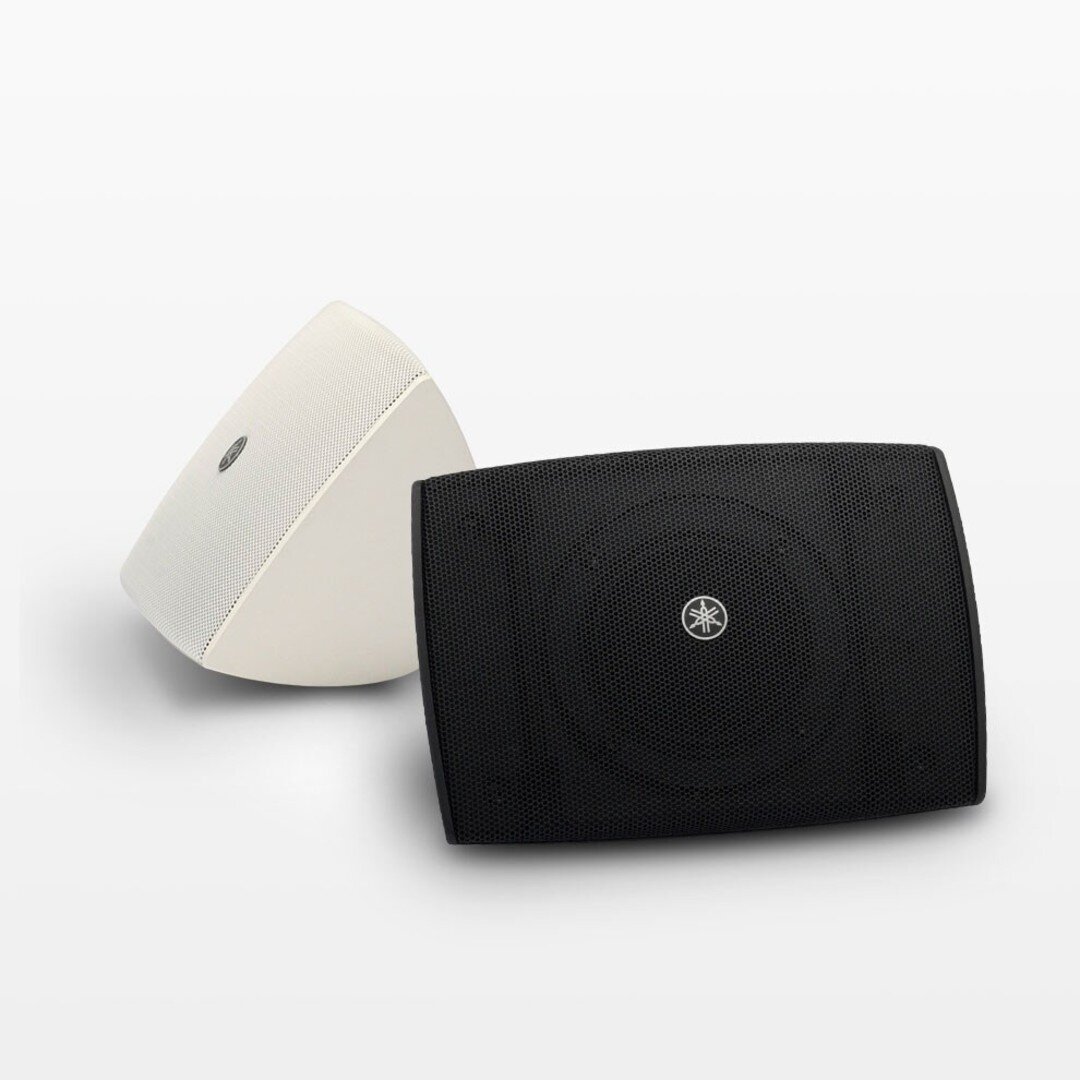

- Available in black and white finishes
- Suitable for commercial audio installations
Technical Specifications
- Speaker Type: Full-range, acoustic suspension
- Frequency Range: 130 Hz – 20 kHz
- Coverage Angle:
- Horizontal: 150°
- Vertical: 160°
Components
- Driver: 3.5-inch cone full-range unit
Power Ratings
- Noise Power: 20W
- Program Power: 40W
- Peak Power: 80W
Electrical Specifications
- Nominal Impedance: 8Ω
SPL Performance
- Sensitivity: 86 dB SPL
- Peak SPL: 105 dB SPL
Connectivity

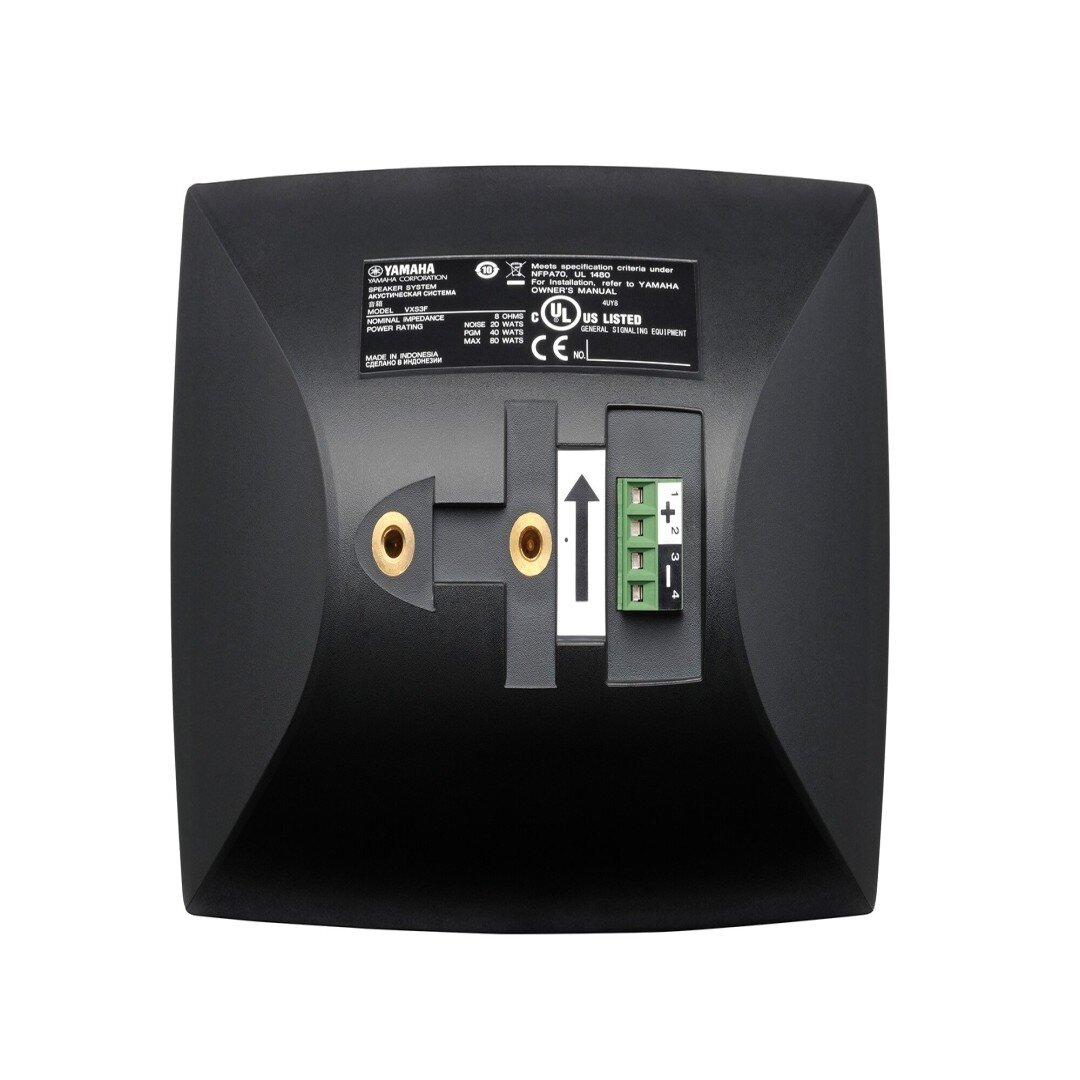

- 1 × Euroblock 4-pin connector
- Input and loop-through support
Protection
- Full-range power limiting protection circuit
Finish

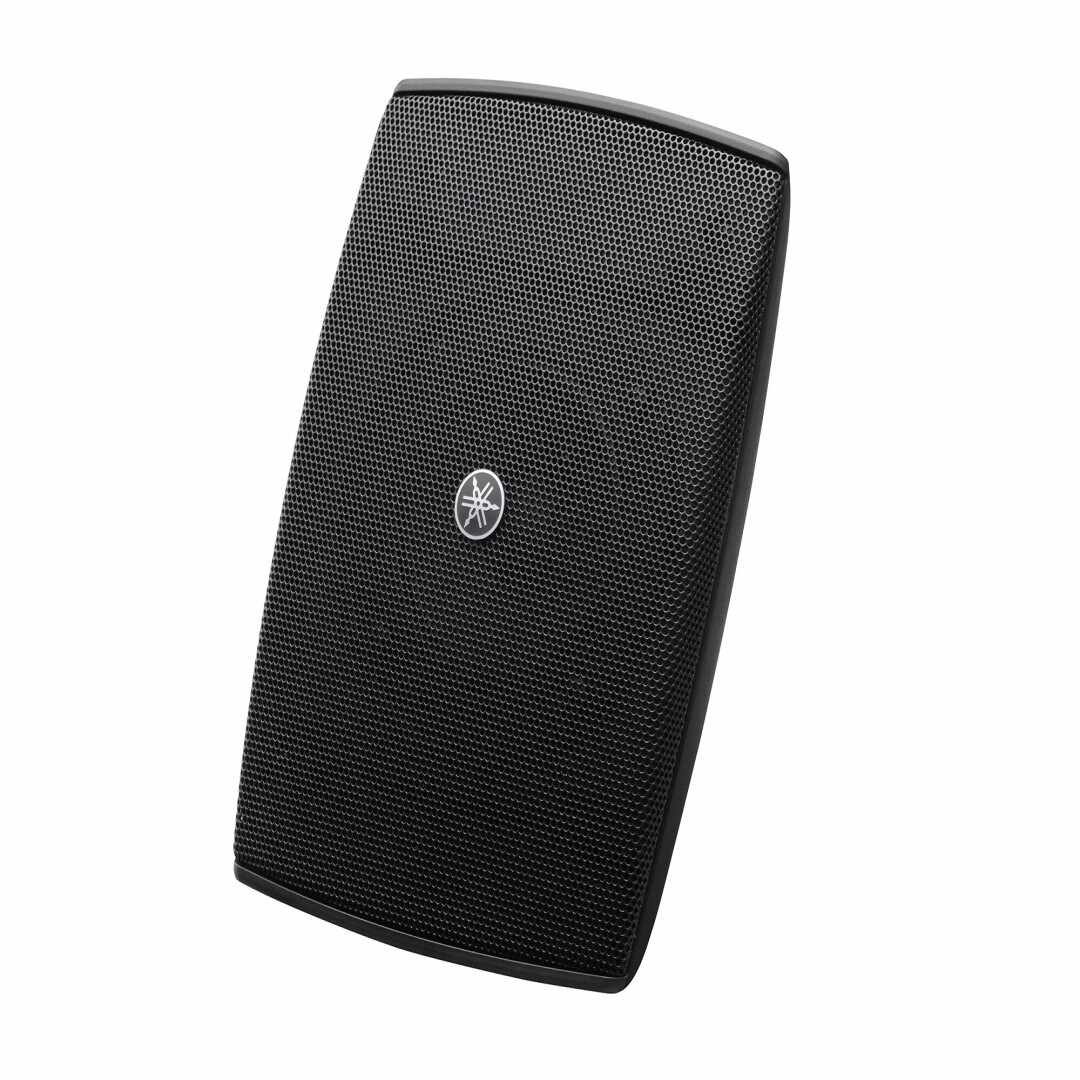

- VXS3F: Black finish

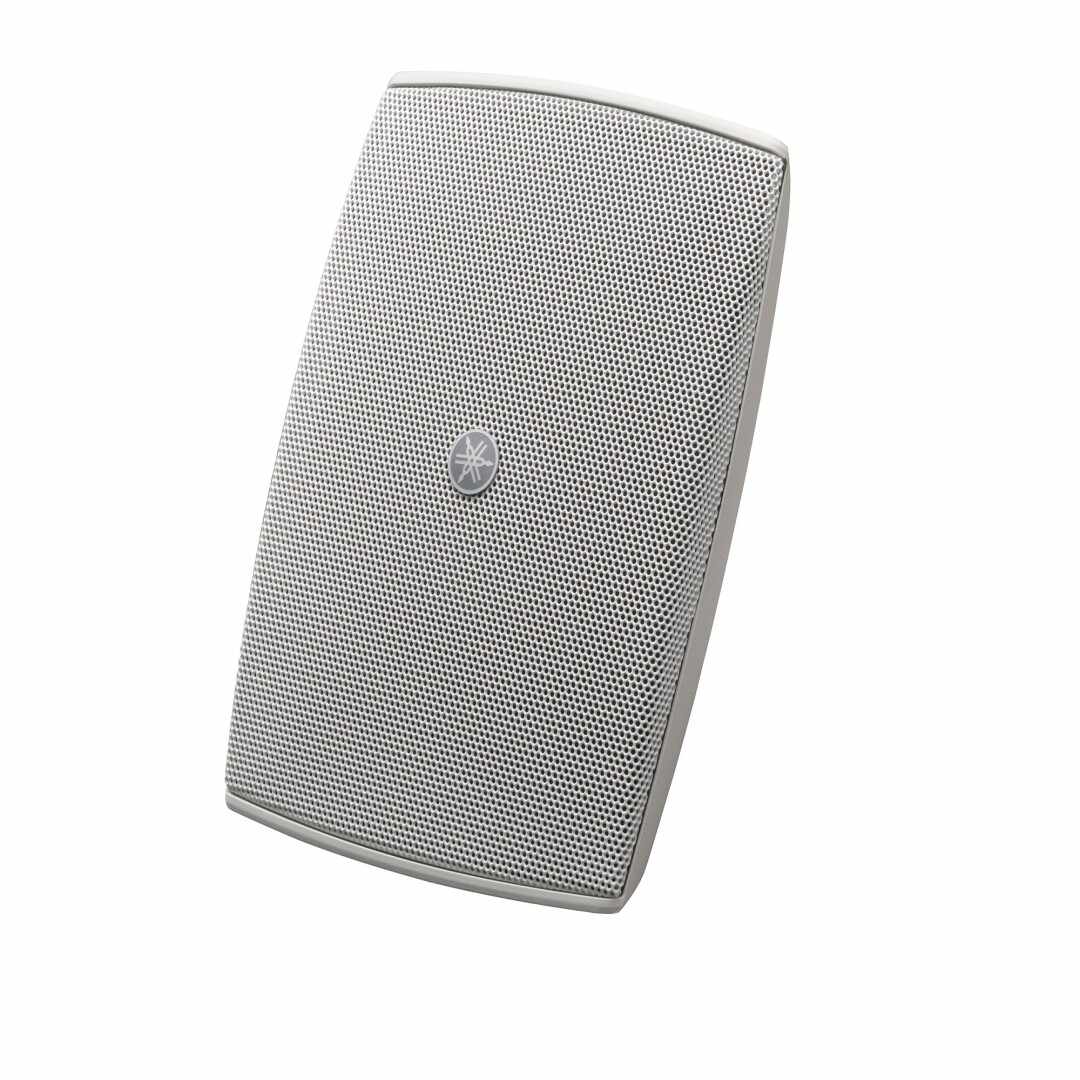

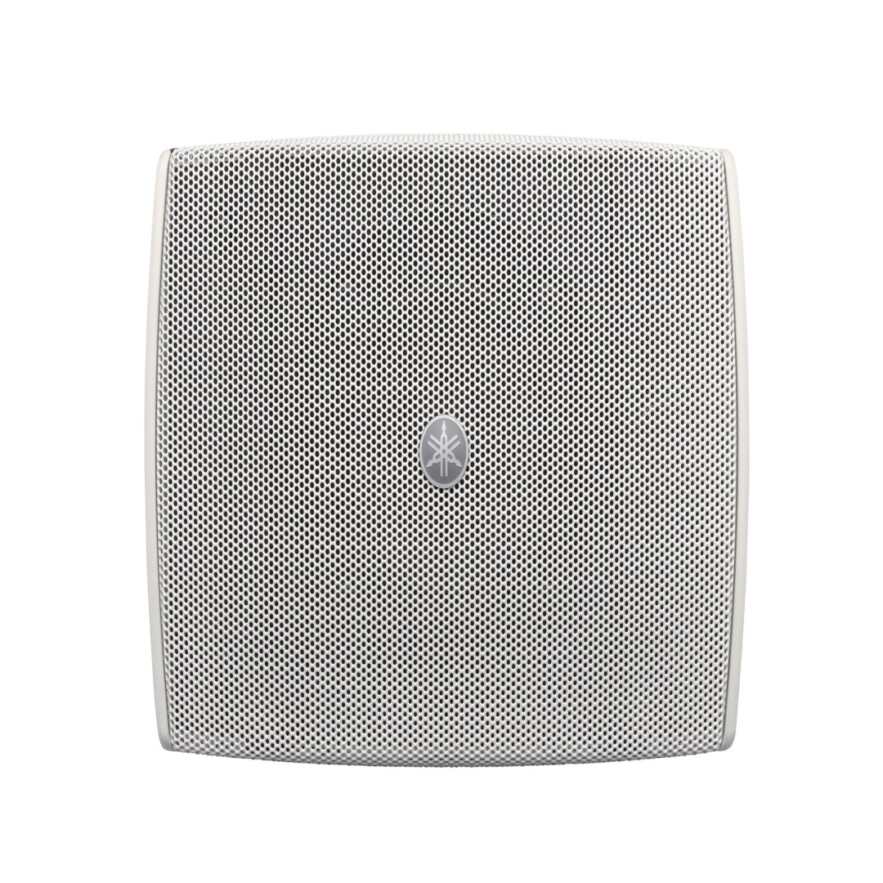

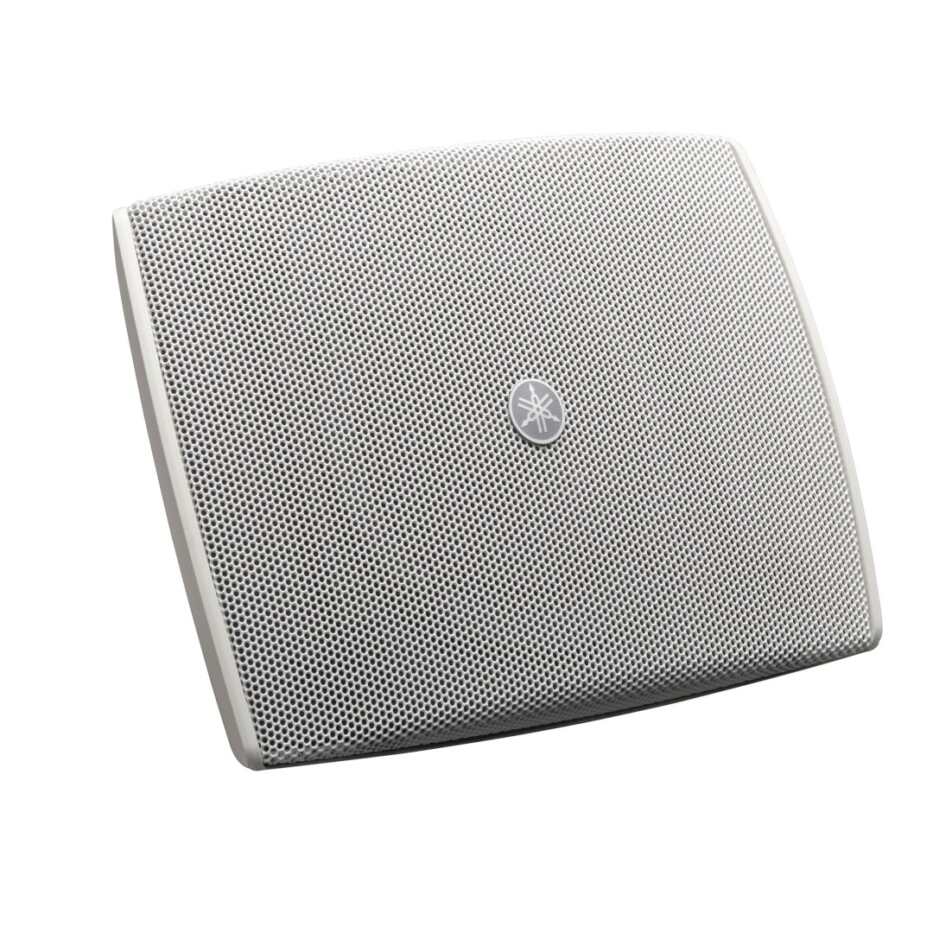

- VXS3FW: White finish
Dimensions & Weight
- Width: 184 mm
- Height: 130 mm
- Depth: 94 mm
- Extended Depth with Bracket: 134 mm
- Weight: 1.0 kg – 1.1 kg
