Description
The DME7 is a professional digital signal processor designed for commercial audio installations, conferencing systems, and networked AV applications. It delivers powerful DSP processing, flexible Dante networking, USB audio support, and advanced control integration for reliable audio management in large-scale environments.
More Information
Key Features
- Professional DSP processor for installed audio systems
- Dante networking with redundant support
- Expandable up to 256 × 256 Dante channels
- USB audio interface with SRC support
- Large snapshot and parameter memory capacity
- GPI, MIDI, and network control support

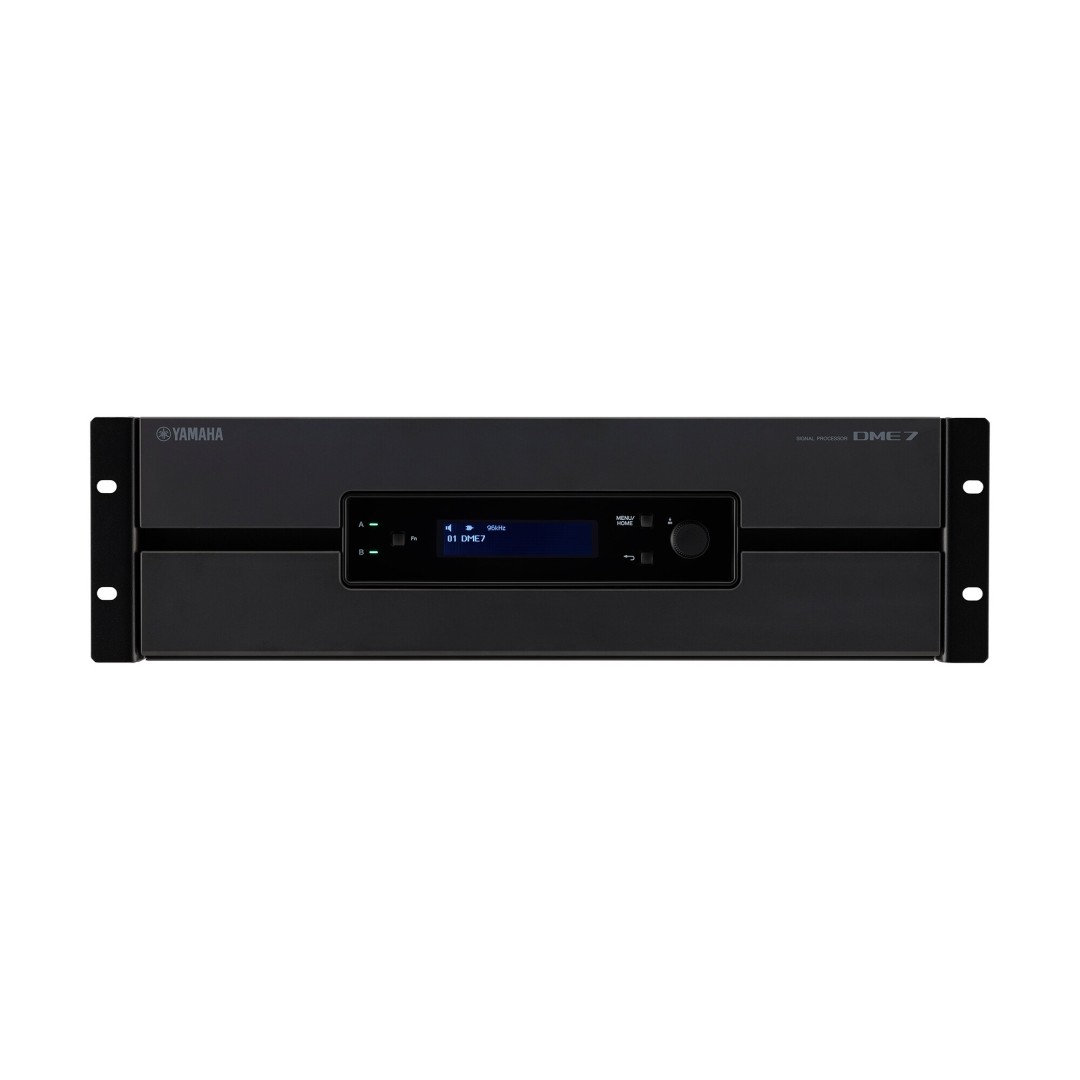

- Front-panel display and rotary encoder control
- Dual AC power inputs for reliability
- Compatible with Yamaha DCP control panels
Technical Specifications
- Internal Processing: 44.1 / 48 / 88.2 / 96 kHz
- Dante Channels: 64 In / 64 Out (expandable to 256 × 256)
- USB Audio: 8 In / 8 Out
- Latency: 2.7 ms
- Snapshots: 10000
- Parameter Sets: 1000

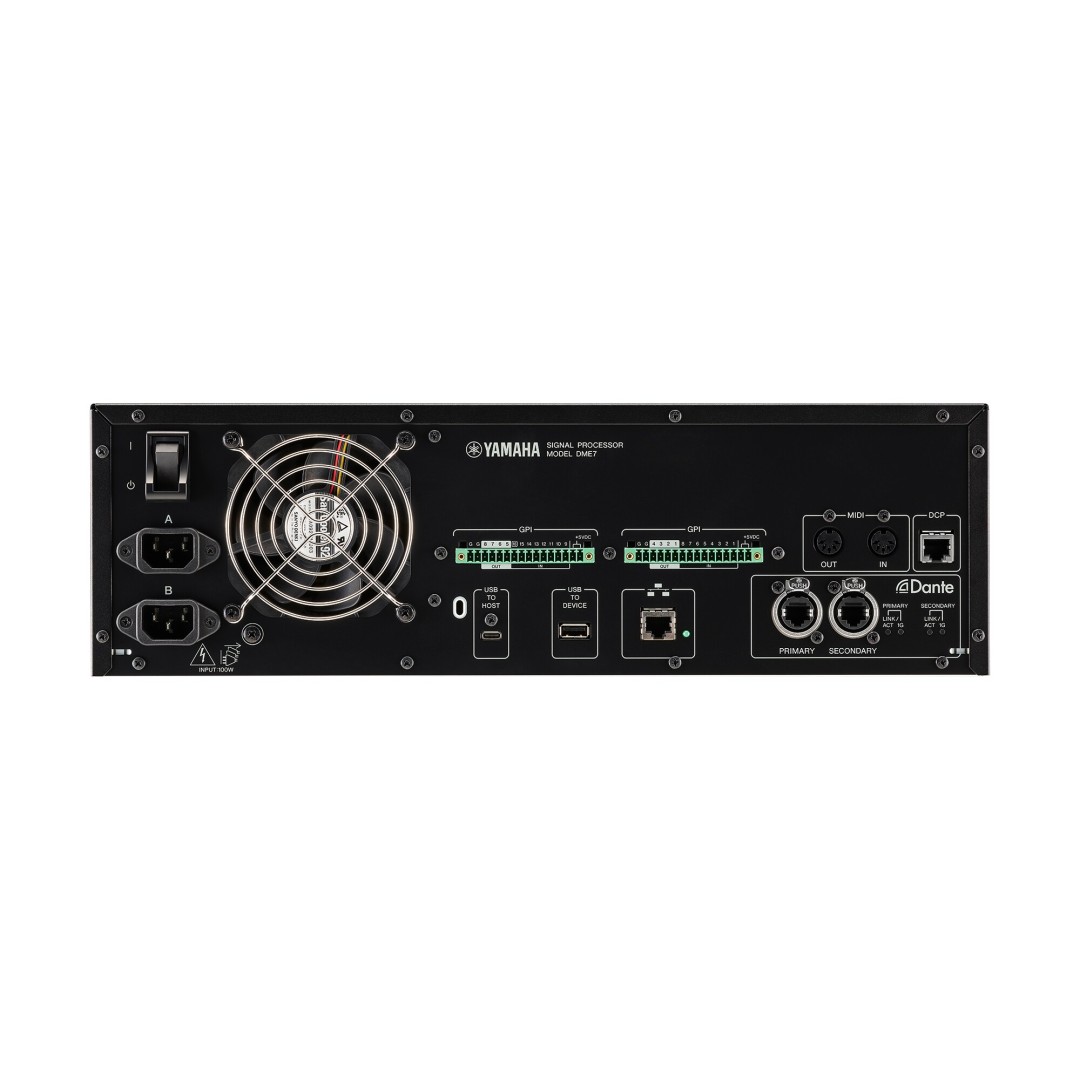

- Dante Ports: etherCON ×2
- USB Ports: Type-C ×1, Type-A ×1
- Network Port: RJ45 ×1
- MIDI: IN / OUT ×2
- Power Requirement: 100–240V AC, 50/60Hz
- Power Consumption: 100W
- Cooling: Constant-speed fan
- Display: 224 × 48 monochrome LCD
- Dimensions: 480 × 132 × 363 mm
- Weight: 9.5 kg
- Operating Temperature: 0°C to +40°C
