Description

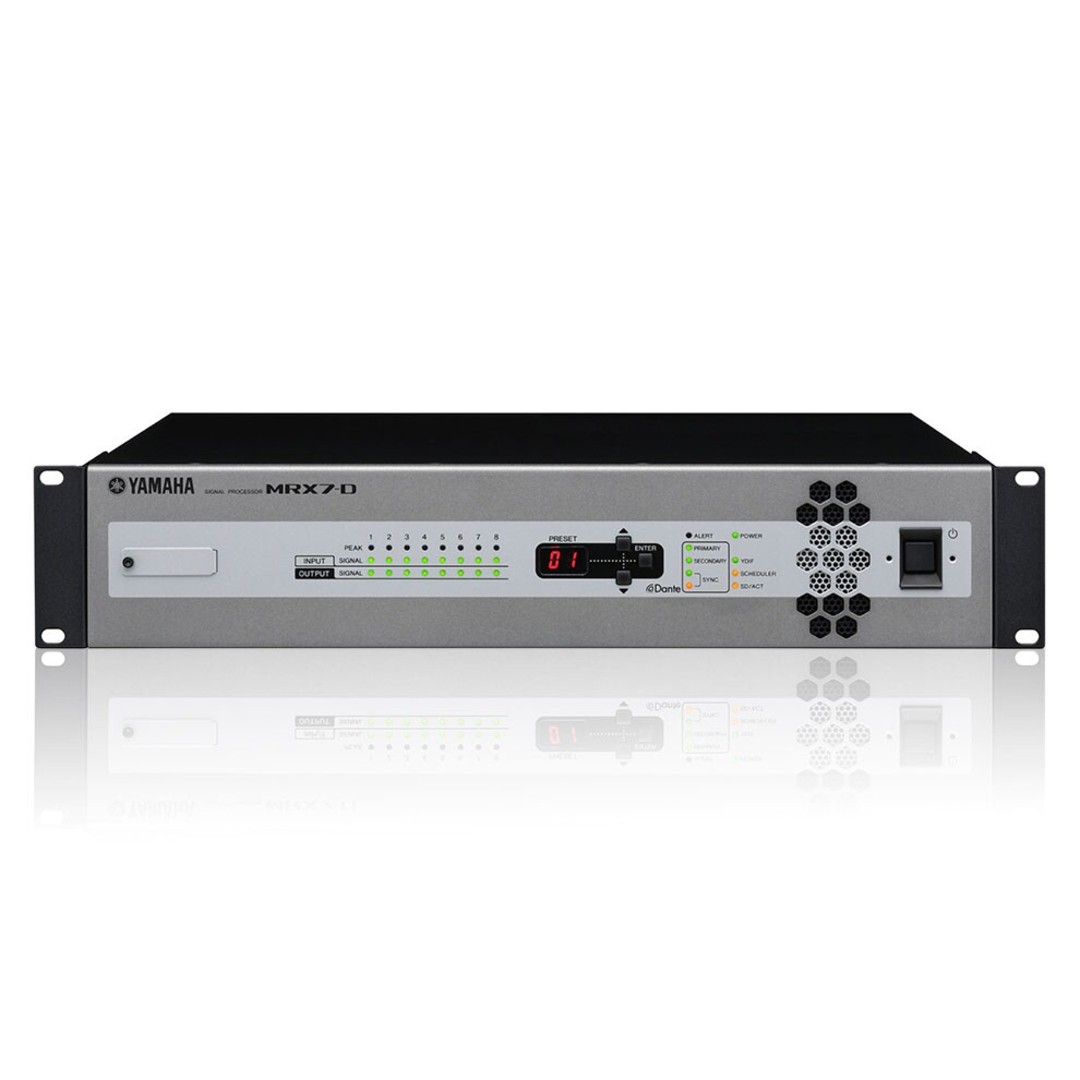

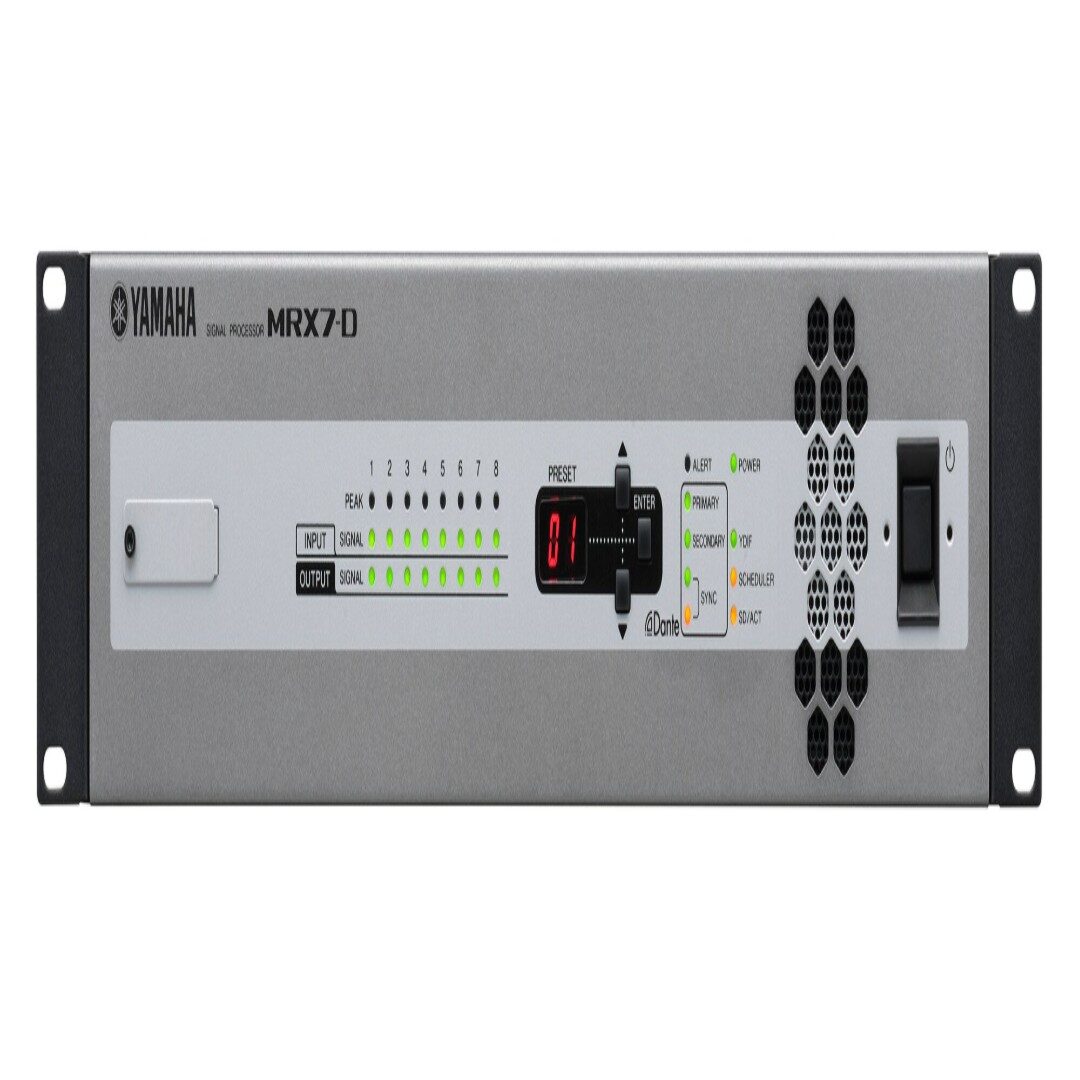

This professional digital signal processor is designed for commercial audio installations, conferencing systems, and sound reinforcement applications. It delivers reliable audio processing with low latency, wide dynamic range, flexible memory presets, and phantom power support for professional microphone integration.
More Information
Key Features
- Professional DSP audio processor
- 48 kHz / 44.1 kHz internal sampling rates
- Low-latency audio processing
- Wide dynamic range and low distortion
- Built-in phantom power support (+48V)
- Multiple memory preset banks
- Designed for installed and commercial audio systems
- Includes Euroblock connectors for secure installation
Technical Specifications
- Sampling Frequency: 48 kHz / 44.1 kHz
- Signal Delay: 1.9 ms
- Total Harmonic Distortion: 0.05% / 0.1%
- Frequency Response: 20 Hz – 20 kHz
- Dynamic Range: 107 dB
- Crosstalk: -100 dB
- Power Requirement: AC100V–240V, 50/60 Hz
- Power Consumption: 65W
- Heat Dissipation: 55.9 kcal/h
- Dimensions: 480 × 88 × 366 mm
- Weight: 6.5 kg
- Memory Presets: 50
- Phantom Power: +48V
