Description

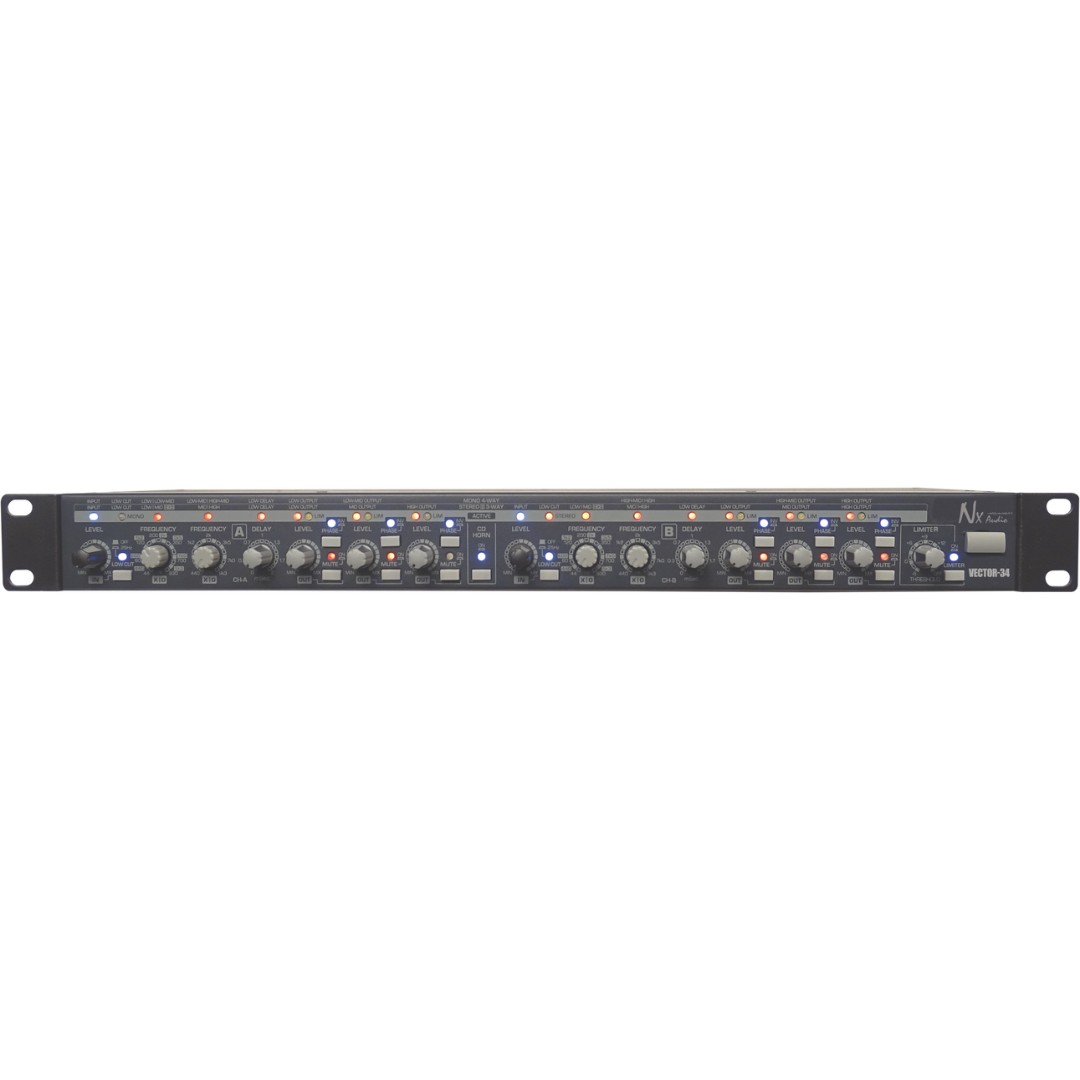

The Nx Audio VECTOR-34 is a high-precision professional active crossover engineered to provide accurate audio frequency separation and exceptional system performance for demanding sound reinforcement applications. Utilizing advanced electronic circuitry, premium-grade components, low-noise operational amplifiers, and balanced XLR connectivity, the VECTOR-34 delivers clean signal processing with outstanding reliability.
More Information
Key Features
- High Precision Active Crossover
- Stereo 2-Way, Stereo 3-Way, or Mono 4-Way Operation
- 24dB/Octave Linkwitz-Riley Filters
- Flat Summed Amplitude Response
- Zero Phase Difference at Crossover Points
- Individual Output Limiters on All Bands
- Adjustable Time Delay for Driver Alignment
- LF Sum Function for Mono Subwoofer Systems
- Individual Output Mute Switches
- Individual Phase Reverse Switches
- CD Horn Equalization Circuit
- Switchable 25Hz Low-Cut Filter
- Balanced XLR Inputs and Outputs
- LED Status Indicators for All Functions
- Low Noise Professional Circuit Design
Technical Specifications
- Model: VECTOR-34
- Type: Professional Active Crossover
- Operating Modes:
- Stereo 2-Way
- Stereo 3-Way
- Mono 4-Way
- Filter Type: Linkwitz-Riley
- Filter Slope: 24dB/Octave
- Low/Mid Crossover Frequency Range:
- 44Hz – 930Hz
- 440Hz – 9.3kHz (Switchable)
- Mid/High Frequency Range:
- 440Hz – 9.3kHz
- Low Cut Filter: 25Hz Switchable
- Limiter: Individual per Output
- Delay: Adjustable Time Alignment
- Input/Output Connectors: Balanced XLR
- Brand: Nx Audio
- Warranty: 1 Year
