Description

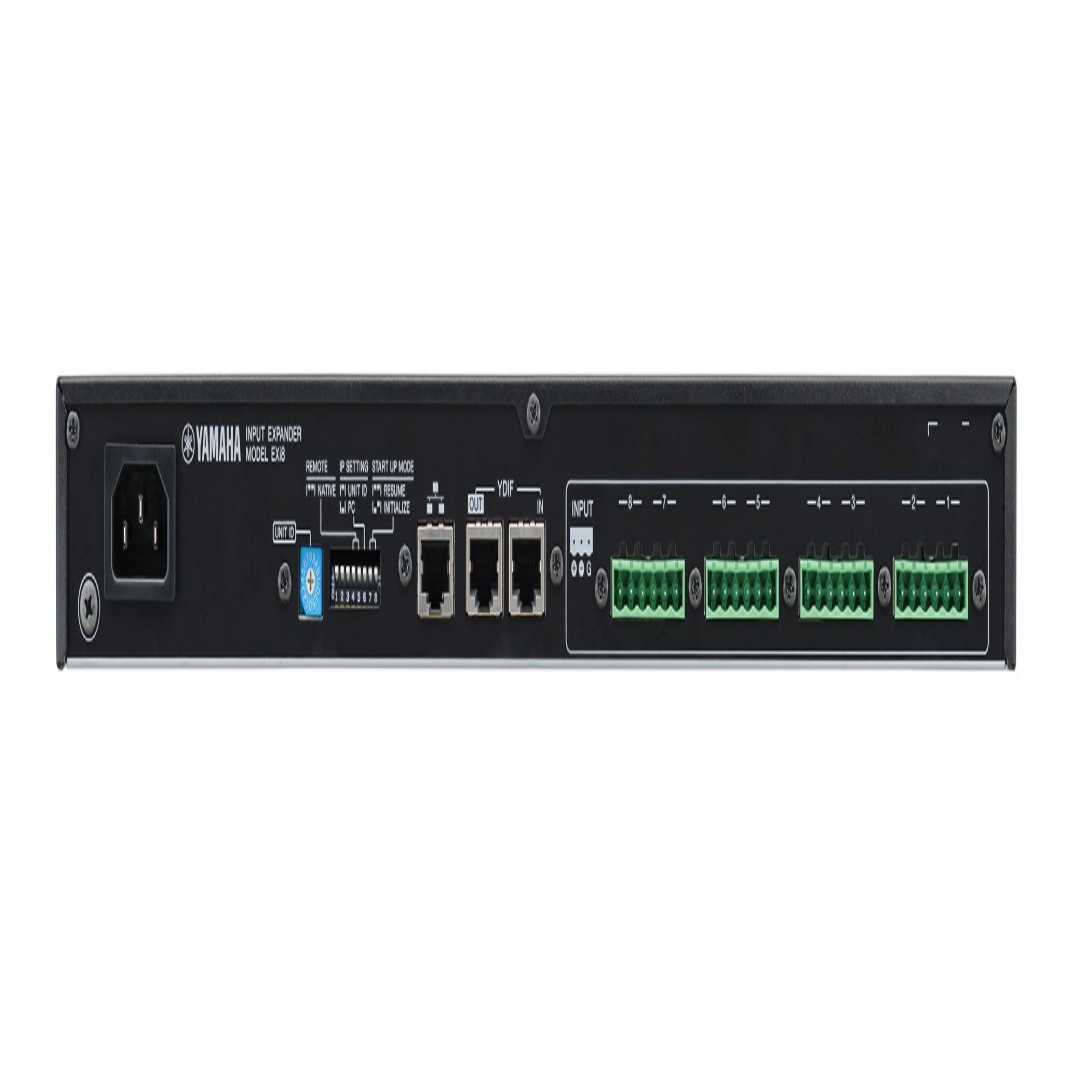

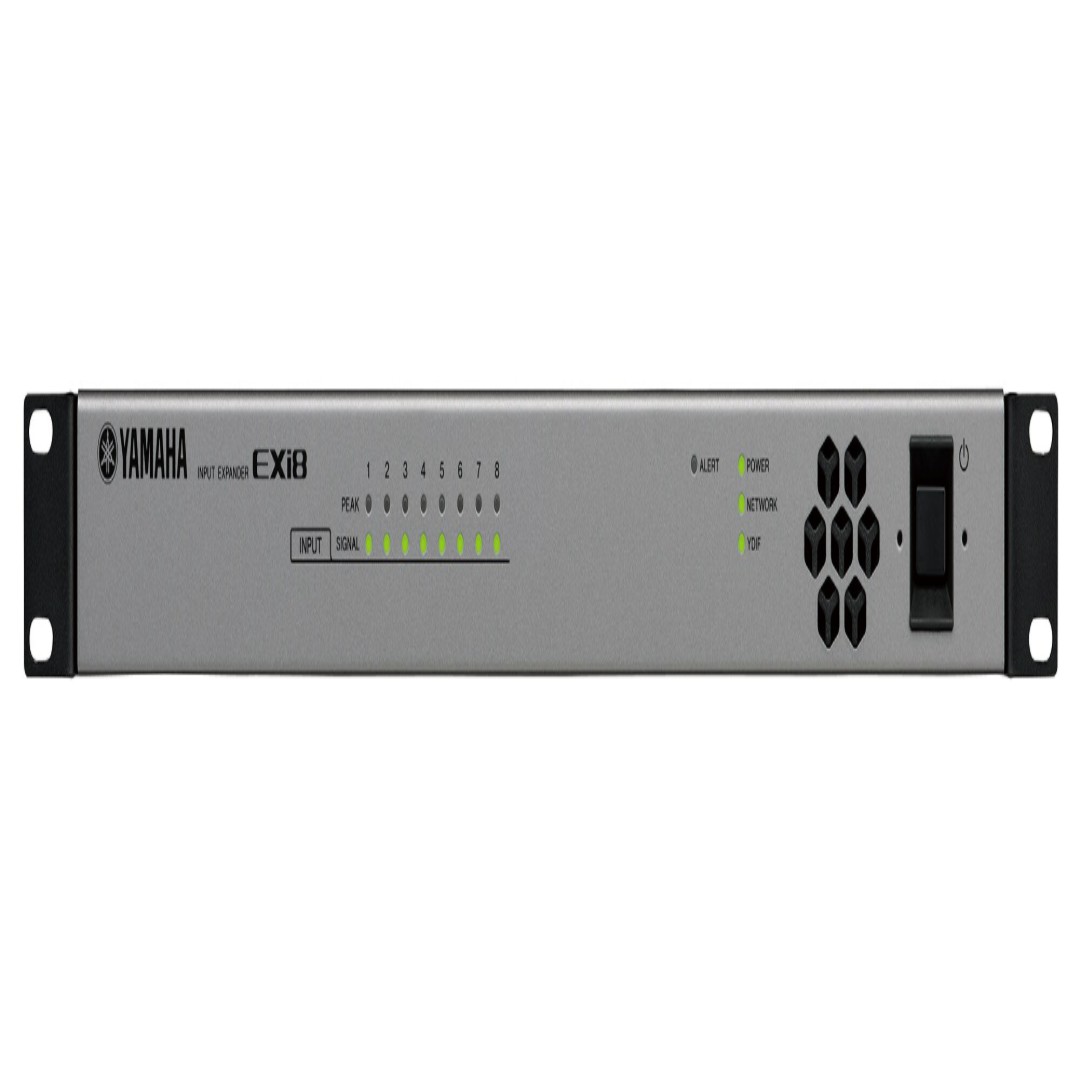

The Yamaha EXi8 is a professional audio input expansion unit designed for Yamaha MTX and MRX series signal processors. It provides high-quality analog microphone and line input expansion for commercial audio installations, conference systems, educational facilities, and installed sound applications. The compact 1U rackmount design ensures easy integration into professional audio systems.
More Information
Key Features
- 8-channel analog input expansion unit
- Compatible with Yamaha MTX/MRX series
- Supports 48kHz and 44.1kHz sampling rates
- Individually switchable +48V phantom power per channel
- Low latency audio performance
- Wide frequency response with low distortion
- High dynamic range for professional audio quality
- Compact 1U rackmount design
- Euroblock connectors included for installation
Technical Specifications
Sampling Frequency
- 48kHz / 44.1kHz
Signal Delay
- Less than 2.5ms
Total Harmonic Distortion
- Less than 0.05% (+4dBu, Gain:-6dB)
- Less than 0.1% (+4dBu, Gain:+66dB)
Frequency Response
- 20Hz to 20kHz
- -1.5dB min, 0dB typ., +0.5dB max
Dynamic Range
- 107dB (Gain:-6dB)
Equivalent Input Noise (EIN)
- -126dBu (Gain:+66dB)
Phantom Power
- +48V per channel (individually settable)
Crosstalk
- -100dB (@1kHz)
Heat Dissipation
- 21.5 kcal/h max
Power Requirements
- 100V, 50/60Hz
Power Consumption
- 25W max
Dimensions (W × H × D)
- 480 × 44 × 351 mm
- 1U Rack Size
