Description

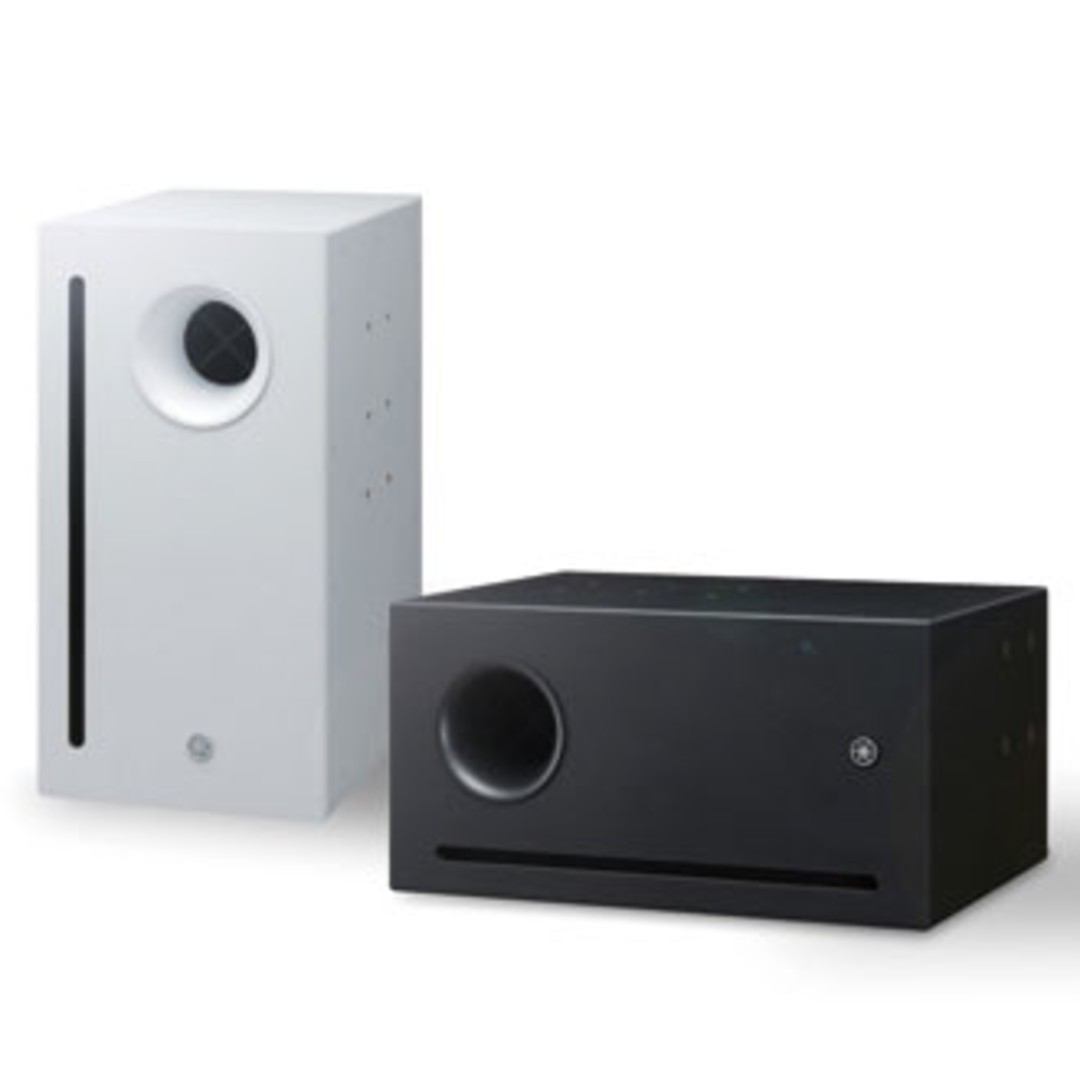

The VXS10ST and VXS10STW are high-performance bass-reflex subwoofers with built-in 70V/100V transformer support, designed for distributed commercial audio systems. Featuring a 10-inch dual voice coil woofer and high-power handling capability, these subwoofers provide deep bass reinforcement for restaurants, retail stores, hospitality venues, and commercial installations.
More Information
Key Features
- Bass-reflex commercial installation subwoofer
- Built-in 70V / 100V transformer support
- 10-inch dual voice coil woofer
- High-power low-frequency performance
- Integrated satellite outputs
- Durable MDF cabinet construction
- Full-range protection circuitry
- Wall-mount installation support
- Available in black and white finishes
Technical Specifications
- Speaker Type: Bass-reflex type subwoofer
- Frequency Range: 45 Hz – 250 Hz
Components
- LF Driver: 10-inch dual voice coil
Electrical Specifications

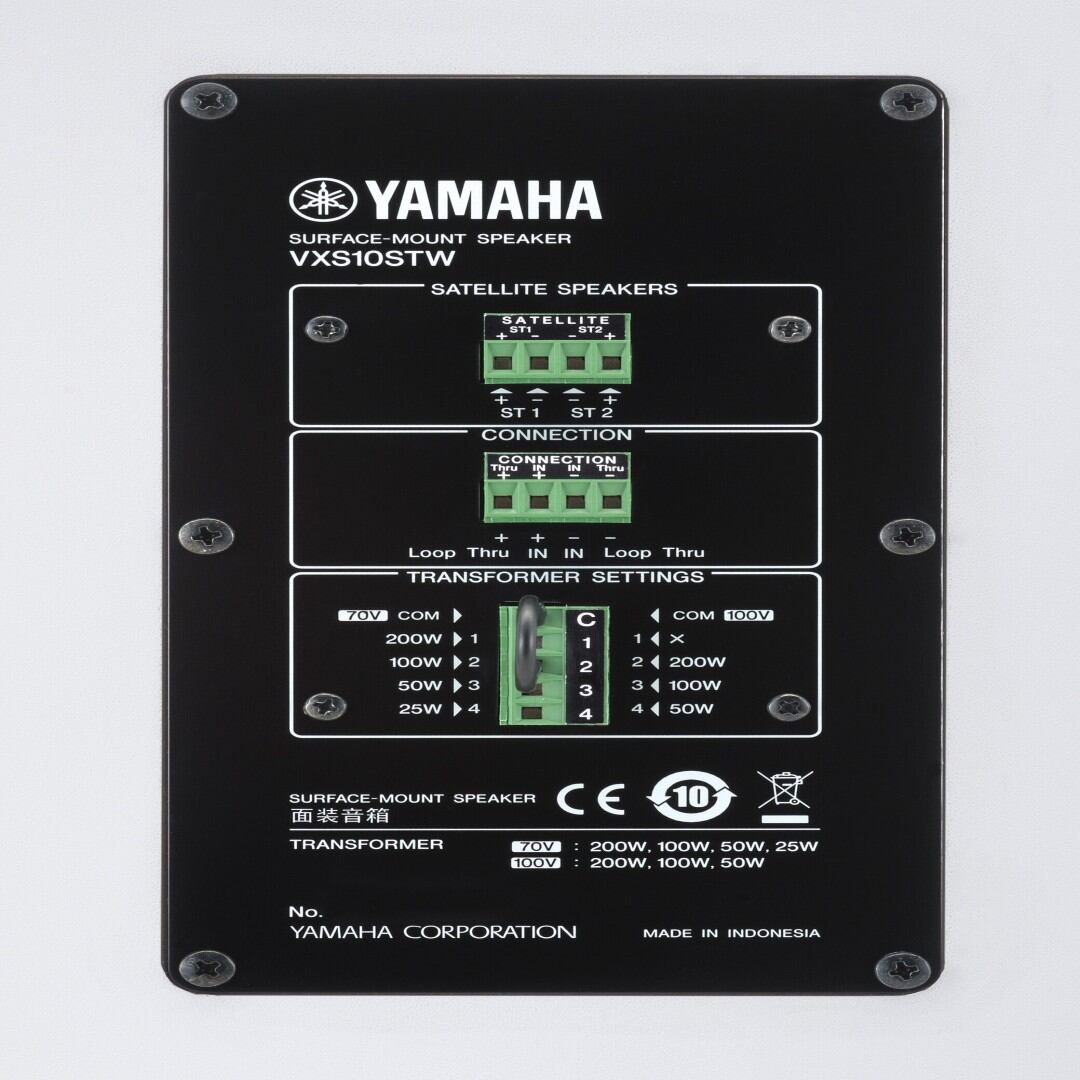

- Transformer Taps (100V):
- 200W (50Ω)
- 100W (100Ω)
- 50W (200Ω)
- Transformer Taps (70V):
- 200W (25Ω)
- 100W (50Ω)
- 50W (100Ω)
- 25W (200Ω)
- Recommended Satellite Load: 8Ω per satellite output
SPL Performance
- Sensitivity: 96 dB SPL
Connectivity
- Euroblock 4-pin input connector
- Loop-through connection support
- Euroblock 4-pin satellite output connector
Protection
- Full-range power limiting protection circuit
Cabinet & Construction
- Cabinet Shape: Rectangular
- Cabinet Material: MDF
- Finish:

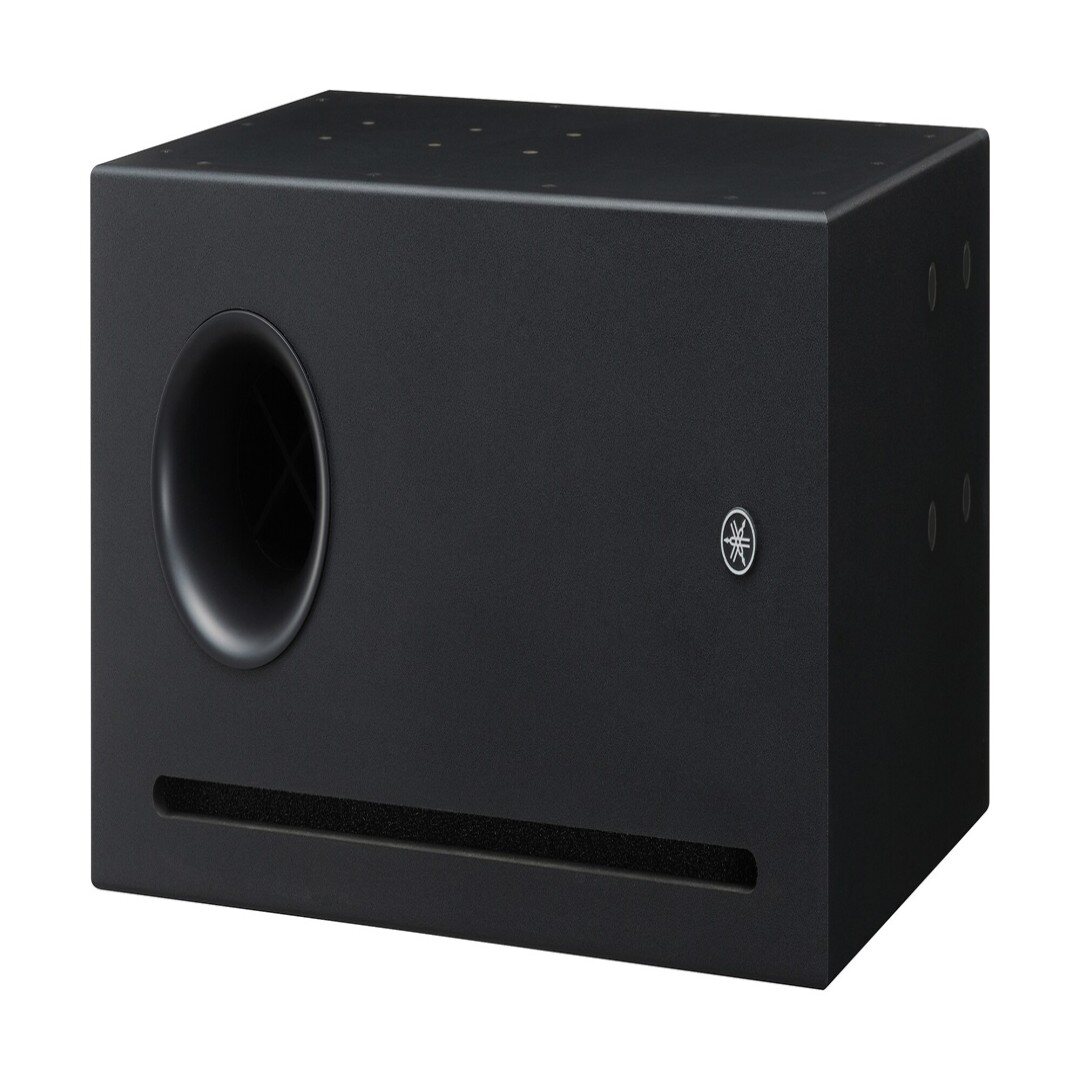

- VXS10ST: Black

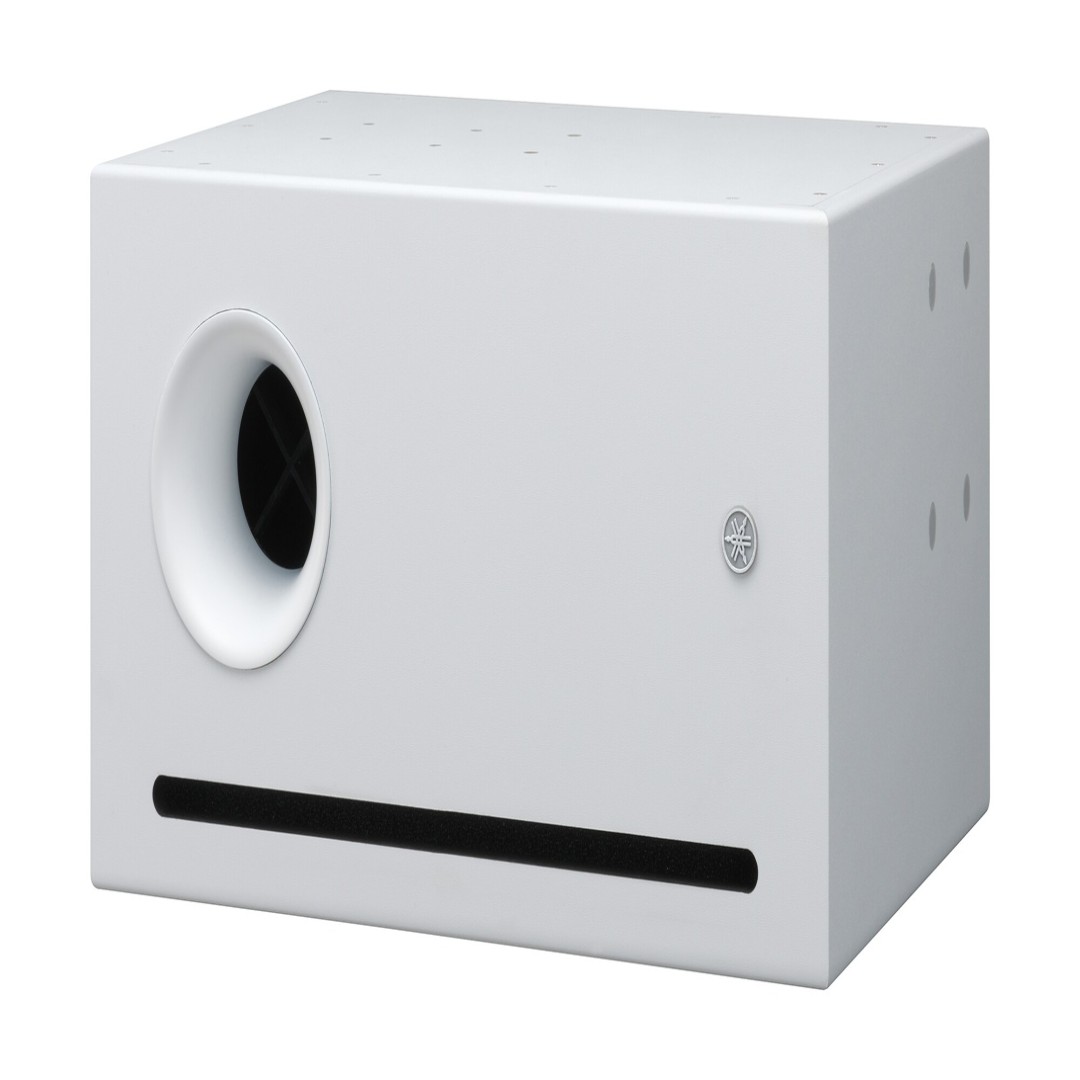

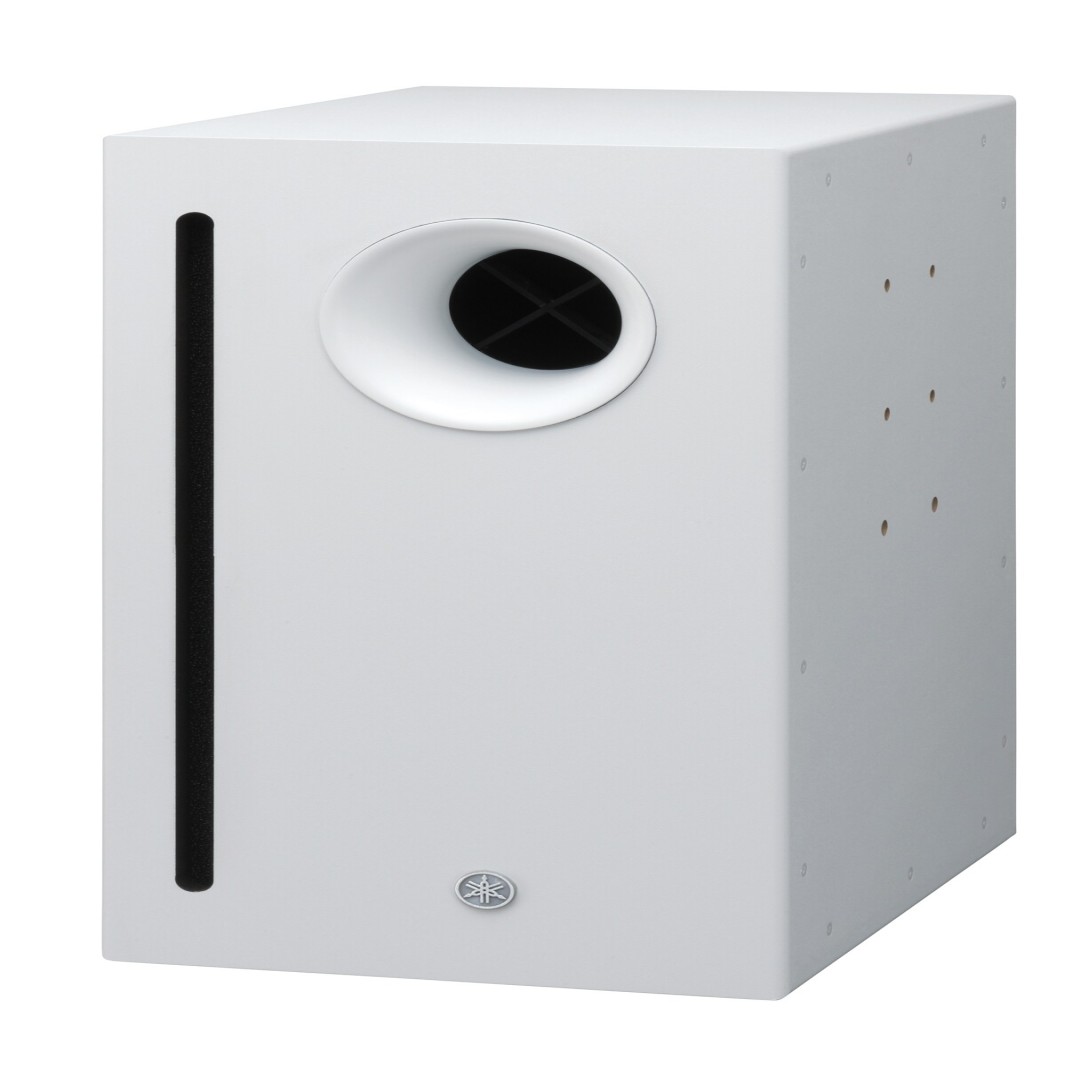

- VXS10STW: White
Dimensions & Weight
- Width: 260 mm
- Height: 500 mm
- Depth: 389 mm
- Weight: 19.5 kg
