Description
The A6, JBL’s smallest VTX line array product to date, brings flagship VTX A Series performance to a subcompact form factor. The fully passive, two-way line array element is a versatile solution for small to mid-size rental houses, corporate events, theaters, clubs, houses of worship or anyone who demands superior sound reinforcement.
Like every VTX A Series speaker, the A6 is engineered for outstanding sonic performance and ease of integration and deployment. Custom-engineered dual 6.5” Differential Drive® woofers and a new 3-inch compression driver join the acoustic innovations that are hallmarks of the VTX Series. Coupled with a clean and modern industrial design and a robust IP55 rating, the A6 is a significant advancement to its predecessor, the VT4886.
The A6 also shares the A12 and A8 auto-locking rigging mechanism and suspension system. The simple to use suite of accessories and best-in-class software suite (Performance Manager, LAC3, and Array Link) expand the flown, ground-stacked, and installation capabilities of the series when paired with the new VTX B15G or VTX B15 subwoofer.
With the addition of the A6, the JBL VTX A Series provides a complete ecosystem for delivering unrivaled sound reinforcement at any scale, in any venue, anywhere in the world.
More Information
- High-frequency section features a custom 3-inch polymer annular-diaphragm compression driver and integrated waveguide for crisp, distortion-free highs
- Custom 6.5-inch woofers are based on JBL’s Differential Drive dual-voicecoil, dual-gap design for superior low-frequency performance in a compact footprint
- Radiation Boundary Integrator (RBI) horn design provides 120° horizontal dispersion in a reduced cabinet size
- Efficient passive crossover network allows 16 speakers to be connected to a single Crown I-Tech 4x3500HD amplifier

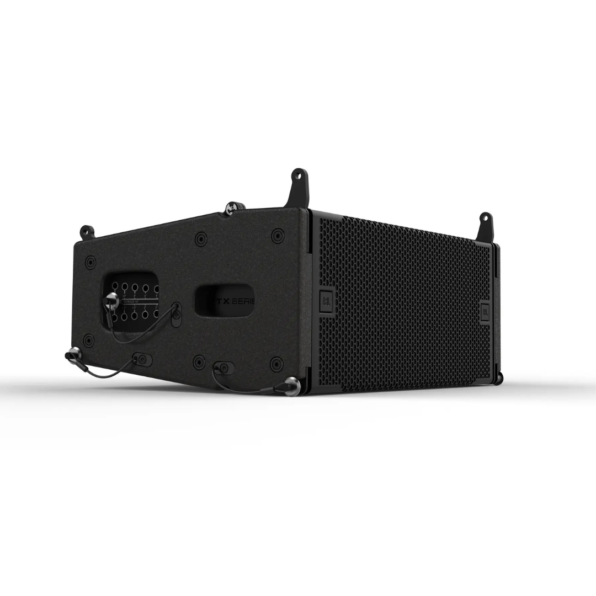

- Industry-leading auto-locking rigging and suspension features allow fast, accurate deployment in flown and ground-stacked configurations
- A6 and B15 have the same cabinet width and suspension hardware, allowing the two products to be combined in flown and ground-stacked configurations
- Fully compatible with JBL LAC-3, Array Link and Performance Manager software

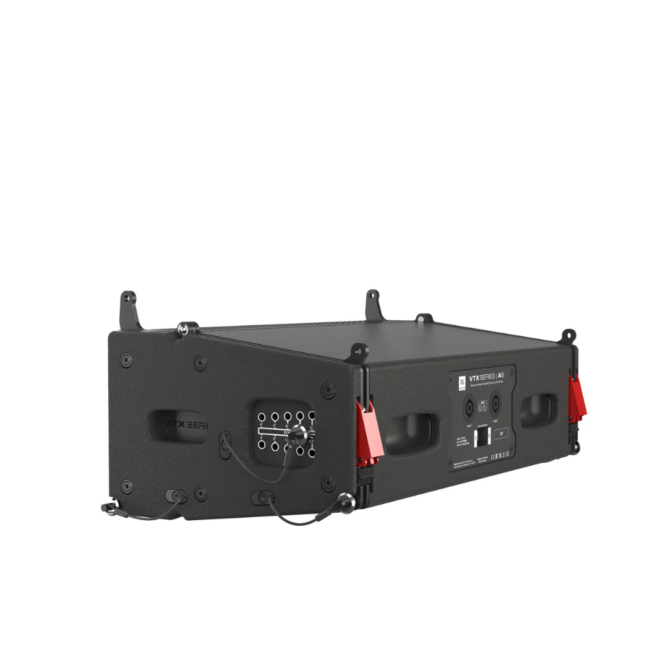

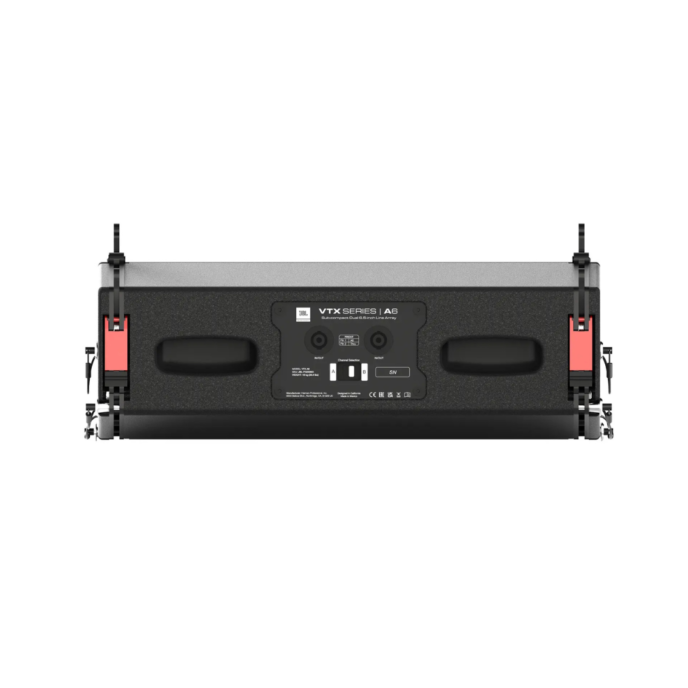

- Neutrik speakON NL4 connectors
- Rugged, exterior-grade birch enclosure with black Duraflex finish and recessed handholds

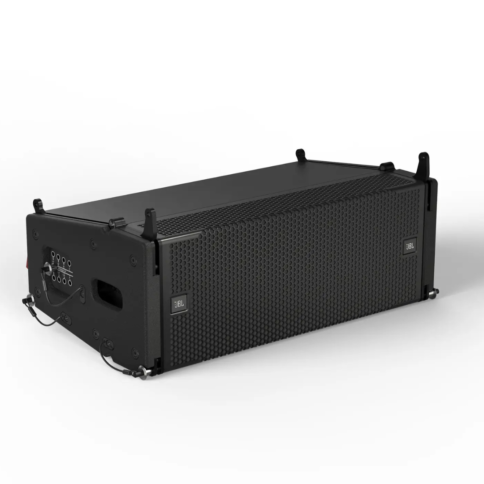

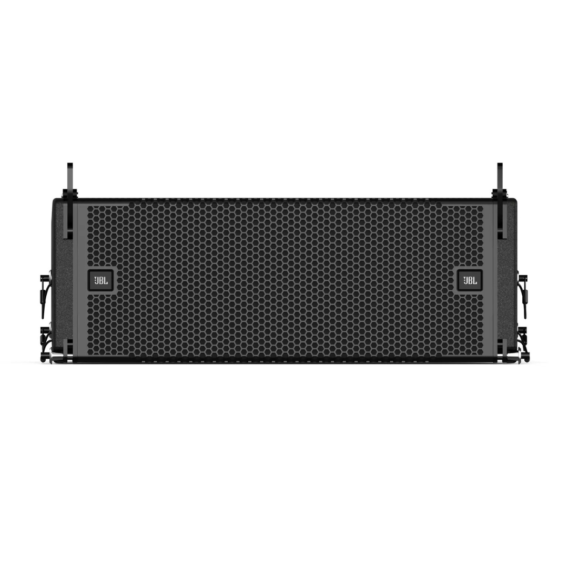

- Powder-coated, hex-perforated steel grilles with acoustically transparent cloth backing
- Available accessories include mini frame, suspension bar, base plate, ceiling mount, cover, ground stack accessory, pole adapter and transport cover and accessories
Technical Specification
- Model: JBL VTX A6
- System Type: Sub-compact Dual 6.5-inch Line Array Element
- Design: Passive 2-way
- Frequency Range (-10 dB): 67 Hz – 20 kHz
- Coverage Pattern: 110° nominal, 500 Hz – 16 kHz
- Maximum SPL: 134 dB
- System Processing: Crown I-Tech HD / Crown I-Tech 4x3500HD
- Nominal Impedance: 10 ohms
- LF Driver: 2 × JBL 2186J, 6.5-inch Differential Drive® woofer
- LF Voice Coil: Dual 2.5-inch voice coil
- HF Driver: 1 × JBL 2433H, 3-inch annular diaphragm compression driver
- HF Voice Coil: 3-inch voice coil
- Enclosure: 12 mm, 9-ply exterior-grade birch plywood
- Finish: Black DuraFlex™
- Handles: Four integral recessed handholds

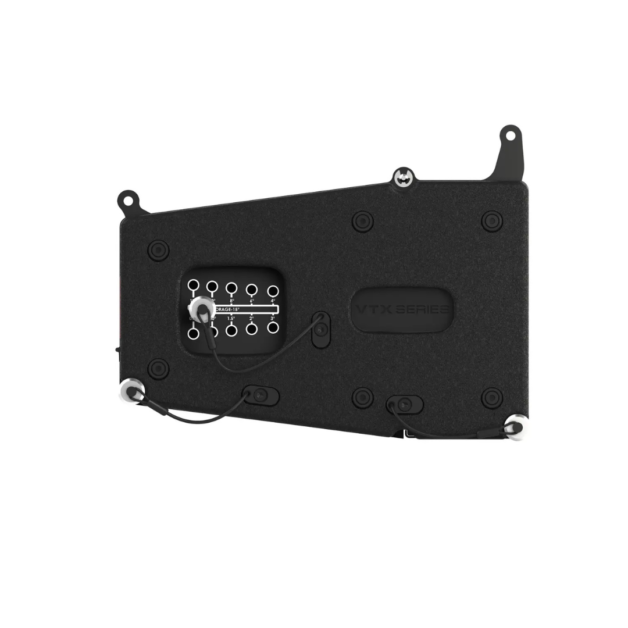

- Inter-Enclosure Angles: 0.5°, 1°, 1.5°, 2°, 3°, 4°, 6°, 8°, 10°, 12°, 15°
- Dimensions (H × W × D): 190 mm × 536 mm × 301 mm
- Dimensions in Inches: 7.5″ × 21.1″ × 11.8″
- Net Weight: 18.4 kg / 40.3 lbs
