Description

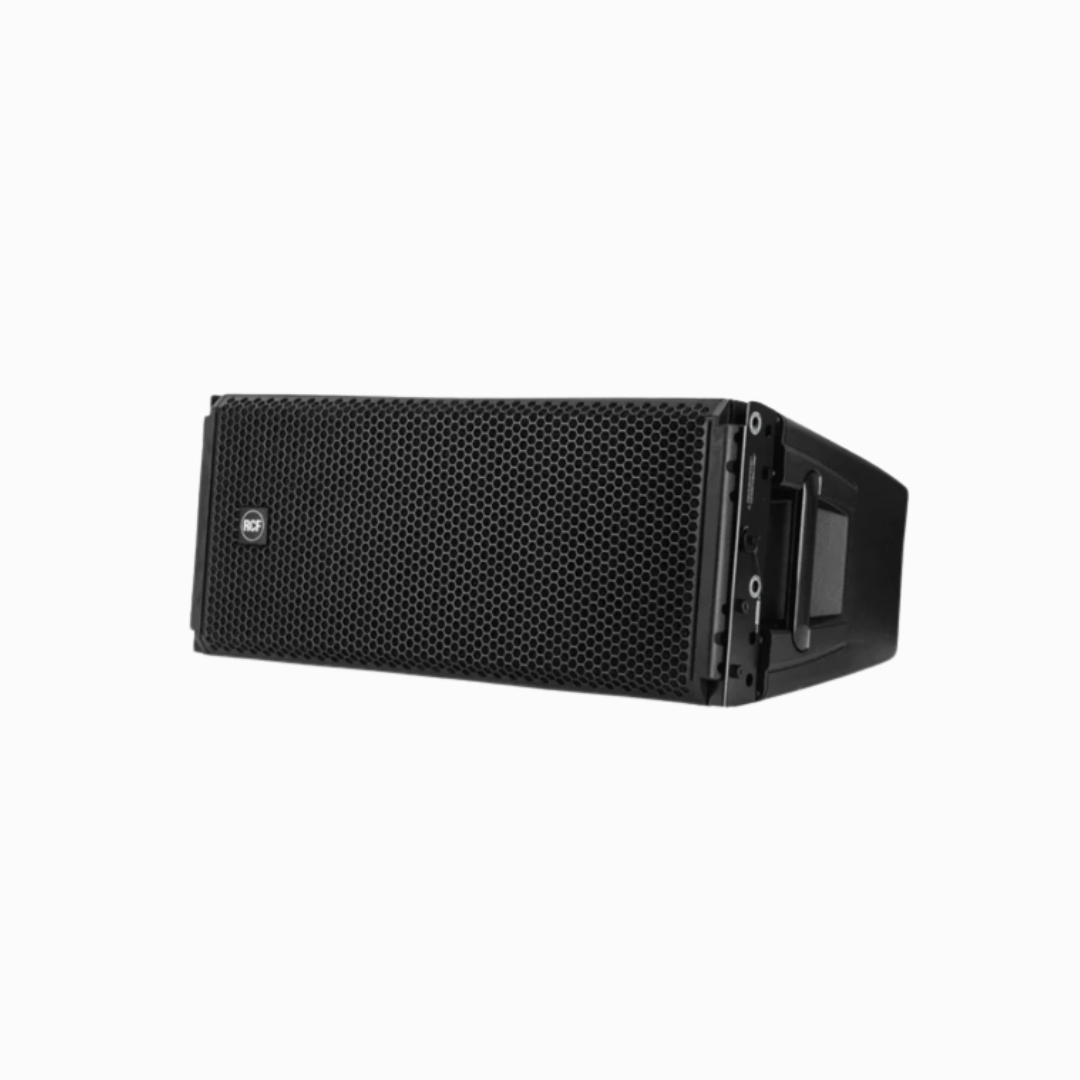

The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time-coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state-of-the-art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system.

More Information

  • 2200W Two-Way Amplifier
  • 137 dB Max SPL
  • 48 kHz, 32-bit DSP processing
  • 1.4″ Titanium Compression Driver, 4.0″ voice coil
  • 2 x 10″ Neodymium Woofers, 2.5″ voice coil
  • Exclusive FiRPHASE technology on board
  • RDNet Control and Management
  • 680 Hz Crossover Point

Technical Specification

  • ACOUSTICAL SPECIFICATIONS-
  • Frequency Response: 50 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 137 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 15°
  • TRANSDUCERS-
  • Compression Driver: 1 x 1.4” neo, 4.0” v.c
  • Woofer: 2 x 10” neo, 2.5” v.c
  • INPUT/OUTPUT SECTION-
  • Input signal: bal/unbal
  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: +4 dBu
  • PROCESSOR SECTION-
  • Crossover Frequencies: 680 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Preset, RDNet bypass
  • RDNet: Yes
  • POWER SECTION-
  • Total Power: 2200 W Peak, 1100 W RMS
  • High frequencies: 600 W Peak, 300 W RMS
  • Low frequencies: 1600 W Peak, 800 W RMS
  • Cooling: Forced
  • Connections: Powercon
  • IN/OUTPHYSICAL SPECIFICATIONS-
  • Cabinet/Case Material: PP Composite
  • Hardware: Array fittings
  • Handles: 2 Side
  • Grille: Steel
  • Color: Black
  • SIZE-
  • Height: 293 mm / 11.54 inches
  • Width: 705 mm / 27.76 inches
  • Depth: 502 mm / 19.76 inches
  • Weight: 25 kg / 55.12 lbs

Specification

Basic information

Headphone type Intrathecal
Destiny For iPod / iPhone / iPad, For phones
Wireless transmission Bluetooth
Additional functions Aware adjustable, IPX4, Adjustable equalizer, Touch control, CustomTune technology, Quiet mode
Color Black

Functions

Wireless transmission Bluetooth
Active Noise Cancellation (ANC) Yes
True Wireless Yes
Microphone Yes
Mp3 player Yes
Volume control No
Bone conduction Yes
