Description

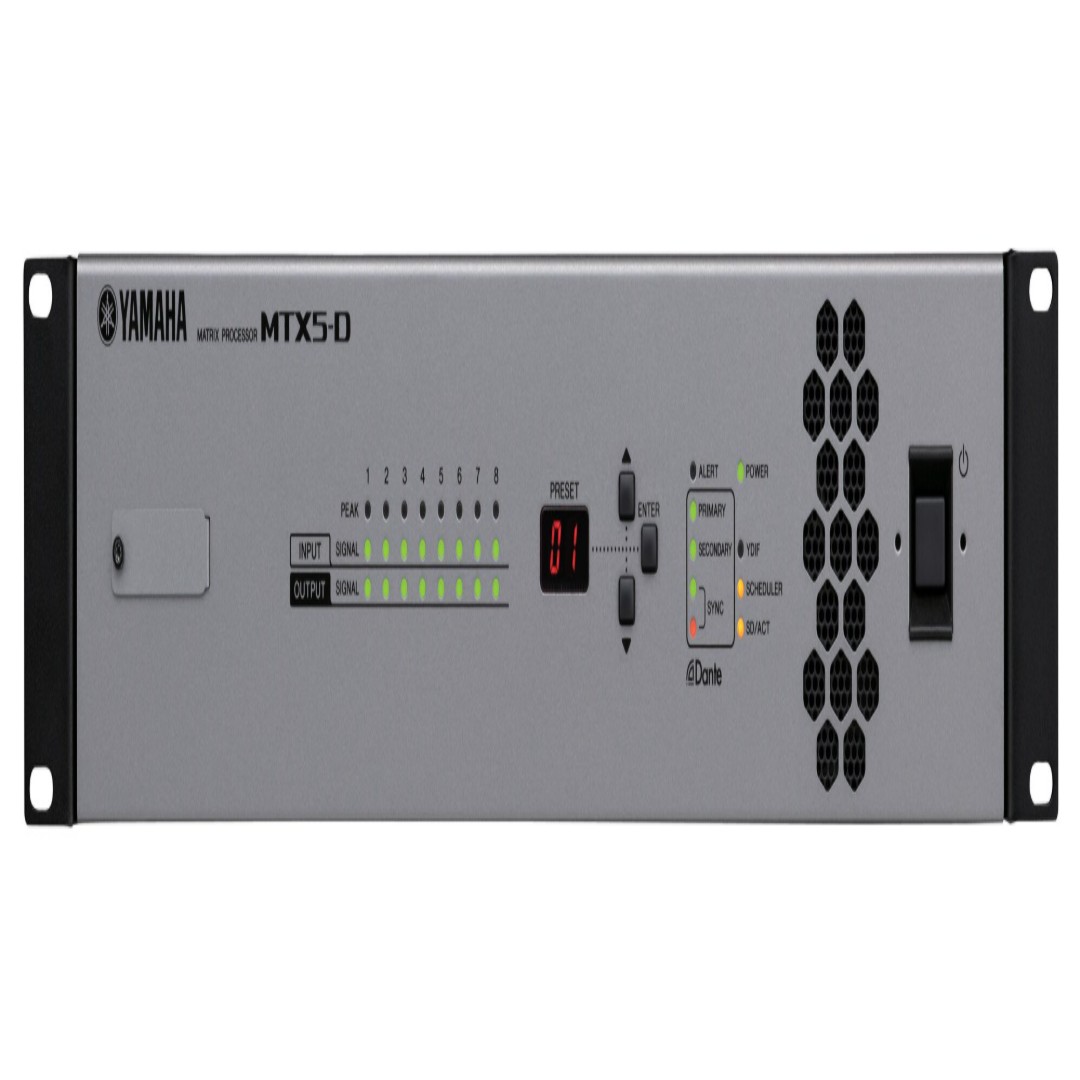

The Yamaha MTX5-D is a professional digital signal processor designed for advanced sound system control and audio management in commercial installations, conference rooms, educational facilities, hotels, and performance venues. It offers flexible mixing, powerful DSP processing, speaker management, and Dante network audio support for high-quality and reliable audio distribution.
More Information
Key Features
- 16 mono mixing channels with 3 stereo channels
- 2 effect return channels and 8 direct-in to matrix routing
- Built-in 3-band PEQ, compressor, gate, and Auto Gain Control
- Feedback suppressor available on channels 1–8
- Advanced output processing including Room EQ and Speaker Processor
- X-Over support for 1-way and 2-way speaker systems
- Delay, 6-band PEQ, and limiter on output channels
- Dante digital audio networking support
- Priority Ducking and Ambient Noise Compensator functions
- Supports +48V phantom power for condenser microphones
- Preset memory storage with up to 50 memory banks
- Compact 2U rack-mount design suitable for professional installations
Technical Specifications
Mixing Capability
- Mixing Channels: 16 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix
Input Channel Functions
- 3-band PEQ
- Compressor
- Gate
- Auto Gain Control
- Feedback Suppressor (Channels 1–8)
Output Channel Functions
- Room Delay
- Room EQ
- Speaker Processor
- X-Over (1-way / 2-way)
- Delay
- 6-band PEQ
- Limiter
I/O
- Phantom Power: +48V
General Specifications
- Internal Processing: Priority Ducking, Ambient Noise Compensator
- Sampling Frequency: 48kHz / 44.1kHz
- Signal Delay: Less than 3.0ms (AD-DA @48kHz)
- Total Harmonic Distortion:
- Less than 0.05% (+4dBu, Gain:-6dB)
- Less than 0.1% (+4dBu, Gain:+66dB)
- Frequency Response: 20Hz – 20kHz (+0.5dB / -1.5dB)
- Dynamic Range: 107dB (Gain:-6dB)
- Equivalent Input Noise:
- -60dBu (Gain:+66dB)
- -83dBu (Gain:-6dB)
- Crosstalk: -100dB
- Heat Dissipation: 55.9kcal/h max
Power Requirements
- AC100V–240V, 50Hz/60Hz
- Power Consumption: 65W
Dimensions
- Width: 480mm (18.9″)
- Height: 88mm (3.4″)
- Depth: 351mm (13.9″)
Weight
- Net Weight: 6.3kg (13.9lbs)
