Description

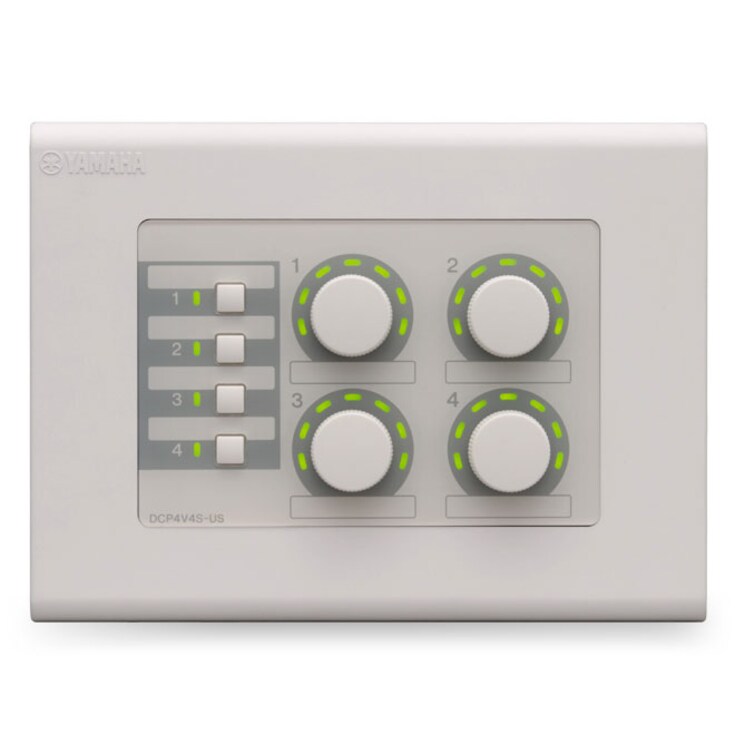

The Yamaha DCP4V4S is a wall-mount digital control panel designed for remote control of Yamaha DME7, MTX/MRX Series, and MA/PA Series audio systems. It features four rotary volume controls and four programmable switches, providing flexible control for volume adjustment, source selection, presets, and other audio system functions in commercial installations.
More Information
Key Features
- 4 rotary volume controls and 4 programmable switches
- Wall-mount compact design
- Compatible with Yamaha DME7, MTX/MRX Series, and MA/PA Series
- CAT5 cable connection for power and RS485 communication
- Easy and reliable installation
- Flexible control for commercial audio systems
- Suitable for conference rooms, hotels, schools, retail stores, and restaurants
Technical Specifications
- Control Type: 4 Volume & 4 Switch Digital Control Panel
- Communication: RS485
- Connection Cable: CAT5
- Compatible Series: DME7, MTX/MRX, MA/PA Series
- Maximum Connection:
- Up to 8 DCP units with DME7 and MTX/MRX Series
- Up to 2 DCP units with MA2120 or PA2120
- Mounting Type: Wall Mount
- Applications: Commercial audio systems, conferencing, hospitality, retail, and education installations
