Description

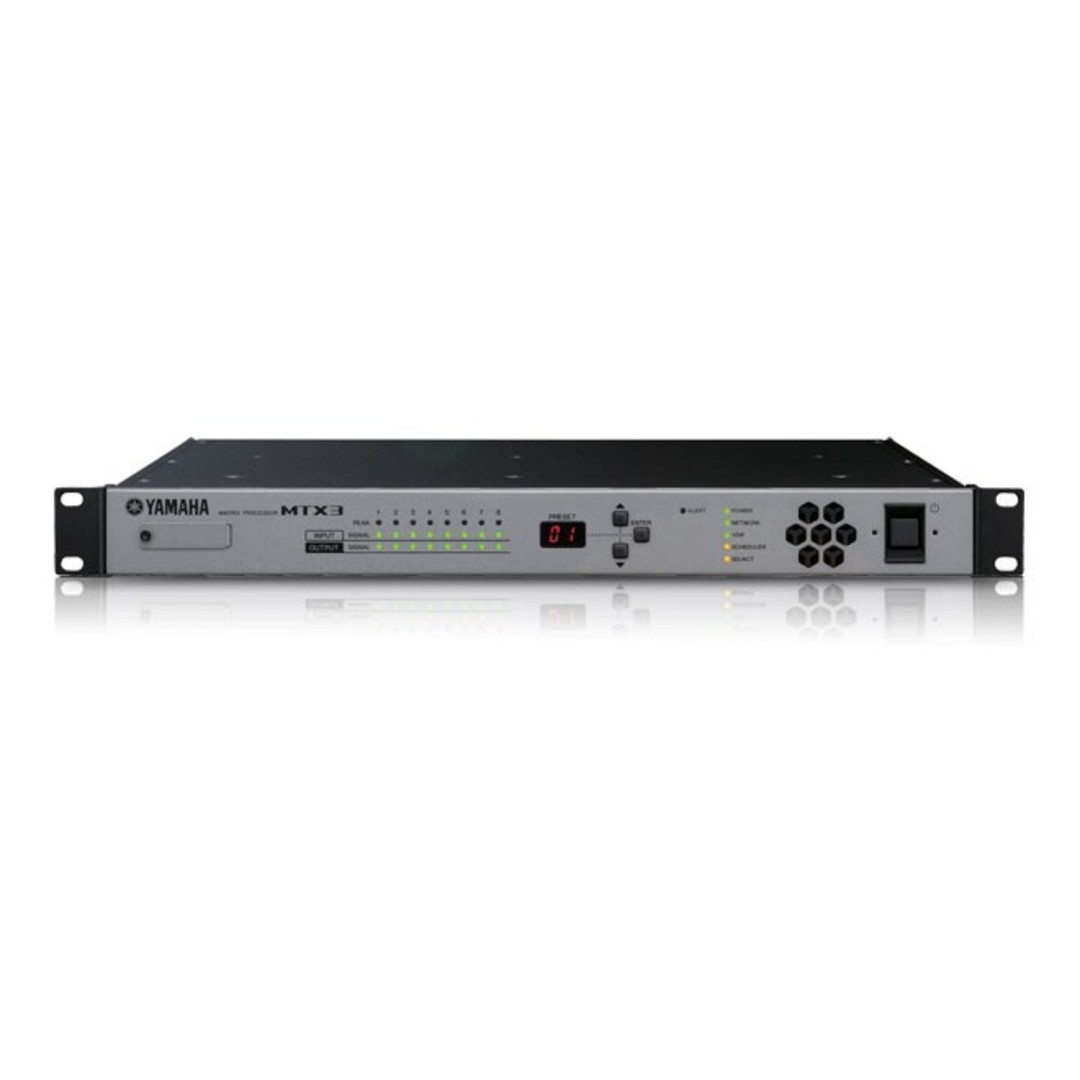

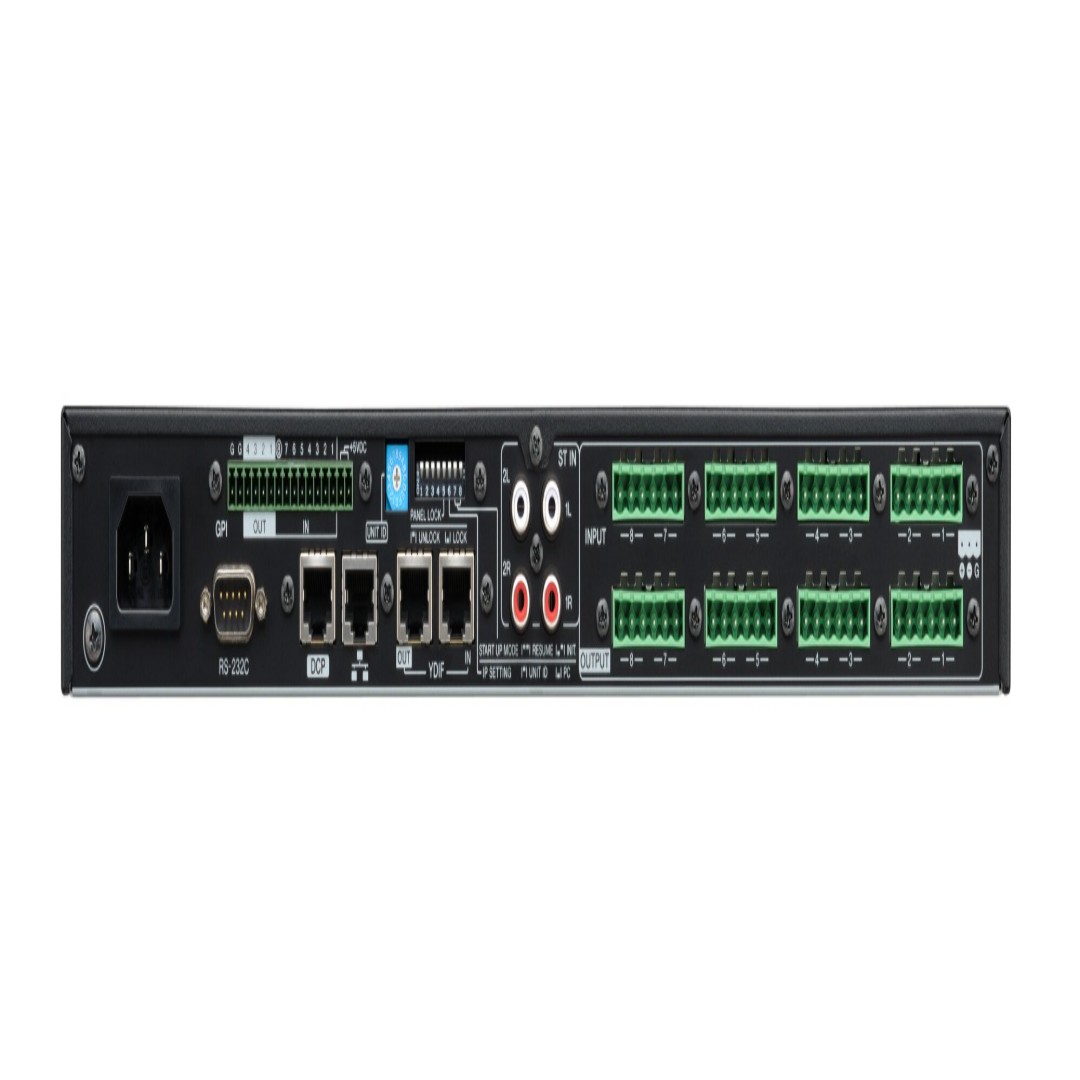

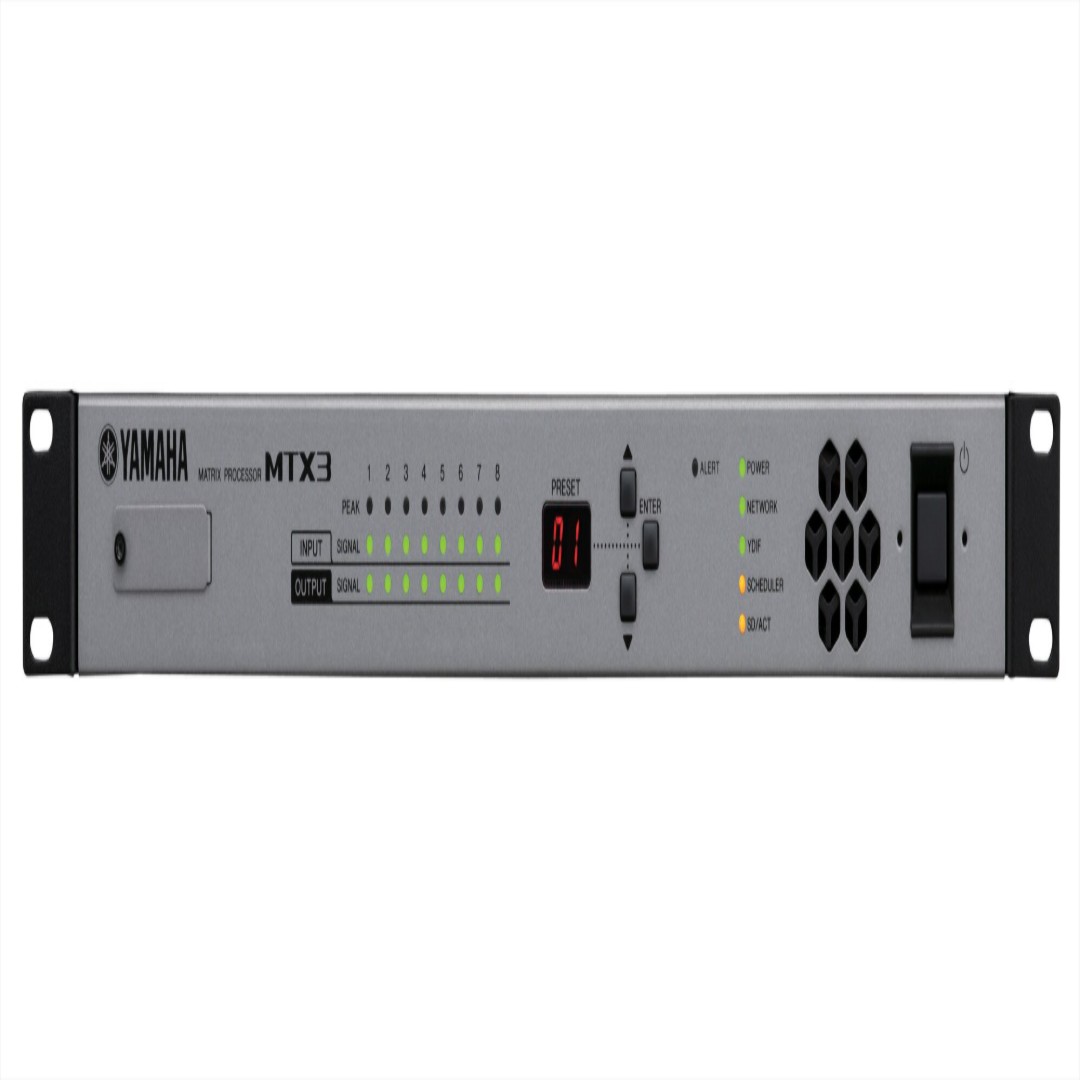

The Yamaha MTX3 is a compact and powerful digital matrix processor designed for commercial audio installations. It offers flexible mixing, advanced DSP processing, speaker management, and reliable system control for applications such as conference rooms, retail spaces, restaurants, schools, and hospitality venues.
More Information
Key Features
- 8 mono mixing channels with 3 stereo channels for flexible audio management
- Advanced DSP processing including PEQ, compressor, gate, limiter, and feedback suppressor
- Built-in Auto Gain Control and Ambient Noise Compensation for consistent sound levels
- Speaker processor with crossover, room EQ, room delay, and speaker tuning functions
- Supports both 48kHz and 44.1kHz sampling frequencies
- Low-latency audio processing with signal delay under 2.5ms
- Phantom power support for condenser microphones
- Priority ducking function for paging and announcements
- 50 preset memory banks for quick system recall and configuration
- Compact 1U rack-mount design suitable for professional installations
Technical Specification
- Mixing Channels: 8 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix
- Output Busses: 8 Mono
- Mono Channel Functions: 3-band PEQ, Compressor, Gate, Auto Gain Control, Feedback Suppressor (CH1–4)
- Stereo Channel Functions: 3-band PEQ, Compressor, Auto Gain Control
- Output Processing: Room Delay, Room EQ, Speaker Processor, X-Over (1-way/2-way), Delay, 6-band PEQ, Limiter
- Phantom Power: +48V
- Internal Processing: Priority Ducking, Ambient Noise Compensator
- Sampling Frequency: 48kHz / 44.1kHz
- Signal Delay: Less than 2.5ms (AD-DA @48kHz)
- Total Harmonic Distortion: Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB)
- Frequency Response: 20Hz to 20kHz, +0.5dB / -1.5dB
- Dynamic Range: 107dB (Gain:-6dB)
- Equivalent Input Noise: -60dBu (Gain:+66dB), -83dBu (Gain:-6dB)
- Crosstalk: -100dB
- Heat Dissipation: 43kcal/h max
- Power Requirement: AC100V-240V, 50Hz/60Hz
- Power Consumption: 50W
- Dimensions (W × H × D): 480 × 44 × 362 mm
- Net Weight: 4.8kg
- Memory Presets: 50
