Description

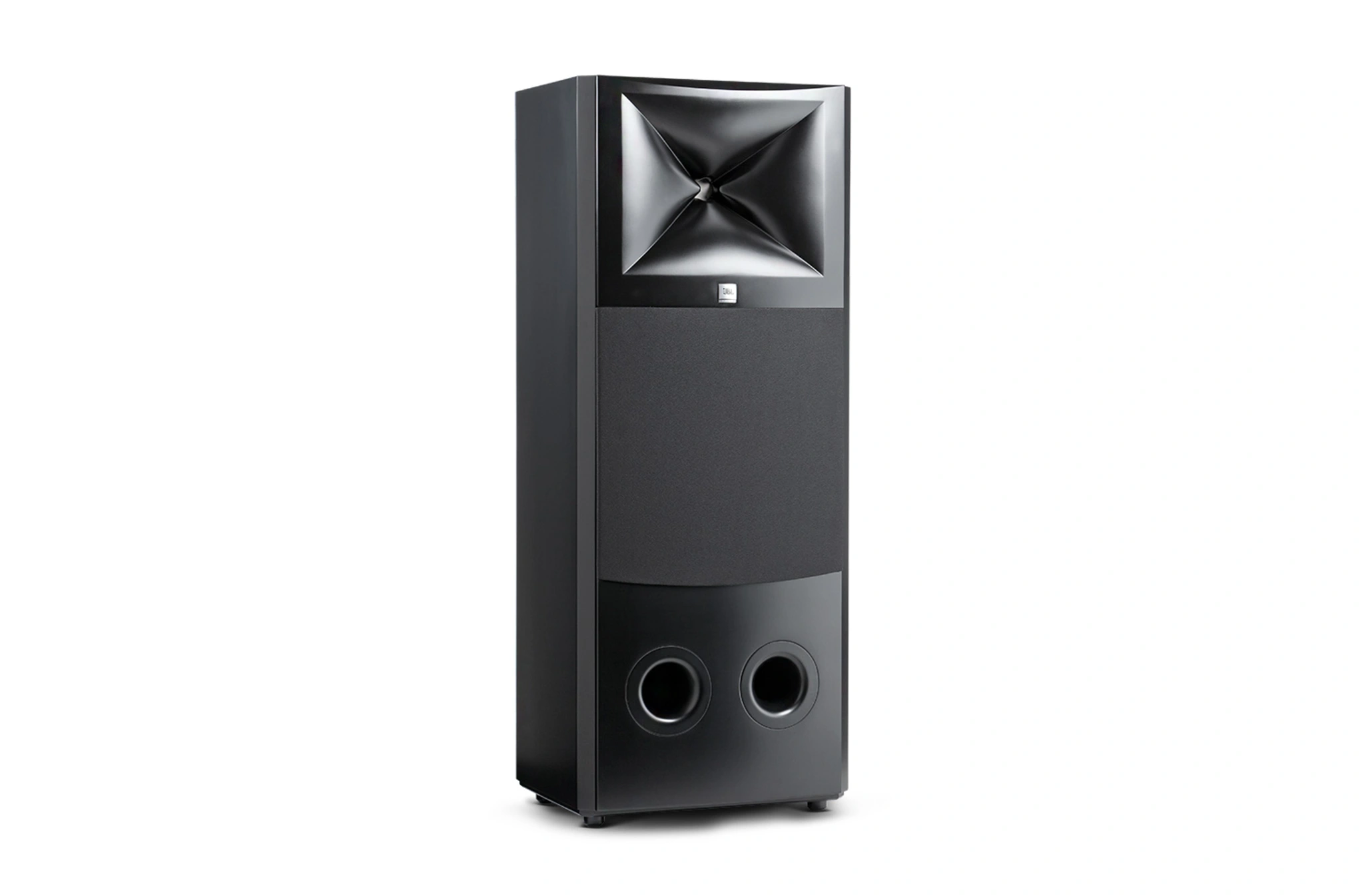

The JBL M2 is a 2-way master reference monitor designed for professional music recording, cinema, broadcast, and post-production applications. It uses a JBL 2216Nd 15-inch Differential Drive® woofer and a JBL D2430K dual-diaphragm, dual-voice-coil compression driver. JBL lists the M2 as a floor-standing or soffit-mountable system with 20 Hz – 40 kHz frequency response and 123 dB maximum peak SPL.
More Information
Key Features
- 2-way master reference monitor
- Floor-standing or soffit-mountable design
- 15-inch JBL 2216Nd Differential Drive® woofer
- JBL D2430K dual-diaphragm, dual-voice-coil compression driver
- Wide frequency response: 20 Hz – 40 kHz
- 120° horizontal x 100° vertical coverage
- 123 dB maximum peak SPL
- Requires Crown iTech amplification
- 25 mm MDF enclosure
- Satin black lacquer finish
Technical Specification
- Model: JBL M2
- Speaker Type: Master reference monitor
- System Format: 2-way floor-standing or soffit-mountable
- LF Driver: JBL 2216Nd, 15 inch / 381 mm Differential Drive® woofer
- HF Driver: JBL D2430K dual-diaphragm, dual-voice-coil compression driver
- Crossover Frequency: 800 Hz
- Frequency Response: 20 Hz – 40 kHz
- Coverage Angle: 120° horizontal x 100° vertical
- Sensitivity: 92 dB
- Maximum Continuous SPL at 1m: 117 dB
- Maximum Peak SPL at 1m: 123 dB
- Maximum Peak SPL at 8m: 108 dB
- Amplifier Requirement: 1 x Crown iTech 5000HD per speaker
- Alternative Amplifier Requirement: 1 x Crown iTech 3x3500HD for two speakers
- Amplifier Power Rating: 1200 W into 8 ohms

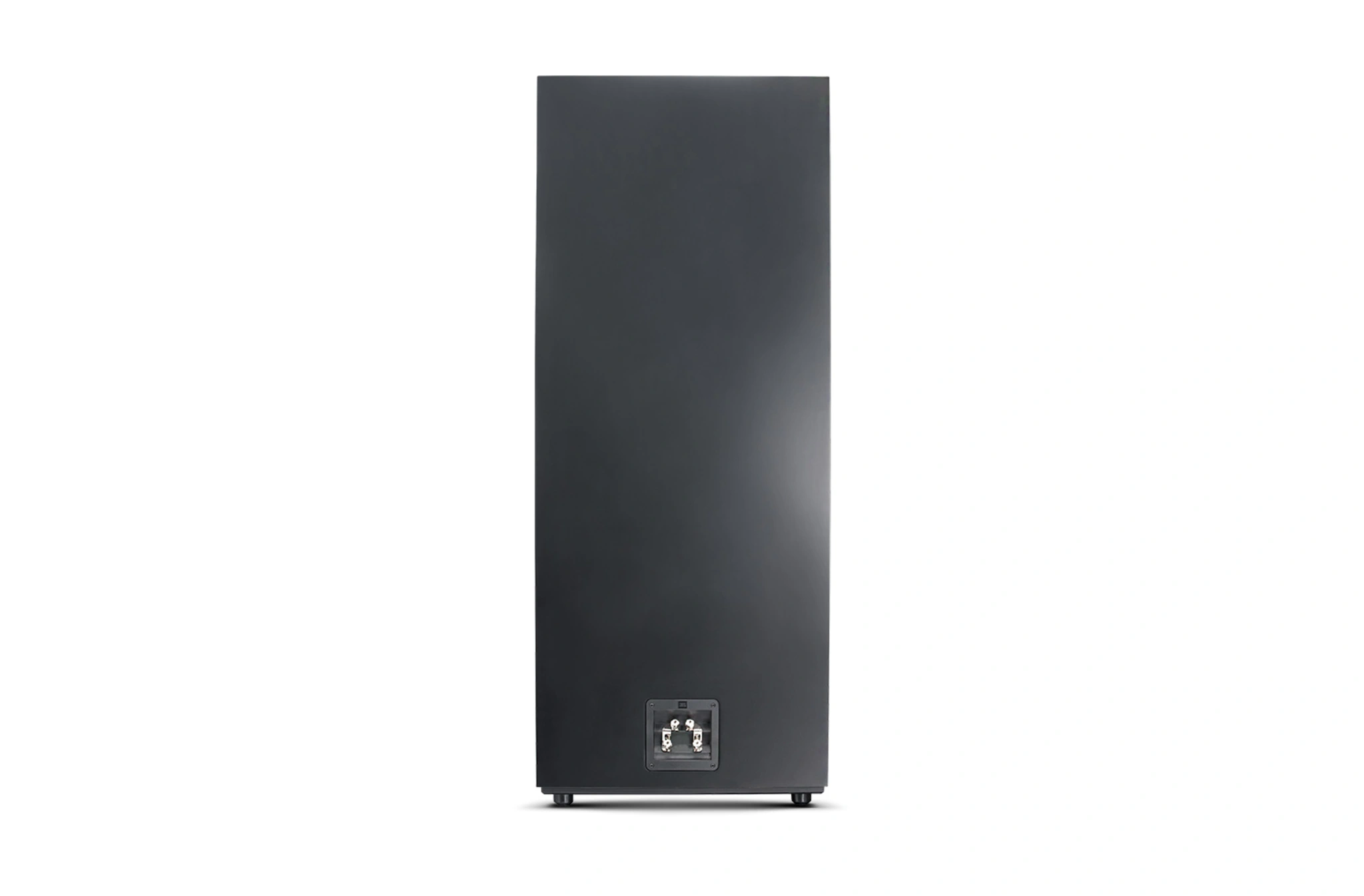

- Input Connector: Spring terminals
- Enclosure: 25 mm / 1 inch MDF
- Finish: Satin black lacquer

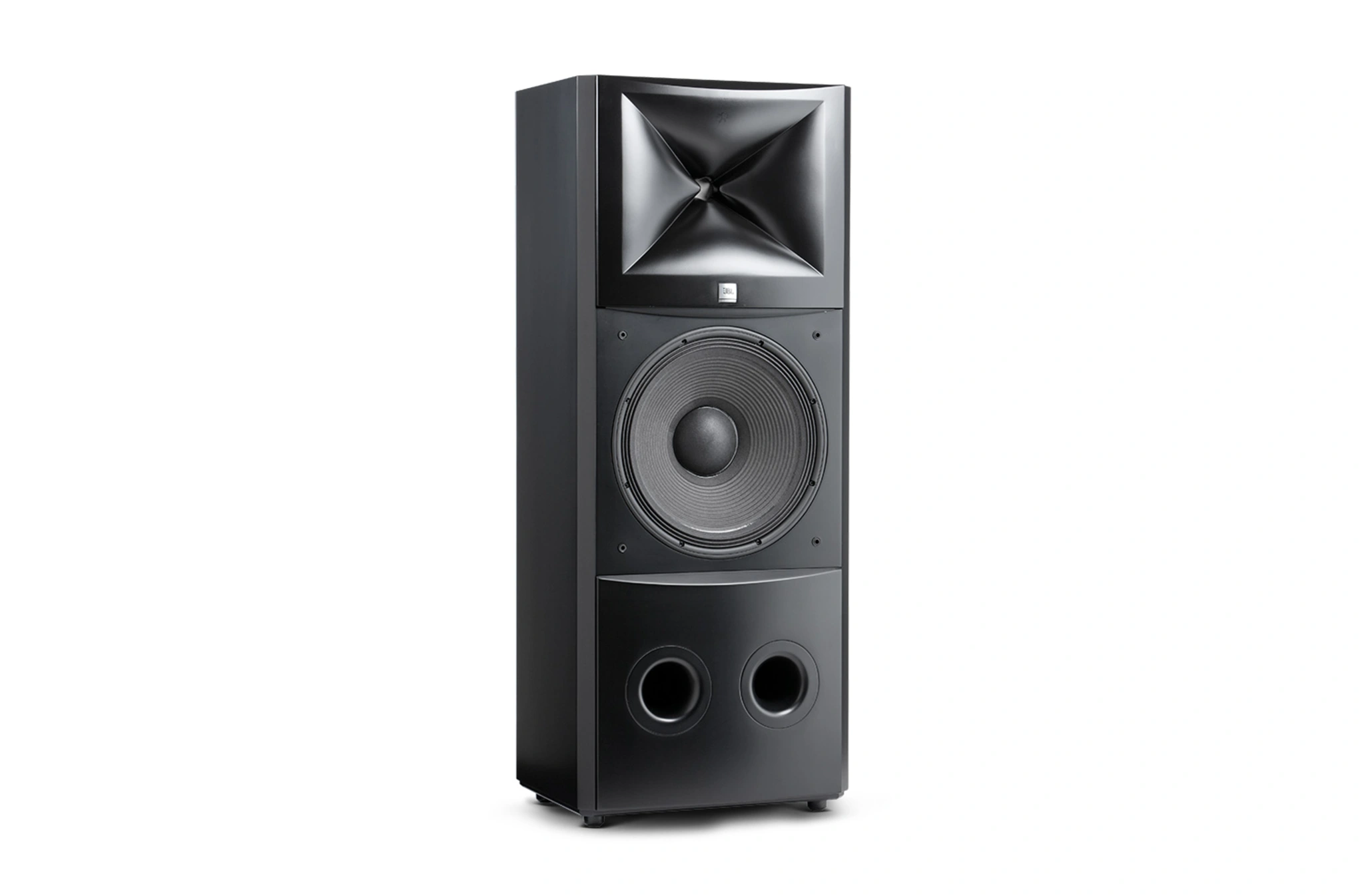

- Grille: Removable ABS grille with black UL-compliant fabric
- Dimensions: 508 x 1256 x 355.6 mm
- Dimensions in Inches: 20 x 49.5 x 14 inch
- Net Weight: 58.5 kg / 129 lb
