Description
The MSP3A is a compact powered studio monitor designed for professional music production, multimedia editing, and personal studio applications. Featuring a 2-way bass-reflex design with Yamaha’s Twisted Flare Port technology, it delivers accurate sound reproduction with enhanced low-frequency response and minimal port noise. Its compact size and flexible mounting options make it ideal for desktop studios, broadcast setups, and small production environments.
More Information
Key Features
- Compact 2-way powered studio monitor
- Bass-reflex enclosure with Twisted Flare Port technology
- 4-inch cone woofer and 0.8-inch dome tweeter
- Clear and balanced sound reproduction
- Multiple input options including RCA and Combo XLR/TRS
- Independent level controls for LINE 1 and LINE 2
- LOW and HIGH tone control adjustment
- Compact design suitable for desktop or wall mounting
- Compatible with various optional mounting brackets and stand adapters
Technical Specifications
- Speaker Type: 2-way powered speaker, bass-reflex type
- Frequency Response: 67 Hz – 22 kHz
- LF Driver: 4-inch cone
- HF Driver: 0.8-inch dome tweeter
- Crossover Frequency: 4 kHz
- Output Power: 22W
- Maximum SPL: 99 dB SPL
- Input Sensitivity:
- LINE 1: -10 dBu, 10kΩ (RCA)
- LINE 2: +4.0 dBu, 10kΩ (Combo XLR/TRS)

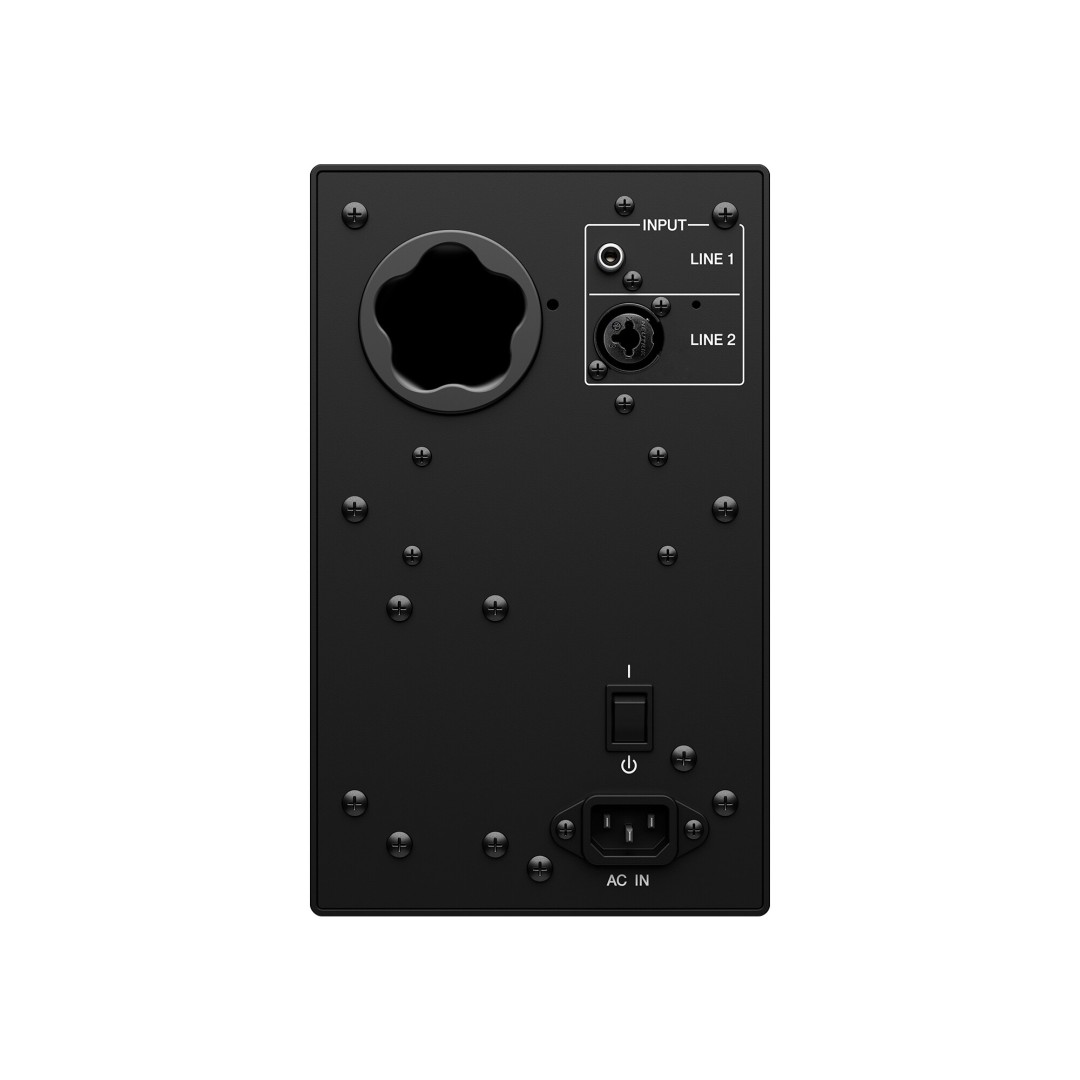

- Input Connectors:
- LINE 1: RCA
- LINE 2: Combo (XLR/TRS phone)
- Controls:
- LINE 1 and LINE 2 level control
- LOW EQ: ±3 dB @100 Hz
- HIGH EQ: ±3 dB @10 kHz
- Power Consumption: 30W
- Dimensions: 144 mm × 236 mm × 166 mm
- Weight: 3.6 kg
- Included Accessories: Power cord, owner’s manual

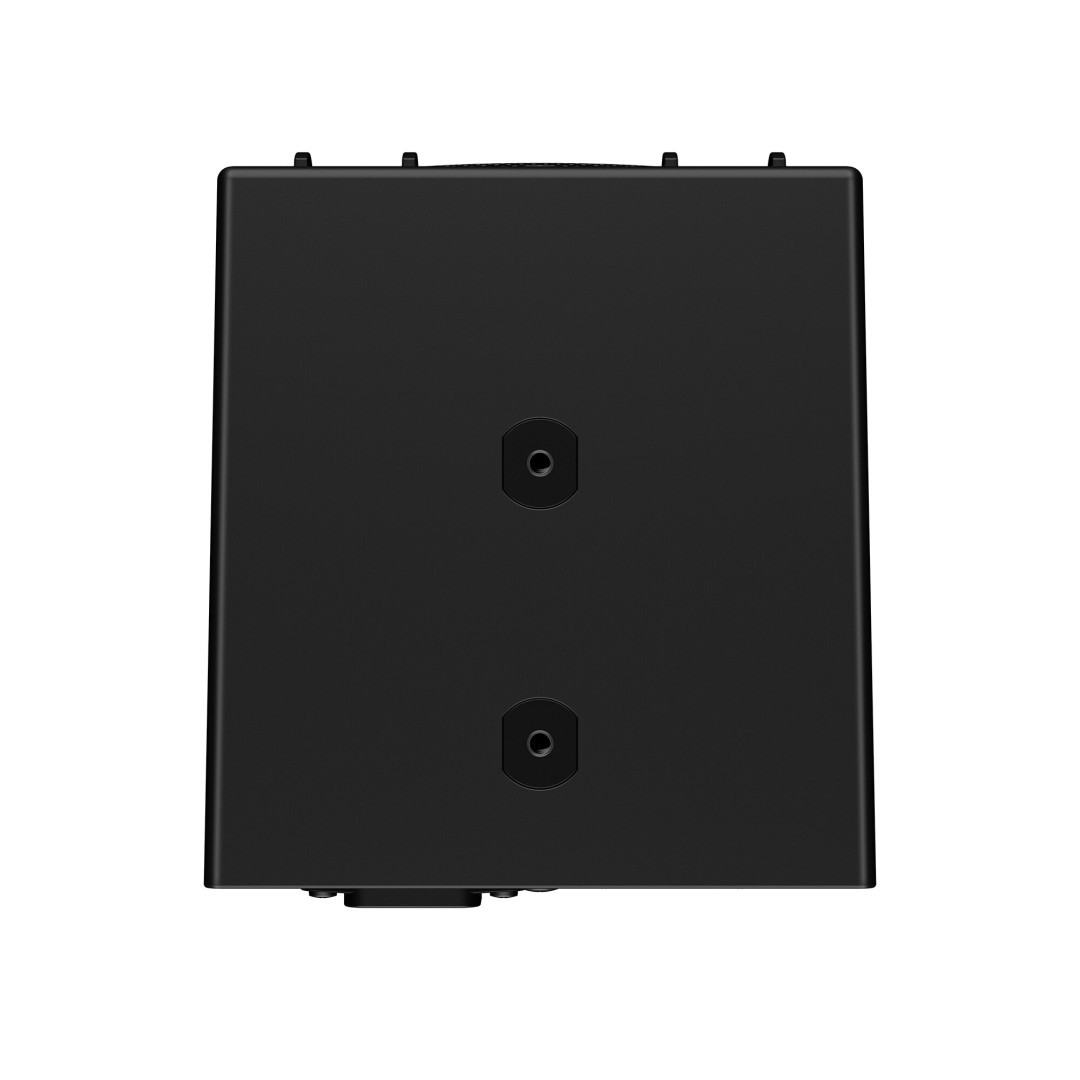

- Mounting Points: 2 × M5 (Depth 15 mm)
