Description

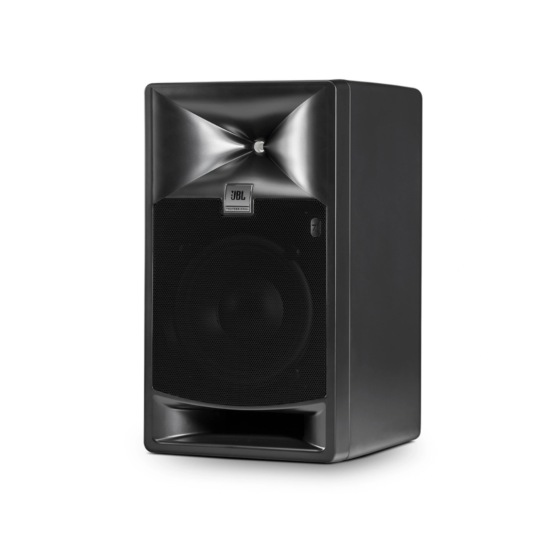

The JBL 705i is a 5-inch passive master reference monitor designed for professional post-production, broadcast facilities, audio trucks, and immersive audio monitoring systems. It uses a JBL 725G 5-inch low-frequency driver and JBL 2409H high-frequency driver with JBL’s Image Control Waveguide for accurate imaging and wide listening coverage.
More Information
Key Features
- 5-inch master reference monitor
- Passive 2-way studio monitor design

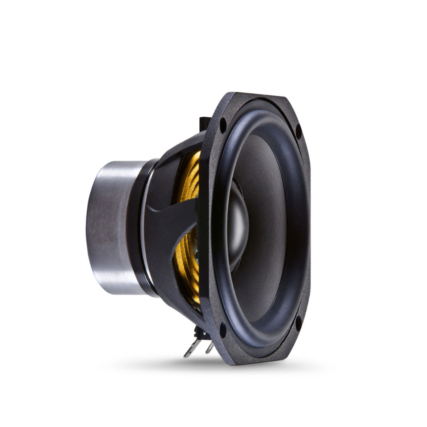

- JBL 725G 5-inch low-frequency driver

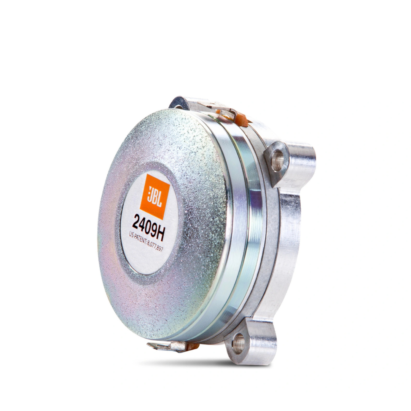

- JBL 2409H high-frequency driver
- JBL Image Control Waveguide
- Accurate stereo imaging and wide sweet spot
- Designed for post-production, broadcast, and immersive audio rooms
- Centrally amplified and tuned system
- Birch plywood enclosure
- Compact installation-friendly cabinet
Technical Specification
- Model: JBL 705i
- Speaker Type: Passive master reference monitor
- Configuration: 2-way studio monitor
- Frequency Response: 48 Hz – 23 kHz
- Frequency Range: 39 Hz – 36 kHz
- Maximum Continuous SPL: >101 dB SPL / 1m, 80 Hz – 20 kHz
- Maximum Peak SPL: >107 dB SPL / 1m, 80 Hz – 20 kHz
- HF Driver: JBL 2409H
- LF Driver: JBL 725G
- LF Driver Size: 5 inch / 127 mm
- Dividing Network Transition Frequency: 1.9 kHz
- Input Connector: Phoenix terminals
- Wire Acceptance: Accepts 12-gauge speaker wire
- Enclosure: Birch plywood reinforced for mounting
- Mounting: Top, bottom, and rear mounting support
- Dimensions: 267 x 149 x 206 mm
- Dimensions in Inches: 10.5 x 5.875 x 8.125 inch
- Net Weight: 4.08 kg / 9.0 lb
