Description

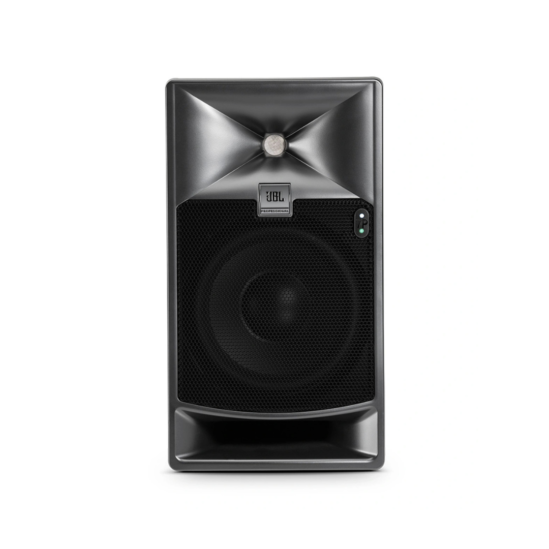

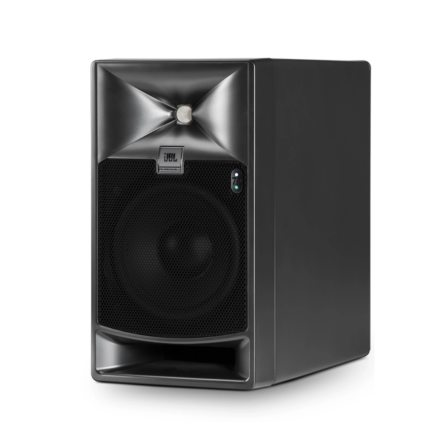

The JBL 705P is a 5-inch self-powered master reference monitor for critical music recording, film post-production, broadcast, and mastering applications. It uses JBL’s 725G low-frequency transducer, 2409H high-frequency transducer, and patented Image Control Waveguide for accurate imaging and a wide sweet spot.
More Information
Key Features
- 5-inch bi-amplified master reference monitor
- Self-powered 2-way studio monitor design

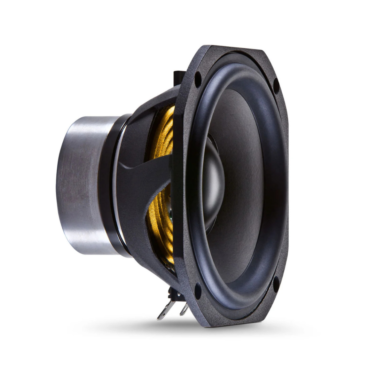

- JBL 725G low-frequency transducer

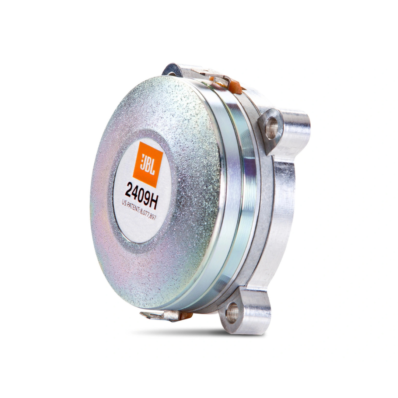

- JBL 2409H high-frequency transducer
- Patented JBL Image Control Waveguide
- 250 W HF amplifier + 250 W LF amplifier
- 192 kHz, 32-bit floating-point processing
- 12 bands of Room EQ
- 8 bands of User EQ
- 6 factory presets and 6 user-defined presets
- Analog and AES3 digital input support
- RJ-45 network connection for HARMAN HiQnet
- Birch plywood enclosure with mounting points
Technical Specification
- Model: JBL 705P
- Speaker Type: Powered master reference monitor
- Configuration: 2-way bi-amplified studio monitor
- Frequency Response: -1.5 dB @ 48 Hz – 23 kHz
- Frequency Range: 39 Hz – 36 kHz
- Maximum Continuous SPL: >101 dB SPL / 1m, 80 Hz – 20 kHz
- Maximum Peak SPL: >107 dB SPL / 1m, 80 Hz – 20 kHz
- HF Driver: JBL 2409H
- LF Driver: JBL 725G
- LF Driver Size: 5 inch
- Dividing Network Transition Frequency: 1.9 kHz
- Amplifier Type: Class-D
- HF Amplifier Power: 250 W
- LF Amplifier Power: 250 W
- DSP Processing: 192 kHz, 32-bit floating point
- Room EQ: 12 bands
- User EQ: 8 bands
- Room Delay: 18 ms
- AV Sync Delay: 150 ms

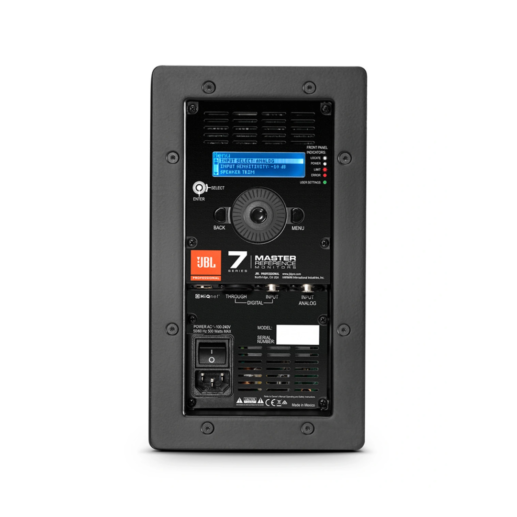

- Analog Input: 1 x XLR balanced analog audio input
- Digital Input: 1 x XLR AES3 format digital input
- Digital Output: 1 x XLR pass-through output
- Digital Sample Rate Support: Up to 192 kHz
- Network Connection: RJ-45 for HARMAN HiQnet connectivity
- Enclosure: Birch plywood reinforced for mounting
- Mounting: Top, bottom, and rear mounting points
- Mounting Pattern: 2-hole mounting pattern
- Dimensions: 267 x 149 x 206 mm
- Dimensions in Inches: 10.5 x 5.875 x 8.125 inch
- Net Weight: 4.08 kg / 9.0 lb
