Description
The HS4 is a professional compact studio monitor system designed for creators, producers, and multimedia applications requiring accurate sound reproduction. Equipped with a 4.5-inch woofer and 1-inch tweeter in a bass-reflex MDF cabinet, the HS4 delivers deeper low-frequency response and improved monitoring performance while maintaining a compact footprint.
More Information
Key Features
- 2-way powered studio monitor system
- Bass-reflex MDF cabinet construction
- 4.5-inch cone woofer and 1-inch dome tweeter
- Wide frequency response with enhanced bass performance
- Multiple professional and consumer input options
- Front headphone output for personal monitoring
- ROOM CONTROL and HIGH TRIM acoustic adjustment switches
- Compact design suitable for desktop studios
- Supplied as a stereo pair
Technical Specifications
- Speaker Type: 2-way powered speaker, bass-reflex type
- Frequency Response (-10dB): 60 Hz – 22 kHz
- Frequency Response (-3dB): 83 Hz – 20 kHz
- Crossover Frequency: 2.3 kHz
- Maximum SPL: 102 dB SPL
- HF Driver: 1-inch dome tweeter
- LF Driver: 4.5-inch cone woofer
- Nominal Impedance: 6Ω
- Output Power:
- Dynamic: 26W + 26W
- Continuous: 20W + 20W

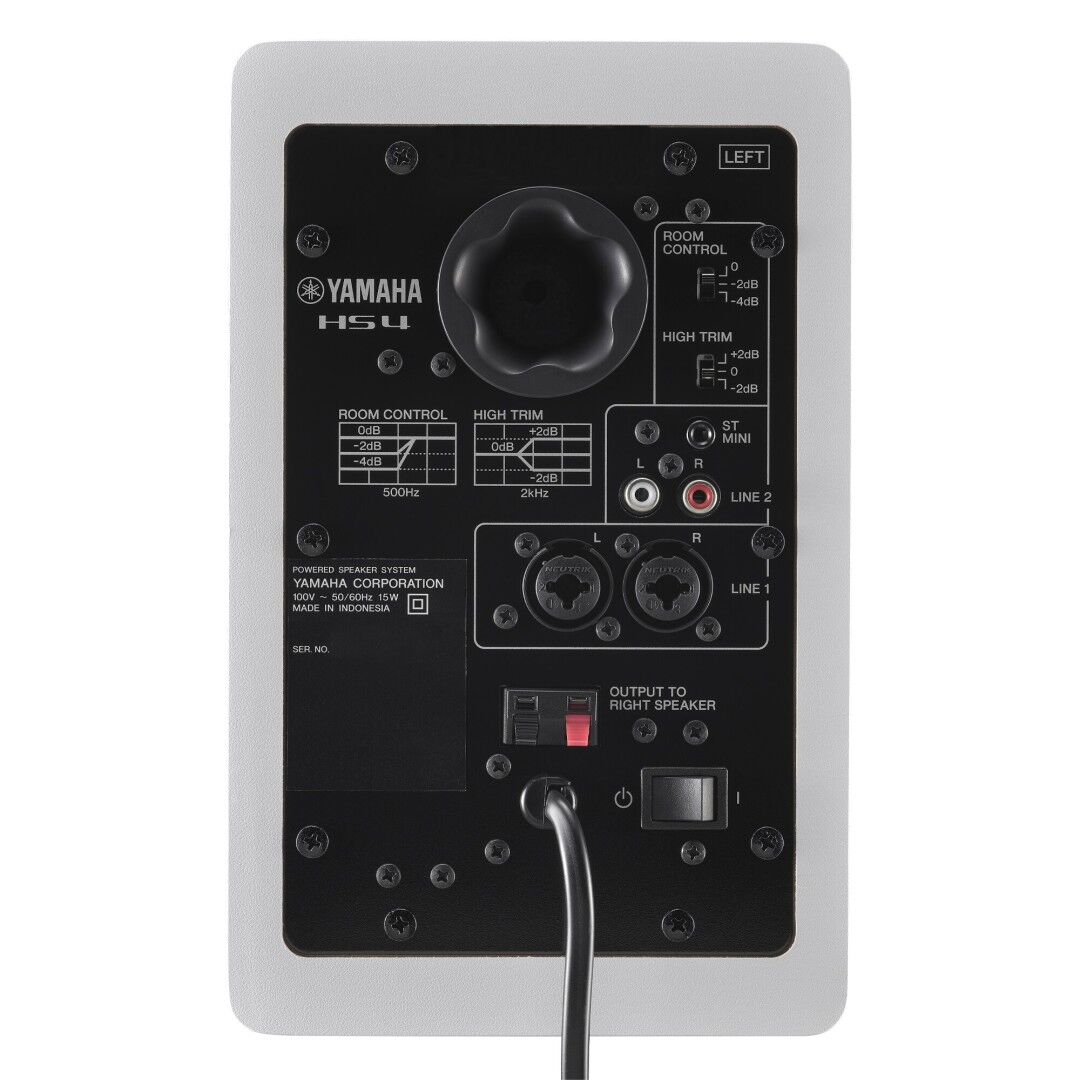

Input & Output
- Inputs:
- 2 × COMBO (XLR/TRS)
- 2 × RCA
- Stereo Mini
- Outputs:
- Headphone Output
- Speaker Output
Controls
- Front Volume Control
- ROOM CONTROL Switch (0 / -2 / -4 dB below 500 Hz)
- HIGH TRIM Switch (+2 / 0 / -2 dB above 2 kHz)
Power & Construction
- Power Requirement: 100–240V, 50/60 Hz
- Power Consumption: 15W
- Cabinet Material: MDF
Dimensions & Weight
- Left Speaker: 150 × 240 × 213 mm
- Right Speaker: 150 × 240 × 203 mm
- Weight:
- Left: 3.7 kg
- Right: 3.1 kg
