Description

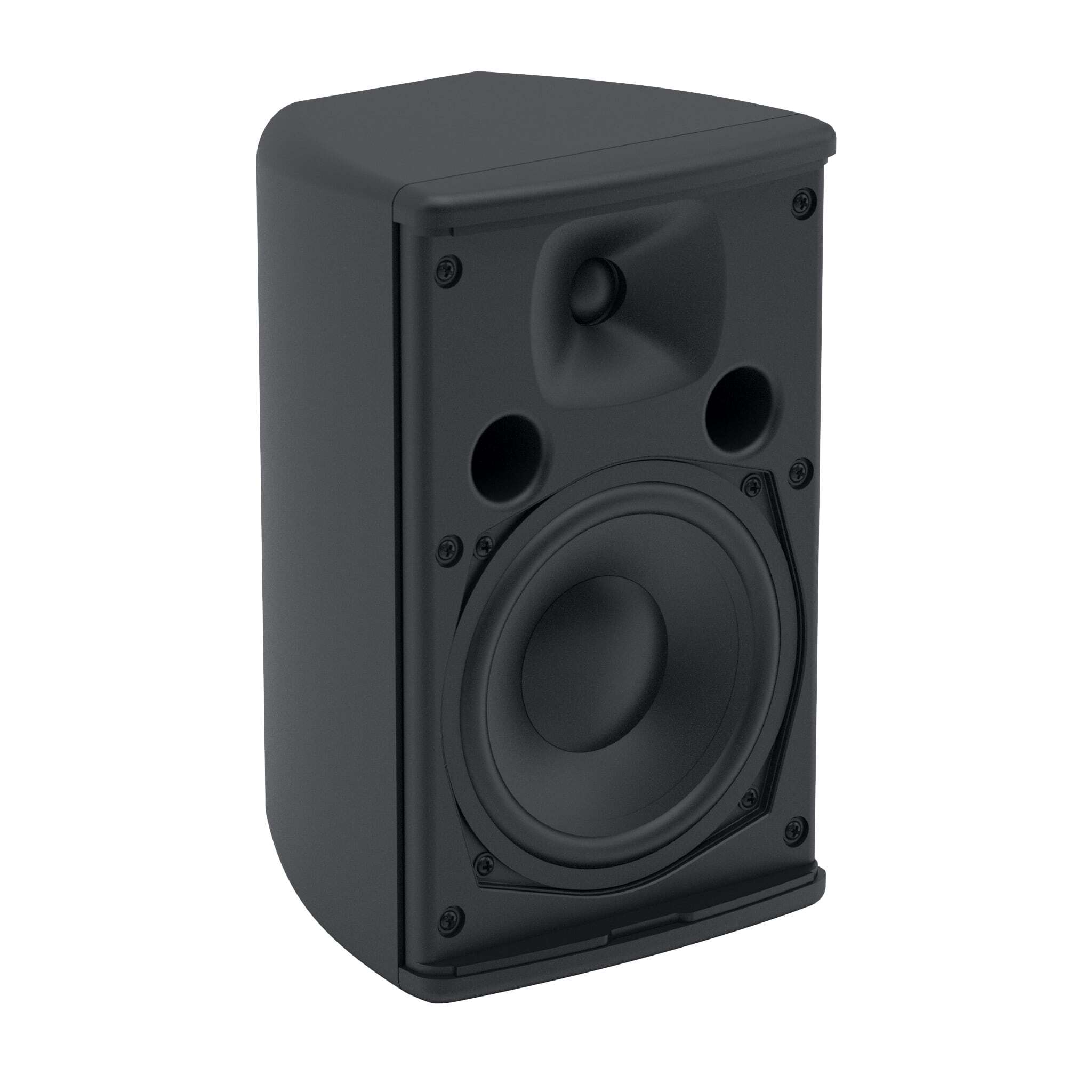

The ADORN A55 is a compact two-way passive loudspeaker engineered to deliver exceptional audio performance in commercial and architectural environments. Combining an elegant, low-profile design with high-fidelity sound reproduction, the A55 is ideal for applications where premium audio quality and discreet aesthetics are equally important. Its larger 5.25-inch low-frequency driver provides enhanced bass performance and greater output capability, making it well-suited for retail spaces, hospitality venues, educational facilities, corporate offices, and convention centres.
More Information
Key Features
- Ultra-compact two-way passive loudspeaker
- Contemporary and unobtrusive architectural design
- High-fidelity sound reproduction
- Enhanced low-frequency performance
- High output capability
- Wide 110° × 80° coverage pattern
- Front-ported bass reflex enclosure
- Low and high-frequency overload protection
- Vertical or horizontal installation
- Wall bracket included
- Durable ABS enclosure construction
- Perforated steel grille
- Optional IP54 weather protection
- Available in black or white finish
- Ideal for commercial sound installations
- 5-year warranty
Technical Specifications
- System Type: Ultra-Compact Passive Two-Way, Front-Ported Bass Reflex
- Frequency Response: 90Hz – 17kHz (±3dB)
- Low Frequency Extension: -10dB @ 65Hz
- LF Driver: 5.25″ Coated Paper Cone, 1″ High-Temperature Voice Coil
- LF Motor: Ferrite Magnet
- HF Driver: 0.75″ Silk Dome Tweeter
- HF Motor: Neodymium Magnet
- Rated Power: 50W AES
- Peak Power: 200W Peak
- Recommended Amplifier: VIA2004
- Sensitivity: 90dB (1W/1m)
- Maximum SPL: 113dB Peak
- Nominal Impedance: 16Ω
- Dispersion: 110° Horizontal × 80° Vertical
- Crossover Frequency: 3.5kHz Passive
- Protection: Auto-Resetting LF & HF Fuses
- Recommended High-Pass Filter: 60Hz, 24dB/Octave
- Enclosure Material: ABS, UL 94V-0 Rated
- Grille: Perforated Steel
- Finish: Black or White
- IP Rating: IP54 (with Optional Weatherized Connector Cover)
- Connectors: Phoenix-Style 12A Plug
- Mounting: Wall Bracket Included
- Dimensions (W × H × D): 152 × 245 × 140 mm
- Dimensions (W × H × D): 6 × 9.6 × 5.5 in
- Weight: 2.21 kg (4.9 lbs)
