Description

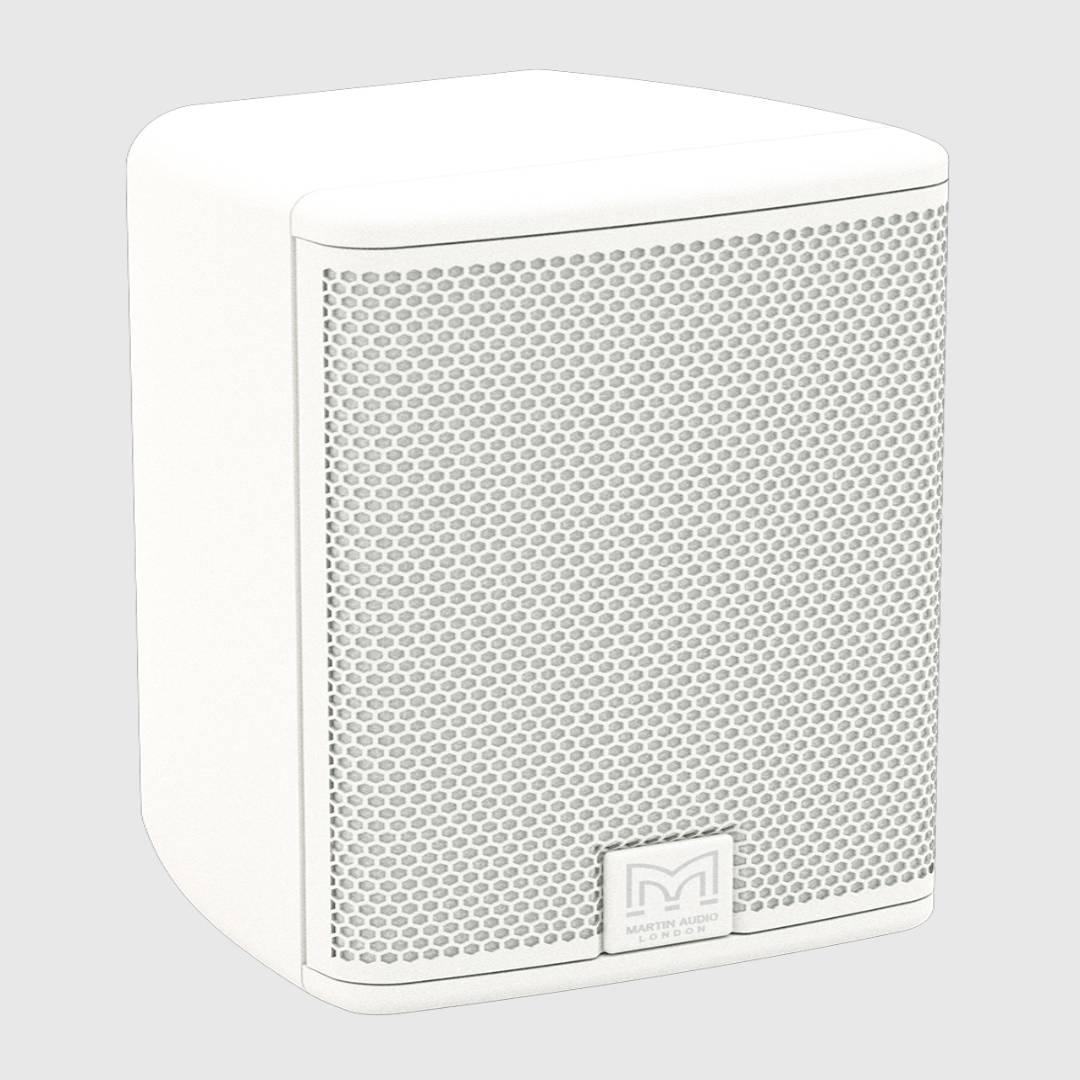

The ADORN A40 is an ultra-compact two-way passive loudspeaker designed for high-quality background music and speech applications in commercial and architectural environments. Combining an elegant, low-profile appearance with impressive acoustic performance, the A40 delivers clear and natural sound from a compact enclosure. Its wide coverage pattern, reliable driver protection, and flexible mounting options make it an excellent choice for retail spaces, hospitality venues, educational facilities, and corporate environments where both aesthetics and audio quality are essential.
More Information
Key Features
- Ultra-compact two-way passive loudspeaker
- Contemporary and unobtrusive design
- High output capability
- High-fidelity sound performance
- Low and high-frequency overload protection
- Vertical or horizontal installation
- Wide 110° × 80° coverage
- Front-ported bass reflex design
- Wall bracket included
- Optional IP54 weather protection
- Available in black or white finish
- Durable ABS enclosure
- 5-year warranty
Technical Specifications
- System Type: Ultra-Compact Passive Two-Way, Front-Ported Bass Reflex
- Frequency Response: 98Hz – 17kHz (±3dB)
- Low Frequency Extension: -10dB @ 70Hz
- LF Driver: 4″ Coated Paper Cone, 1″ High-Temperature Voice Coil
- HF Driver: 0.75″ Silk Dome, Neodymium Motor
- Rated Power: 40W AES
- Peak Power: 160W Peak
- Recommended Amplifier: VIA2004
- Sensitivity: 87dB (1W/1m)
- Maximum SPL: 109dB Peak
- Nominal Impedance: 16Ω
- Dispersion: 110° H × 80° V
- Crossover Frequency: 3.5kHz Passive
- Protection: Auto-Resetting LF & HF Fuses
- Recommended High-Pass Filter: 60Hz, 24dB/Octave
- Enclosure: ABS, UL 94V-0 Rated
- Grille: Perforated Steel
- Finish: Black or White
- IP Rating: IP54 (with Optional Connector Cover)
- Connectors: Phoenix-Style 12A Plug
- Mounting: Wall Bracket Included
- Dimensions (W × H × D): 124 × 200 × 114 mm
- Weight: 1.75 kg (3.9 lbs)
