Description
Specially designed for custom integration of whole home audio systems, the “QS” (Quad Streamer) provides four zones of audio streaming and eight channels of high-performance audio amplification in an ultra-slim, 1U-high, rack-mountable enclosure. Expandable and extremely flexible, the QS works with the MusicCast multi-room audio system, allowing it to be linked with home theater AV receivers, sound bars and Hi-Fi gear in a wide variety of configurations.
More Information
Key Features
- Designed for custom integration of a MusicCast multi-room audio system connected via Ethernet LAN in a rack or cabinet
- Streams four zones of audio per unit, expandable to 32 zones with simultaneous playback in linked groups of up to 20 zones each

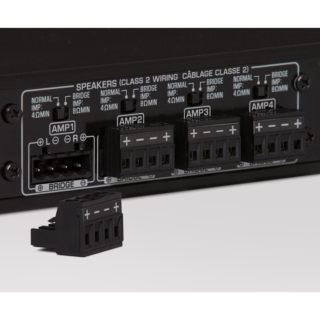

- Eight channels of audiophile-grade Class D amplification assignable to any zone, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
- Built-in Pandora®, Spotify Connect, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more, plus access to music libraries and linked external sources
- Easy control via a free MusicCast app and 3rd-party control systems

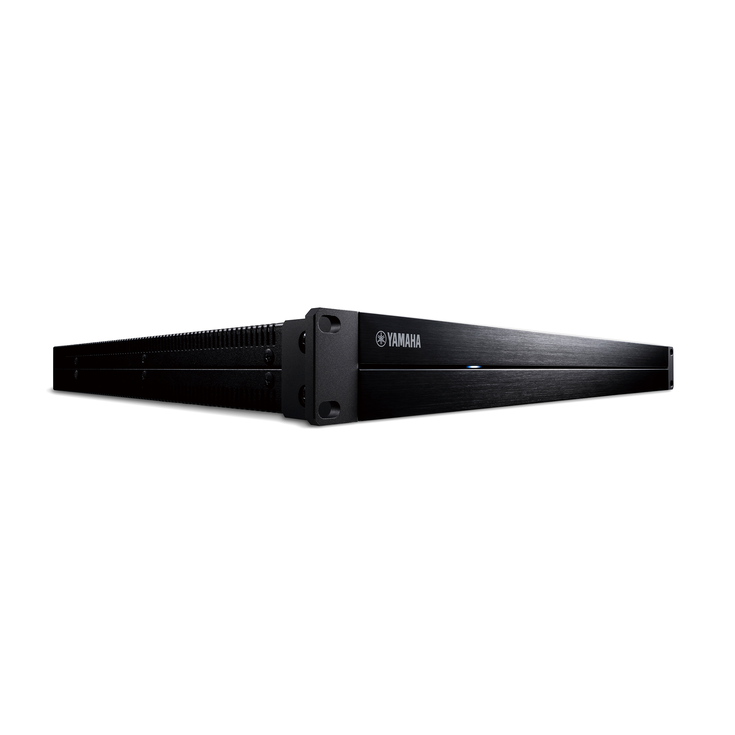

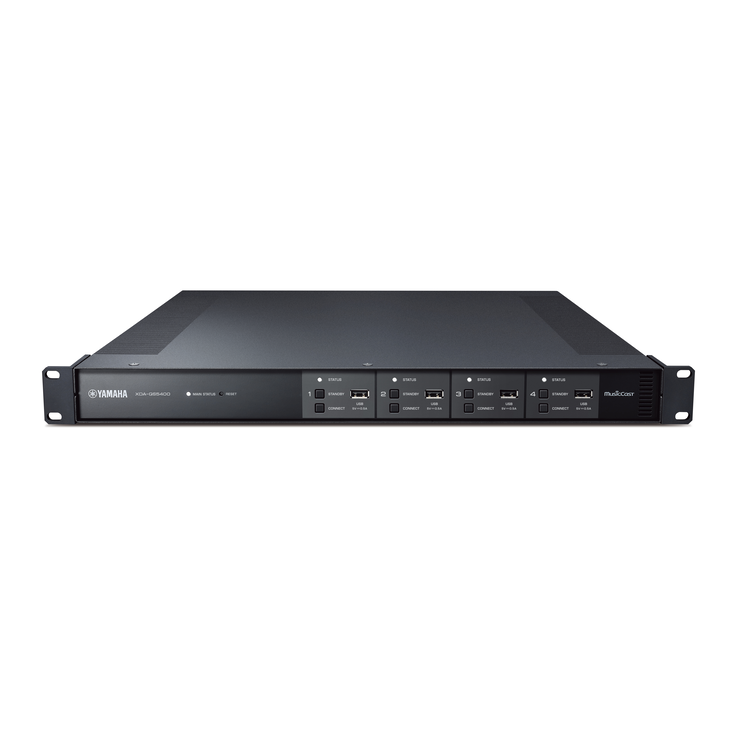

- 1U high, rack-wide enclosure; removable rack ears and faceplate included
Technical Specifications
- Type: MusicCast Multi-Room Streaming Amplifier
- Zones: 4 independent audio zones
- Channels: 8 channels (4 stereo zones)
- Amplifier Type: Class-D (ICEpower technology)
- Rack Size: 1U rack-mount design
- Expandability: Up to 32 zones using multiple units
- Network Connectivity: Dual Ethernet ports
- AirPlay: AirPlay 2 support (via firmware update)
- Music Streaming: MusicCast, Spotify Connect, TIDAL, Deezer, Pandora, SiriusXM Internet Radio, and network audio playback (availability varies by region)
- Remote In/Out: 1 / 1
- Trigger Outputs: 4 I, ELAN, etc.)
- Ground-loop hum reduction circuit design
- Power Consumption: 130 W
- Network Standby Power: 3.2–6.0 W , allowing centralized distribution of music to multiple rooms while integrating with the Yamaha MusicCast ecosystem.
