Description

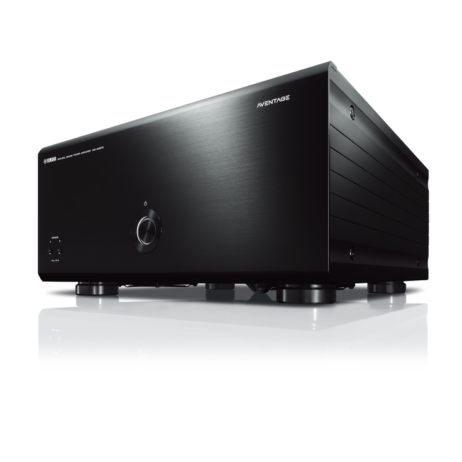

The Yamaha MX-A5200 is a flagship 11-channel AVENTAGE power amplifier designed for premium home theater systems. It is intended to be paired with a surround processor such as the Yamaha CX-A5200, providing dedicated amplification for every speaker channel in advanced Dolby Atmos and DTS:X installations.
More Information
Key Features
- AVENTAGE 11-channel power amplifier
- Supports Bridge-Tied Load (BTL) configuration for 2 x front channels
- 27,000 uF custom block capacitors
- Bi-amping capability with channel selector
- High-quality gold-plated speaker terminals
- Noise-resistant XLR balanced connections
Technical Information
- 11-channel AVENTAGE power amplifier
- 150 W/ch (8 Ω, 20 Hz–20 kHz, 0.06% THD)
- 170 W/ch (6 Ω, 20 Hz–20 kHz, 0.06% THD)
- 170 W/ch (8 Ω, 1 kHz, 0.9% THD)
- Dynamic power: 190 W (8 Ω), 250 W (6 Ω), 350 W (4 Ω), 500 W (2 Ω)
- Bridge-Tied Load (BTL) mode for front channels
- Bi-amp capability
- Three-stage Darlington high-current amplifier design
- Current Feedback amplification circuit

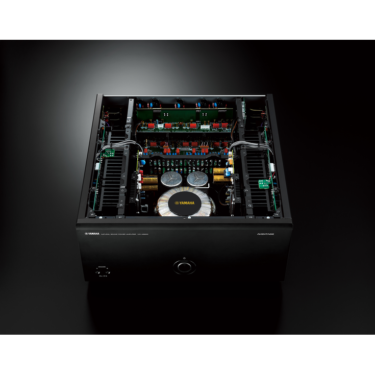

- Large toroidal power transformer
- Dual 27,000 µF custom block capacitors

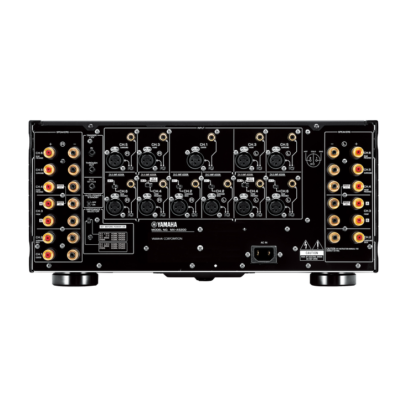

- 11 balanced XLR inputs
- 11 unbalanced RCA inputs
- Gold-plated speaker binding posts
- 12V trigger input and output
- A.R.T. Wedge anti-vibration chassis
- Double-bottom steel construction
- Symmetrical amplifier layout
- Power consumption: 650 W
- Standby power consumption: 0.1 W
- Dimensions: 435 × 211 × 464 mm (W × H × D)
- Weight: 26.4 kg
