Description

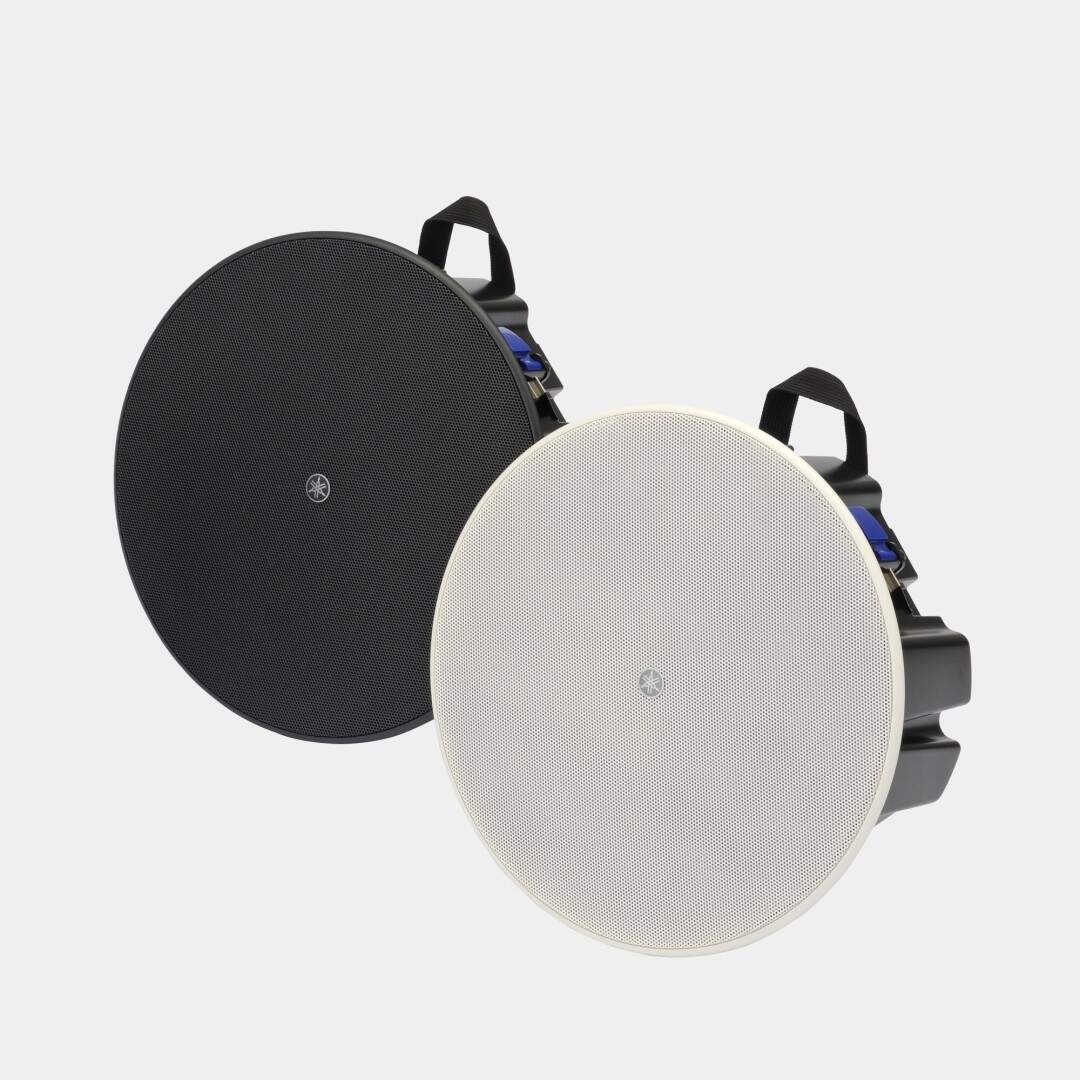

The VXC5F / VXC5FW is a premium full-range ceiling speaker designed for commercial audio installations, offering excellent speech clarity and background music performance. Featuring a bass reflex enclosure and a 4.5-inch full-range driver, it delivers balanced sound with wide coverage for retail stores, restaurants, offices, and public facilities.
Key Features
- Full-range bass reflex ceiling speaker
- 4.5-inch full-range driver unit
- Wide 130° conical coverage
- Compatible with 70V/100V distributed systems
- Built-in overload protection circuit
- Euroblock input and loop-through connectors
- Available in black and white finishes
- Supplied with mounting accessories for easy installation
Technical Specifications
- Frequency Range: 60 Hz – 20 kHz
- Power Rating: 40W Noise / 80W PGM / 160W Peak
- Nominal Impedance: 8Ω
- Sensitivity: 89 dB SPL
- Peak SPL: 111 dB SPL
- Transformer Taps (100V): 30W / 15W / 7.5W
- Transformer Taps (70V): 30W / 15W / 7.5W / 3.8W
- Coverage Angle: 130° Conical
- Connector: Euroblock (4-pin)
- Dimensions: Ø324 mm × 143 mm
- Weight: 3.1 kg
- Cutout Size: Ø285 mm
- Certification: UL1480, NFPA70, CE, EAC, RoHS
