Description

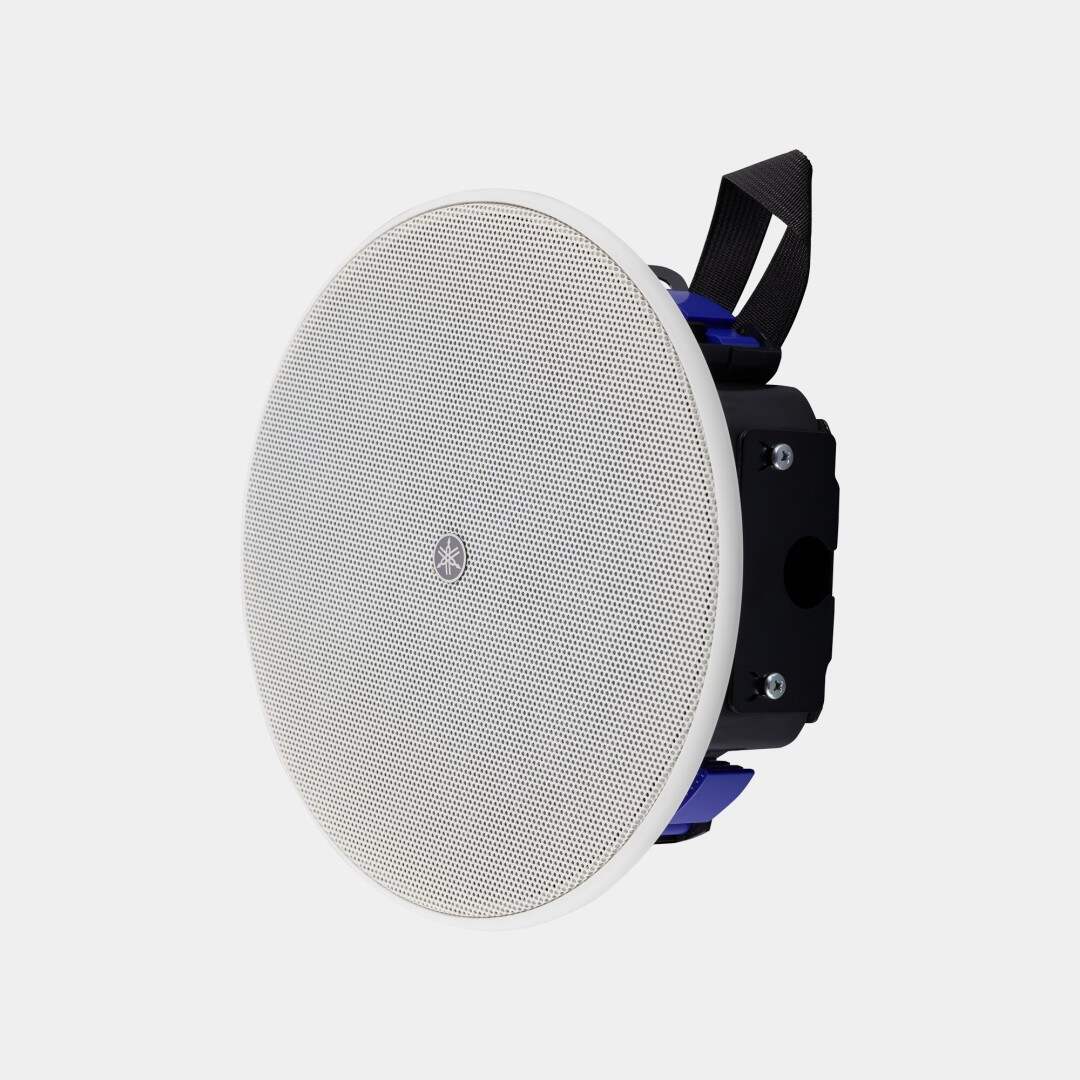

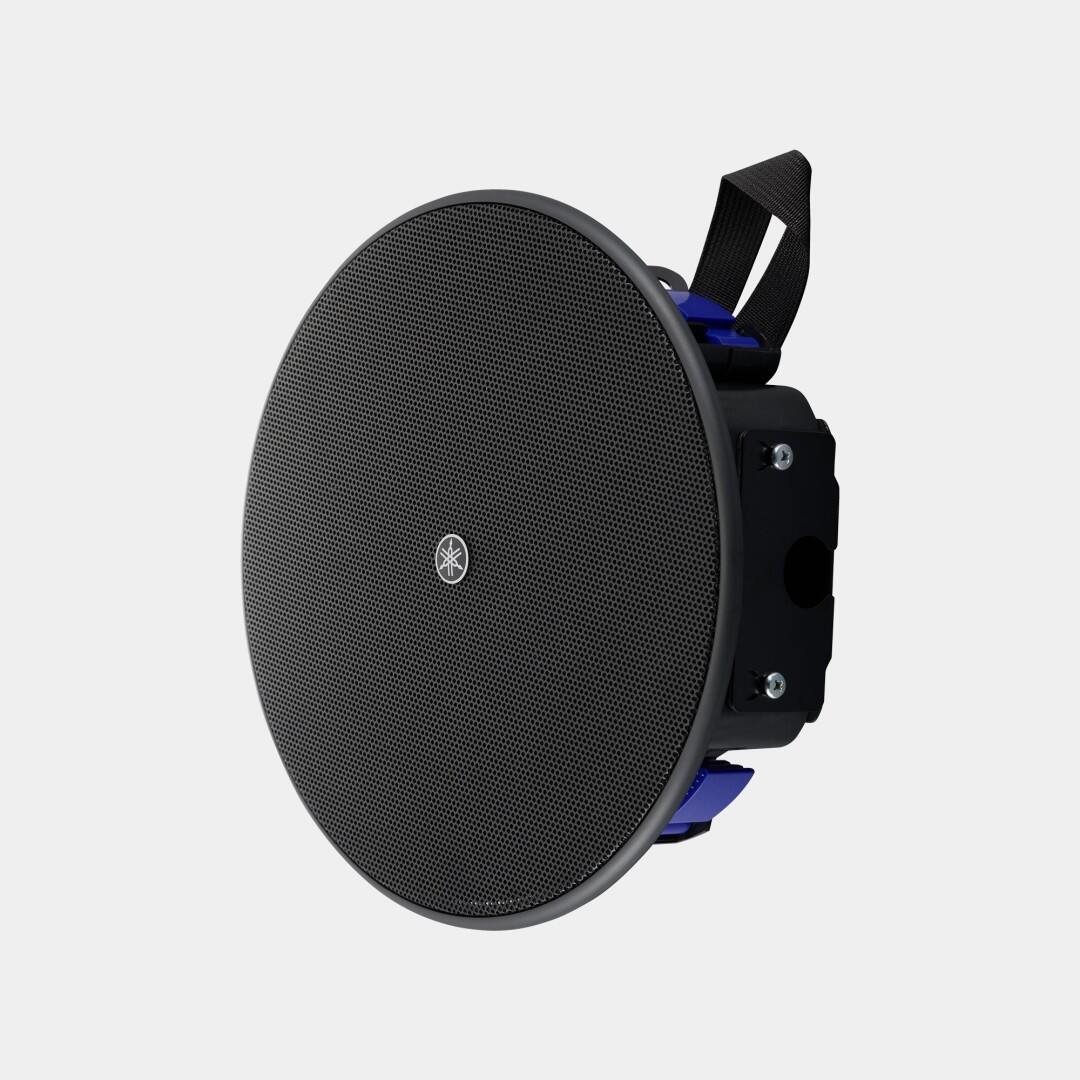

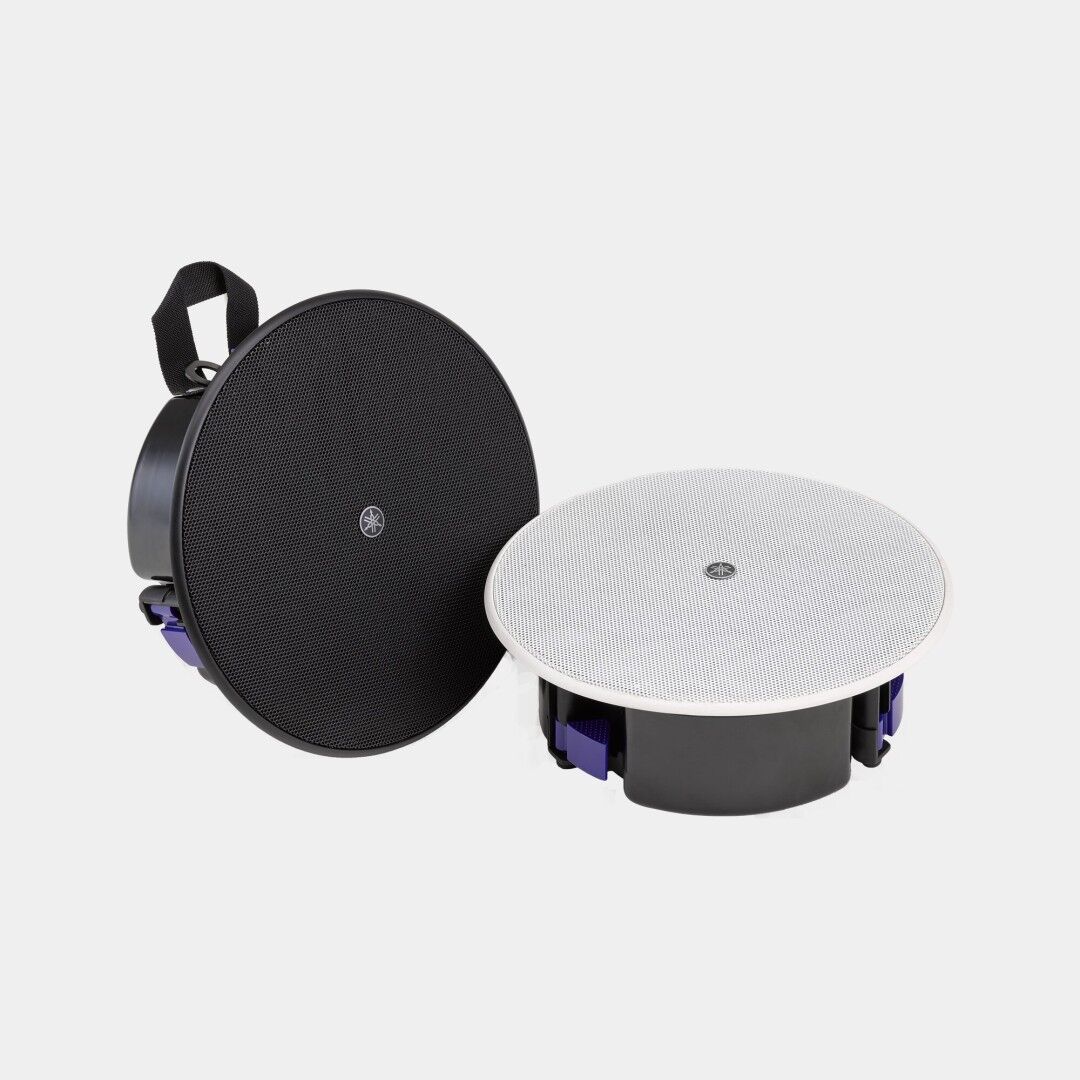

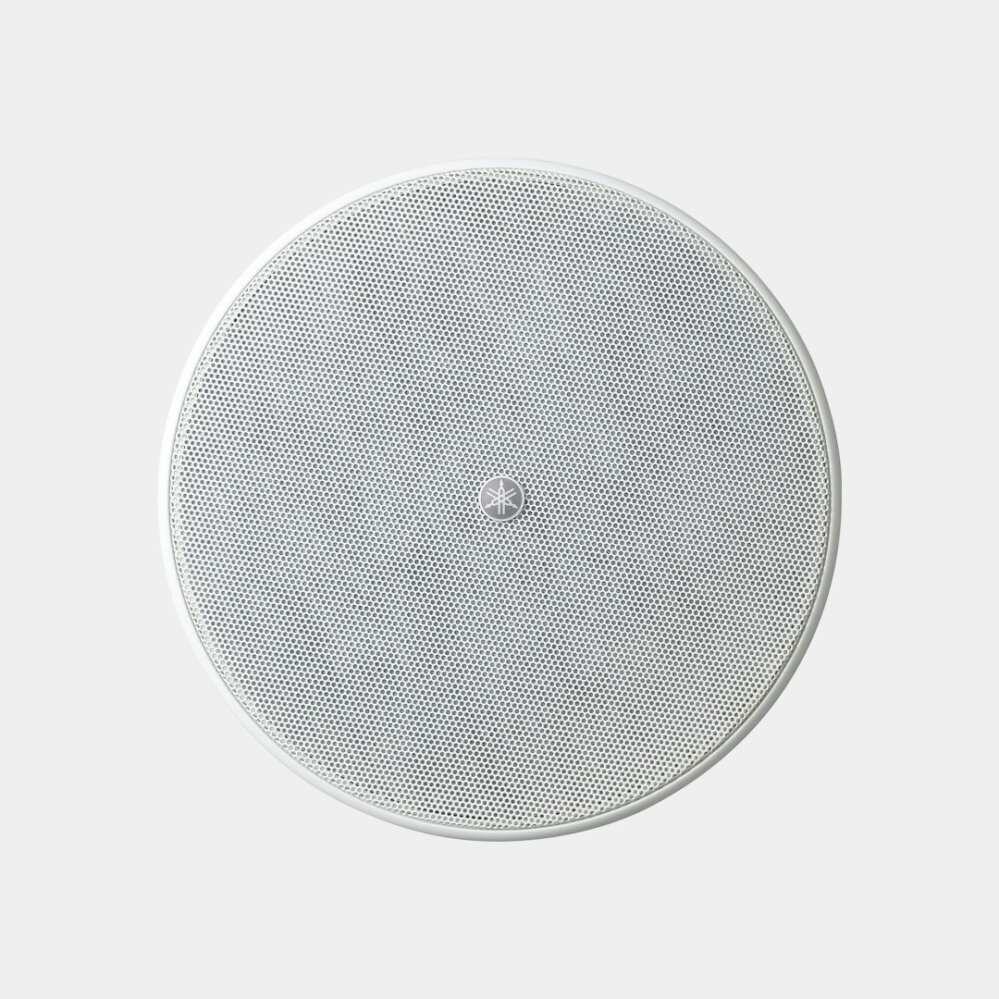

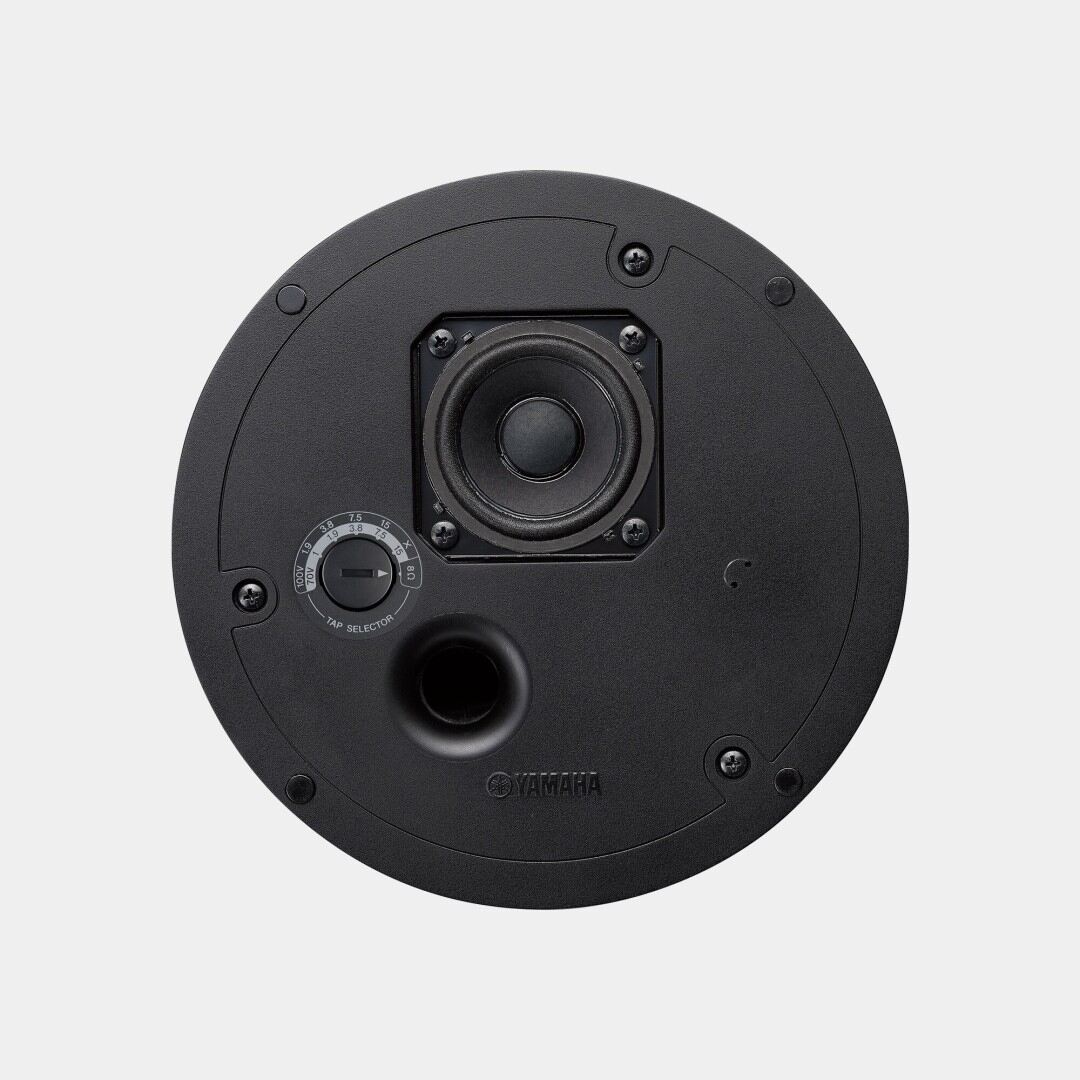

The VXC2FB / VXC2FW is an ultra-compact ceiling speaker designed for discreet commercial audio installations. Equipped with a 2.5-inch full-range driver and extremely wide 160° coverage, it is ideal for background music and paging in small retail stores, cafés, meeting rooms, and hospitality environments.
More Information
Key Features
- Ultra-compact full-range bass reflex ceiling speaker
- 2.5-inch full-range driver
- Extra-wide 160° conical coverage
- Compatible with 70V/100V distributed audio systems
- Integrated protection circuitry

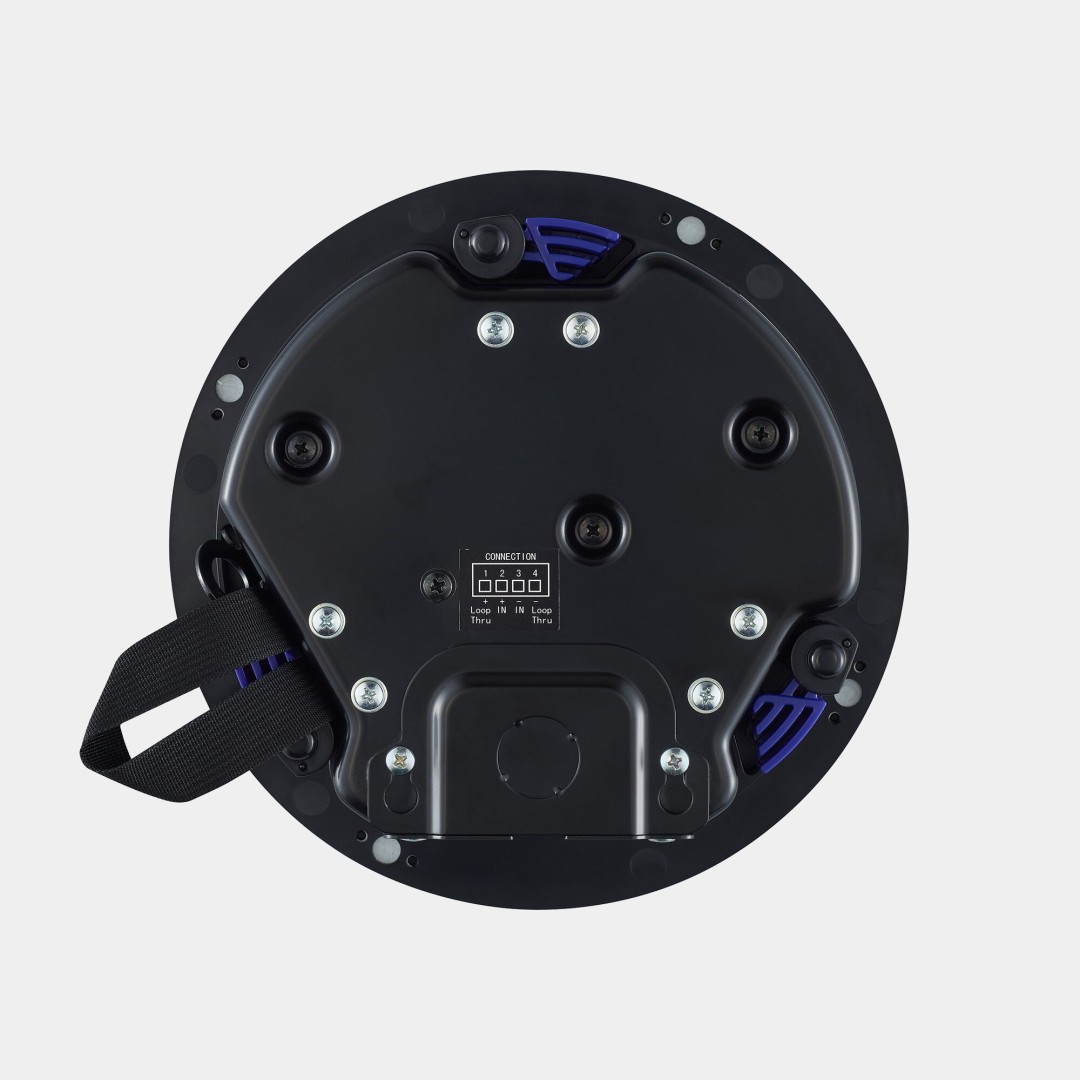

- Euroblock input and loop-through connectors

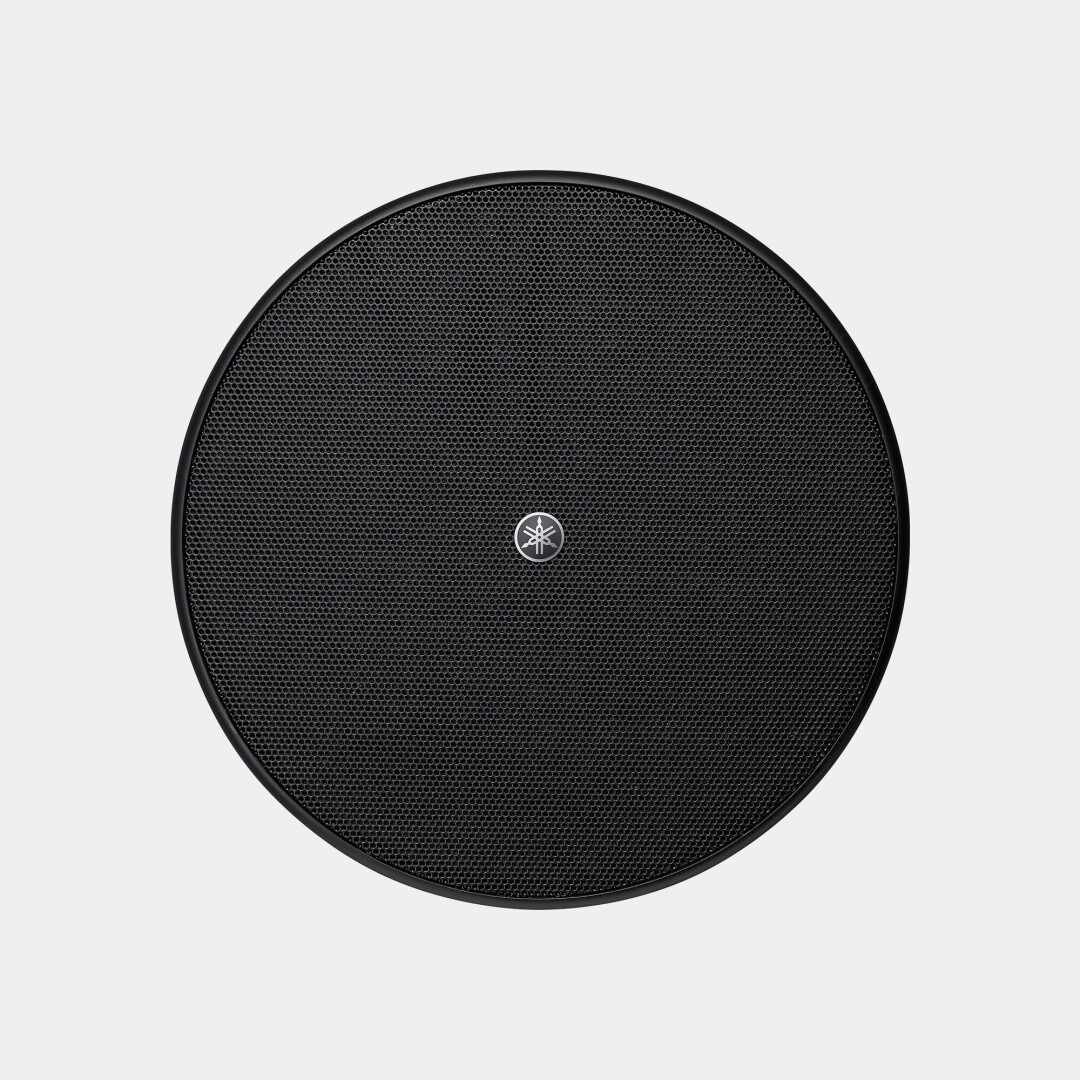

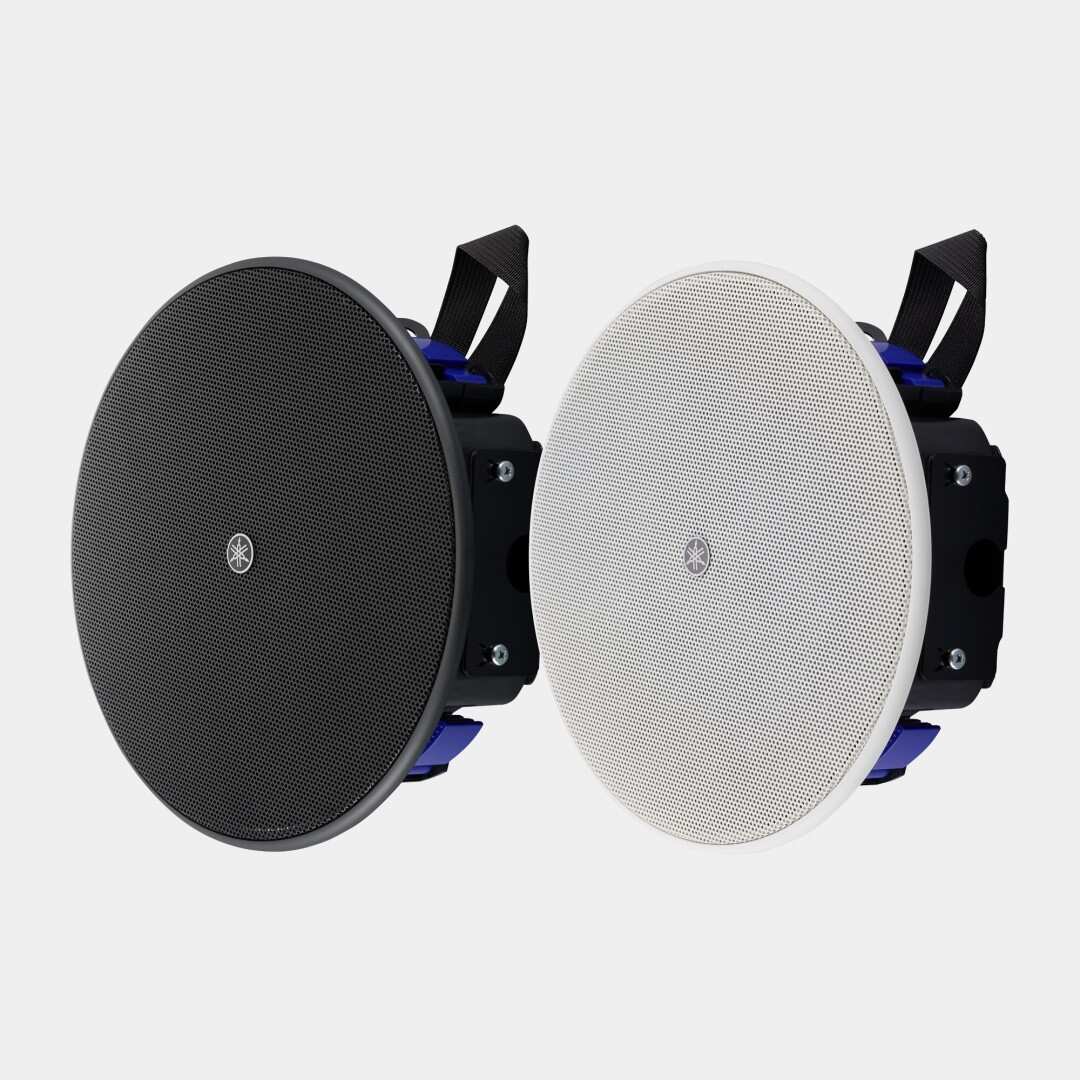

- Available in black and white finishes
- Optional pendant mount kit available
Technical Specifications
- Frequency Range: 67 Hz – 20 kHz
- Power Rating: 15W Noise / 30W PGM / 60W Peak
- Nominal Impedance: 8Ω
- Sensitivity: 86 dB SPL
- Peak SPL: 104 dB SPL
- Transformer Taps (100V): 15W / 7.5W / 3.8W / 1.9W
- Transformer Taps (70V): 15W / 7.5W / 3.8W / 1.9W / 1W
- Coverage Angle: 160° Conical
- Connector: Euroblock (4-pin)
- Dimensions: Ø225 mm × 89 mm
- Weight: 1.7 kg
- Cutout Size: Ø186 mm
- Certification: UL1480, UL2043, NFPA70, CE, EAC, RoHS
