Description

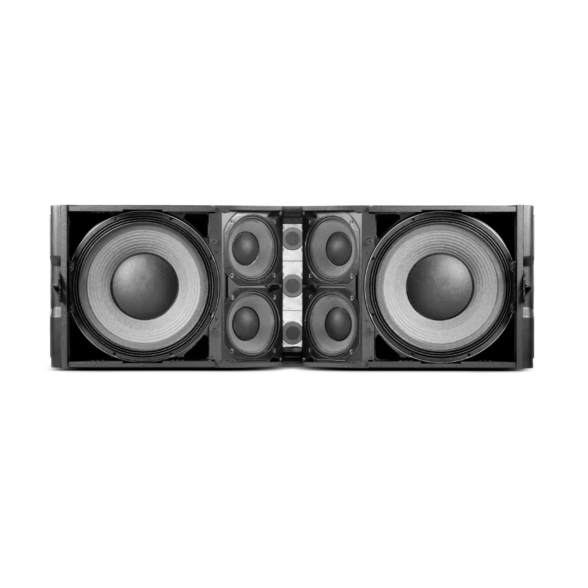

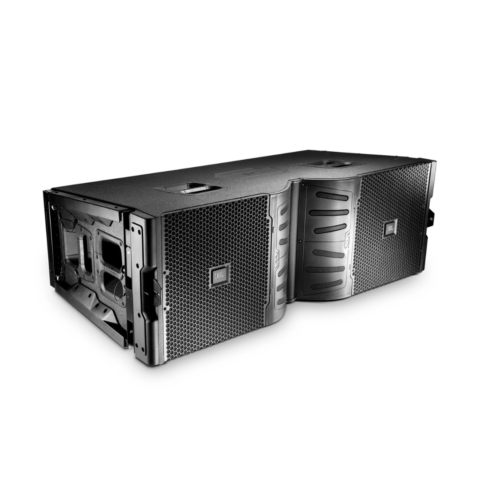

The VTX V25-II is a full size 3-way high-directivity line array element that includes a new 4th generation waveguide which improves long throw performance, wavefront control, and is an improved power match for the Crown IT4x3500HD. The transducer compliment for VTX V25-II is two 2000W 15″ Differential Drive® woofers mounted in die cast aluminum baffles, four 8″ Differential Drive midrange transducers firing through a patented (RBI Radiation Boundary Integrator®), and three revolutionary D2 Dual-Diaphragm Dual-Voice-Coil Compression Drivers loaded onto the newly designed waveguide. Patented rigging, Crown I-Tech HD amplification with BSS ® OmniDriveHD V5 Processing, and JBL HiQnet Performance Manager™ configuration and control software complete the system package.
More Information
- New 4th Generation HF Waveguide technology
- Revolutionary D2 Dual Diaphragm, Dual Voice Coil Compression Driver
- JBL’s patented RBI (Radiation Boundary Integrator®)
- Cardioid-Arrayable Subwoofer Enclosure Models
- Aluminum front baffles for reduced cabinet height, weight and improved heat transfer
- Patented JBL S.A.F.E.™ Suspension System
- V5 Processing with Crown I-Tech HD or VRACK
- JBL HiQnet Performance Manager™ System Configuration and Control
- Available with either fixed angle tension suspension (V25-II) or compression suspension (V25-II-CS) hardware
Technical Specification
- Model: JBL VTX V25-II
- System Type: Full Size 3-Way High Directivity Line Array Element
- Frequency Range (-10 dB): 35 Hz – 18 kHz
- Horizontal Coverage (-6 dB): 90° nominal
- Maximum Peak Output LF: 141 dB
- Maximum Peak Output MF: 140.5 dB
- Maximum Peak Output HF: 149.5 dB
- System Amplification: Crown Audio I-Tech HD
- Nominal Impedance LF: 2 × 8 ohms
- Nominal Impedance MF: 8 ohms
- Nominal Impedance HF: 8 ohms
- LF Driver: 2 × JBL 2267H 15-inch woofer
- MF Driver: 4 × JBL 2168H 8-inch mid-frequency driver
- HF Driver: 3 × JBL 2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
- Enclosure: Cast aluminum front baffle, Finnish birch plywood
- Finish: Black DuraFlex™
- Handles: Four integral recessed handles
- Inter-Enclosure Angle: 0°, 1°, 2°, 3°, 4°, 5°, 6°, 7°, 8°, 9°, 10°
- Dimensions (H × W × D): 414 mm × 1223 mm × 614 mm
- Dimensions in Inches: 16.3″ × 48.2″ × 24.2″
- Net Weight: 82.6 kg / 182 lb
