Description

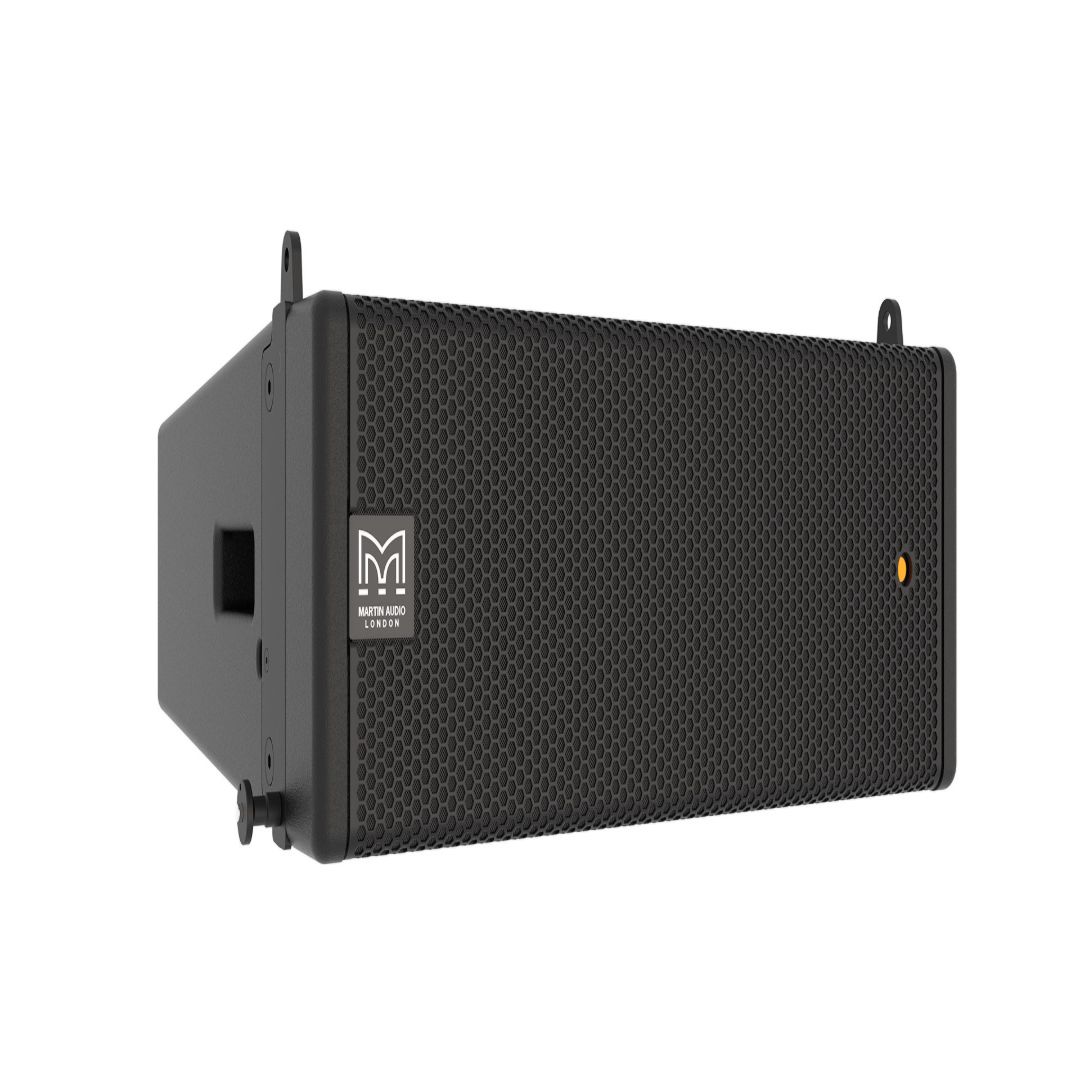

WPM is a highly versatile ultra-compact Wavefront Precision line array designed for small to medium-scale venues where exceptional audio quality, consistent coverage, and precise control are essential. Despite its compact footprint, WPM delivers an impressive peak SPL of 130dB and can project sound over distances exceeding 35 metres (115 ft). Ideal for live music venues, corporate events, houses of worship, theatres, and AV installations, WPM combines premium performance with efficient deployment and scalable system design.
More Information
Key Features
- Ultra-compact passive line array element
- Two-way line array design
- Peak SPL of 130dB
- Dual 6.5″ neodymium low-frequency drivers
- Triple 1.4″ neodymium compression drivers
- Constant-directivity waveguide technology
- 100° horizontal coverage pattern
- Compatible with iKON iK41, iK42 and iK81 amplifiers
- Scalable system resolution for flexible deployment
- Integrated 3-point rigging system
- LED-equipped HEX-perforated steel grille
- Lightweight enclosure for easy transport and installation

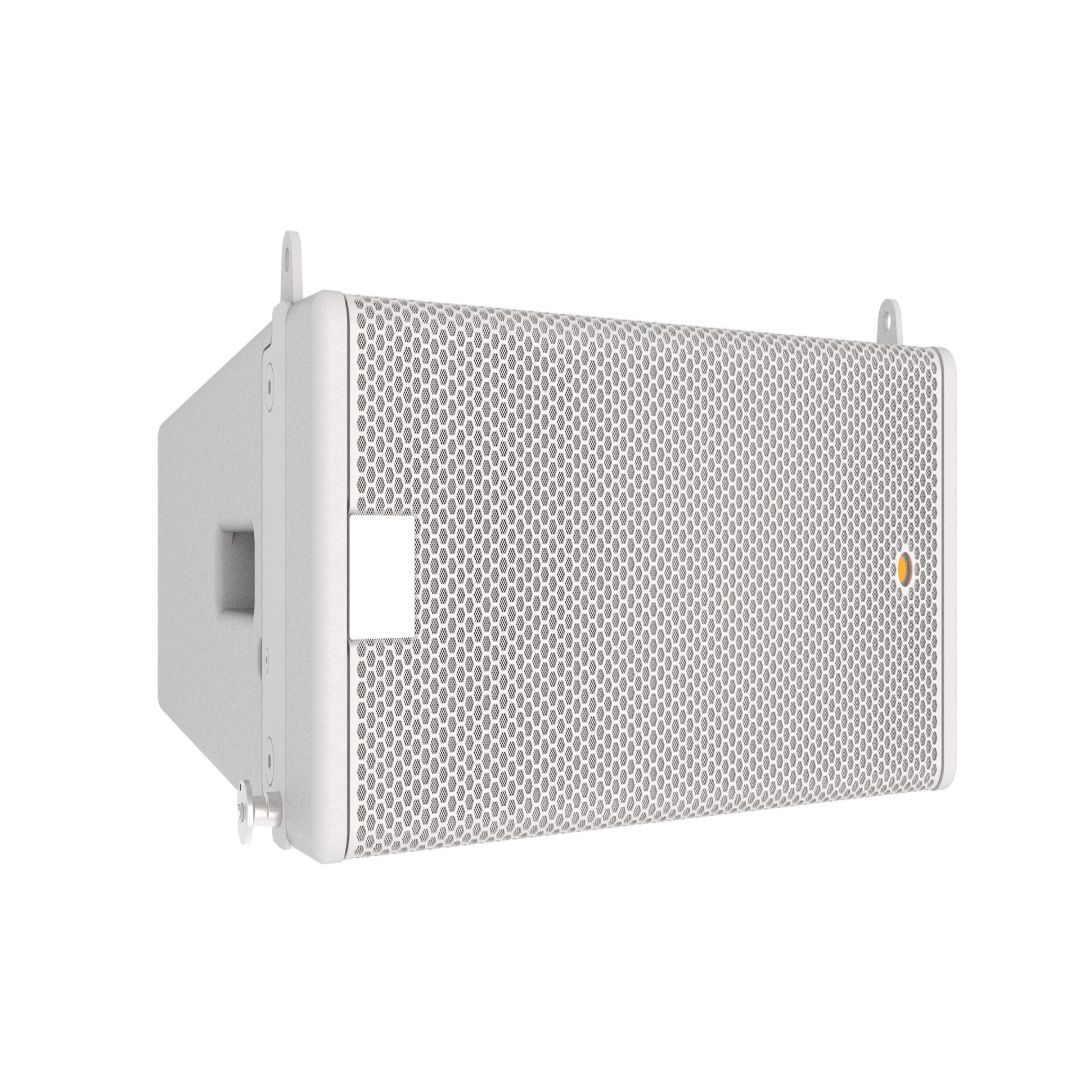

- Available in black or white finish
- Suitable for touring, theatres, houses of worship, corporate AV and live music applications
Technical Specifications
- Type: Two-way passive line array element
- Frequency Response: 76Hz – 18kHz (±3dB)
- LF Drivers: 2 × 6.5″ (165mm) contoured-diaphragm neodymium drivers with 2″ (50mm) edge-wound CCAW voice coils, reflex loaded
- HF Drivers: 3 × 1.4″ (35mm) aluminium dome neodymium compression drivers with 1.4″ (35mm) voice coils on constant-directivity waveguide
- System Amplifier: iKON iK41, iK42 or iK81
- System Resolution: 1 to 4 enclosures per amplifier channel
- Rated Power: 300W AES, 1200W Peak
- Maximum SPL: 130dB Peak (single cabinet)
- Nominal Impedance: 16Ω
- Dispersion: 100° Horizontal (-6dB), 125° Horizontal (-10dB), 10° Vertical
- Crossover: 1.2kHz Passive
- Enclosure: Vertical trapezoid with 5° wall angle, multi-laminate birch and poplar-ply construction
- Finish: Black or white hardwearing paint
- Protective Grille: HEX-perforated steel grille with integrated LED
- Environmental Rating: IP54
- Environmental Compliance: MIL-STD-810H, ISO 4892-2 Solar Radiation, ISO 12944-6 Category C3 Corrosion Resistance
- Connectors: 2 × NL4 type
- Pin Connections: 1+/1-
- Rigging System: Integral 3-point rigging system
- Maximum Flown Array: 16 enclosures in a single array
- Dimensions (W × H × D): 500 × 185 × 377 mm
- Dimensions (W × H × D): 19.7 × 7.3 × 14.8 in
- Weight: 14 kg (30.9 lbs)
