Description

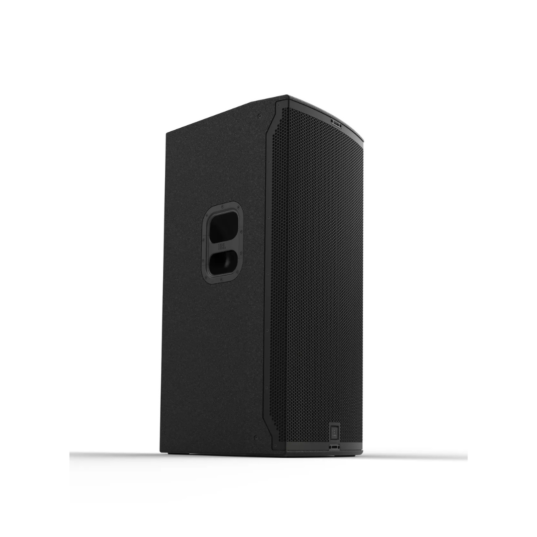

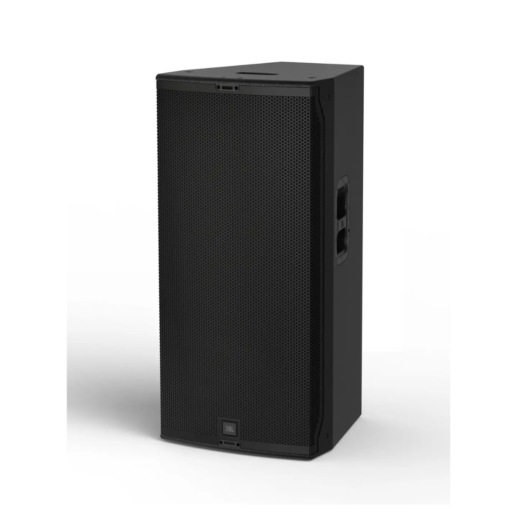

The JBL SRX922 is a compact, acoustically 3-way, bi-amplified powered point-source loudspeaker. It includes dual 12-inch JBL 2273G low-frequency drivers, a 6-inch JBL 196H-1 mid-frequency driver, and a 1.5-inch JBL 2432H-3 high-frequency compression driver. The speaker delivers high SPL output with 90° x 60° coverage for professional live sound and installed audio applications.
More Information
Key Features
- Dual 12-inch powered point-source speaker
- Acoustically 3-way, bi-amplified system
- 90° x 60° coverage pattern
- 138 dB maximum SPL
- Class-D amplifier design
- 1100 W continuous power rating
- Dual 12-inch JBL 2273G Differential Drive® LF drivers
- JBL 196H-1 6-inch mid-frequency driver
- JBL 2432H-3 high-frequency compression driver

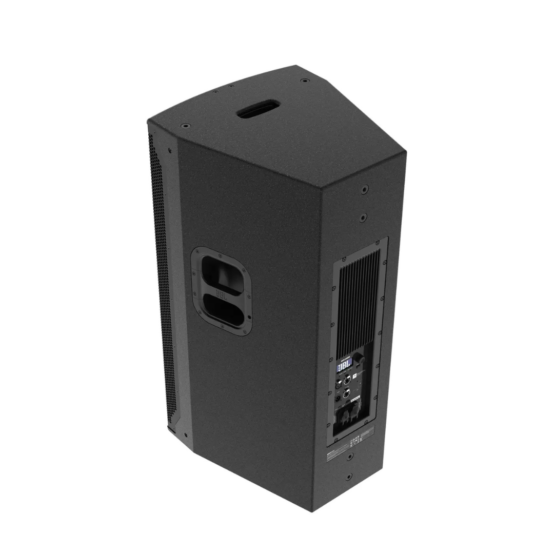

- Built-in DSP and rear LCD control
- Network control support
- Eight JBL QuickLink M10 suspension points
- Exterior-grade birch plywood cabinet
Technical Specification
- Model: JBL SRX922
- Speaker Type: Powered point-source loudspeaker
- System Type: Point-source, acoustically 3-way, bi-amplified, powered
- Frequency Range (-10 dB): 40 Hz – 17.5 kHz
- Frequency Response (±3 dB): 48 Hz – 17 kHz
- Coverage Pattern: 90° x 60°
- Maximum SPL: 138 dB
- Amplifier Design: Class-D
- Continuous Power Rating: 1100 W
- LF Amplifier Power: 550 W
- MHF Amplifier Power: 550 W
- LF Driver: 2 x JBL 2273G, 12 inch diameter, dual 3.0 inch voice coil, ferrite Differential Drive®
- MF Driver: 1 x JBL 196H-1, 6 inch diameter, 1.5 inch voice coil, ferrite
- HF Driver: 1 x JBL 2432H-3, 1.5 inch exit compression driver

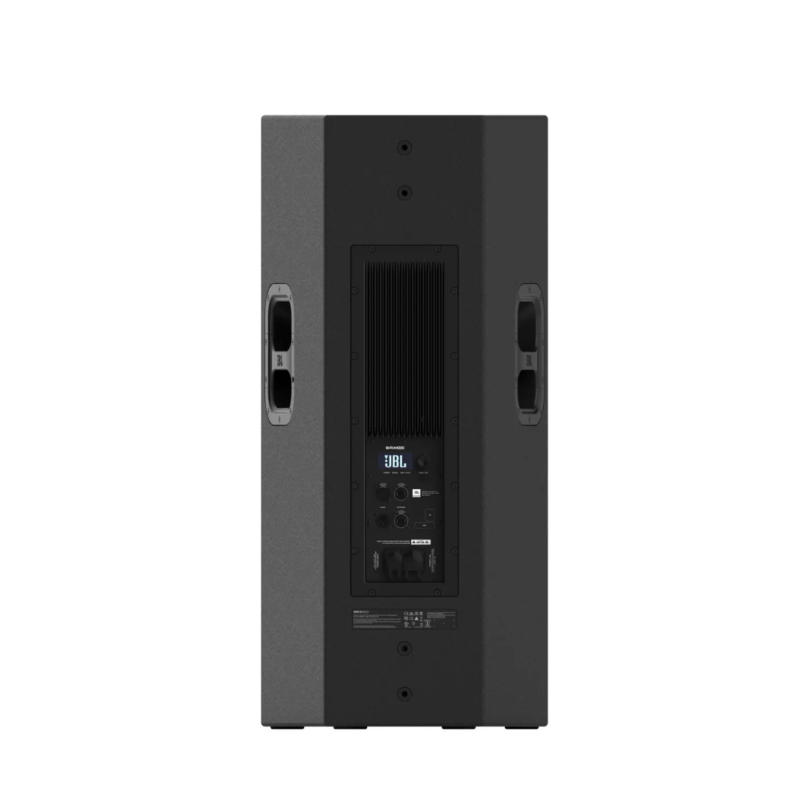

- Input Connector: 1 x XLR input
- Output Connector: 1 x XLR loop output
- Network Connector: 2 x EtherCON ports
- Cabinet Material: Exterior-grade birch plywood
- Finish: Black DuraFlex™ finish

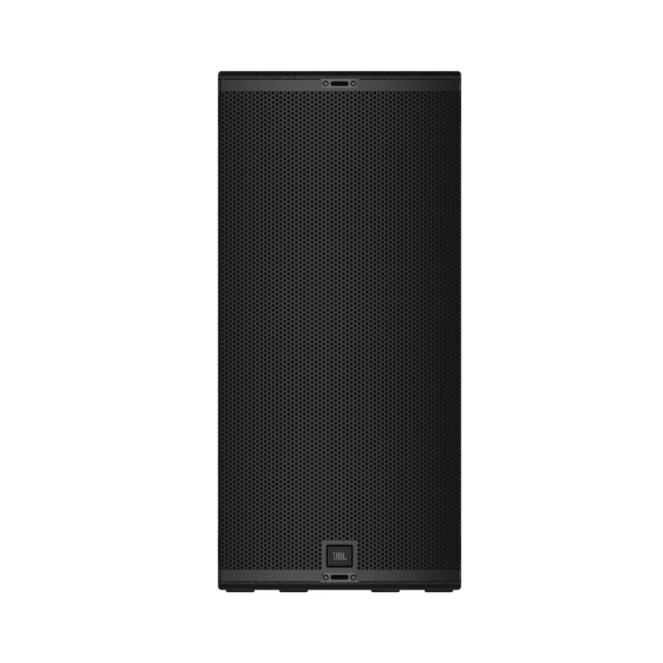

- Grille: 16-gauge powder-coated steel grille with acoustically transparent cloth backing
- Handles: 2 integral handholds and 2 recessed handles
- Suspension: 8 x JBL QuickLink M10 points
- Environmental Rating: IP54, IEC 60529, ASTM B117 and ASTM G155
- Dimensions: 944 x 439 x 506 mm
- Dimensions in Inches: 37.2 x 17.3 x 19.9 inch
- Net Weight: 45.4 kg / 100 lb
