Description

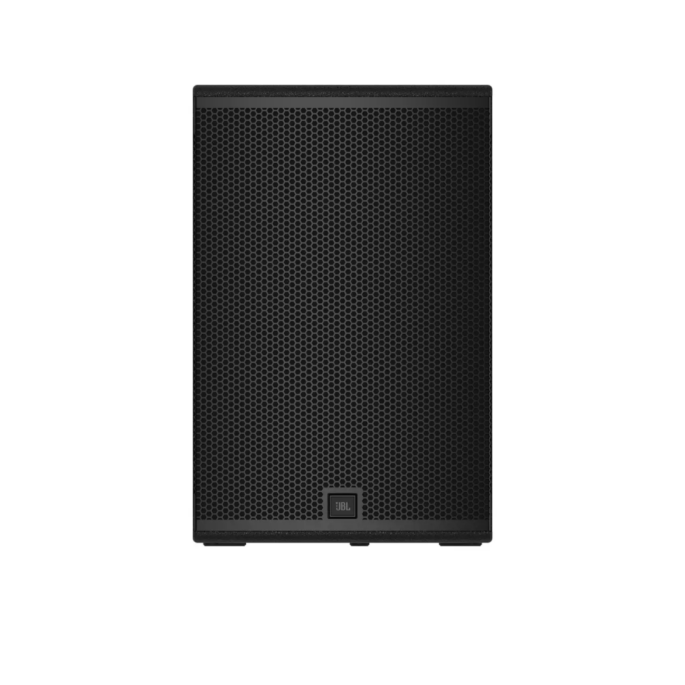

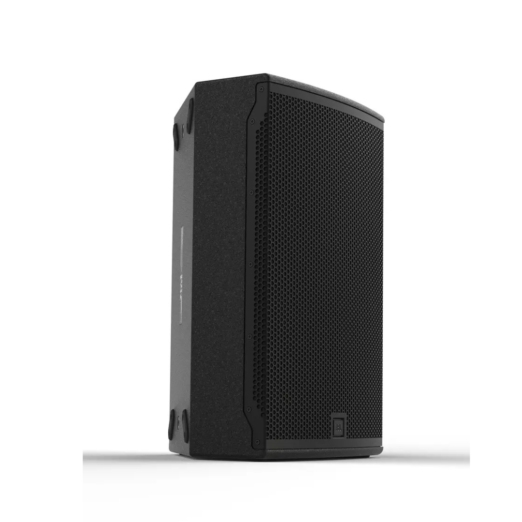

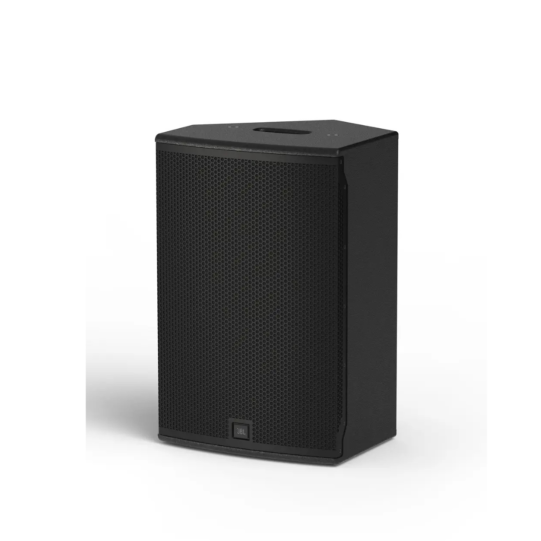

The JBL SRX912M is a compact, high-output, two-way powered point-source loudspeaker. It is designed for use as a main PA speaker, stage monitor, front fill, or installed speaker. It uses a 12-inch JBL 272F Differential Drive® LF driver and JBL 2408H-1 neodymium compression driver, with 90° x 60° coverage.
More Information
Key Features
- 12-inch powered multi-purpose loudspeaker
- Two-way powered point-source system
- 90° x 60° coverage pattern
- 133 dB maximum SPL
- Class-D amplifier design
- 600 W continuous power rating

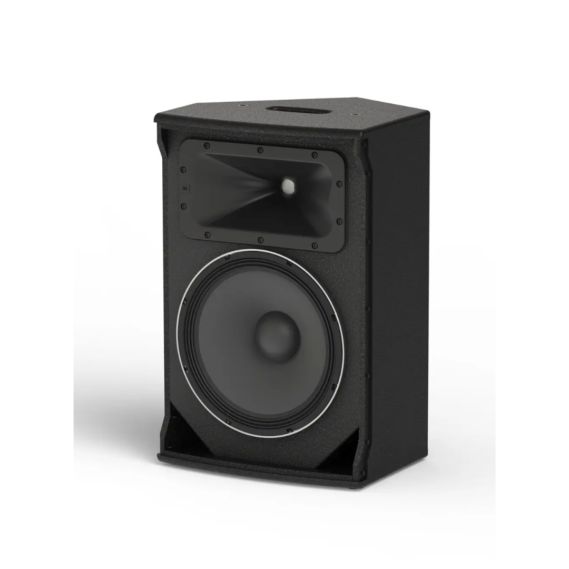

- JBL 272F 12-inch Differential Drive® LF driver
- JBL 2408H-1 neodymium compression driver

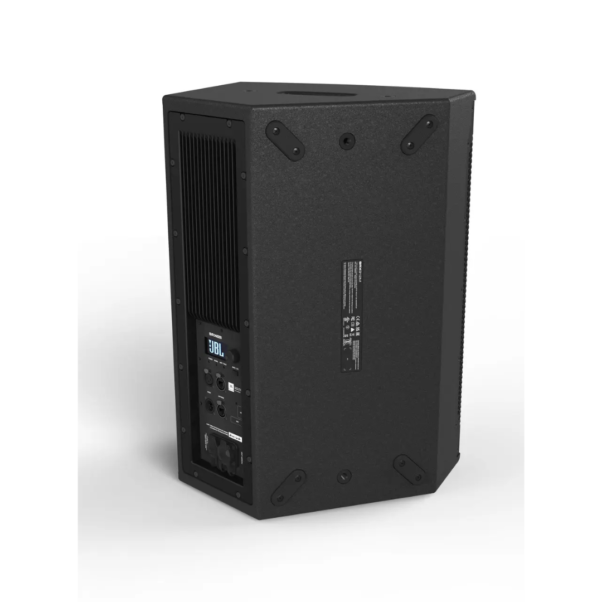

- Rear LCD control panel
- Built-in DSP processing

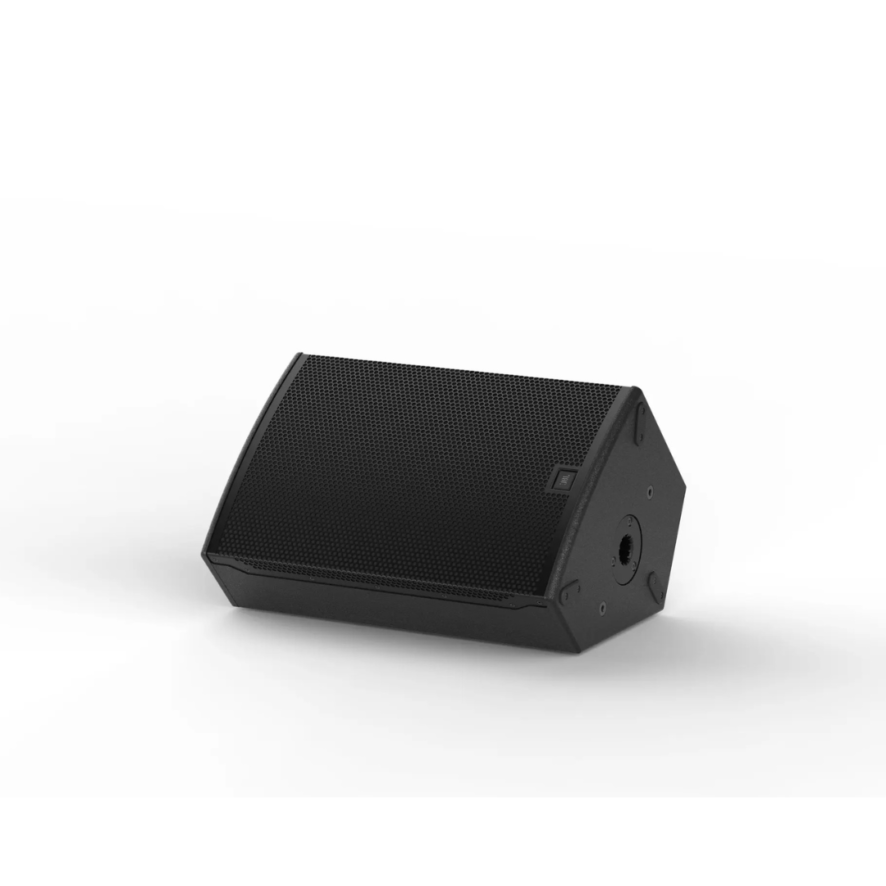

- 42-degree monitor angle for stage monitor use
- 6 x M10 suspension points
- Compact cabinet design
Technical Specification
- Model: JBL SRX912M
- Speaker Type: Powered loudspeaker
- System Type: Multi-purpose point-source, two-way powered
- Frequency Range (-10 dB): 50 Hz – 20 kHz
- Frequency Response (±3 dB): 60 Hz – 19 kHz
- Coverage Pattern: 90° x 60°
- Maximum SPL: 133 dB
- Amplifier Design: Class-D
- Continuous Power Rating: 600 W
- LF Amplifier Power: 400 W
- HF Amplifier Power: 200 W
- LF Driver: 1 x JBL 272F, 12 inch diameter, dual 2.0 inch voice coil, ferrite Differential Drive®
- HF Driver: 1 x JBL 2408H-1, 1 inch exit neodymium compression driver with 1.5 inch voice coil
- Input Connector: XLR input
- Output Connector: XLR loop output
- Network Connector: EtherCON ports
- Monitor Angle: 42°
- Suspension: 6 x M10 suspension points
- Cabinet Material: Exterior-grade birch plywood
- Finish: Black DuraFlex™ finish
- Grille: Powder-coated steel grille
- Dimensions: 584 x 380 x 340 mm
- Dimensions in Inches: 23.0 x 15.0 x 13.4 inch
- Net Weight: 20.4 kg / 45 lb
