Description
The JBL SRX915M is a high-output, multi-purpose, two-way powered point-source loudspeaker. It is designed for applications that need greater low-frequency extension and increased headroom, and it can be used as a main PA speaker or as a high-performance stage monitor.
More Information

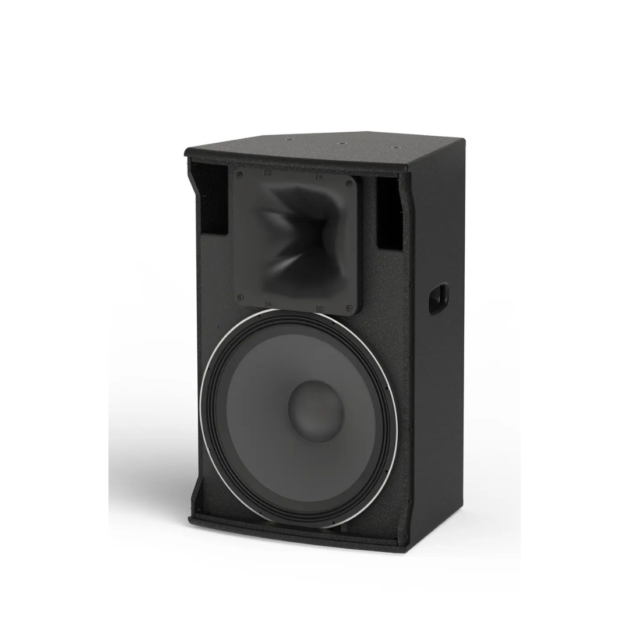

The SRX915M includes a single 15-inch JBL 275F Differential Drive® LF driver and a JBL 2408H-1 neodymium compression driver. It provides 90° x 60° coverage, built-in Class-D amplification, onboard DSP, rear LCD control, and 7 JBL QuickLink M10 suspension points for installation use.
Key Features
- 15-inch powered multi-purpose loudspeaker
- Two-way powered point-source system
- 90° x 60° coverage pattern
- 134 dB maximum SPL
- Class-D amplifier design
- 600 W continuous power rating
- JBL 275F 15-inch Differential Drive® LF driver
- JBL 2408H-1 neodymium compression driver
- Rotatable Progressive Transition™ waveguide

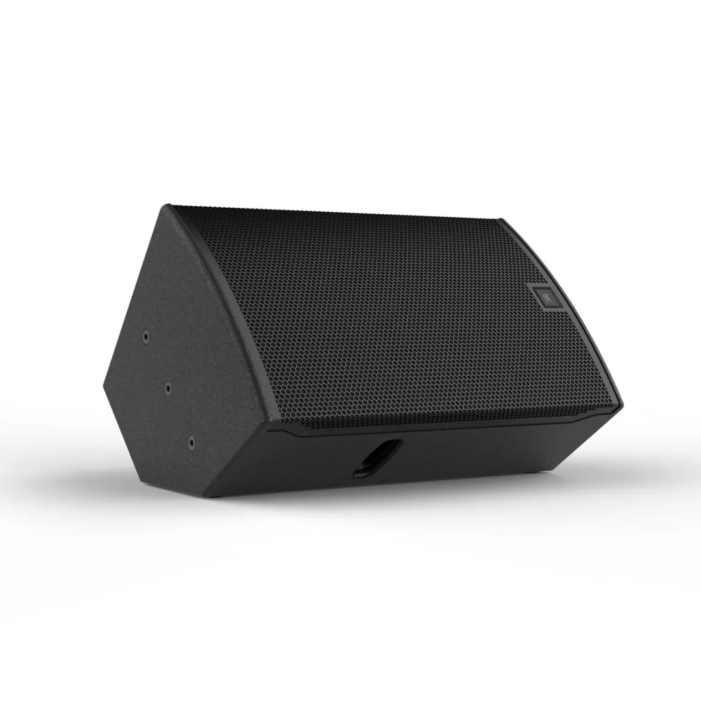

- 45-degree monitor angle for stage monitor use

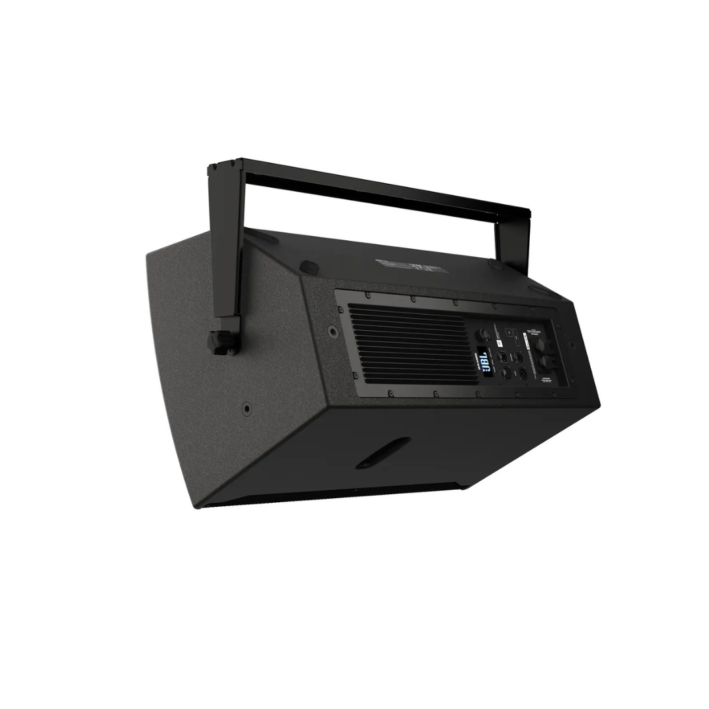

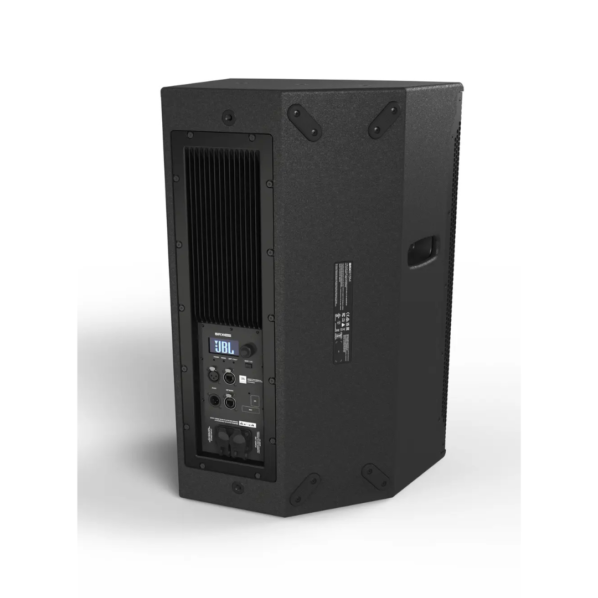

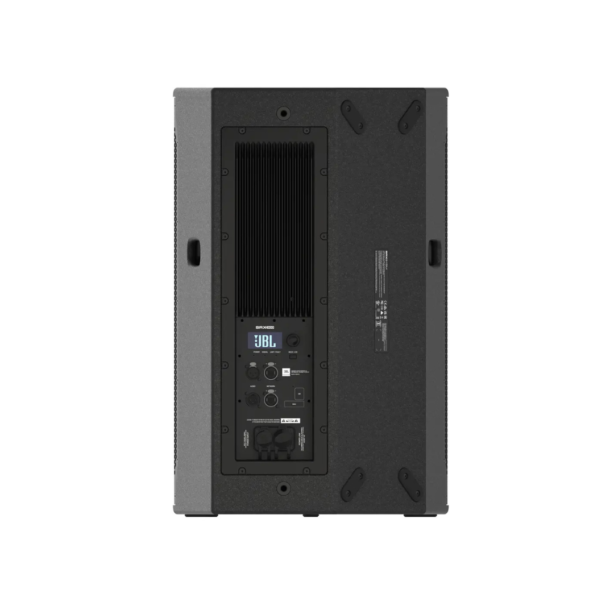

- Rear LCD for fast configuration
- DSP with user-adjustable filters and delay
- 7 x JBL QuickLink M10 suspension points
- Exterior-grade birch plywood cabinet with DuraFlex™ finish
Technical Specification
- Model: JBL SRX915M
- Speaker Type: Powered loudspeaker
- System Type: Multi-purpose point-source, two-way powered
- Frequency Range (-10 dB): 50 Hz – 20 kHz
- Coverage Pattern: 90° x 60°
- Maximum SPL: 134 dB
- Amplifier Design: Class-D
- Continuous Power Rating: 600 W
- LF Amplifier Power: 400 W
- HF Amplifier Power: 200 W
- LF Driver: 1 x JBL 275F, 15 inch diameter, dual 2 inch voice coil, ferrite Differential Drive®
- HF Driver: 1 x JBL 2408H-1, 1 inch exit neodymium compression driver with 1.5 inch voice coil
- Enclosure: Exterior-grade birch plywood
- Finish: Black DuraFlex™ finish
- Handles: 2 integral handholds
- Suspension: 7 x JBL QuickLink M10 points
- Dimensions: 666 x 428 x 367 mm
- Dimensions in Inches: 26.2 x 16.9 x 14.5 inch
- Net Weight: 24.7 kg / 55 lb
