Description

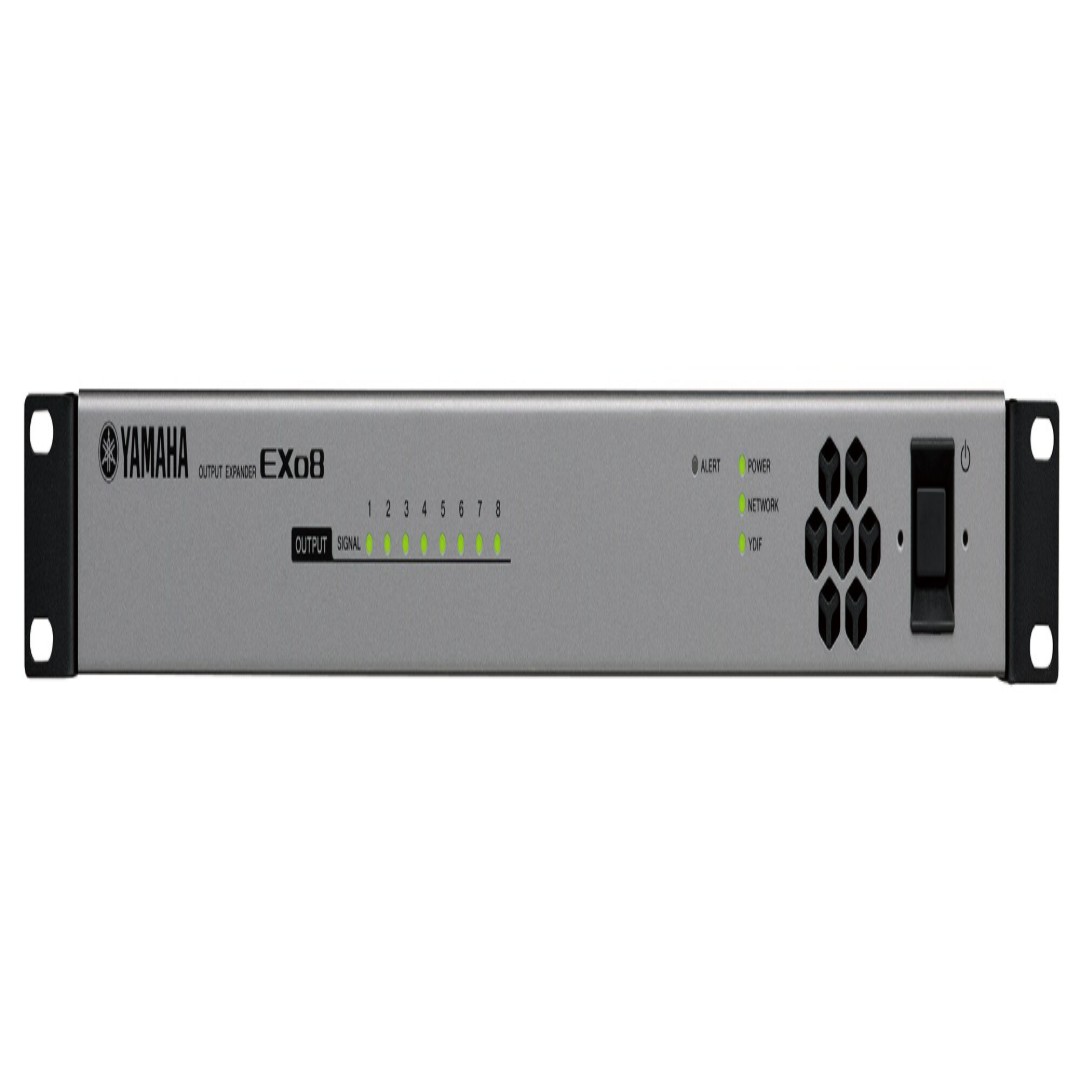

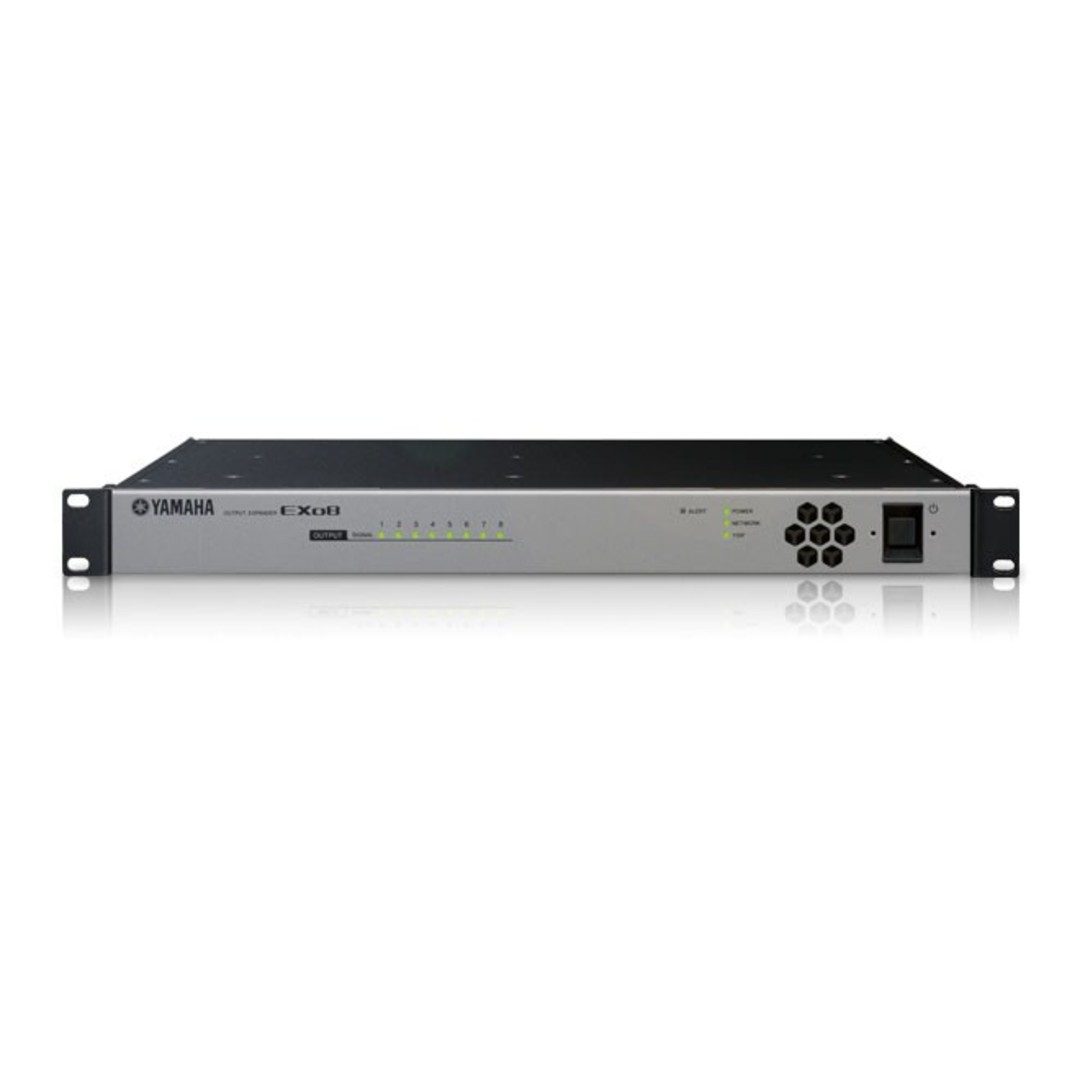

The Yamaha EXo8 is a professional audio output expansion unit designed for Yamaha MTX and MRX series processors. It expands analog audio outputs for commercial installations, paging systems, conference rooms, and professional sound distribution applications. The EXo8 delivers reliable high-quality audio performance in a compact 1U rackmount chassis.
More Information
Key Features
- 8-channel analog output expansion unit
- Designed for Yamaha MTX/MRX systems
- Supports 48kHz and 44.1kHz sampling rates
- Low-latency professional audio performance
- Wide frequency response with low distortion
- High dynamic range for clean audio output
- Compact and durable 1U rackmount design

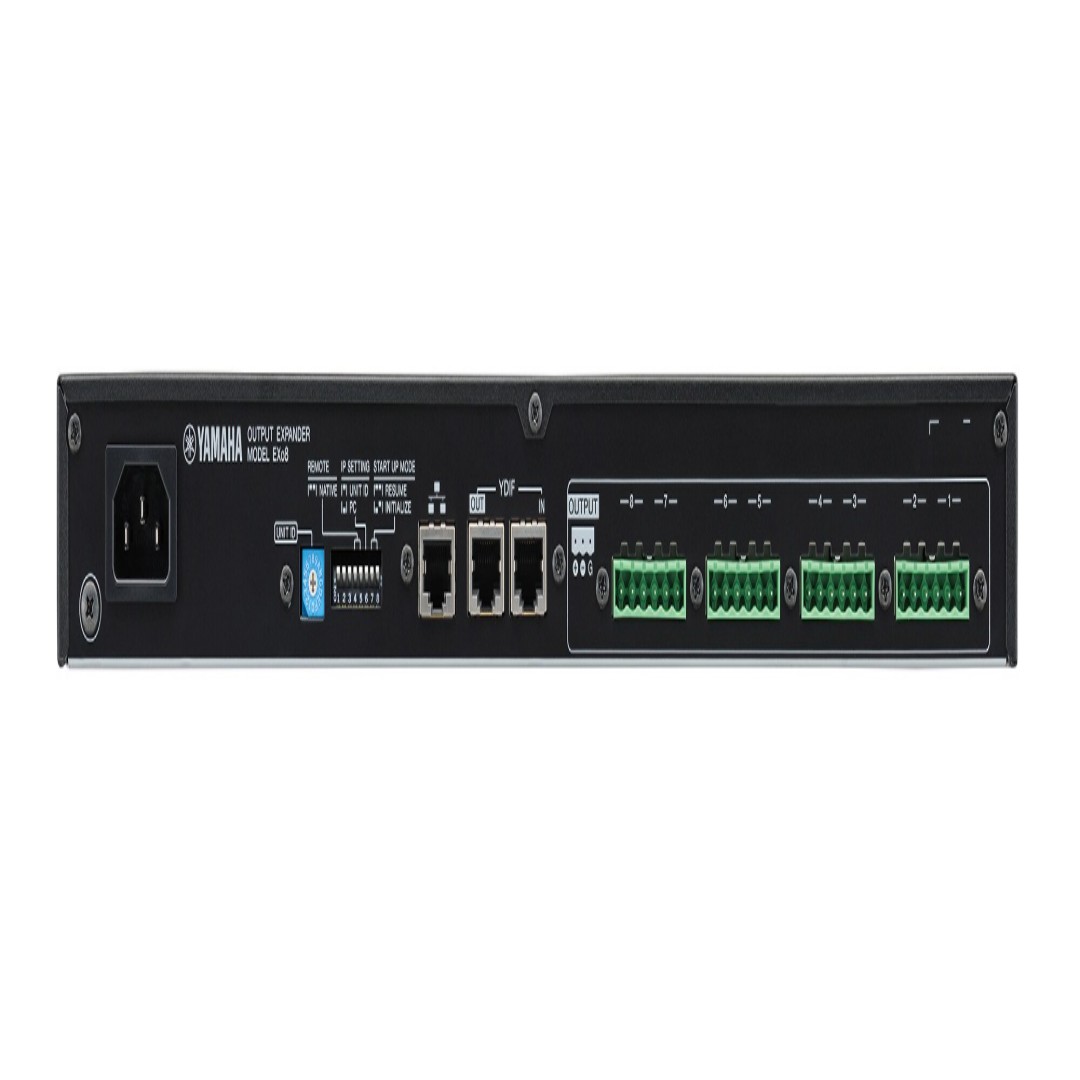

- Includes Euroblock connectors for secure wiring
Technical Specifications
Sampling Frequency
- 48kHz / 44.1kHz
Signal Delay
- Less than 2.5ms
Total Harmonic Distortion
- Less than 0.05% (+4dBu, Gain:-6dB)
- Less than 0.1% (+4dBu, Gain:+66dB)
Frequency Response
- 20Hz to 20kHz
- -1.5dB min, 0dB typ., +0.5dB max
Dynamic Range
- 107dB (Gain:-6dB)
Crosstalk
- -100dB (@1kHz)
Heat Dissipation
- 21.5 kcal/h max
Power Requirements
- 100V, 50/60Hz
Power Consumption
- 25W max
Dimensions (W × H × D)
- 480 × 44 × 351 mm
- 1U Rack Size
