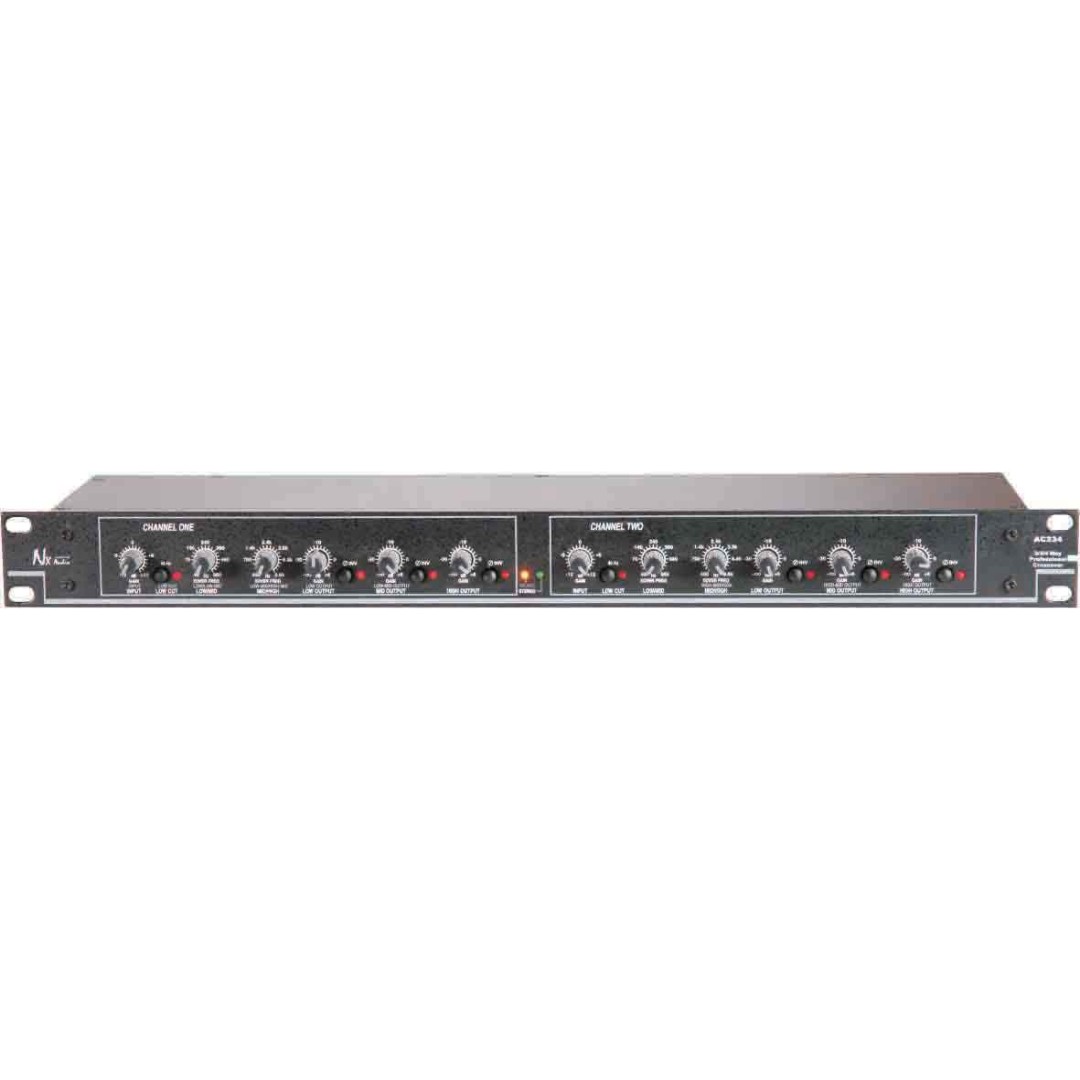

Nx Audio AC-234

Description

The Nx Audio AC-234 is a professional Stereo 2-Way / Stereo 3-Way / Mono 4-Way Active Crossover designed to provide precise frequency division and exceptional loudspeaker management for professional sound reinforcement systems. Combining reliability, flexibility, and high-performance audio processing, the AC-234 is ideal for live sound, touring systems, clubs, auditoriums, houses of worship, and fixed installations.

Featuring industry-standard 24dB/Octave Linkwitz-Riley filters, the AC-234 delivers seamless crossover transitions with excellent phase accuracy and flat summed frequency response. The unit supports multiple operating configurations, including Stereo 2-Way, Stereo 3-Way, and Mono 4-Way modes, making it suitable for a wide range of sound system designs.

Built with rugged chassis-mounted balanced XLR connectors and precision controls, the AC-234 ensures dependable operation in demanding professional environments while providing comprehensive system tuning and loudspeaker protection features.

More Information

Key Features

  • Stereo 2-Way Active Crossover
  • Stereo 3-Way Active Crossover
  • Mono 4-Way Active Crossover
  • 24dB/Octave Linkwitz-Riley Filters
  • Balanced XLR Inputs and Outputs
  • Mono Subwoofer (Low Frequency Sum) Output
  • Independent Output Level Controls
  • Individual Phase Reverse Switches
  • 40Hz High-Pass (Low-Cut) Filter
  • x10 Frequency Range Selection
  • Stereo/Mono Status LED Indicators
  • Precision Front Panel Controls
  • Rugged Professional Construction
  • Chassis-Mounted XLR Connectors

Technical Specifications

  • Model: AC-234
  • Type: Active Electronic Crossover
  • Operating Modes:
    • Stereo 2-Way
    • Stereo 3-Way
    • Mono 4-Way
  • Filter Type: Linkwitz-Riley
  • Filter Slope: 24dB/Octave
  • Inputs: Balanced XLR
  • Outputs: Balanced XLR
  • Subwoofer Output: Low Frequency Summed Output
  • Low Cut Filter: 40Hz High-Pass Filter
  • Frequency Range Selection: x10 Range Switch
  • Output Gain Range: -∞ to +6dB
  • Phase Control: Individual Phase Reverse Switches
  • Status Indicators: Stereo/Mono LED Indicators
  • Brand: Nx Audio
