Description

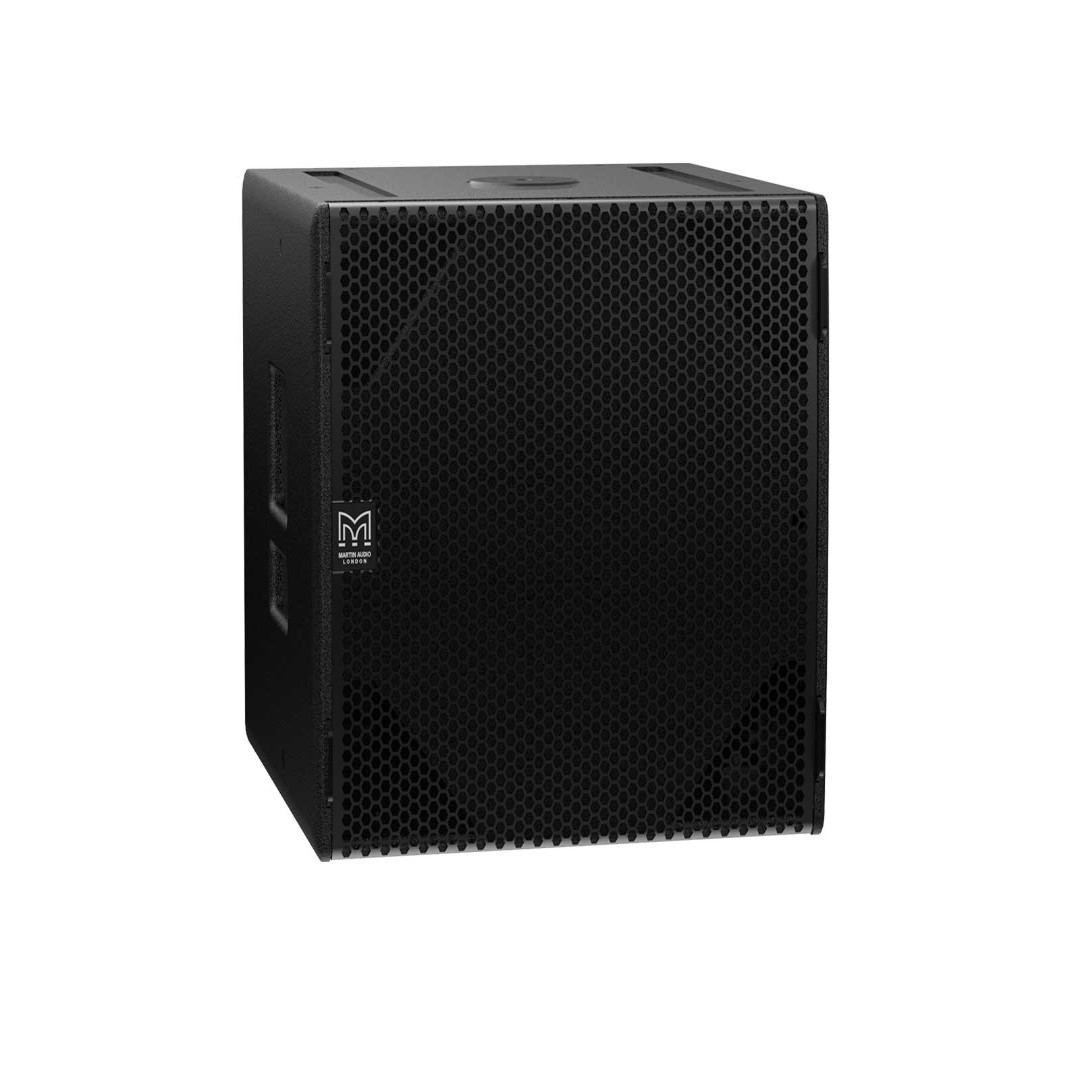

The Martin Audio SX118 is a compact high-performance direct-radiating subwoofer designed to extend system low-frequency response down to 47Hz while delivering exceptional bass output from a relatively compact enclosure. Featuring a powerful 18-inch long-excursion driver with a waterproof cone and high-power 4-inch voice coil, the SX118 combines impressive low-frequency extension, high SPL capability, and deployment flexibility. Suitable for both portable and installed sound systems, it can be used in omnidirectional configurations or paired for cardioid subwoofer applications where improved low-frequency control is required.
More Information
Key Features
- Compact high-performance direct-radiating subwoofer
- Single 18-inch long-excursion low-frequency driver
- High-power 4-inch voice coil
- Waterproof cone for increased durability
- Excellent low-frequency extension down to 41Hz (-10dB)
- High-output performance from a compact enclosure
- Omnidirectional or cardioid deployment options
- Durable multi-laminate birch/poplar plywood construction
- Tough Polyurea protective coating
- Integrated pole-mount facility
- Extensive rigging and mounting options
- Touring-friendly handling and transport features
Technical Specifications
- Type: Compact Direct-Radiating Subwoofer
- Frequency Response: 47Hz – 150Hz (±3dB), -10dB @ 41Hz
- Driver: 18″ (460mm) Long-Excursion Driver with 4″ (100mm) Voice Coil
- Magnet Type: Ferrite
- Cone Type: Waterproof Cone
- Power Handling: 1000W AES, 4000W Peak
- Sensitivity: 102dB
- Maximum SPL: 138dB Peak
- Nominal Impedance: 8 Ohms
- Dispersion: Omnidirectional or Cardioid (when paired)
- Enclosure Material: Multi-Laminate Birch/Poplar Plywood
- Finish: Durable Polyurea Coating
- Grille: Black Perforated Zintec Steel
- Connectors: 2 × NL4 Type
- Input Pin Connections:
- LF: +1, -1
- Link Through: +2, -2
- Link Pin Connections:
- LF: +1, -1
- Link Through: +2, -2
- Pole Mount: M20 Top-Mounted Thread Plate
- Handles: 2 Bar Handles (1 per side)
- Mounting Points:
- 16 × M10 Mounting Points
- 16 × M8 Inserts for Optional Castors
- Additional Features:
- Base Skids with Mating Top Channels
- 4 Fixings for Optional Transit Cover
- Dimensions (W × H × D): 600 × 509 × 632 mm
- Dimensions Including Castors: 600 × 509 × 760 mm
- Weight:
- 43.5 kg (without castors)
- 47 kg (with castors)
