Description

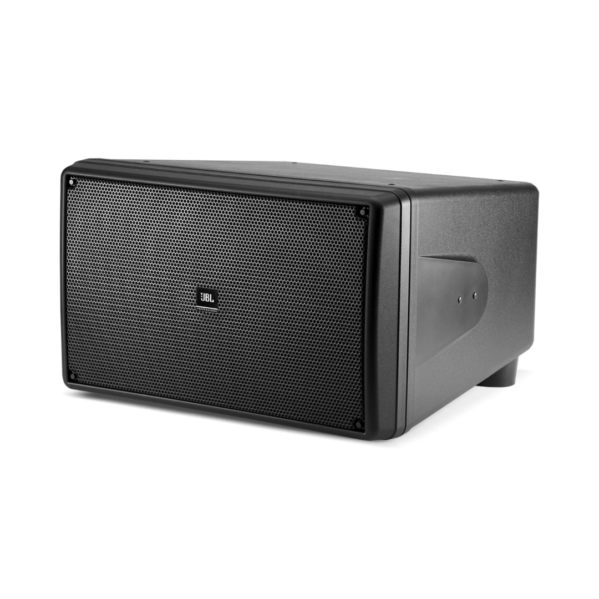

The JBL Control SB2210 is a compact, high-output subwoofer designed to provide powerful low-frequency reinforcement for a wide range of installed sound systems. With dual 10-inch woven fiberglass cone LF drivers, 500W power handling, and outdoor-capable construction, it delivers deep bass performance in a low-profile cabinet. Its durable enclosure, weather-resistant grille, and flexible mounting points make it suitable for commercial audio, outdoor venues, restaurants, theme parks, houses of worship, and distributed sound applications.
More Information
Key Features
- Compact high-output subwoofer for installed sound systems.
- Dual 250 mm 10-inch woven fiberglass cone LF drivers.
- 500W power handling with 2000W peak capability.
- Low-frequency response down to 38 Hz.
- Compact and low-profile cabinet design.
- Outdoor-capable construction for demanding environments.
- 13 M6 insert points for flexible installation.
- Supports optional U-bracket mounting.
- Durable HIPS enclosure with polyurethane co-mold.
- Weather-resistant grille with 3-layer foam backing.
- IP-45 rated when installed with included terminal panel cover.
- Suitable for indoor and outdoor low-frequency reinforcement.
Technical Specification
- Product Type: Compact Installation Subwoofer
- Frequency Range: 38 Hz – 500 Hz (-10 dB)
- Frequency Response: 48 Hz – 95 Hz (-3 dB)
- Power Rating: 500W Continuous Pink Noise, 2000W Peak
- Continuous Program Power: 1000W
- Maximum Input Voltage: 60.0V RMS, 120V Peak
- Sensitivity: 95 dB, 1W @ 1m
- Maximum SPL: 122 dB at 1m
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 7.2 Ohms at 160 Hz
- Recommended Filter: 45 Hz, 24 dB/octave High-Pass Filter
- Drivers: Two 250 mm 10-inch LF Drivers
- Driver Cone Material: Woven Fiberglass
- Surround: Highly Damped Butyl Rubber
- Enclosure: High Impact PolyStyrene with 10% Glass Fill
- Grille: Thermoset Composite Coated Steel with 3-Layer Foam Backing
- Outdoor Rating: IP-45 with Included MTC-PC2 Terminal Panel Cover

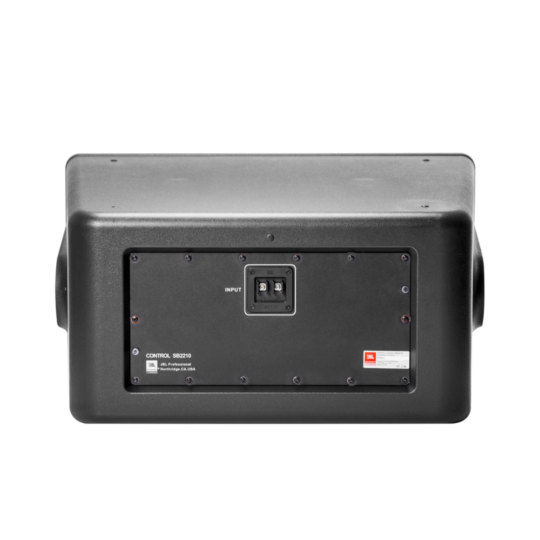

- Input Connector: Screw-Down Terminal Strip
- Safety Compliance: ROHS-Compliant
- Optional Transformer: MTC-SBT300, UL Recognized per UL1876
- Available Colors: Black or White
- Dimensions: 355 x 590 x 570 mm
- Net Weight: 23.31 kg
- Shipping Weight: 25.85 kg
