Description

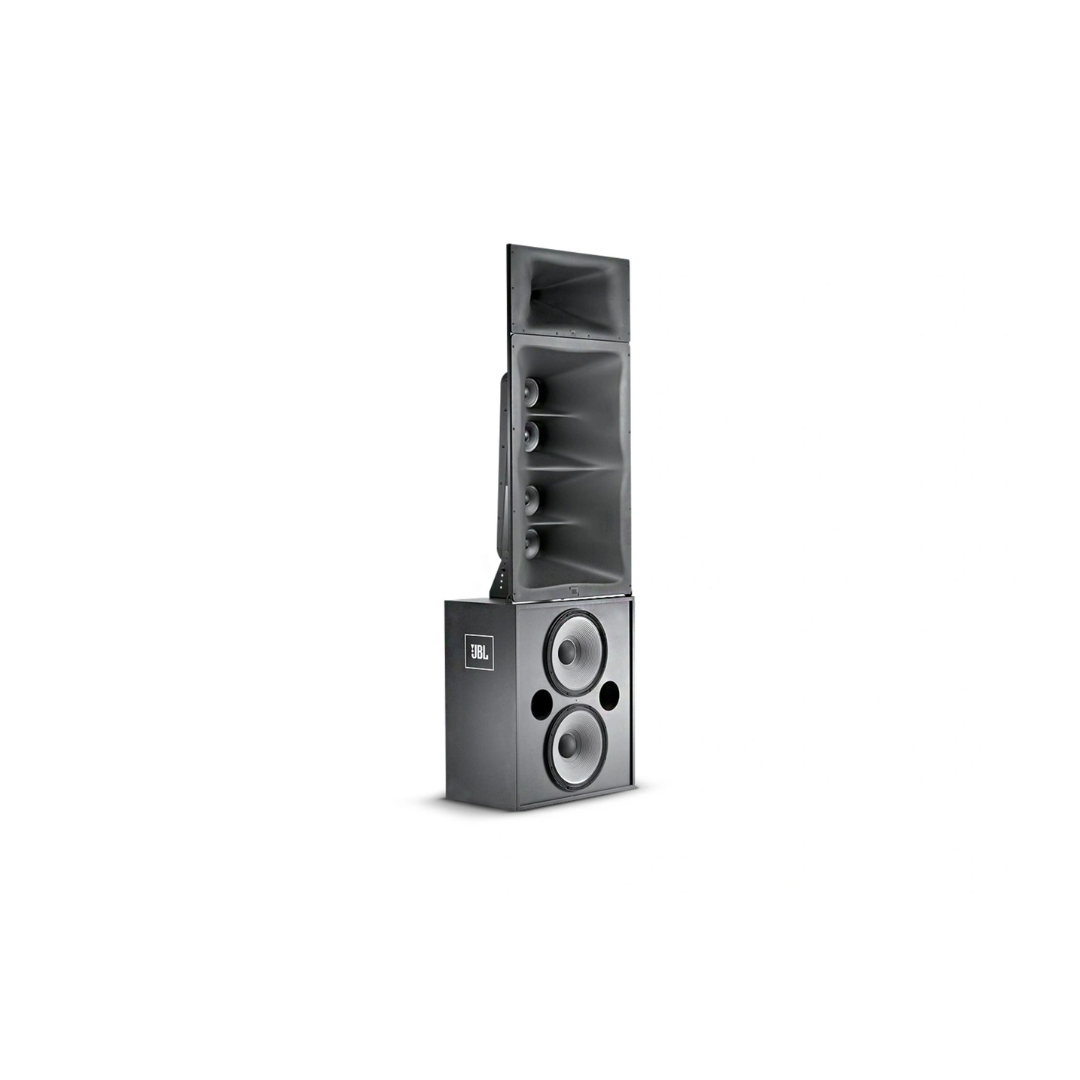

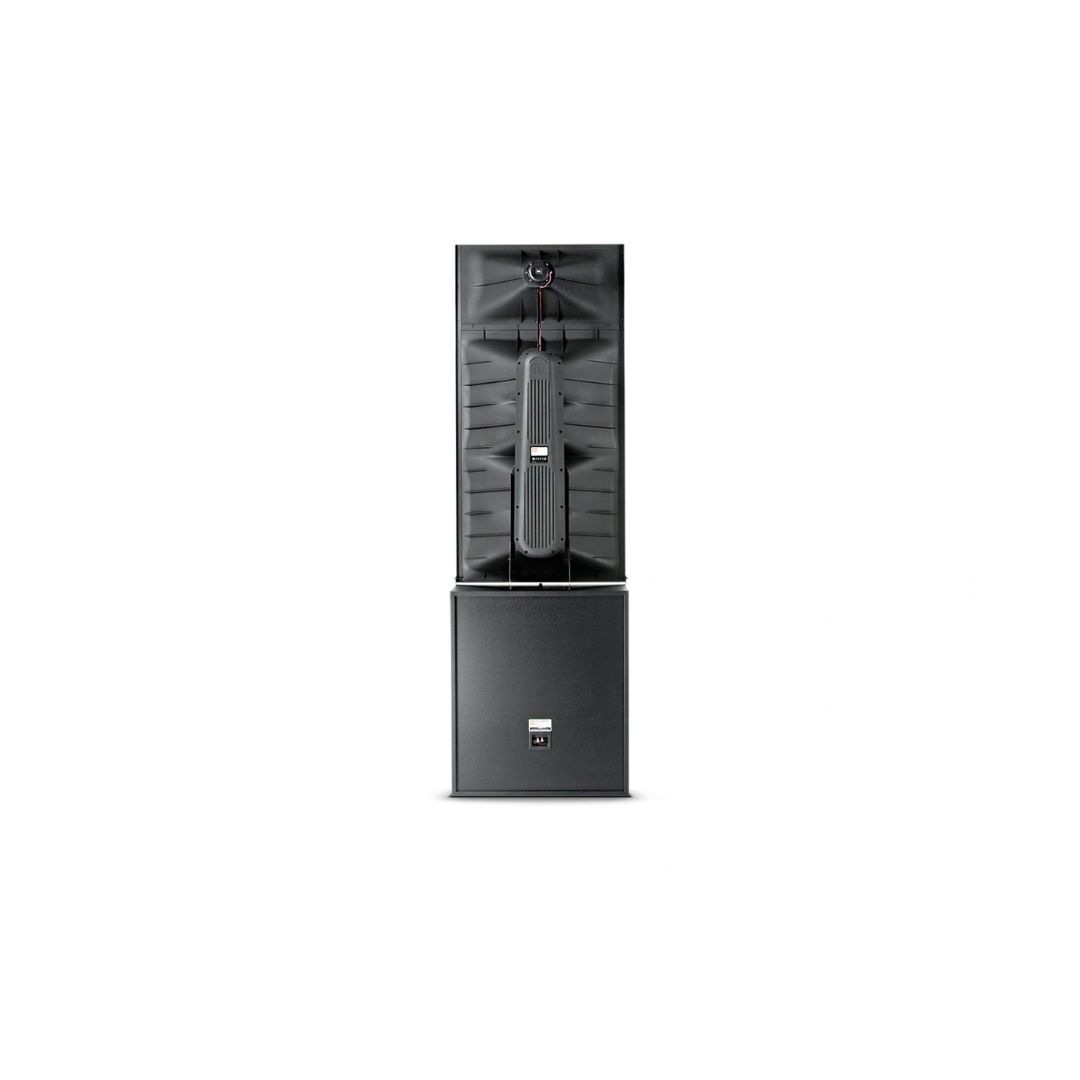

The JBL 4732 Three-Way ScreenArray™ Cinema Loudspeaker System is designed for critical film sound reproduction in medium to large cinema environments. Its true three-way ScreenArray™ design delivers maximum output, optimal coverage, and minimum distortion for a powerful and immersive cinema audio experience.
The JBL 4732 supports triamplified (4732T) and biamplified operation, providing flexibility for professional cinema installations. It features Second Generation Optimized Aperture Waveguide Technology, SSC™ Screen Spreading Compensation, and Focused Coverage Technology™ to deliver extremely uniform frequency response, controlled coverage, and ultra-low distortion.
Its flat-front waveguide design and shallow profile make it suitable for easy baffle-wall installation while requiring minimal space behind the cinema screen. The system ships fully assembled for convenient deployment.
More Information
Key Features
- True three-way ScreenArray™ cinema loudspeaker system
- Designed for critical film sound reproduction
- Suitable for medium to large cinema environments
- Delivers maximum output with optimal coverage
- Designed for minimum distortion
- Supports triamplified (4732T) operation
- Supports biamplified operation
- Approved for THX® certified applications in the 4732T version
- Ships fully assembled
- Second Generation Optimized Aperture Waveguide Technology
- Designed for ultra-low distortion
- Delivers extremely uniform frequency response
- SSC™ Screen Spreading Compensation
- Focused Coverage Technology™
- Flat-front waveguide design for easy baffle-wall installation
- Shallow profile for minimum behind-screen depth requirements
- Uses 4739 low-frequency section
- Uses 4732-M/HF mid/high-frequency section
Technical Specification
- Brand: JBL
- Model Number: 4732
- Product Type: Three-Way ScreenArray™ Cinema Loudspeaker System
- System Configuration: Three-Way Loudspeaker System
- Operating Modes: Biamplified / Triamplified
- THX® Certification: 4732T approved for THX® certified applications
- Frequency Range: 30 Hz – 20 kHz
- Frequency Response (±3 dB): 40 Hz – 19 kHz
- Horizontal Coverage Angle (-6 dB): 90°
- Vertical Coverage Angle (-6 dB): 20° up, 30° down
- Rated Maximum SPL: 130 dB @ 1 m (3.3 ft), 136 dB peak
- Crossover Frequencies: 250 Hz, [1.2 kHz for 4732T]
- Net Weight: 84.4 kg (186 lb)
- Shipping Weight: 103.5 kg (228 lb)
- Dimensions (H × W × D): 2427 × 762 × 450 mm
- Dimensions (H × W × D): 95.6 × 30 × 17.75 Inches
Low-Frequency Section
- Section Model: 4739
- Low-Frequency Transducers: 2 × 265H-2
- Driver Diameter: 380 mm / 15 Inches
- Driver Technology: Differential Drive® edgewound ribbon voice coil transducers
- LF Enclosure: 4509 LF enclosure
- Input Connectors: Push terminal binding posts
- Nominal Impedance: 4 Ohms
- Minimum Impedance: 3.3 Ohms @ 230 Hz
- Input Power Handling (AES 100-Hour Rating): 500 W (44.5 V)
- Input Power Handling (AES 2-Hour Rating): 800 W (56.5 V)
- Free-Field Sensitivity: 104 dB SPL, 2.83 V @ 1 m (3.3 ft)
- Dimensions (H × W × D): 883 × 762 × 450 mm
- Dimensions (H × W × D): 34.75 × 30 × 17.75 Inches
- Net Weight: 48.6 kg (107 lb)
- Shipping Weight: 55.4 kg (122 lb)
Mid / High-Frequency Section
- Section Model: 4732-M/HF
- Mid-Frequency Transducers: 4 × 165H-2
- Mid Driver Diameter: 165 mm / 6.5 Inches
- Mid Voice Coil Diameter: 38 mm / 1.5 Inches
- High-Frequency Transducer: 1 × 2432H
- HF Diaphragm / Voice Coil Diameter: 75 mm / 3 Inches
- HF Exit Diameter: 38 mm / 1.5 Inches
- Assembly Status: Ships fully assembled
- Input Connectors: Screw terminal barrier strip
- Nominal Impedance: 4 Ohms [HF: 8 Ohms]
- Minimum Impedance: 3.5 Ohms @ 300 Hz
- Free-Field Sensitivity: 107 dB SPL, 2.83 V @ 1 m (3.3 ft)
- Mid-Frequency Sensitivity: 109 dB SPL, 2.83 V @ 1 m (3.3 ft)
- High-Frequency Sensitivity: 115 dB SPL, 2.83 V @ 1 m (3.3 ft)
- Input Power Handling (AES 100-Hour Rating): 200 Watts, 400 Watts recommended amplifier
- Mid-Frequency Power Handling: 200 Watts, 400 Watts recommended amplifier
- High-Frequency Power Handling: 85 Watts, 200 Watts recommended amplifier
- Dimensions (H × W × D): 1544 × 762 × 450 mm
- Dimensions (H × W × D): 60.8 × 30 × 17.75 Inches
- Net Weight: 35.4 kg (78 lb)
- Shipping Weight: 47.7 kg (105 lb)
