Description

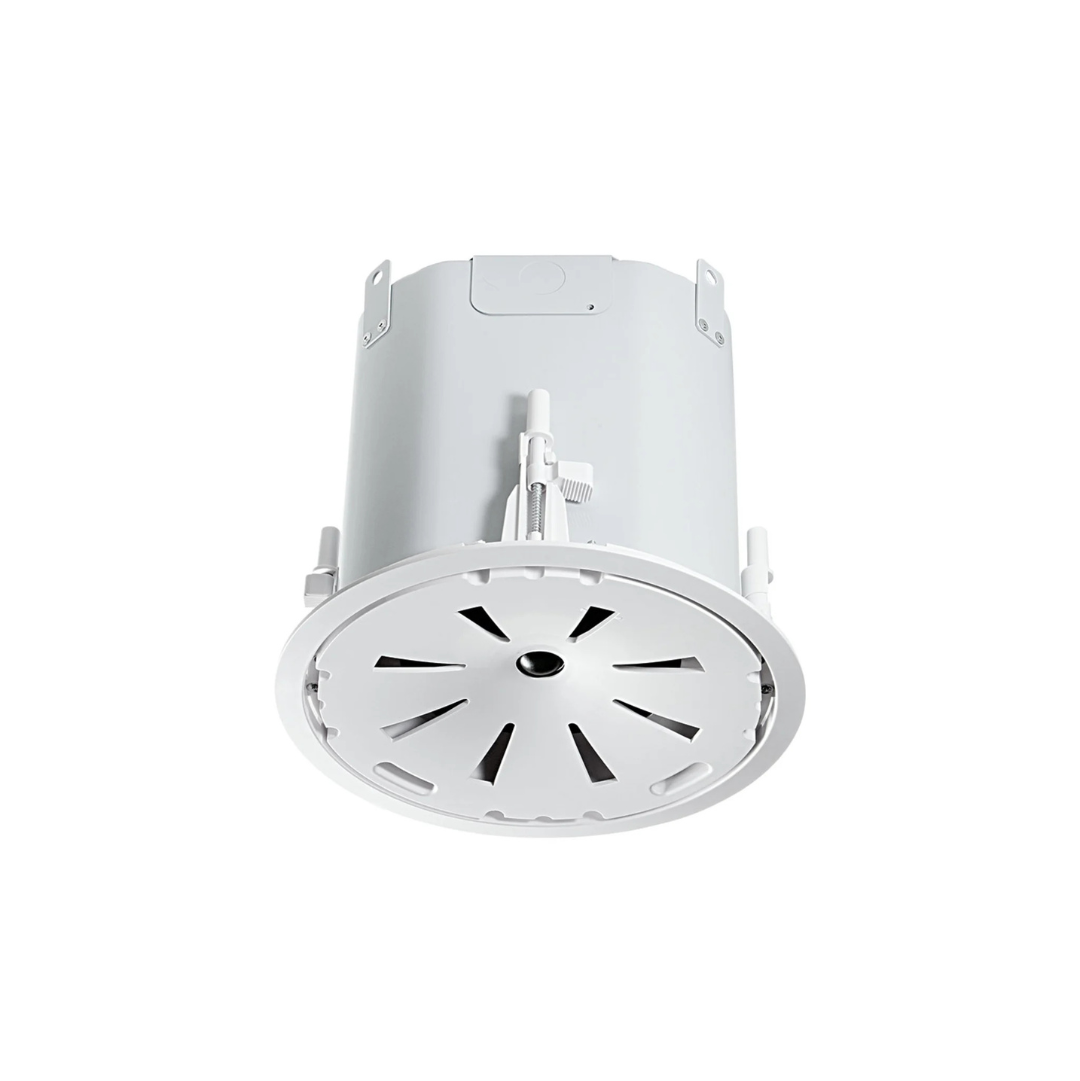

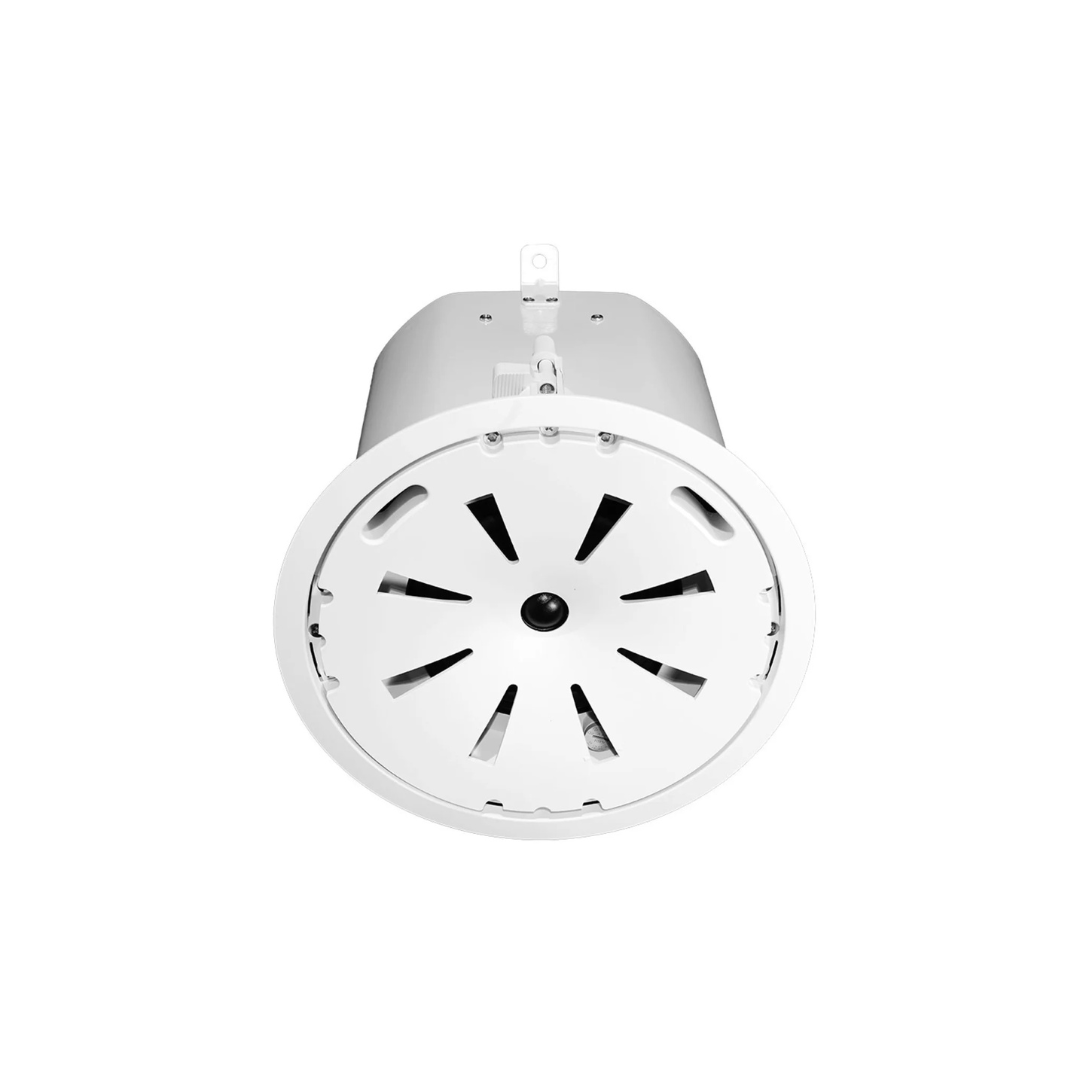

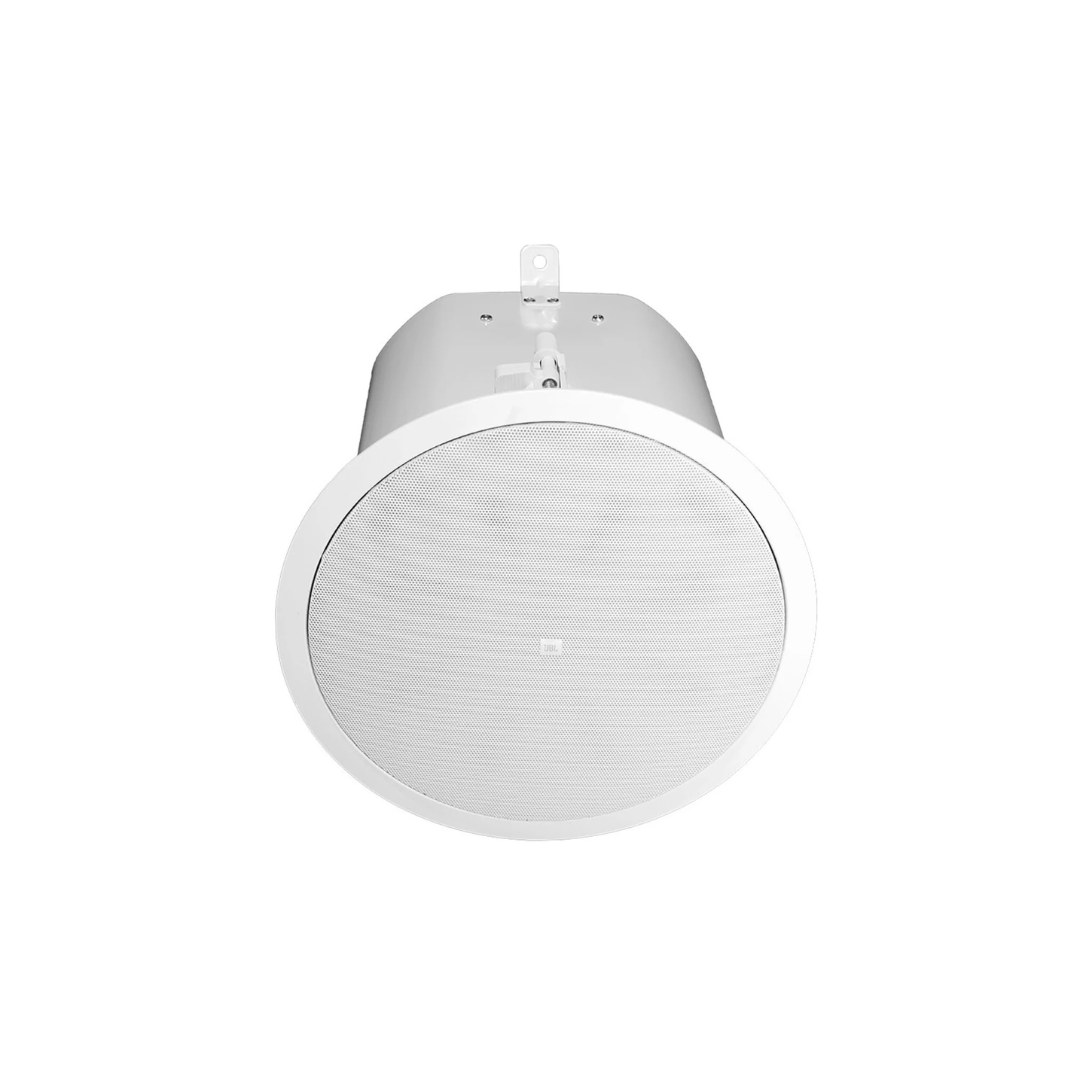

The JBL Control 47C/T Ceiling Loudspeaker is designed to deliver wide, consistent coverage with extended bass performance for commercial audio installations. With its 120° conical coverage, it allows fewer speakers to cover larger spaces while maintaining clear and balanced sound throughout the area.
Featuring JBL’s proprietary Conical RBI® Technology, the Control 47C/T provides smooth frequency response and superior sound performance. Its large backcan supports bass response down to 55 Hz, making it suitable for restaurants, retail spaces, casinos, offices, hospitality areas, and other commercial environments.
The loudspeaker includes a built-in transformer with multiple tap settings for 70V / 100V distributed audio systems, along with an 8-ohm bypass mode for low-impedance operation. Its elegant white design fits easily into modern interiors.
More Information
Key Features
- Ceiling loudspeaker for commercial audio installations
- Wide 120° conical coverage
- Allows fewer speakers to cover larger spaces
- Proprietary Conical RBI® Technology
- Provides wide and consistent sound coverage
- Flat frequency response
- Superior sound performance
- Extended bass response down to 55 Hz
- Large backcan included
- Suitable for restaurants and retail spaces
- Suitable for casinos and hospitality areas
- Suitable for offices and commercial interiors
- Supports 70V / 100V distributed audio systems
- 8-ohm bypass mode available
- Elegant white design
- Includes C-rings, tile rails, paint shield, cutout template, and grille
- Suitable for plenum / air-handling spaces
Technical Specification
- Brand: JBL
- Model Number: Control 47C/T
- Product Type: Ceiling Loudspeaker
- Frequency Range: 55 Hz – 20 kHz
- Continuous Program Power: 150 Watts
- Continuous Pink Noise Power: 75 Watts
- Peak Power: 300 Watts
- Sensitivity: 91 dB, 1 kHz – 16 kHz
- Coverage Angle: 120° Conical, Constant Directivity
- Transformer Taps: 60 W, 30 W, 15 W, 7.5 W at 70 V only
- Low-Impedance Mode: 8 Ohms Bypass Mode
- Input Connectors: Two Removable Locking 2-Pin Connectors with Screw-Down Terminals
- Maximum SPL at 1 Metre: 110 dB Low-Impedance, 116 dB Peak
- Maximum SPL on Top 70V / 100V Tap: 109 dB
- Color: White

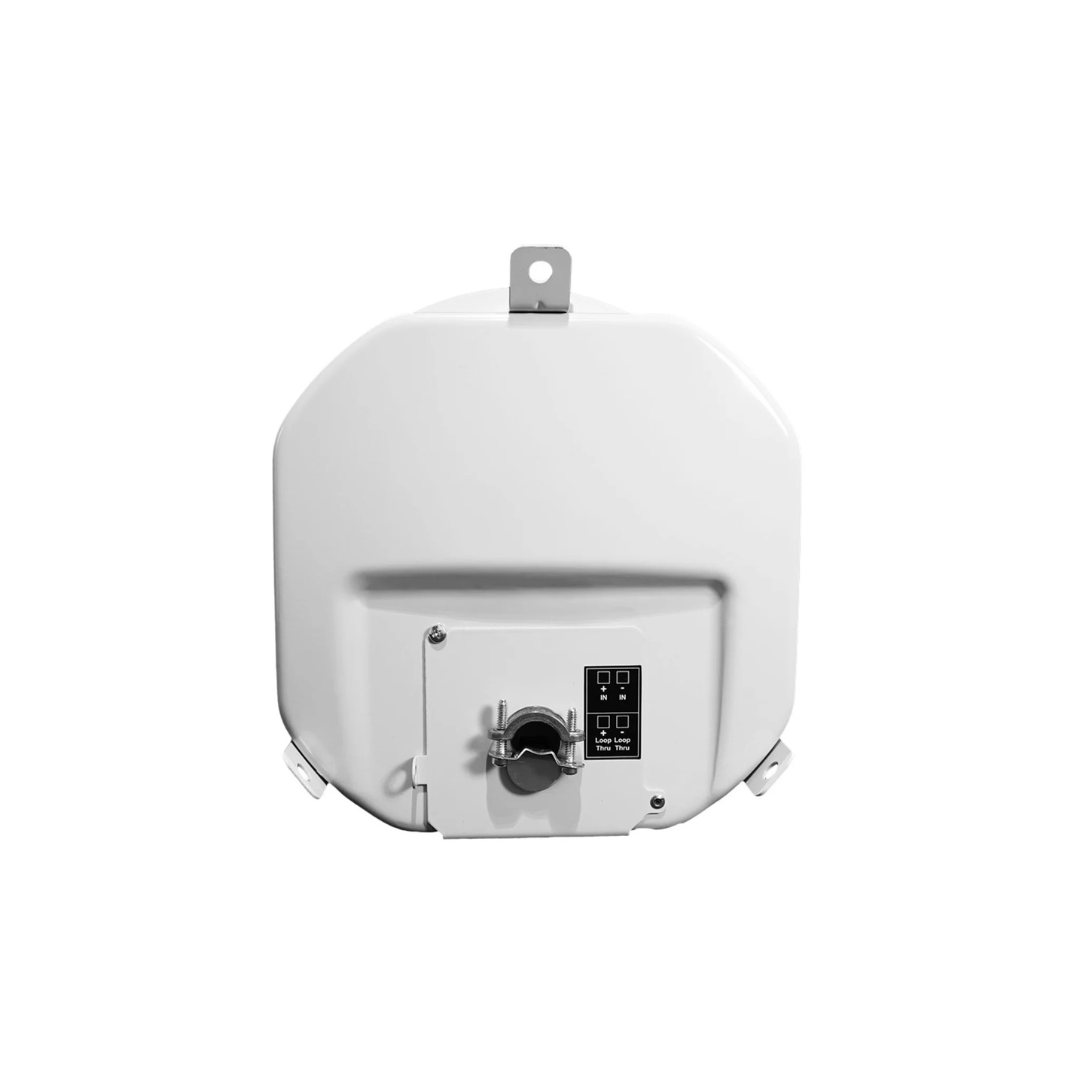

- Backcan: Formed Steel Blind-Mount Backcan Included
- Baffle / Rim Material: ABS Baffle with UL94-V0 Flame-Class Fire Rating
- Ceiling Cutout Size: 282 mm Diameter / 11.1 Inches
- Dimensions: 305 mm Diameter × 259 mm Depth
- Dimensions: 12.0 Inches Diameter × 10.2 Inches Depth
- Plenum Usage: Yes, Backcan Included
