Description

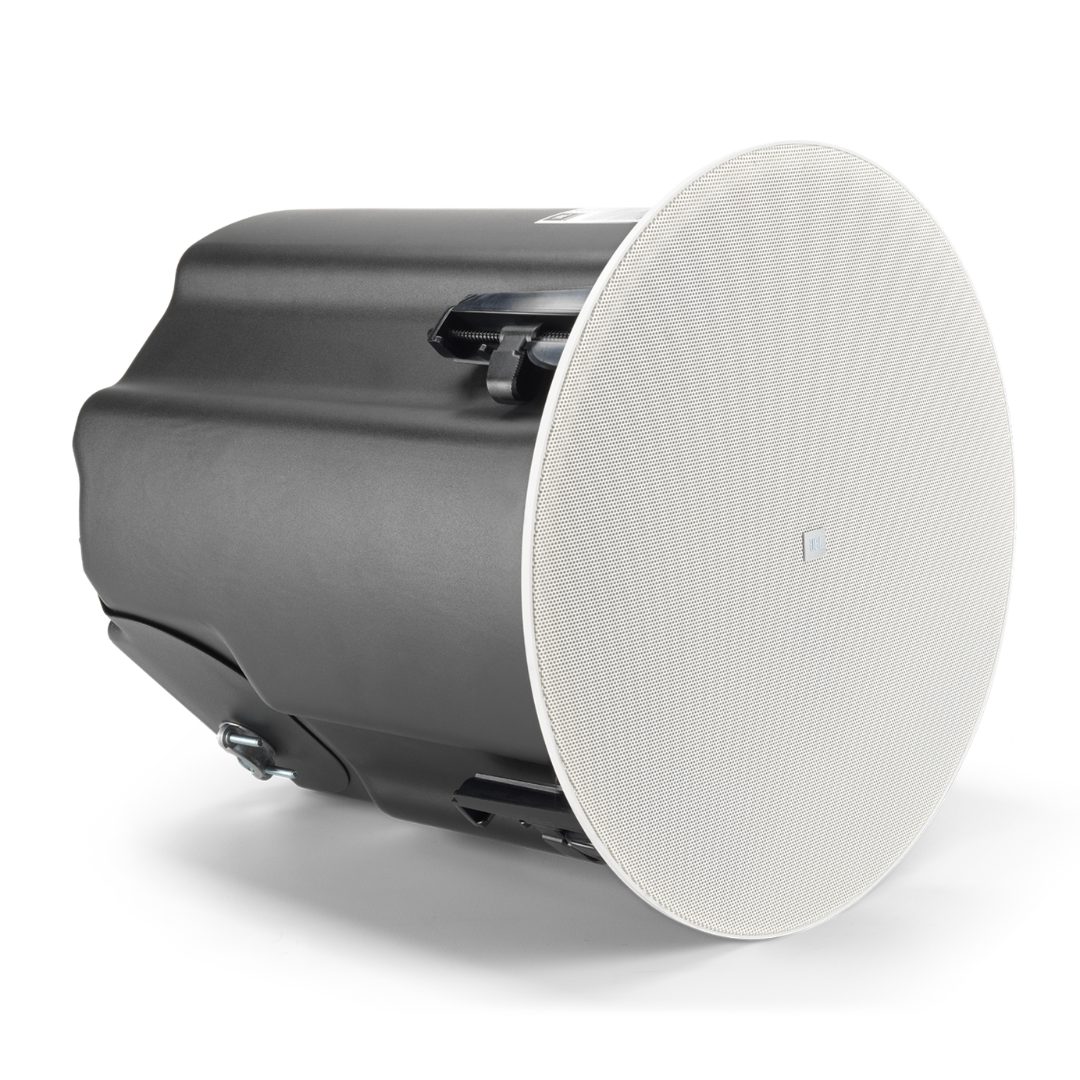

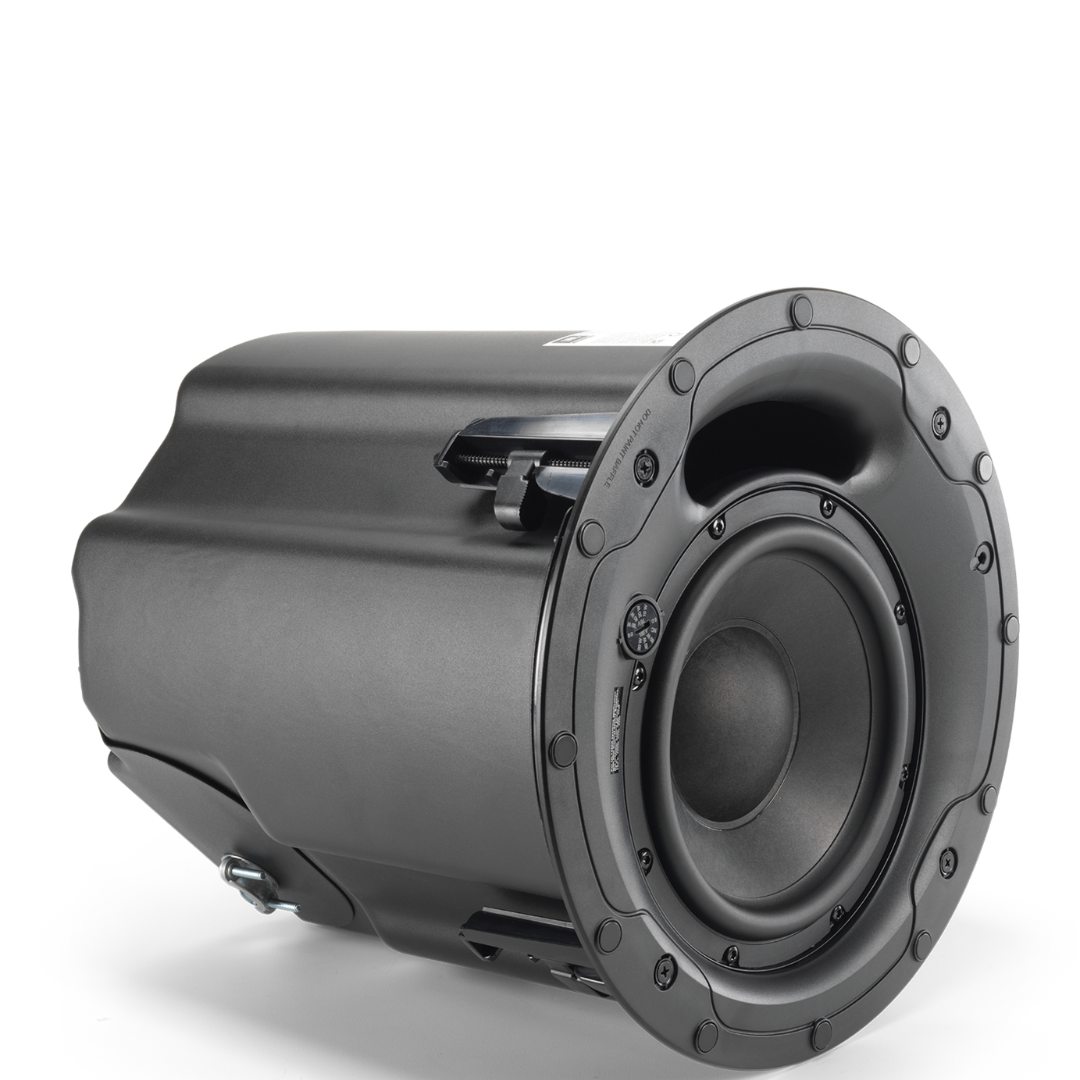

The JBL Control 440CS/T is a high-power, low-distortion in-ceiling subwoofer from the flagship Control 400 Premium Coverage Series. It features an 8-inch woofer, passive crossover, and an extremely durable reinforced enclosure, making it ideal for commercial and professional audio installations.
Designed to extend low-frequency performance, the Control 440CS/T delivers warm, smooth, and powerful bass response. Its integrated enclosure includes large tapered dual ports, helping produce deep and clean bass output for subwoofer-satellite system applications.
The speaker includes thoughtfully engineered mounting features for safety, efficiency, and repeatability. Its terminal cover allows convenient top or side cable entry and is secured with captive hand-screws. The reliable captive dogear mounting system supports a wide range of ceiling thicknesses. The full-face magnetic grille is easily paintable and blends seamlessly with modern interiors. The Control 440CS/T supports both 70V/100V and low impedance applications with an 8-ohm direct input.
More Information
Key Features
- High-power in-ceiling subwoofer
- Part of the Control 400 Premium Coverage Series
- 200 mm / 8 in woofer
- Low-distortion bass performance
- Extremely durable reinforced enclosure

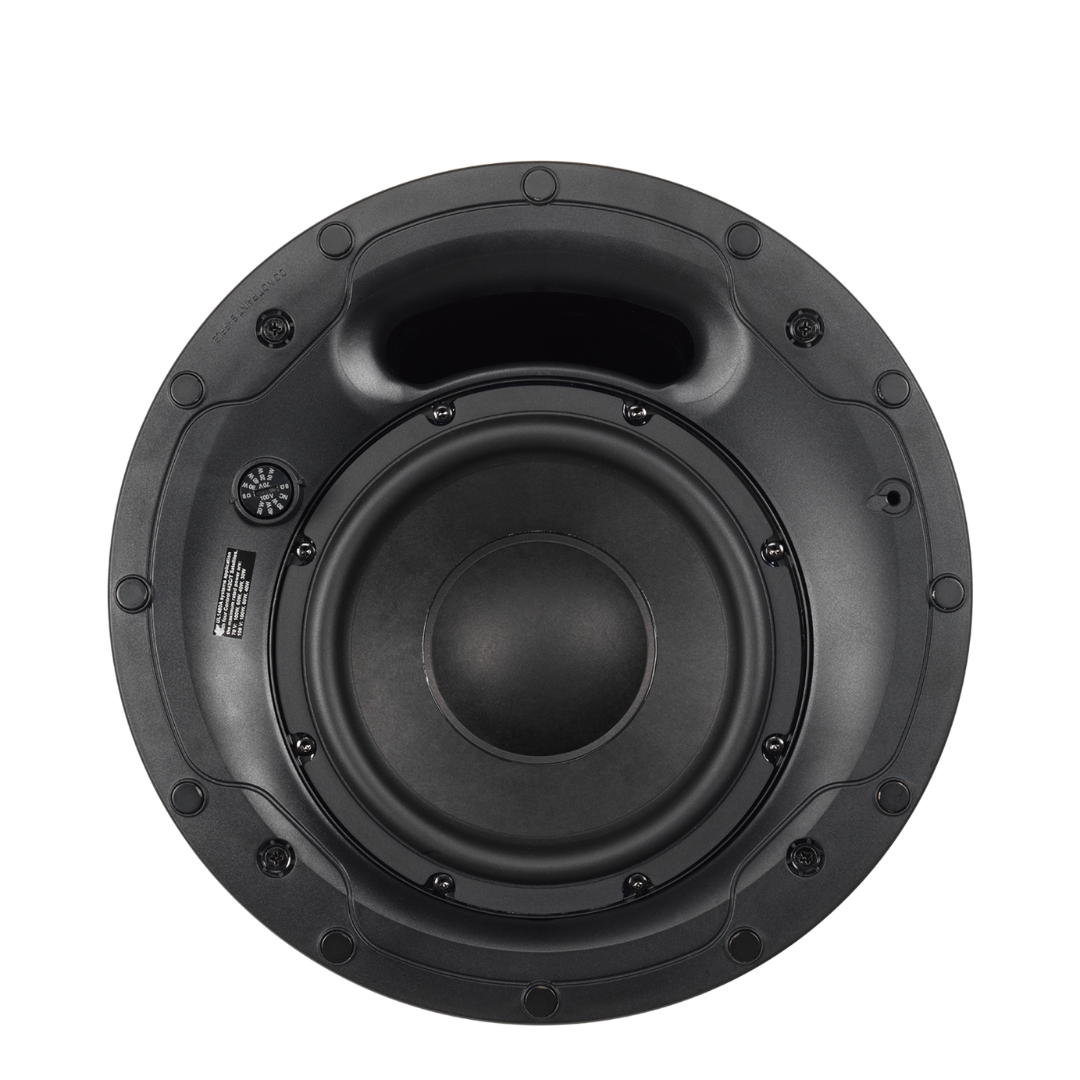

- Integrated enclosure with large tapered dual ports
- Warm, smooth, and powerful bass response
- Built-in passive crossover network
- Suitable for subwoofer-satellite system applications
- Built-in 70V/100V multi-tap transformer
- 8-ohm direct input for low impedance applications
- Full-face magnetic grille
- Easily paintable white grille
- Optional black round and white square grilles available

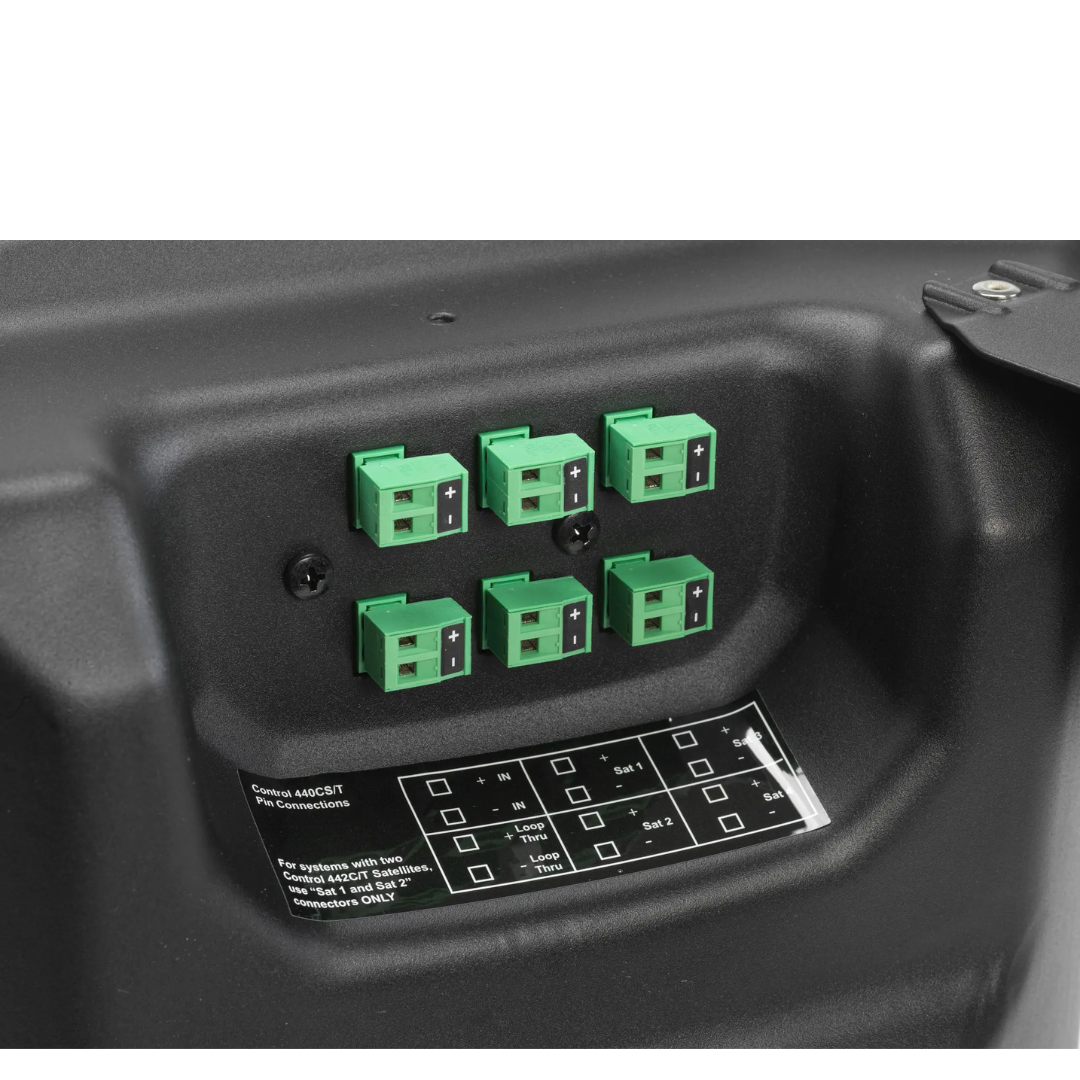

- Top and side cable entry options
- Captive hand-screw terminal cover design
- Robust and adaptable dogear mounting system
- Suitable for a wide range of ceiling thicknesses
- IP33 rated design
Technical Specification
- Model: JBL Control 440CS/T
- SKU Number: JBL-C440CS/T
- System Type: High-power in-ceiling subwoofer
- Frequency Range (-10 dB): 32 Hz – 300 Hz
- Power Capacity:
- 150 W continuous pink noise power, 600 W peak, 2 hrs
- 100 W continuous pink noise power, 400 W peak, 100 hrs
- Sensitivity: 95 dB in ceiling near corner, π/2 loading
- Coverage Angle: N/A
- Maximum SPL: 117 dB continuous pink noise, 123 dB peak, π/2 loading
- Nominal Impedance: 8Ω
- Transformer Taps:
- 70 V: 80 W, 40 W, 20 W, 10 W
- 100 V: 80 W, 40 W, 20 W
- Driver: 200 mm / 8 in treated paper cone with SBR surround and high-performance magnet
- Ceiling Cutout Size: 307 mm / 12.1 in
- Dimensions: 351 mm / 13.8 in H × 342 mm / 13.5 in diameter
- Backcan Depth: 337 mm / 13.3 in from bottom of ceiling tile to top of backcan
- Color: Stock grille is White, RAL9003, paintable
- Net Weight: 8.72 kg / 19.22 lbs each
- Shipping Weight: 25.02 kg / 55.16 lbs per pair
