Description

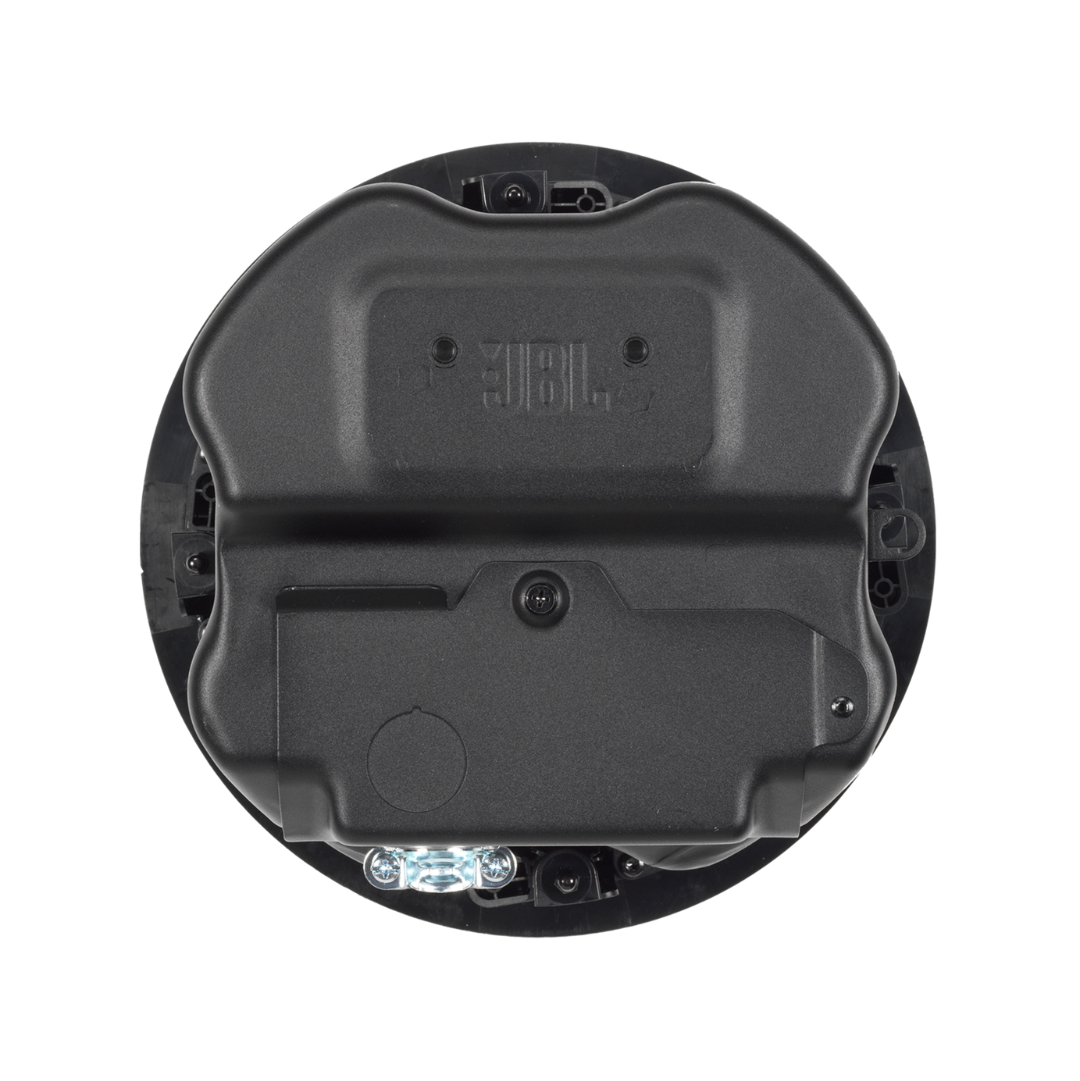

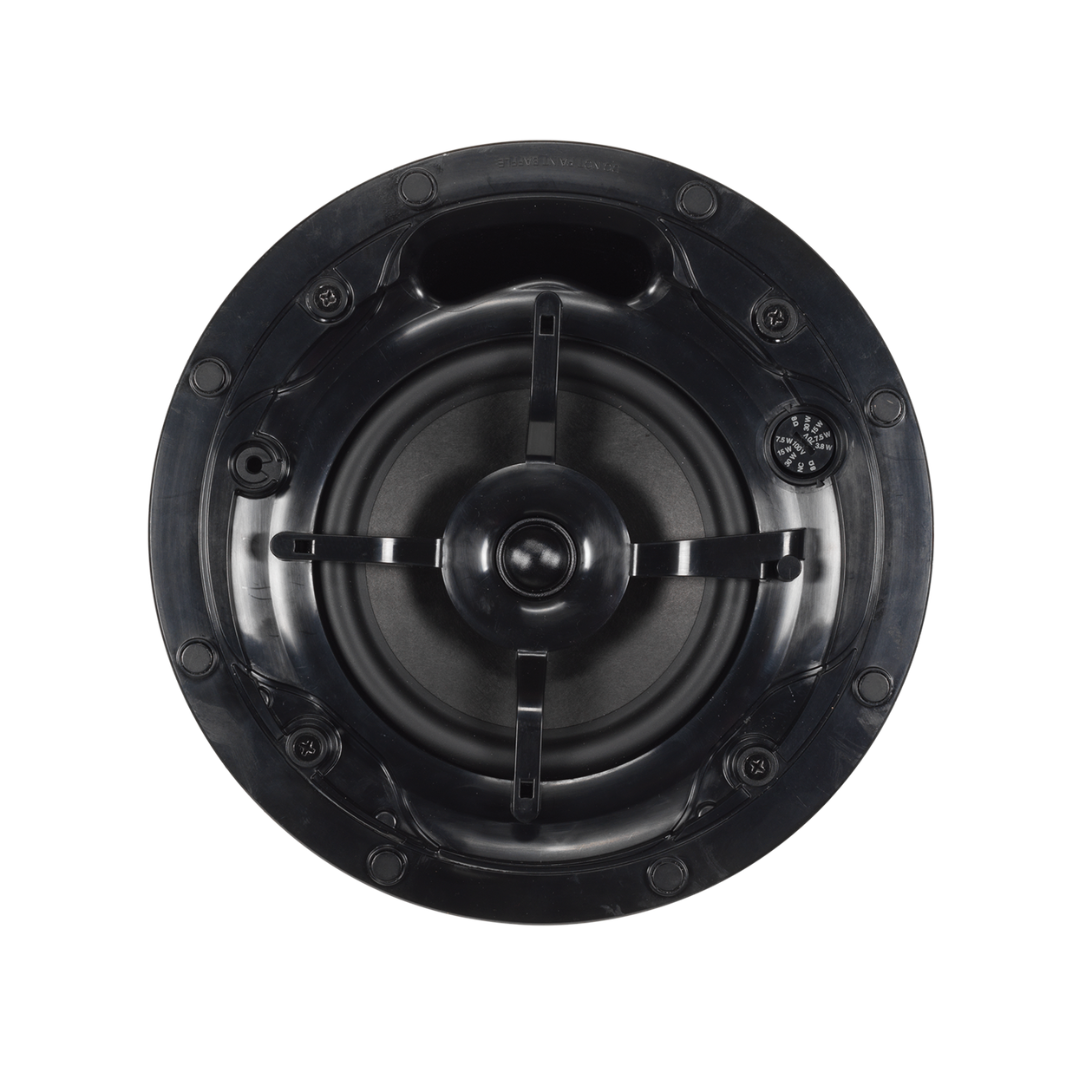

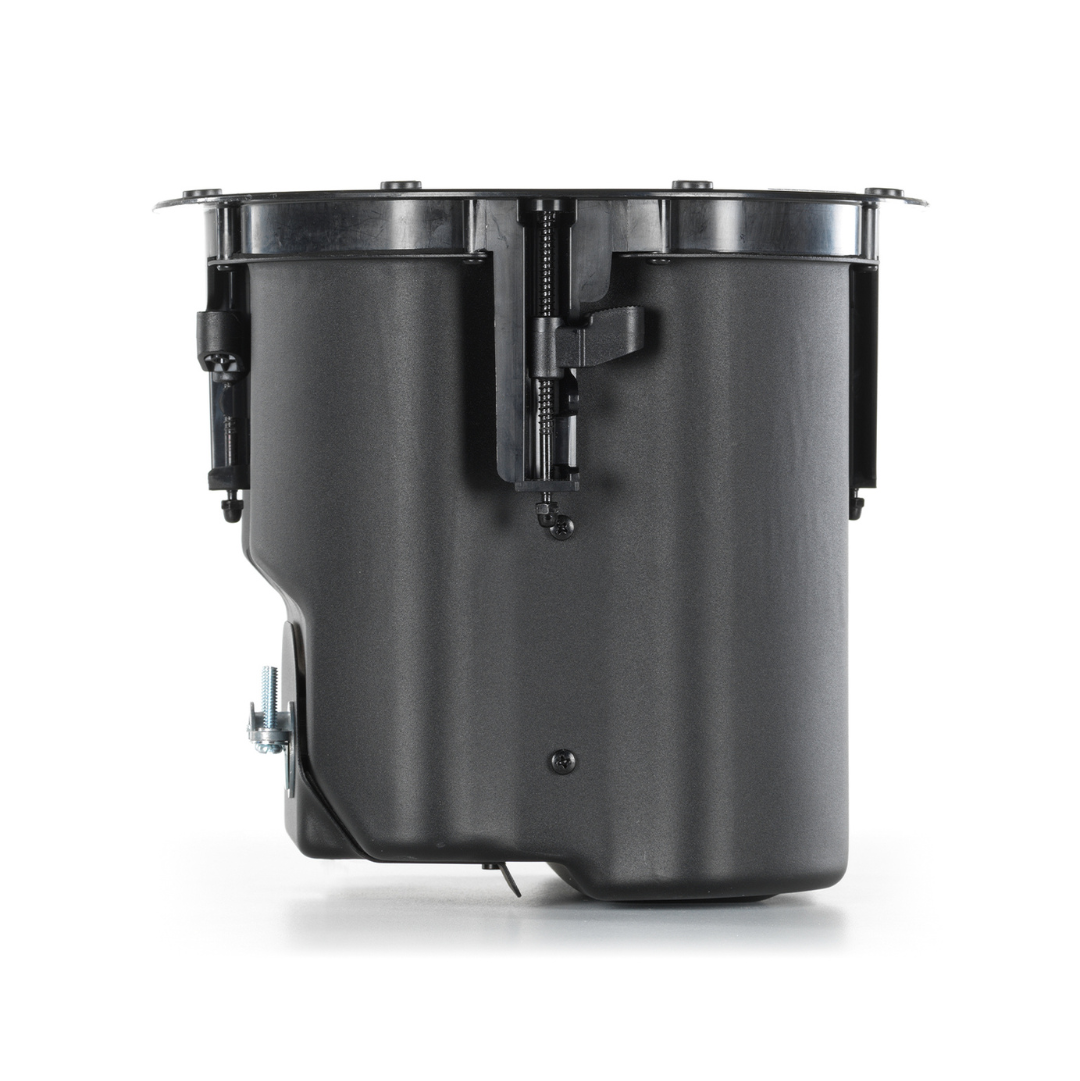

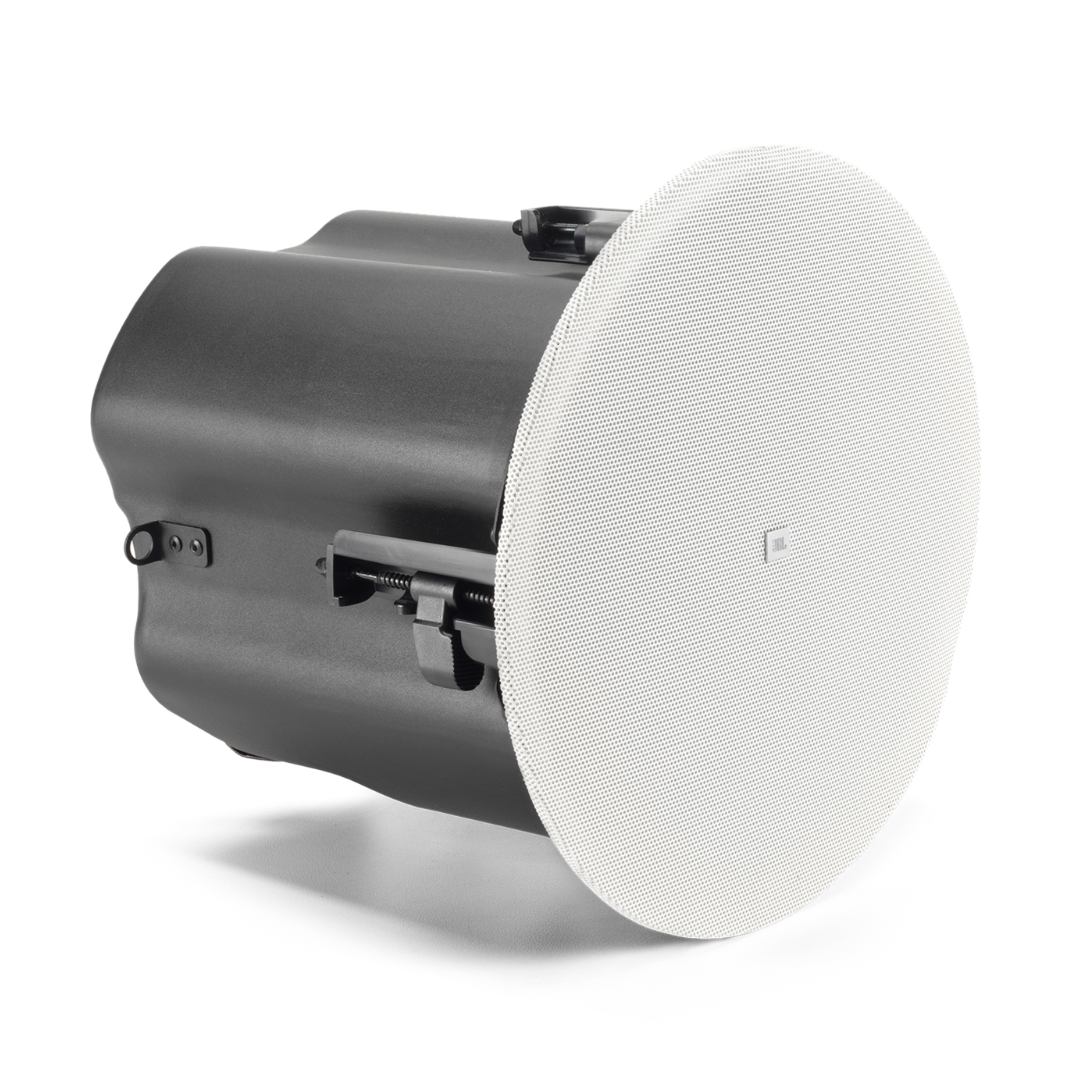

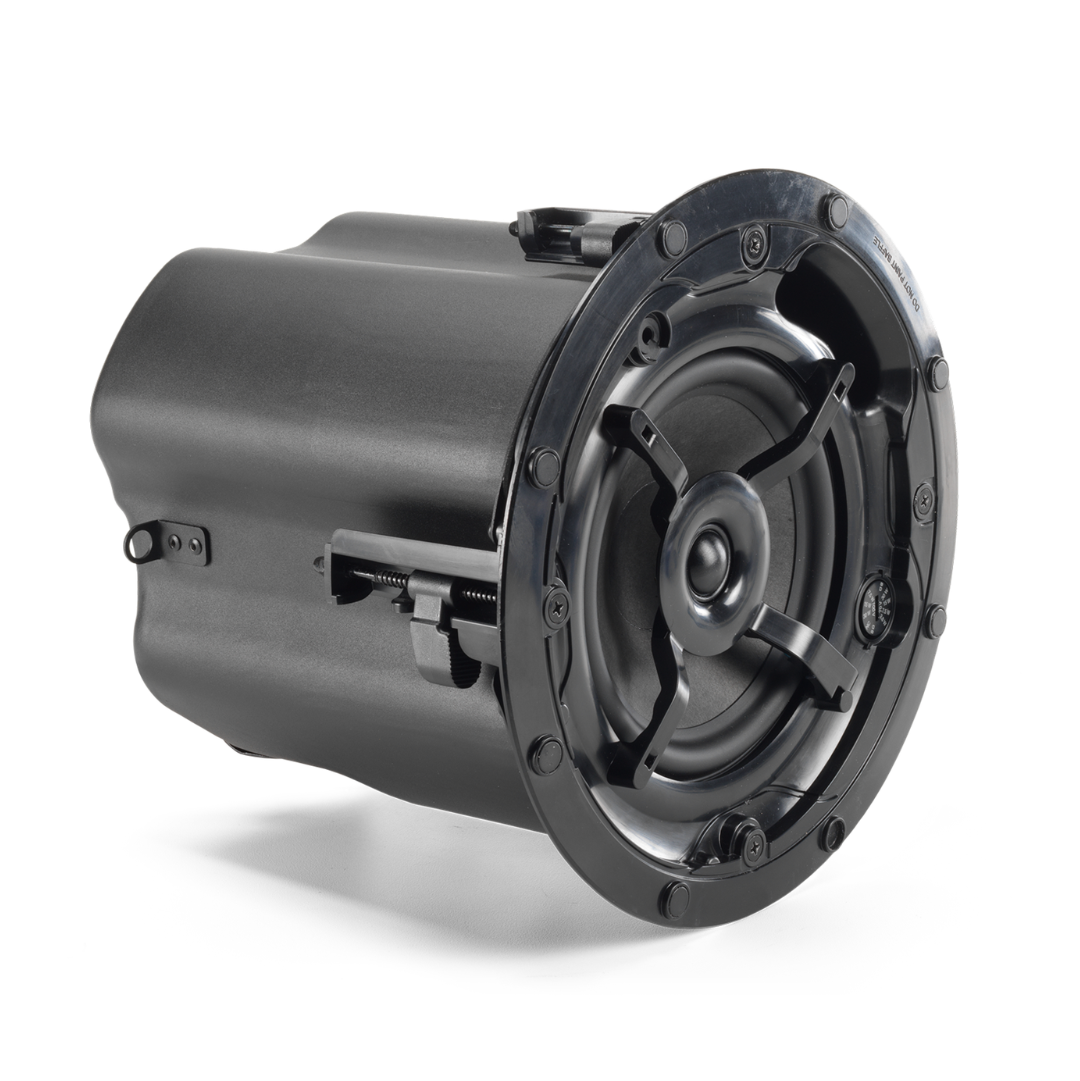

The JBL Control 416C/T is a two-way coaxial ceiling loudspeaker from the Control 400 Standard Coverage Series, designed for professional commercial audio installations. It features a 6.5-inch woofer and a 0.75-inch soft-dome tweeter with an integrated enclosure, making it suitable for installation in most ceiling plenum spaces.
The speaker supports both 70V / 100V distributed audio systems and 8-ohm low-impedance operation, offering flexibility for different sound system designs. Its full-face magnetic grille is paintable, allowing the speaker to blend seamlessly with modern interiors.
With 120° conical coverage, IP33 rating, top and side cable entry options, and a robust captive dogear mounting system, the Control 416C/T is ideal for offices, retail spaces, restaurants, hospitality areas, commercial interiors, background music, and paging applications.
More Information
Key Features
- Two-way coaxial ceiling loudspeaker
- Part of JBL Control 400 Standard Coverage Series
- 6.5-inch woofer with 0.75-inch soft-dome tweeter
- Integrated enclosure for ceiling plenum installation
- Supports 70V distributed audio systems
- Supports 100V distributed audio systems
- Supports 8-ohm direct input
- Built-in 70V / 100V multi-tap transformer
- Wide 120° conical coverage
- Full-face magnetic grille
- Paintable grille for décor matching
- Top and side cable entry options
- Robust captive dogear mounting design
- Suitable for a wide range of ceiling thicknesses
- IP33 rated design
- Suitable for commercial background music and paging applications
Technical Specification
- Brand: JBL
- Model Number: Control 416C/T
- Series: Control 400 Standard Coverage Series
- Product Type: Two-Way Coaxial Ceiling Loudspeaker
- SKU Number: JBL-C416C/T
- Frequency Range (-10 dB): 61 Hz – 20 kHz
- Power Capacity, 2-Hour Rating: 75 Watts Continuous Pink Noise / 300 Watts Peak
- Power Capacity, 100-Hour Rating: 50 Watts Continuous Pink Noise / 200 Watts Peak
- Sensitivity: 89 dB @ 1 W / 1 m
- Coverage Angle: 120° Conical
- Maximum SPL at 1 Metre: 108 dB Continuous Pink Noise / 114 dB Peak
- Nominal Impedance: 8 Ohms
- Transformer Taps at 70V: 30 W, 15 W, 7.5 W, 3.8 W
- Transformer Taps at 100V: 30 W, 15 W, 7.5 W
- Low-Frequency Driver: 165 mm / 6.5 Inch Woofer
- LF Cone Material: Paper Cone
- LF Surround Material: SBR Surround
- High-Frequency Driver: 20 mm / 0.75 Inch Soft-Dome Tweeter
- Ceiling Cutout Size: 223 mm / 8.8 Inches
- Dimensions: 233 mm Height × 261 mm Diameter
- Dimensions: 9.3 Inches Height × 10.4 Inches Diameter
- Backcan Depth: 222 mm / 8.9 Inches from bottom of ceiling tile to top of backcan
- Color: Stock grille is White, RAL9003, paintable
- Net Weight: 3.75 kg / 8.27 lbs
- Shipping Weight: 12.64 kg / 27.87 lbs, pair pack
- IP Rating: IP33
- Operating Temperature: 0°C to 45°C
- Safety Rating: UL 2043, NFPA 90A, NFPA 70, CSA C22.2 No. 205, UL 1480A
