Description

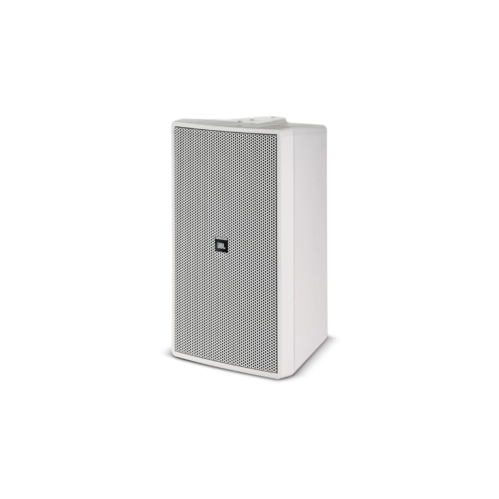

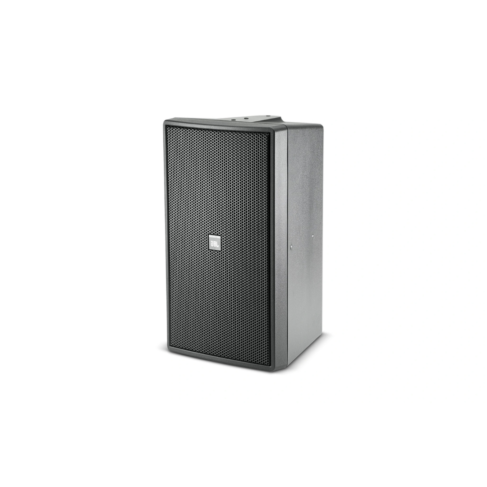

The JBL Control 29AV-1 is a premium indoor/outdoor monitor speaker designed for high-output foreground music, paging, and professional installation applications. It delivers extended bandwidth, smooth frequency response, and powerful performance with an 8-inch Kevlar cone woofer and 1-inch titanium diaphragm compression driver. With 300W continuous program power, 150W continuous pink noise power, 70V/100V transformer taps, and 8Ω thru operation, it is ideal for restaurants, retail stores, hospitality spaces, leisure venues, theme parks, educational facilities, and outdoor commercial installations.
More Information
Key Features
- Premium indoor/outdoor monitor speaker
- 8-inch Kevlar cone woofer
- 1-inch titanium diaphragm compression driver
- Extended bandwidth with smooth frequency response
- 300W continuous program power handling
- 150W continuous pink noise power handling
- 110° horizontal × 85° vertical rotatable horn coverage
- 110W transformer for 70V/100V systems
- Direct 8Ω thru operation support
- SonicGuard™ overload protection
- InvisiBall™ mounting hardware included
- Ten 6 mm attachment points for suspension
- Optional U-bracket mounting support
- Sealed input panel cover included
- Weather-resistant design for outdoor use
Technical Specification
- Model: JBL Control 29AV-1
- Speaker Type: Premium Indoor/Outdoor Monitor Speaker
- Woofer: 200 mm / 8 inch Kevlar Cone
- High Frequency Driver: 25 mm / 1 inch Titanium Diaphragm Compression Driver
- Frequency Range (-10 dB): 37 Hz – 18 kHz
- Frequency Response (±3 dB): 45 Hz – 18 kHz
- Power Capacity: 300W Continuous Program Power
- Continuous Pink Noise Power: 150W
- Transformer Taps at 70V: 110W, 55W, 28W, 14W
- Transformer Taps at 100V: 110W, 55W, 28W
- Thru Position: 8Ω Nominal
- Nominal Sensitivity: 90 dB, 2.83V / 1m
- Maximum SPL: 120 dB Short-Term / 114 dB Long-Term
- Coverage Angle: 110° H × 85° V, Rotatable
- Directivity Factor: 7.2 dB
- Directivity Index: 8.6 dB
- Nominal Impedance: 8Ω
- Minimum Impedance: 6.3Ω at 230 Hz
- Crossover Network: 3rd Order High-Pass / 2nd Order Low-Pass with Impedance Compensation
- Crossover Frequency: 2.5 kHz
- LF Driver Details: 200 mm Kevlar Cone with Pure Butyl Rubber Surround
- LF Voice Coil: 50 mm / 2 inch on Fiberglass Former
- HF Driver Details: Pure Titanium Diaphragm with JBL Diamond Surround
- Enclosure Material: High Impact Polystyrene
- Grille: Thermoset Composite Coated Steel with WeatherMax Multi-Layer Foam
- Overload Protection: Full-Range Power Limiting with Serviceable Internal Fuse
- Mounting Hardware: InvisiBall™ Mounting Hardware Included
- Suspension Points: Ten 6 mm Attachment Points
- Outdoor Rating: IEC 529 IP-X4
- Weather Resistance: Exceeds Mil Spec 810 for Humidity, Salt Spray, Temperature & UV
- Input Connector: Screw-Down Terminal Strip
- Wire Support: Up to 12 AWG / 2.5 mm²
- Safety Agency: Transformer Listed per UL1876
- Color Options: Black or White
- Dimensions: 520 × 306 × 277 mm
- Net Weight: 12.2 kg
- Shipping Weight: 14.0 kg
