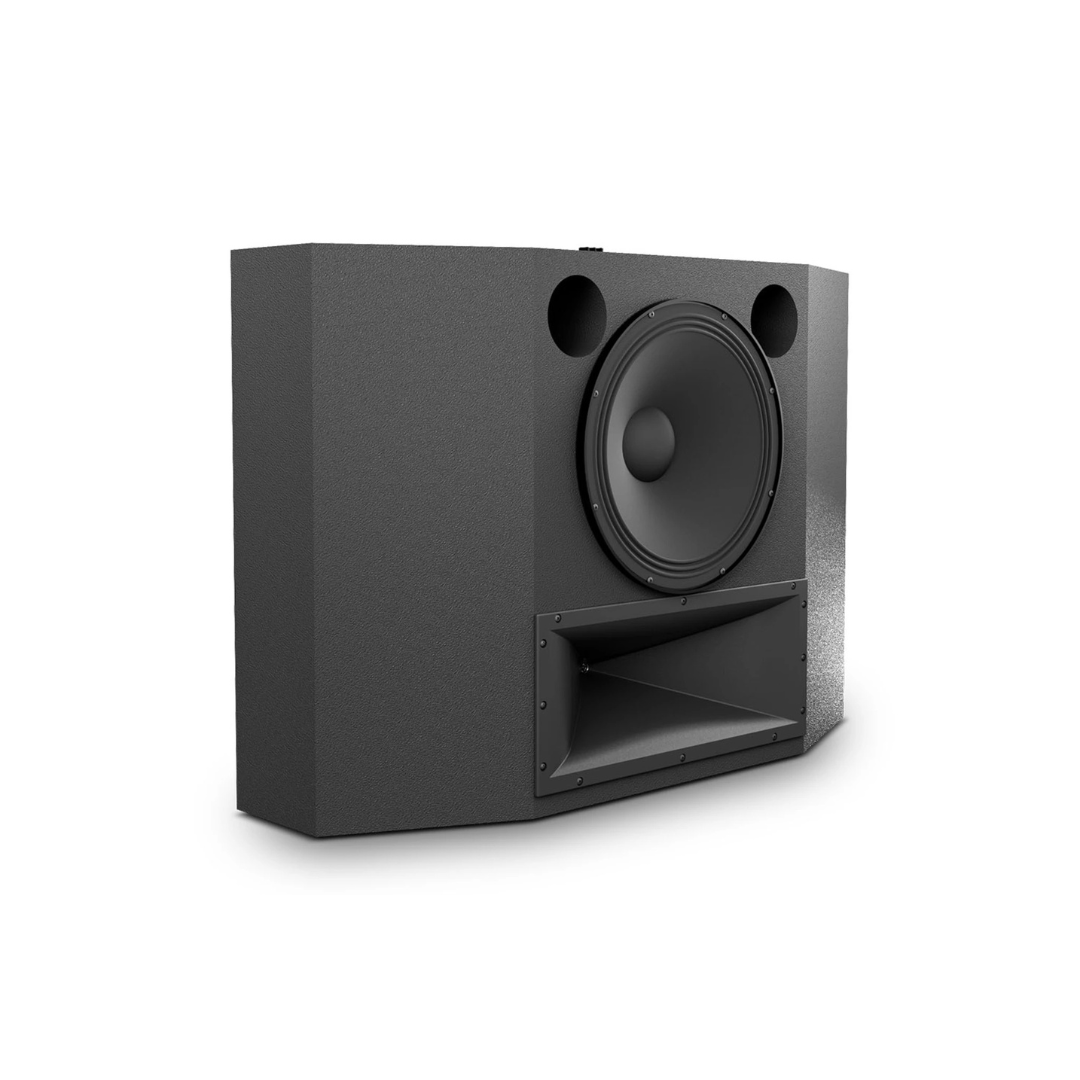

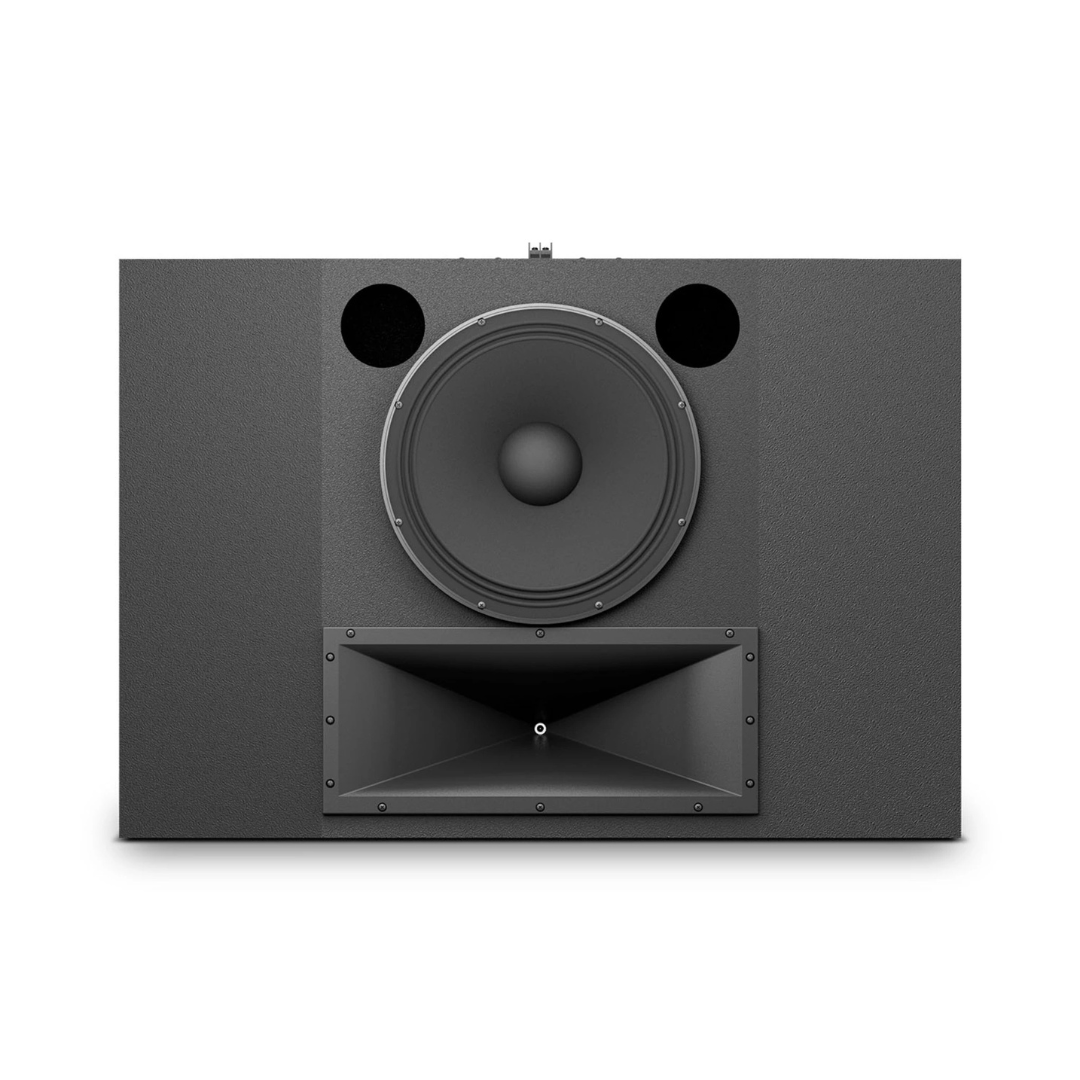

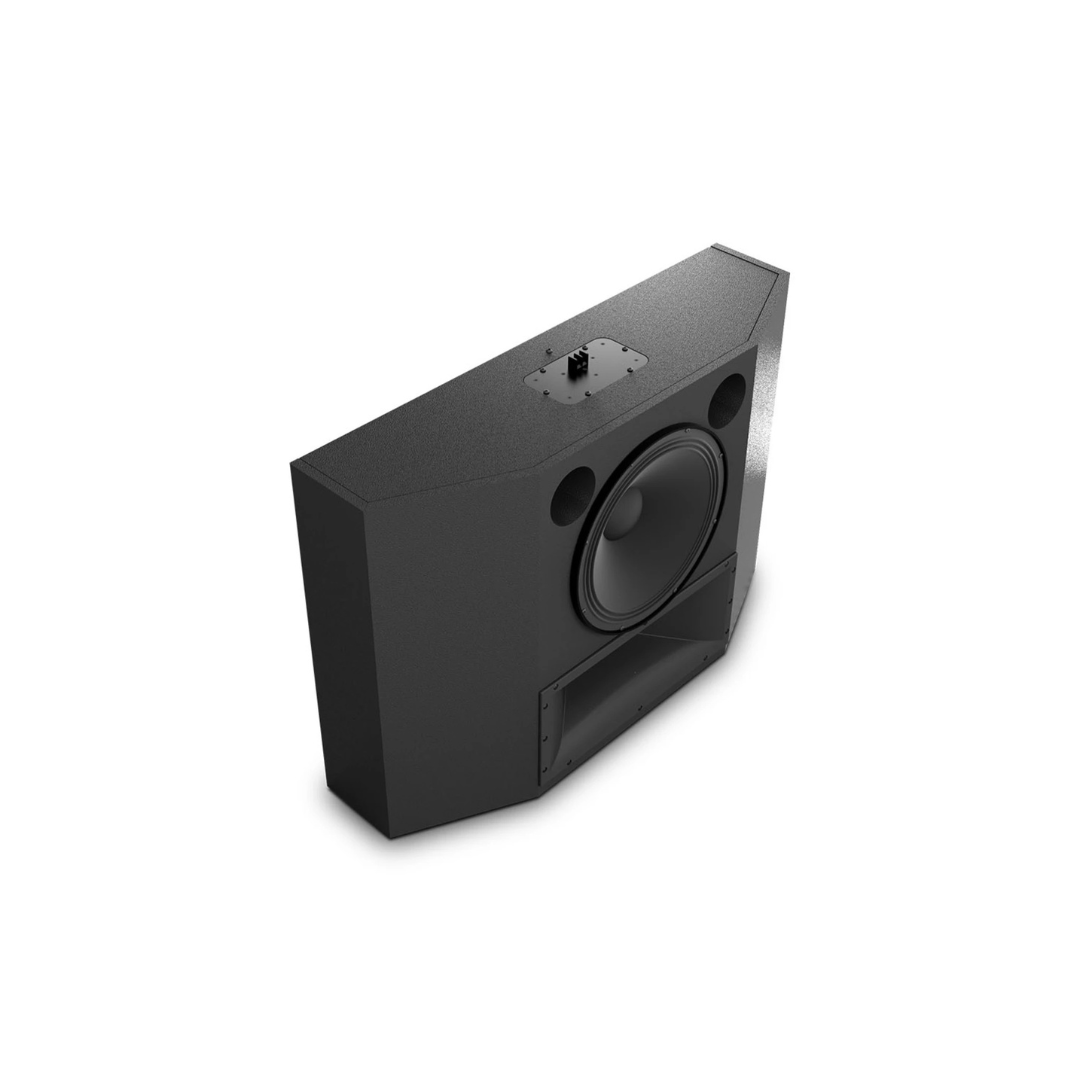

The JBL C211 Two-Way ScreenArray® Cinema Loudspeaker is designed to deliver a powerful, clear, and immersive cinematic audio experience in small and mid-sized theatres. Its compact 12-inch depth makes it an ideal choice for cinemas with limited installation space, VIP viewing rooms, and premium private screening areas.
The C211 incorporates JBL’s latest cinema sound technologies, including an advanced two-way ScreenArray® design and the 2409H high-frequency driver used in JBL 7 Series master reference studio monitors. These technologies help provide accurate sound reproduction, improved coverage, impressive output, and minimal distortion. With a calculated maximum SPL of 125 dB and a recommended furthest seating distance of 13.5 metres, the C211 ensures an engaging listening experience across the auditorium.
More Information
Key Features
- Two-way ScreenArray® cinema loudspeaker
- Designed for small and mid-sized cinemas
- Suitable for VIP rooms and premium private screening areas
- Compact 12-inch depth for space-saving installation
- Next-generation ScreenArray® design
- Designed for powerful sound output and improved coverage
- Helps minimize distortion during playback
- Equipped with the JBL 2409H high-frequency driver
- Uses the same HF driver technology found in JBL 7 Series master reference studio monitors
- Advanced passive crossover network
- Compatible with amplifier DSP processing for accurate playback
- 99 dB free-field sensitivity
- Calculated maximum SPL of 125 dB
- Rated impedance of 8 ohms
- Recommended furthest seating distance of 13.5 metres
- Suitable for cinemas with limited installation space
Technical Specification
- Brand: JBL
- Model Number: C211
- Product Type: Two-Way ScreenArray® Cinema Loudspeaker
- Frequency Response (±3 dB): 77 Hz – 14 kHz
- Frequency Range (-10 dB): 44 Hz – 18 kHz
- Free-Field Sensitivity: 99 dB SPL @ 1 W, 1 m
- Sensitivity: 99 dB @ 1 W, 1 m
- Calculated Maximum SPL: 125 dB
- Maximum SPL at 1 Metre: 125 dB
- Rated Impedance: 8 Ohms
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 7 Ohms @ 167 Hz
- Power Handling (2-Hour AES Rating): 300 Watts
- Power Handling (100-Hour AES Rating): 175 Watts
- Recommended Furthest Seating Distance: 13.5 Metres / 44.28 Feet
- Net Weight: 79 lbs / 35.82 kg
- Dimensions (H × W × D): 31 × 40 × 12 Inches
- Dimensions (H × W × D): 78.74 × 101.6 × 30.48 cm
