Description

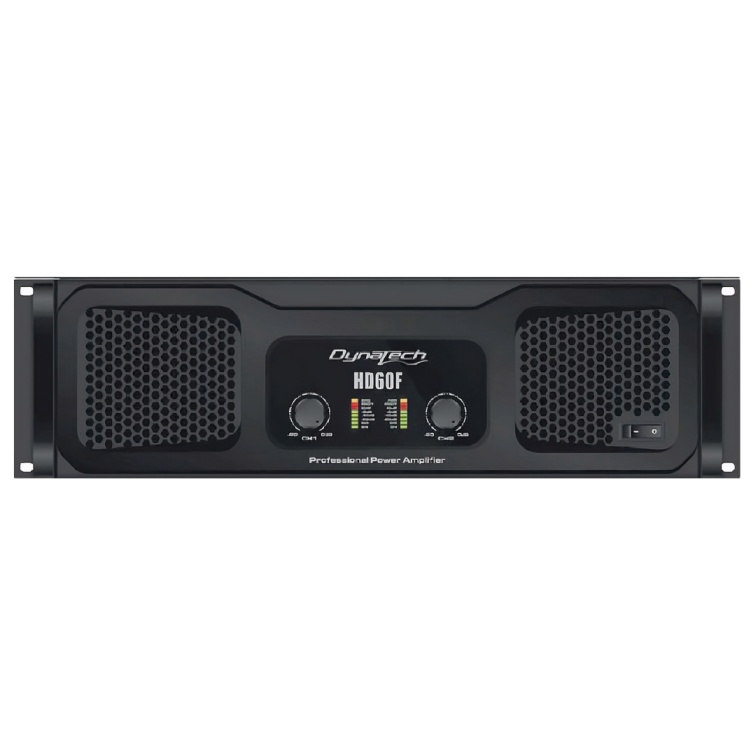

The Dynatech HD60F is a professional high-power Class-H amplifier designed for live sound, DJ systems, auditoriums, rental PA systems, and touring applications. Built around a robust toroidal transformer power supply, it delivers high output power, excellent reliability, and superior audio clarity. The amplifier features advanced protection circuits, variable-speed cooling fans, and support for Stereo, Parallel, and Bridge operation modes.
More Information
Key Features
- High-power Class-H amplifier design
- Heavy-duty toroidal transformer power supply
- Stereo, Parallel, and Bridge mode operation
- Front-to-rear airflow cooling system
- Variable-speed cooling fans
- High damping factor for tight bass performance
- Soft-start circuitry
- Clip limiter and peak current limiter
- Short-circuit, overload, DC, VHF, and thermal protection
- Balanced XLR input and link output
- NL4 Speakon and binding-post speaker outputs
- Suitable for professional DJ and PA applications
Technical Specifications
- Output Power @ 8Ω Stereo: 1150 W × 2
- Output Power @ 4Ω Stereo: 1800 W × 2
- Output Power @ 2Ω Stereo: 2400 W × 2
- Output Power @ 8Ω Bridge: 3300 W
- Output Power @ 4Ω Bridge: 4800 W
- Frequency Response: 20 Hz – 20 kHz (+0/-0.5 dB)
- THD+N: < 0.02%
- Signal-to-Noise Ratio: > 80 dB
- Damping Factor: > 1300
- Slew Rate: > 20 V/μs
- Input Sensitivity: 0.775 V / 1.0 V / 1.4 V selectable
- Input Impedance: 20 kΩ Balanced / 10 kΩ Unbalanced
- Voltage Gain: 41.85 dB
