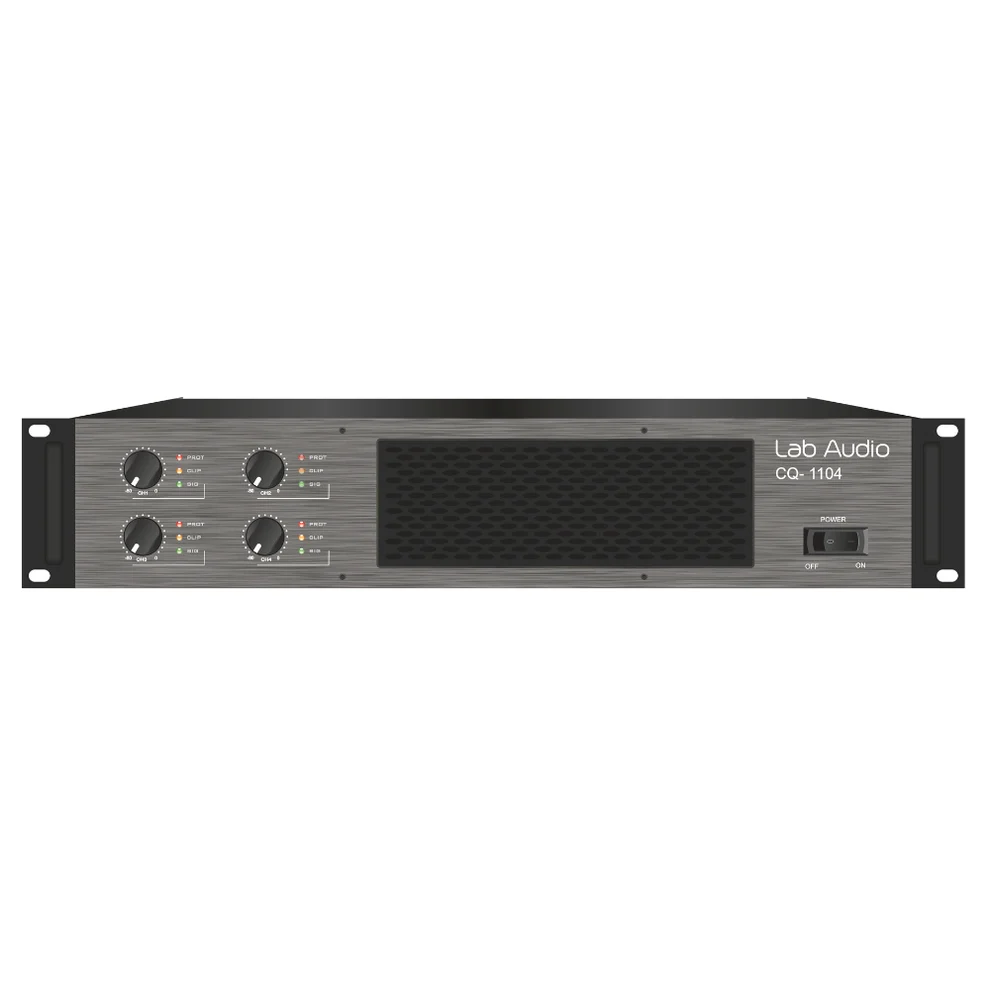

LAB AUDIO CQ 1104

Description

The CQ-series includes robust four-channel amplifiers, CQ-804 and CQ-1104, that deliver exceptional sound reinforcement in live performances, touring, and sound installations. Equipped with protective mechanisms against thermal issues, short circuits, and DC offset.

The CQ-series ensures automatic reconnecting to the speaker load in case of any error. This cost-effective and dependable series caters to both professionals and audio enthusiasts, making it an ideal solution for any audio application.

More Information

  • All-steal 2U/3U durable chassis construction.
  • European and Japanese components ensure optimal results.
  • Soft start upon start-up, overload, overheating, short circuit, DC output, peak voltage limit and intelligent clip protection.
  • Easy detachable amp plate boards help make service jobs easier.
  • High-speed fans start up for dusting functions and also help reduce temperature.
  • LED indicator for monitoring, status, and operating modes.

Technical Specification

No. Of Channels – 4

MAX Output Power RMS 1KHz

2Ω – 1350 W

4Ω – 1100 W

8Ω – 620 W

Bridge 4Ω – 2700 W

Bridge 8Ω – 2200 W

Frequency Response

Power Bandwidth +/-0.50dB – 20Hz-22kHz

Total Harmonic Distortion

20Hz – 20kHz – 0.05%

Cross Talk

20Hz – 20kHz – ≥72dB

Input Sensitivity

@ 8 Ω – 1.4V

Signal-to-Noise-Ratio

A Weighted – >101

Protection Circuits – Short Circuit, DC Offset & Overheat

Rack Mount Space – 2U

Dimensions / W x H x D (mm) – 483 x 88 x 406

/ W x H x D (inches) – 19 x 3.5 x 16

Weight – 24Kg
