Description
The Yamaha DXS18XLF-D / DXS18XLF-DW is a premium Dante-enabled powered subwoofer designed to deliver exceptional low-frequency performance for professional live sound and installed audio systems. Equipped with an 18-inch high-output woofer, a powerful 1600W Class-D amplifier, and advanced 96kHz DSP processing, it produces an impressive maximum SPL of 136 dB with outstanding clarity, depth, and impact.
More Information
Key Features

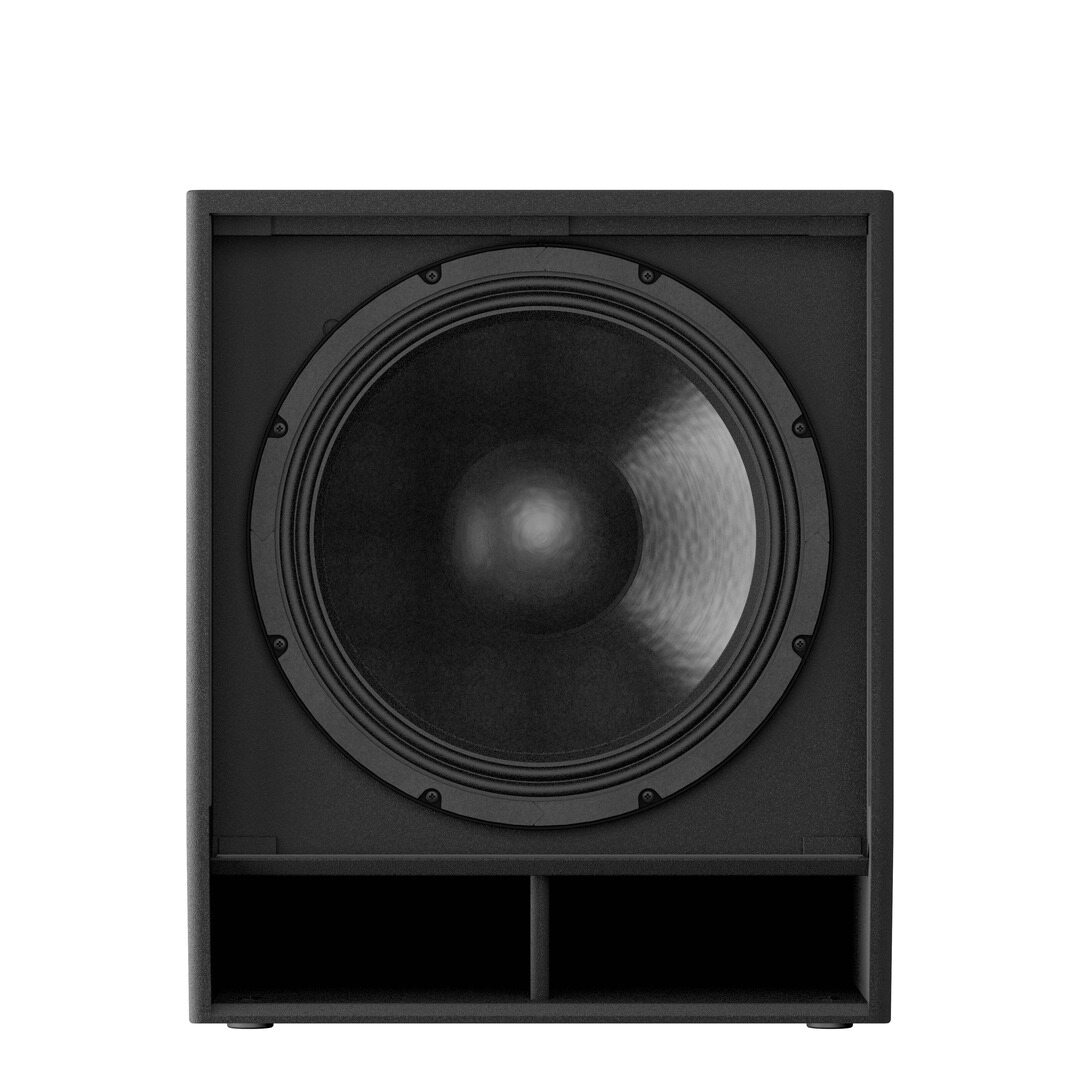

- Powered 18″ woofer with 4″ voice coil
- 1600W high-efficiency Class-D amplifier
- Maximum SPL of 136 dB
- Dante I/O (2-in/2-out) with Sample Rate Conversion (SRC)
- High-resolution 96kHz DSP processing
- D-XSUB processing for enhanced low-frequency extension
- Cardioid Mode for improved bass control

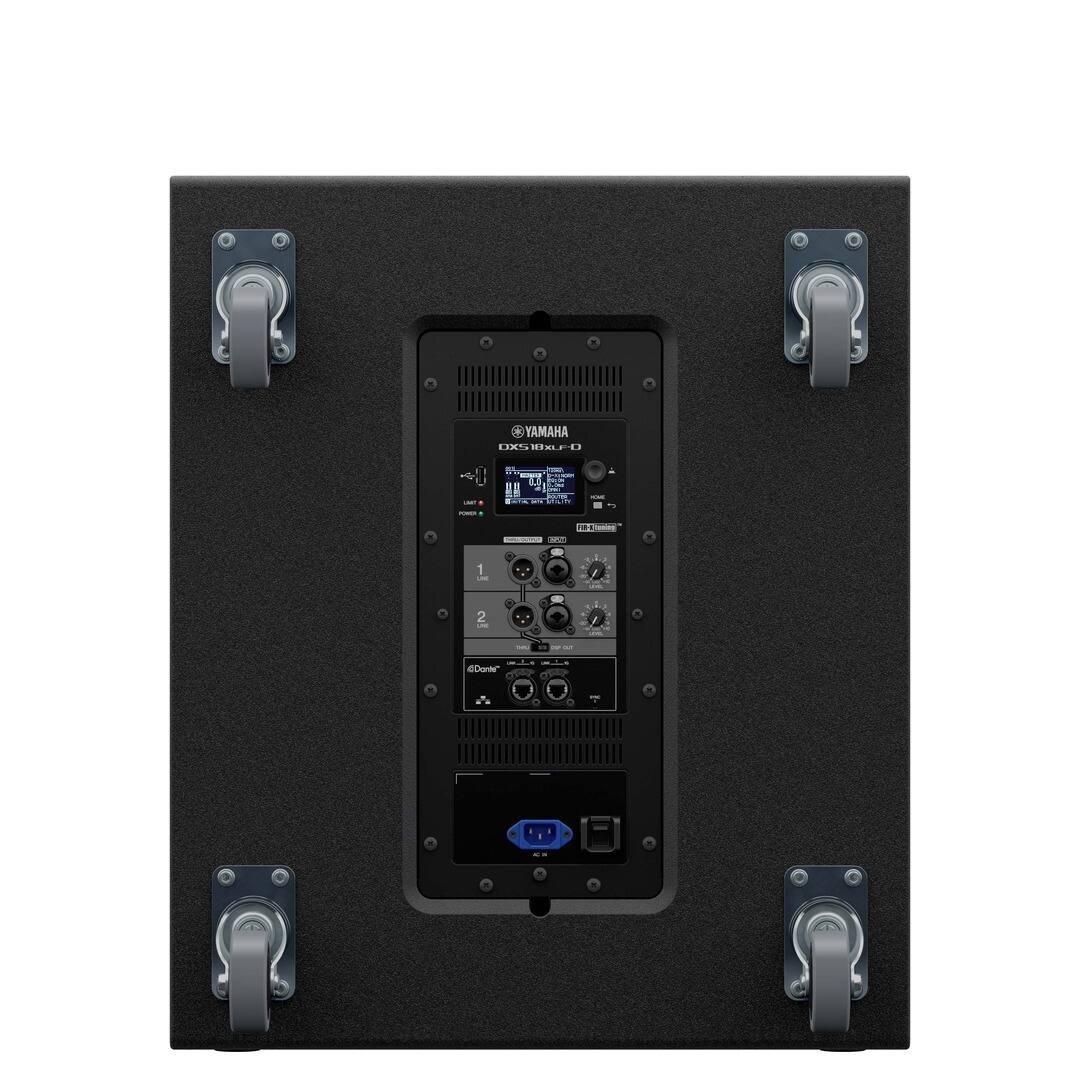

- LCD display for DSP, routing, delay, and EQ adjustments
- Durable plywood cabinet with premium Polyurea coating

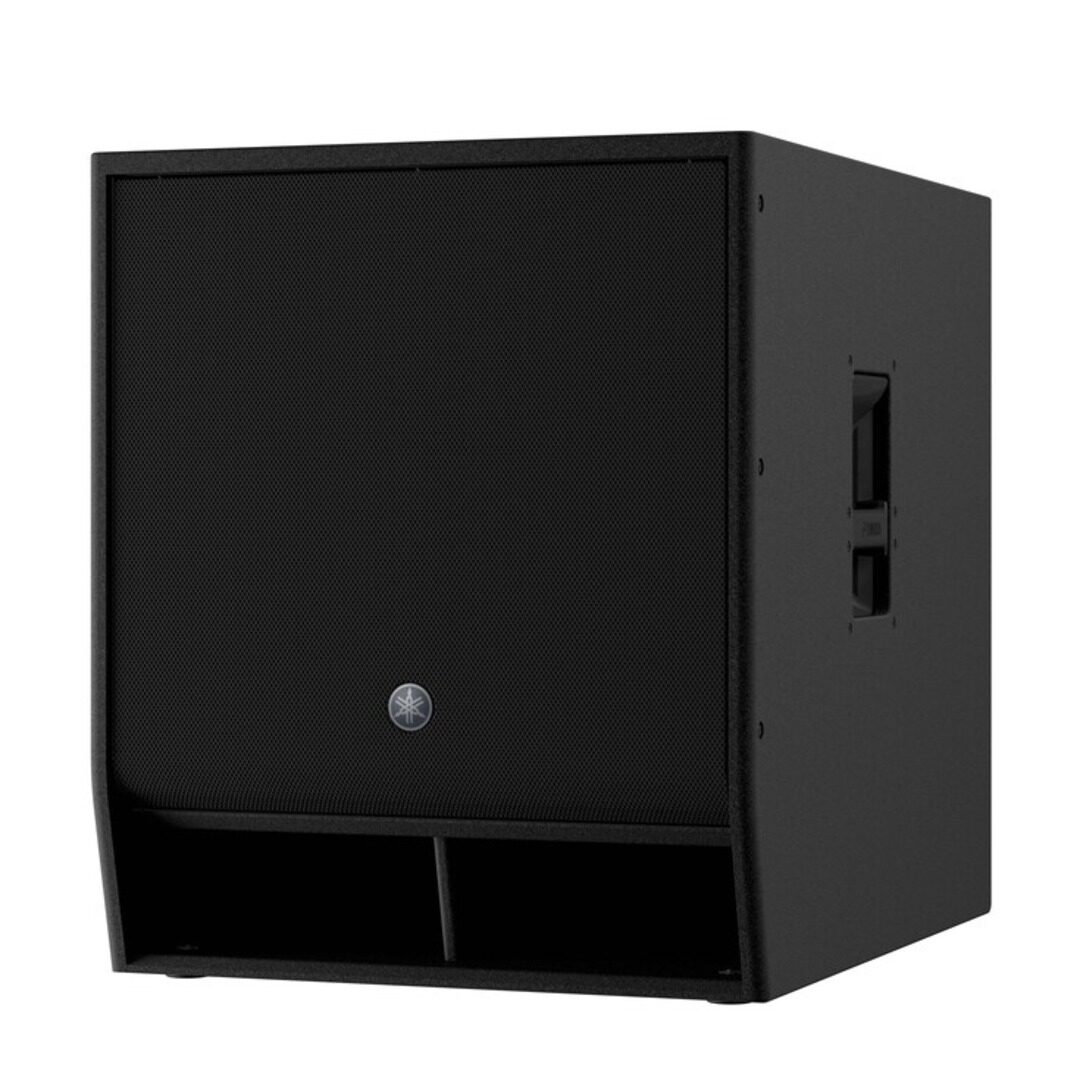

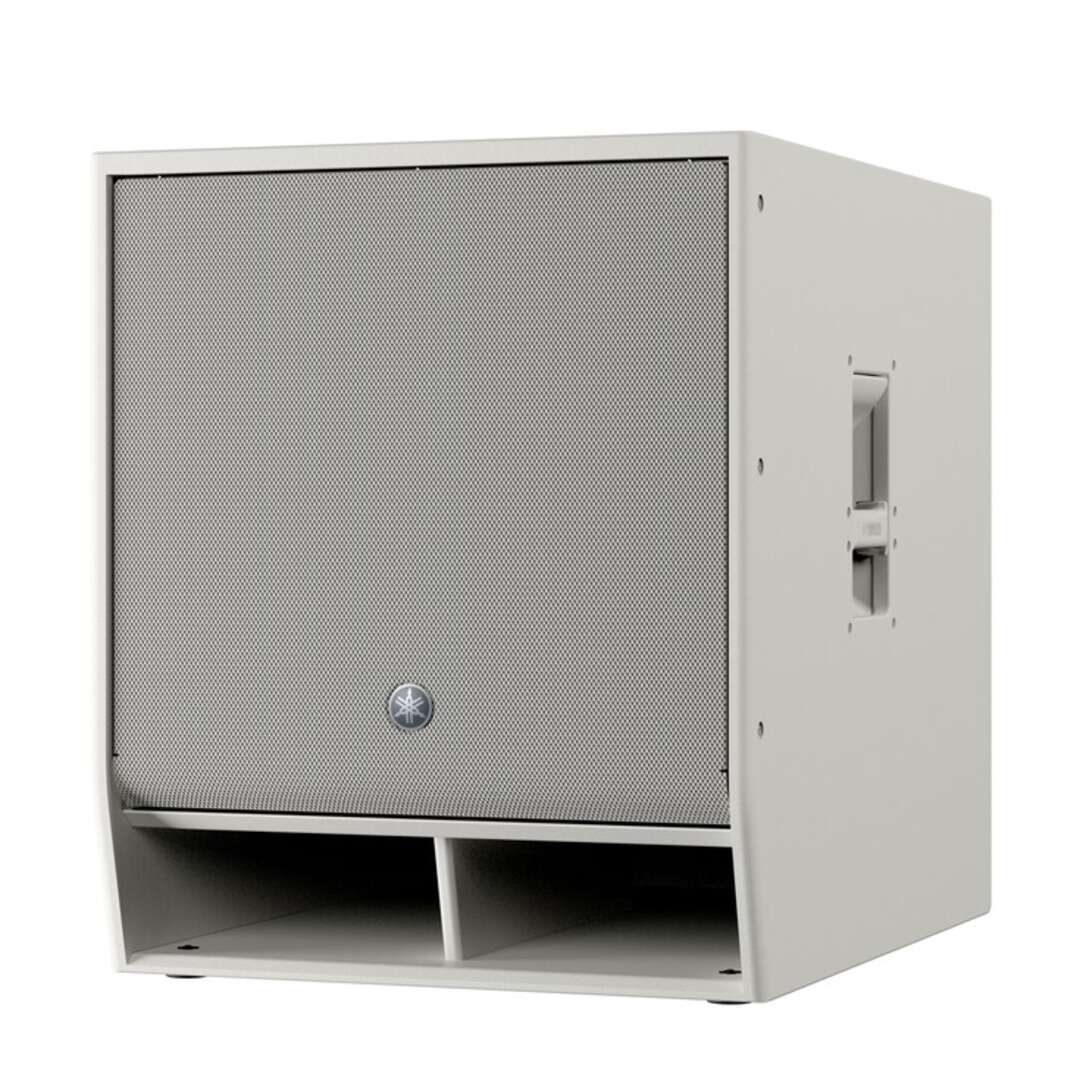

- Available in Black (DXS18XLF-D) and White (DXS18XLF-DW) finishes
Technical Specifications
- Speaker Type: Powered Bass-Reflex Subwoofer
- LF Driver: 18″ Woofer, 4″ Voice Coil
- Amplifier Type: Class-D
- Power Output: 1600W
- Maximum SPL: 136 dB
- Frequency Range: 30 Hz – 150 Hz
- DSP Processing: 96kHz DSP
- Network Audio: Dante 2-In / 2-Out with SRC
- DSP Functions: D-XSUB, Cardioid Mode, PEQ, Delay, Routing Presets
- Cabinet Material: Plywood with Polyurea Coating
- Finish Options: Black (DXS18XLF-D) / White (DXS18XLF-DW)
- Optional Accessories: SPCVR-DXS18X Cover, SPW-1 Wheel Kit
- Applications: Touring Sound, Concerts, Houses of Worship, Theaters, Corporate Events, and Professional Installations
